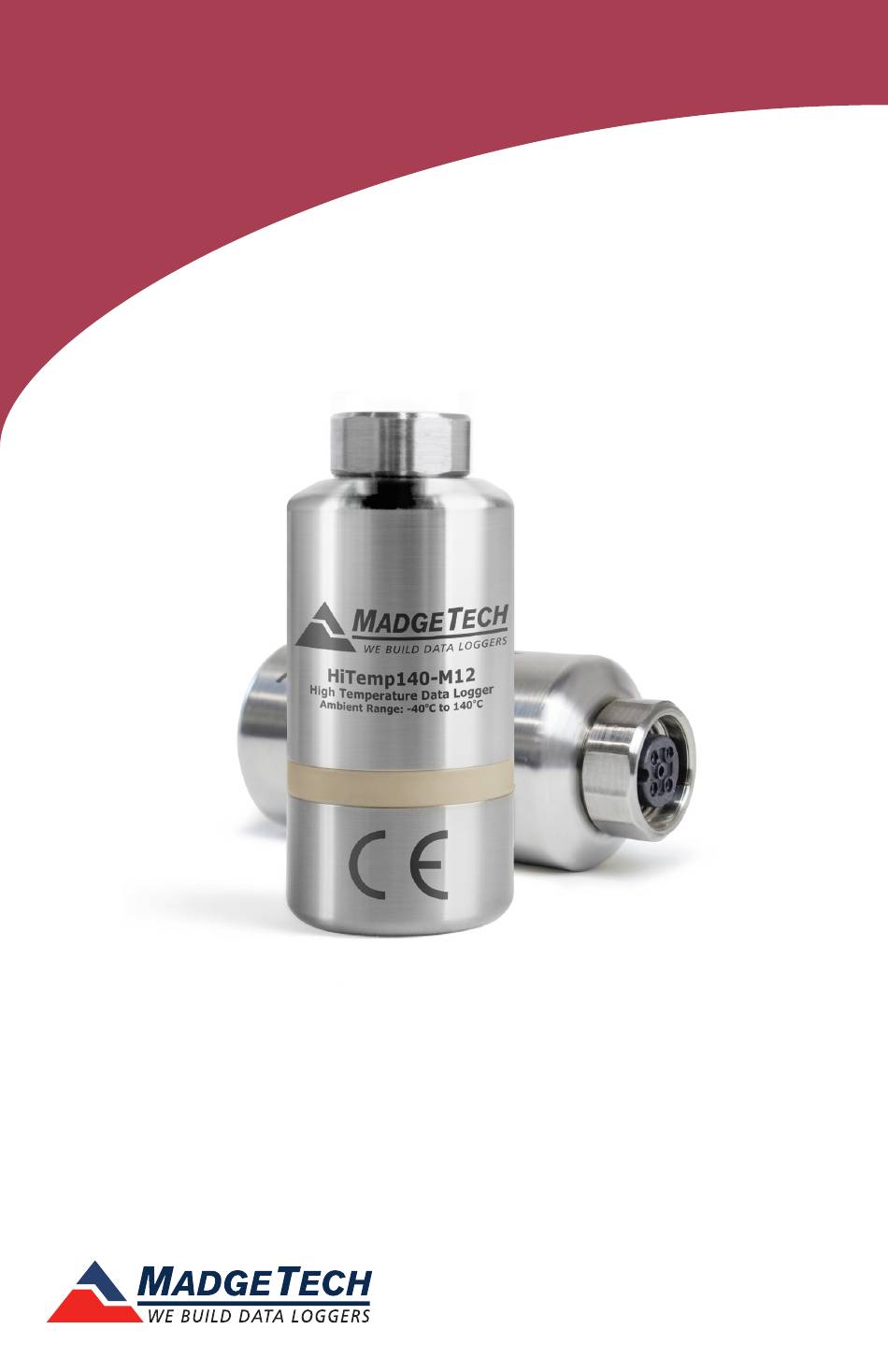

- Page 1 Product User Guide HiTemp140-M12 HiTemp140-M12 High Temperature Data Logger with an M12 Probe Connector To view the full MadgeTech product line, visit our website at www.madgetech.com.
-
Page 2: Table Of Contents
Installation Guide ........... 3 Device Operation ........... 3 Wiring the Data Logger ........4 Probe Connection .......... 4 Product Maintenance ........5 RMA Instructions ........... 5 General Specifications ........6 To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Product Overview
A wide selection of compatible M12 probes are available on the market to choose from, making the HiTemp140-M12 the most dynamic data logger of its kind. With the ability to change probes as needed, this device satisfies a multitude of application needs with one powerful data logger versus the need for multiple loggers. -
Page 4: Installation Guide
- IFC400 or IFC406 Refer to the “Quick Start Guide” included in the package. Installing the software The MadgeTech 4 software can be dowloaded at the following link www.madgetech.com/ software-download. Follow the instructions provided in the Wizard to complete download... -
Page 5: Wiring The Data Logger
Wiring the Data Logger HiTemp140-M12 connector is a 4 pin female M12 connection port which allows the user to change probes as desired. The HiTemp140-M12 will inherit the IP rating of the probe it is attached to, (up to, and including IP68/IP69K). -
Page 6: Product Maintenance
Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com To send devices to MadgeTech for calibration, service or repair, please use the MadgeTech RMA Process by visiting www.madgetech.com, then under the services tab, select RMA Process. -
Page 7: General Specifications
2.15 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) Dimensions (probe) Probe dependent Weight 85 g (3.0 oz) Materials Body: 316 Stainless Steel Approvals *Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range. - Page 8 MadgeTech, Inc. 6 Warner Road Warner, NH 03278 Phone 603.456.2011 Fax 603.456.2012 www.madgetech.com info@madgetech.com DOC-1312036-00 REV 2 01.22.2018...
