Page 1: Operating Instructions

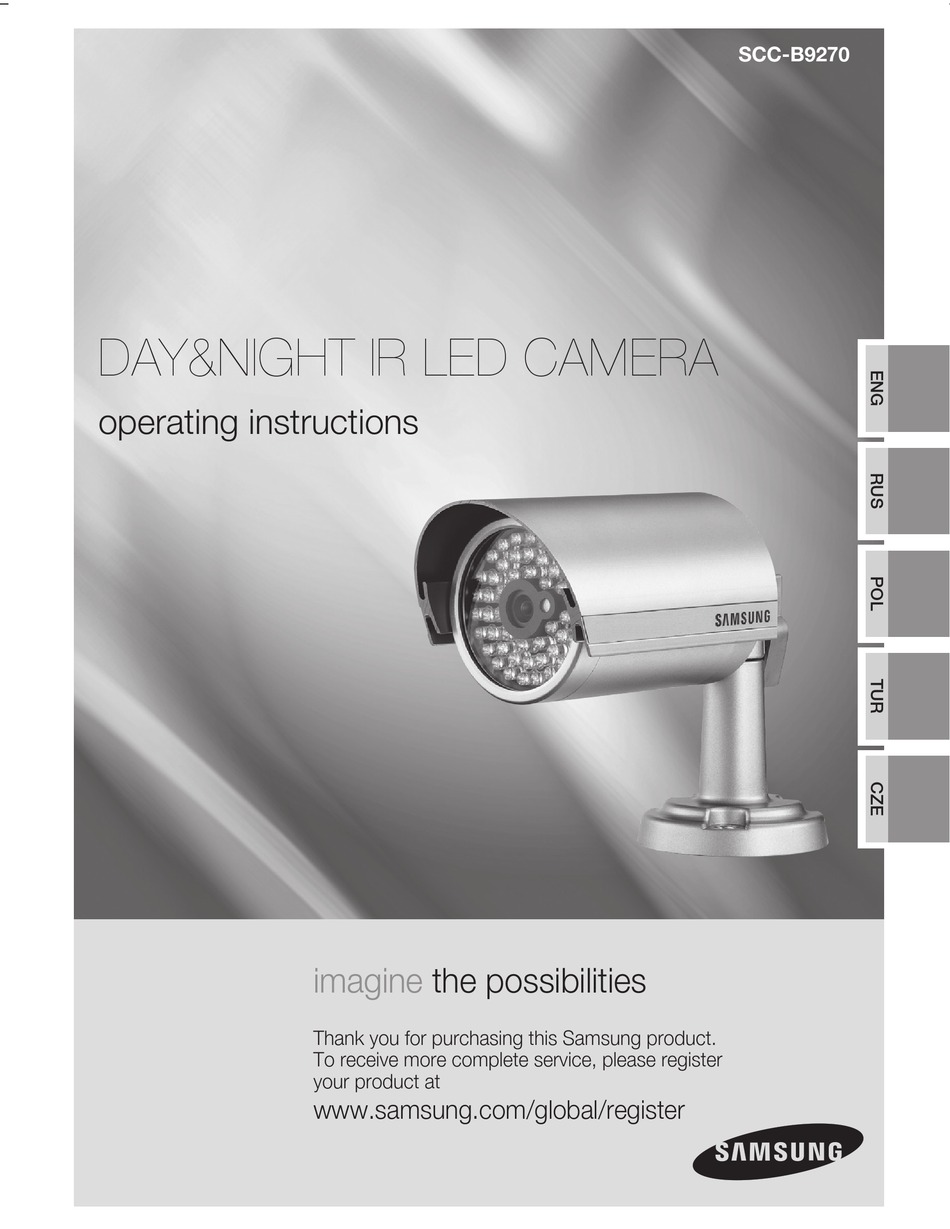

DAY&NIGHT IR LED CAMERA operating instructions imagine Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register the possibilities SCC-B9270... -
Page 2: Safety Precautions
Continued use in such a condition may cause fire or electric shock. 9. If this product fails to operate normally, contact the nearest service centre. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.) 10. - Page 3 CAUTION 1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference. 2. Do not install in a location subject to high temperature (over 50˚C), low temperature (below -10˚C), or high humidity.
-
Page 4: Important Safety Instructions
important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
contents FEATURES THINGS TO KEEP IN MIND DURING INSTALLATION AND USE DIMENSIONS & CABLE CONNECTION INSTALLATION TROUBLESHOOTING SPECIFICATIONS Features Things to keep in mind during installation and Dimensions & cable connection Installation Troubleshooting Specifications contents... -
Page 6: Features
features SONY Super HAD High/Standard Resolution Color CCD • Resolution: 350 TVL • CDS Auto Switching IR-LED control (48pcs IR-LED) • 0 Lux at IR LED ON • 4.3mm DC Fixed IRIS F2.0 Day&Night Lens • DC12V Power Source • Waterproof Outdoor Installation (IP-66) •... -
Page 7: Dimensions & Cable
dimensions & cable connection installation First : There are three mounting holes on the bracket so that users can install • the unit in any place such as on the ceiling and wall. Second : Fix the camera on the bracket. •... -
Page 8: Troubleshooting
Monitor Impedance - Set the impedance switch to 75 standard position. - When monitor is set to high impedance mode, the picture may become blurred. In this case, check the switch position of monitor impedance. Fourth : Turn the camera direction to the picture that you want to display. •... -
Page 9: Specifications
specifications ITEM 1/3" Interline transfer type Color CCD (SONY) Image Sensor Effective Pixels 500H x 582V (290K pixels) 625 Lines 2:1 Interlace Scanning System Scanning Frequency 15.625KHz (H), 50Hz (V) Resolution 350TVL 1/50~1/100,000 sec. Shutter Speed S/N Ratio More than 48dB (AGC Off) Internal Sync. - Page 10 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
