Eaton DALI Installation Manual

DALI Control Panel
Installation guide

Introduction

The DALI control panel provides complete
control of pre-programmed lighting scenes
within a DALI lighting control system. The
adaptable design allows you to choose from
a range of button combinations, which can be
fitted and changed at any time. Where fitted,
raise and lower buttons compliment the usual
selection buttons to allow immediate changes to
the intensity of any scene.

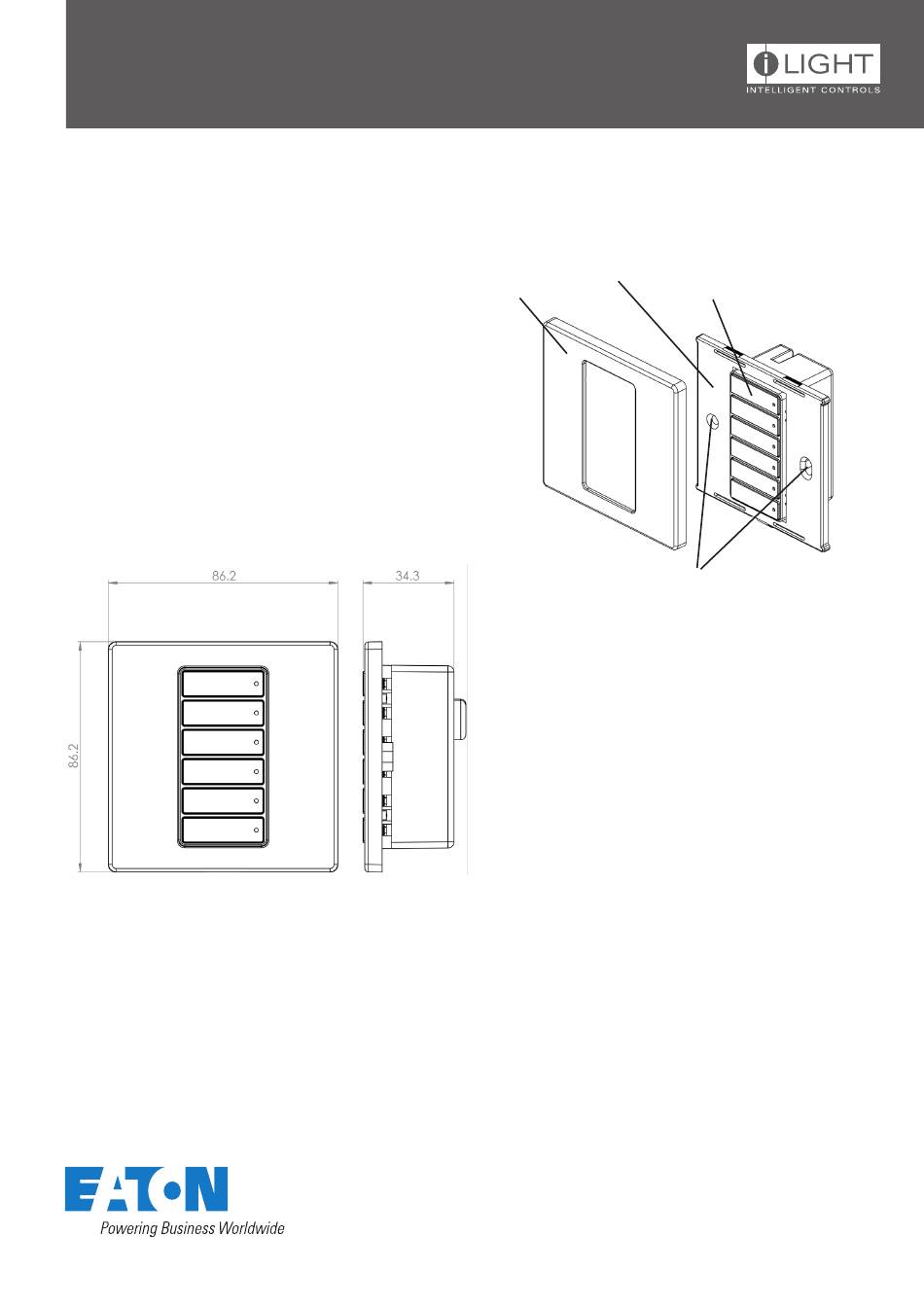

Dimensions

Supplied parts

Back Plate
Front Cover

Fixing to a wallbox

The DALI control panel fits into a single gang UK style
wall box with a minimum internal depth of 47mm.
With control panel disassembled (see above), use the
two supplied long screws to secure the back plate to
the wall box.
Document 9850-000521-00
Button Assembly
Screw holes for attaching
to wall box
P1
