WZ 1200 Multi Sensor manual
Please read the manual carefully and familiarize yourself with the functions of the unit before
using it. Retain these instructions for future reference and pass them on together with the
device when you pass on the device to other users.

Scope of delivery:

1 x Multi-Purpose Sensor
1 x Instruction manual

Technical Data

Operating voltage: 9 V
, max. 1 mW
Battery type: 6LR61 (9 V block)

Detector depths:

Beam (STUD): max. 19 mm ± 3 mm
Metal (METAL): max. 30 mm ± 13 mm
Voids (DEEP): max. 38 mm ± 5 mm
AC voltage (AC): max. 50 mm (only with lines which carry 230 V~ 50 Hz)

Product Overview

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WZ 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technoline WZ 1200

Summary of Contents for Technoline WZ 1200

  • Page 1: Scope Of Delivery

    WZ 1200 Multi Sensor manual Please read the manual carefully and familiarize yourself with the functions of the unit before using it. Retain these instructions for future reference and pass them on together with the device when you pass on the device to other users.

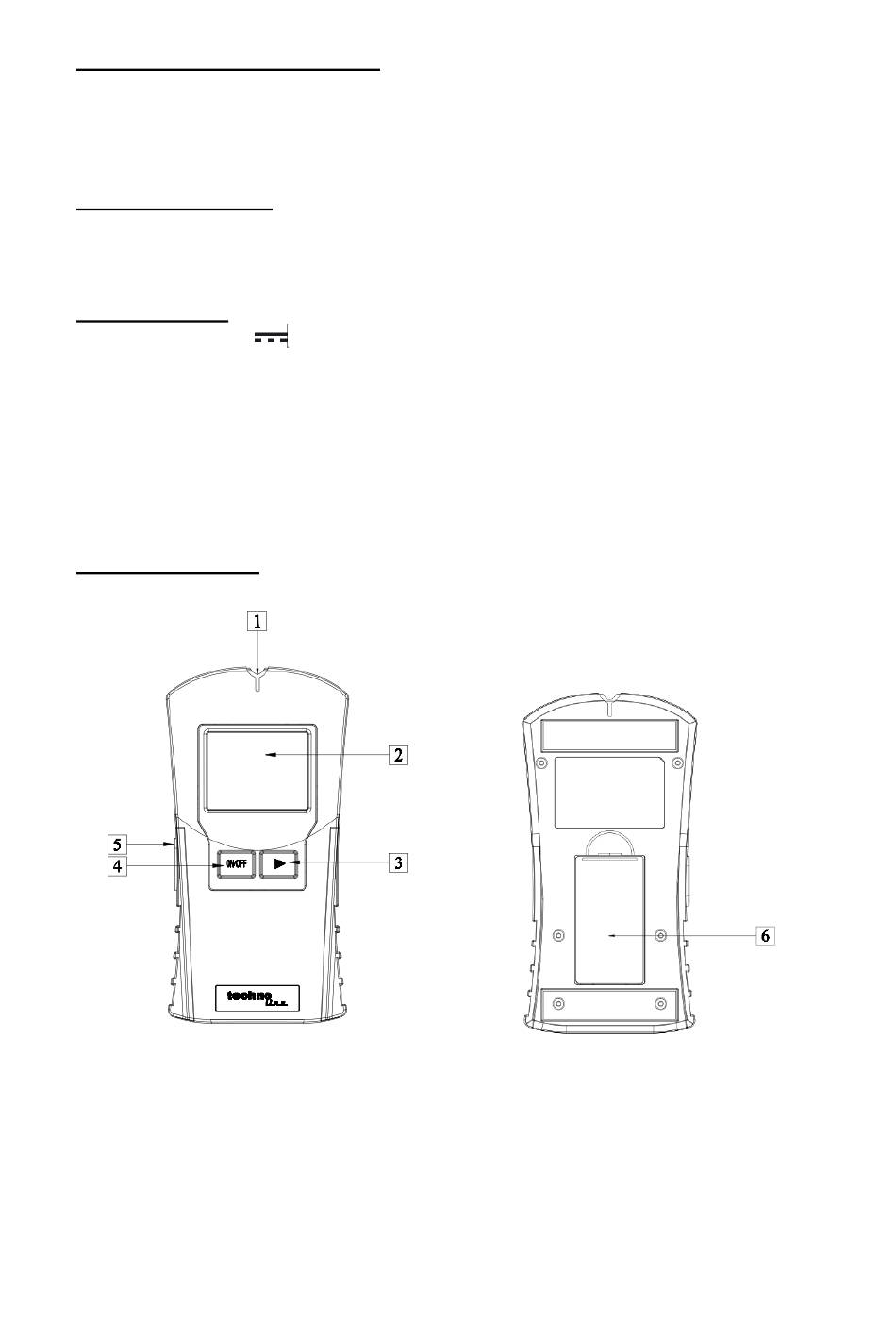

  • Page 2 Fig. A: Fig. B:...

  • Page 3: General Safety Information

    Fig. C: (1) Measuring head (8) Intensity display ( (2) Display (3) Selection button (►) (9) Battery symbol ( (4) ON / OFF button (5) PUSH button (“Measure”) (10) Selection arrow (▼) (6) Battery compartment (11) AC voltage search (AC) (12) Void search (DEEP) (7) Voltage sign ( (13) Metal search (METAL)
  • Page 4 Inserting / changing the battery If the battery symbol (9) appears in the display, the inserted battery is almost drained and must be replaced. Empty batteries can falsify the measured result. To insert the battery proceed as follows: Open the battery compartment cover on the back of the device. You can remove the used ●...

  • Page 5: Cleaning And Care

    If the detector is exactly over the search object, a continuous signal tone sounds. ● In the case of a search for a power line, the voltage sign ( ) (7) also appears in addition ● to the intensity display. Tips on measurement The calibration button must remain pressed during the entire search process (calibration ●...
  • Page 6 Batteries safety warnings Don’t use rechargeable batteries.   Install batteries correctly by matching the polarities (+/-).  Remove exhausted batteries immediately.  Remove batteries when not in use.  Do not recharge and do not dispose of batteries in fire as the batteries may explode. ...
