Kramer W-2UC Installation Instructions

The Kramer Dual USB Charger
Congratulations on purchasing your Kramer dual USB charger with two USB connectors for charging
devices (such as iOS and Android devices) that is available as: W-2UC, a dual insert and as
WP-2UC, a Decora® style one gang insert.
Defining the Dual USB Charger

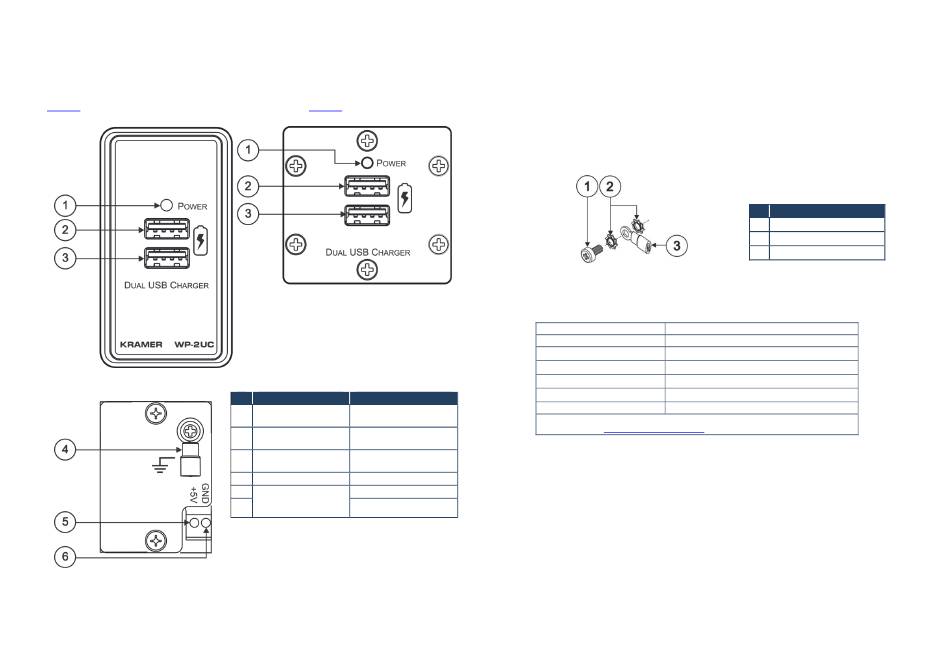

Figure 1 defines the front panels of the W-2UC and WP-2UC and
Figure 1: WP-2UC and W-2UC Front Panels
Figure 2: WP-2UC and W-2UC Rear Panel
Figure 2 defines their rear panel.
# Feature Function
1 Power LED Lights when the unit
receives power
2 Top USB Connector Connect to a device for
charging
3 Lower USB Connector Connect to a device for
charging
4 Grounding Screw Connect to grounding wire
5 Power Supply 2-pin Connect +5V to +5V
Terminal Block
6
Connect GND to GND
Connector
Mounting the W-2UC
To mount a Kramer insert or connector module:
1. Place the Kramer insert over the opening.
2. Insert the four screws (two on each side) to fix the Kramer insert in place, and tighten them.
Mounting the WP-2UC
The WP-2UC Decora® style one gang insert can be fitted into a Decora® style faceplate.
Grounding the Dual USB Charger
The grounding screw is used to earth the chassis of the unit to the ground of the building to help
prevent static electricity from impacting on the performance of the unit.
Figure 3: Grounding Connection Components
Technical Specifications
PORTS: 2 USB connectors
POWER CONSUMPTION: 5V DC, 4A
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F)
HUMIDITY: 10% to 90%, RHL non-condensing
INCLUDED ACCESSORIES: Power supply
WEIGHT: 0.14kg (0.31lbs) approx.
Specifications are subject to change without notice
Go to our Web site at http://www.kramerelectronics.com
# Component Description
1 M3X6 screw
2 1/8" Toothed Lock Washer
3 M3 Ring Tongue Terminal
