Samsung RM255LARS Owner's Manual And Installation

Samsung side by side refrigerator owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Write the model and serial number here:
Model #
Serial #
These numbers can be found on the label on
the left side of the refrigerator's cabinet.
OWNER'S MANUAL AND INSTALLATION
operation/performance, parts, accessories or service, call:
Register your product at www.samsung.com/global/register

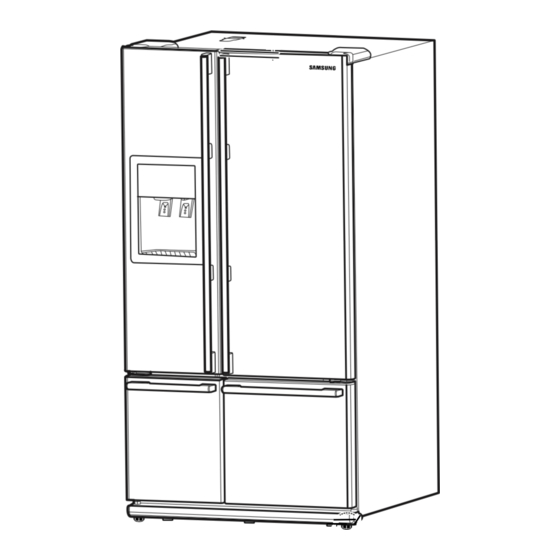

SIDE BY SIDE
REFRIGERATOR
RM25*****
CONTENTS
...............................................................2
........................................................4
SETTING UP THE REFRIGERATOR .........................................................4
MAJOR FEATURES .....................................................................................4
CONTROL PANEL........................................................................................5
DIGITAL PANEL............................................................................................6
TEMPERATURE CONTROL .......................................................................7
ICE AND COLD WATER DISPENSER ......................................................7
SHELVES AND BINS ...................................................................................8
FOOD STORAGE GUIDE ...........................................................................9
DRAWER GUIDE ..........................................11
DRAWER GUIDE............................................12
REMOVING THE FREEZER ACCESSORIES..........................................13
REMOVING THE FRIDGE ACCESSORIES...........................................13
CLEANING THE ACCESSORIES .............................................................15
CHANGING THE INTERIOR LIGHT .........................................................16
WATER FILTER ..........................................................................................18
DOORS.......................................................................................................18
INSTALLATION OF THE REFRIGERATOR .............................................19
ADJUSTING THE HEIGHT BETWEEN THE DOORS .............................21
REMOVING THE REFRIGERATOR DOORS ...........................................23
REATTACHING THE REFRIGERATOR DOORS......................................28
CHECKING THE WATER DISPENSER LINE...........................................31
INSTALLATION OF THE WATER DISPENSER LINE...............................32
BEFORE YOU CALL FOR SERVICE........................................................35
....................................................................37
WARRANTY ...............................................................................................37
In the U.S., for questions about features,
1-800-726-7864 (1-800-SAMSUNG)
www.samsung.com
................................................19
DA68-01516A REV(0.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM255LARS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung RM255LARS

Summary of Contents for Samsung RM255LARS

  • Page 1: Table Of Contents

    INSTALLATION OF THE WATER DISPENSER LINE...32 BEFORE YOU CALL FOR SERVICE...35 CONSUMER SUPPORT WARRANTY ...37 In the U.S., for questions about features, operation/performance, parts, accessories or service, call: 1-800-726-7864 (1-800-SAMSUNG) Register your product at www.samsung.com/global/register SIDE BY SIDE REFRIGERATOR RM25***** CONTENTS ...2 ...4 DRAWER GUIDE ...11...

  • Page 2: Safety Warning Signs

    SAFETY WARNING SIGNS • Before operating the appliance, please read and retain this manual thoroughly for your reference. • Because the following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual.
  • Page 3 If the refrigerator is not to be used for a long period of time, pull out the power plug. • Deterioration in the insulation may cause fire.

  • Page 4: Operating Instructions

    SETTING UP THE REFRIGERATOR Once you have performed the following steps, your refrigerator should be fully operational. If not, check the power supply and electricity source. If you have any questions, contact your SAMSUNG Electronics service center. Place the refrigerator in an appropriate location with reasonable clearance between the wall and the refrigerator.

  • Page 5: Control Panel

    CONTROL PANEL Freezer Button Set the desired temperature of the freezer com- partment or select/cancel the Power Freeze by pressing this button. Temperature Range of Freezer Compartment : -14°F ~ 6°F (Recommended Setting Temperature: -2°F) The freezer temperature bars shift in 5 steps according to the temperature setting of the freezer compartment.

  • Page 6: Digital Panel

    DIGITAL PANEL • The upper left part of display shows the Freezer compartment information. Freezer The two digit number indicates the current freezer temperature. There are 5 level bars that indicate the current freezer setting temperature from -14°F ~ 6°F. (5 bars is coldest setting) The “Power Freeze” indicator shows that the Power freeze function is working.

  • Page 7: Temperature Control

    This quantity may be influenced by factors such as the freezer temperature, Power Freeze function and the number of door openings. When your refrigerator is plugged in, the Cubed ice mode is automatically selected . Press the Ice Type button to choose cubed ice, crushed ice or Ice off to stop making ice.

  • Page 8: Shelves And Bins

    SHELVES AND BINS Freezer & Fridge Door Bin Ice Bucket Ice Chute Tray Shelf (on some models) Drawer Door Bin (Tilt Pocket) Arctic Select Zone and Fresh Select Zone Drawer Partition Water Filter Dairy Bin Spill Proof Glass Shelf Foldable Shelf (on some models) Egg Container (on some models)

  • Page 9: Food Storage Guide

    FOOD STORAGE GUIDE FROZEN FOOD STORAGE IN FREEZER Ice Chute Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket, as this may result in personal injury or material damage. WARNING Door Bin (Tilt Pocket) •...
  • Page 10 Bottles should be stored tightly together so that they do not fall out. NOTE • If you have a long vacation planned, empty the refrigerator and turn it off. Wipe excess moisture from the inside and leave the doors open. Otherwise, odor and mold may develop. •...

  • Page 11: Arctic Select Zone

    Arctic Select Zone Drawer GUIDE Convertible Function • By pressing the “Arctic Select Zone” button, you can select the proper temperature function for your foods. • It changes in sequence Power Freeze, Freeze, Soft Freeze and Cool. Power Freeze • You can use “Power Freeze”...

  • Page 12: Fresh Select Zone

    Fresh Select Zone Drawer GUIDE Fresh Function • By pressing the “Fresh Select Zone” button, you can select proper temperature function for your foods. • It changes in sequence Soft Freeze, Chill, Cool and Fresh. Soft Freeze • You can use “Soft Freeze” function to help keeping meat and fish fresh for longer than the Fridge. •...

  • Page 13: Removing The Freezer Accessories

    • Lift it up and pull the cover. • To reattach the front leg cover, attach it closely to the refrigerator, then slide it down. • Do not use excessive force when removing the cover. It may cause an NOTE...

  • Page 14: Removing The Arctic Select Zone Accessories

    REMOVING THE ARCTIC SELECT ZONE ACCESSORIES Open the Arctic Select Zone Door. Hold the front side of cover, and pull it out. Lift the front side of basket first, and take it out carefully (using both hands). REMOVING THE FRESH SELECT ZONE ACCESSORIES Open the Fresh Select Zone Door.

  • Page 15: Cleaning The Accessories

    • Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock. • Do not clean it with benzene, thinner or car detergent. It may cause a fire.

  • Page 16: Changing The Interior Light

    CHANGING THE INTERIOR LIGHT Before changing the interior light, unplug the refrigerator from the power supply. If you have difficulty in changing the light, contact your service center. WARNING Light bulbs may be hot. CAUTION INTERIOR LIGHT IN THE FRIDGE...
  • Page 17 Use replacement bulb size A15, maximum 40 watts. INTERIOR LIGHT IN ARCTIC & FRESH SELECT ZONE The Arctic & Fresh Select Zone light is located in the bottom of partition in the refrigerator. Open the door of the compart- ment where you want to replace the lamp, and empty it of all food.

  • Page 18: Water Filter

    Water Filter installed. DOORS The refrigerator doors have a special door opening and closing feature to make sure that the doors close all the way and are securely sealed. When opening the door, it will only open so far. After reaching a certain point, it will remain open.

  • Page 19: Installation Instructions

    • See “Separating the water supply line from the refrigerator” on the next page. Allow sufficient space for air circulation of the internal cooling system. • When the refrigerator does not have enough space, the internal cooling system may not work correctly. 1/8 inch •...
  • Page 20 INSTALLATION OF THE REFRIGERATOR LEVELLING If the front of the appliance is slightly higher than the rear, the door can be opened and closed easier. The appliance tilts down to the left. Turn the left adjusting leg in the direction of the arrow with a flat head screwdriver until the appliance is level.

  • Page 21: Adjusting The Height Between The Doors

    ADJUSTING THE HEIGHT BETWEEN THE DOORS Please level the refrigerator first The doors will be uneven if the refrigerator is not level. Case 1) Freezer door is lower than the refrigerator door. Case 2) Freezer door is higher than the fridge door Do not make small adjustments with the control lever, Please refer to the next page.

  • Page 22: Making Small Adjustments Between Doors

    4) After adjusting the doors, please insert enclosed fastener-ring (⑤) using a plier (⑥) in the gap between the hinge-grommet (⑦) and the hinge-mid (⑧). The number of the fastener-ring to insert depends on the gap. Four fastener-rings are enclosed with the refrigerator. NOTE adjustment part...

  • Page 23: Removing The Refrigerator Doors

    REMOVING THE REFRIGERATOR DOORS Removing the Front Leg Cover Unscrew two phillips screws from the front leg cover. Pull the front leg-cover down with both hands and remove it by lifting it up with the upper rib. Then, disengage the lower hooks.

  • Page 24: Removing The Freezer Door

    REMOVING THE REFRIGERATOR DOORS Removing the Freezer Door 2) Disengage the hooks on the connector - cover ( ➃ ) protecting the connector and open it. Push the lever-hook (➄) on the connector and disconnect the wires. 3) Pull and open the latch (➅), and take off the door hinge (➆) along the arrow.

  • Page 25: Removing The Fridge Door

    REMOVING THE REFRIGERATOR DOORS Removing the Fridge Door 1) With the door closed, remove the upper hinge cover (➀) using a screwdriver. 2) Pull and open the latch (➁), and take off the door hinge ( ➂ ) along the arrow.
  • Page 26 REMOVING THE REFRIGERATOR DOORS How to Disassemble the Arctic Select Zone Door 1) Open the Arctic Select Zone Door. 3) Remove the phillips screw holding it to the liner on the left side of the rail. 4) Remove the phillips screw holding it to the liner on the right side of the rail.
  • Page 27 REMOVING THE REFRIGERATOR DOORS How to Disassemble the Fresh Select Zone Door 1) Open the Fresh Select Zone Door. 3) Remove the phillips screw holding it to the liner on the left side of the rail. 4) Remove the phillips screw holding it to the liner on the right side of the rail.

  • Page 28: Reattaching The Refrigerator Doors

    REATTACHING THE REFRIGERATOR DOORS Reattaching the Freezer Door 1) Reattach a phillips screw ( ➀ ) and two hex head screws (➁) to the hinge completely. 3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the hinge brackets (➆).

  • Page 29: Reattaching The Fridge Door

    REATTACHING THE REFRIGERATOR DOORS Reattaching the Fridge Door 1) Reattach a phillips screw ( ➀ ) and two hex head screws (➁) to the hinge completely. 3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the hinge brackets (➆).

  • Page 30: Reattaching The Front Leg Cover

    REATTACHING THE REFRIGERATOR DOORS Reattaching the Front Leg Cover FRONT LEG COVER HOOK Hold the front leg-cover with both hands and insert it by sliding the hooks along the guide at the bottom. Then, lift up the leg-front-cover a little bit and snap the upper ribs into the locking tabs.

  • Page 31: Checking The Water Dispenser Line

    In this range, a 6 oz paper cup can be filled in 10 secs. 2) The water filter removes particles. It does not sterilize or destroy any micro-organisms. 3) If the refrigerator is installed in an area with low water pressure (below 20psi), you should install a booster pump to compensate.

  • Page 32: Installation Of The Water Dispenser Line

    INSTALLATION OF THE WATER DISPENSER LINE Connect the water line to the refrigerator. 1) Slip the compression nut and plastic ferrule through the plastic tube. 2) After inserting the sleeve, tighten the compres- sion nut onto 1/4” compression fitting(union). Do not overtighten the compression NOTE nut.
  • Page 33 INSTALLATION OF THE WATER DISPENSER LINE Remove any residual matter inside the water supply line after installing filter. 1) Turn on the main water supply & shut-off the valve of the water supply line. 2) Run water through the dispenser until the water runs clear (6~7 minutes).
  • Page 34 INSTALLATION OF THE WATER DISPENSER LINE 3) Important Facts About Your Dispenser : Do not add ice from trays or bags to the storage bin. It may not crush or dispense well. Avoid overfilling glass with ice and use of narrow or extra-tall glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut.

  • Page 35: Before You Call For Service

    • Did you store the food with a high water content in the coldest part of the refrigerator. Unusual noises or • Is the back of the refrigerator too near to the sounds are heard wall? • Was anything dropped behind or under the refrigerator? •...
  • Page 36 • Press and hold the CHILD LOCK for 3 seconds. • Dispense water until all water in system is replenished. • Wait 24 hours for the refrigerator to completely cool down. • Dispense water until all water in system is replenished.

  • Page 37: Limited Warranty To Original Purchaser

    SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
  • Page 38 MEMO...
  • Page 39 MEMO...
  • Page 40 ADDRESS : SAMSUNG ELECTRONICS AMERICA, INC. 105 Challenger Road Ridgefield Park, NJ 07660-0511 1-800-SAMSUNG(1-800-726-7864) www.samsung.com...
