INSTRUCTIONS MANUAL
MODEL
Before operating the appliance, please read this manual carefully and keep
it properly for future reference.
Follow the instructions and the related safety precaution in this manual
before your proper operation.
Our products are improved constantly and it will be subject to change
without notice.
Please join in our product registration in the following website.
www.samsung.com/global/register
RL34EG*
RL34EC*
RL34SC*
RL34SG*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung RL34EC series
Summary of Contents for Samsung RL34EC series
- Page 1 INSTRUCTIONS MANUAL MODEL RL34EG* RL34EC* RL34SC* RL34SG* Before operating the appliance, please read this manual carefully and keep it properly for future reference. Follow the instructions and the related safety precaution in this manual before your proper operation. Our products are improved constantly and it will be subject to change without notice.
-
Page 2: Table Of Contents
Removing the Accessories...12 Changing the opening directions of the doors...13 Troubleshooting...15 Technical Parameters and Electrical Diagram...17 Welcome to buy the world famous SAMSUNG Refrigerator! This manual includes RL34EG*, RL34EC*, RL34SC* and RL34SG*. As these four models have similar structure, RL34EG* is the main descriptive subject. -
Page 3: Parts Description
Lower drawer The refrigerator has abnormal sounds. The temperature in the refrigerator is reduced by the running of the compressor and the circulation of the refrigerant etc to ensure the freshness and nutrition of the foods in the refrigerator. During the running of the refrigerator, you can hear some slight sounds. It is... -
Page 4: Changing The Direction Of The Door Opening
HING-UPP. Take down COVER DOOR UPP and fridge door. 2. Take down SCREW A, SCREW E and MID HINGE, and then the refrigerator door. Take down CAP HINGE HOLE, CAP SCREW CABI and SCREW F. Then fix them at right. -
Page 5: Preparing The Appliance For Use
HANDLE LOW, CAP HANDLE, and CAP SPACER DOOR, and install them at the right of the door. Install CAP HOLEDOOR on the left of the door. 6.Install the freezer's door, and fix MID HINGE with SCREW A and SCREW E. Fix the refrigerator's door with SCREW A and HINGE UP L. -
Page 6: Installation Instructions
In case of any natural disasters (i.e. storm, accident), if the refrigerator has been soaked in water, you should go to the appointed local SAMSUNG service centre for repair. You can use it again only when you make sure if there is no problem. -
Page 7: Control Panel
Super Freeze 1. Power Button 1-1.While the refrigerator is running, all the lamps will be off and the appliance stops Running if you press the button and hold for 3 seconds; 1-2.If you press the button again and hold for 3 seconds, it will start running again and the temperatures will be set at the levels before you turned it off. -
Page 8: Food Storage Instructions
Vacation Function Button 4-1.Once you press the vacation function button, the refrigerator will be shifted to the vacation mode. The refrigerator will be turned off and the refrigerator temperature lamp will also be off. You will see Vacation lamp turned on. - Page 9 When the appliance is connected with the power for the first time , all the displays will be on for 2 seconds. The refrigerator temperature will be automatically set at 3 temperature will be set at -20 . The door opening alarm is on while the refrigerator and freezer temperatures are displayed.
-
Page 10: Electrical Diagram
Technical Parameters MODEL RL34EG RL34EC DESCRIPTION SN-T Climate Type Electrical Shock Protection Class Total Effective Capacity Effective Capacity Refrigerator Freezer À ä ¶ ³ Ê Ò 220V-240V/50Hz/0.45A Rated volgage/ Frequency/Current Total Input Power (W) Defrost Power (W) Max. Power of Lamp(W)
Need help?
Do you have a question about the RL34EC series and is the answer not in the manual?
Questions and answers

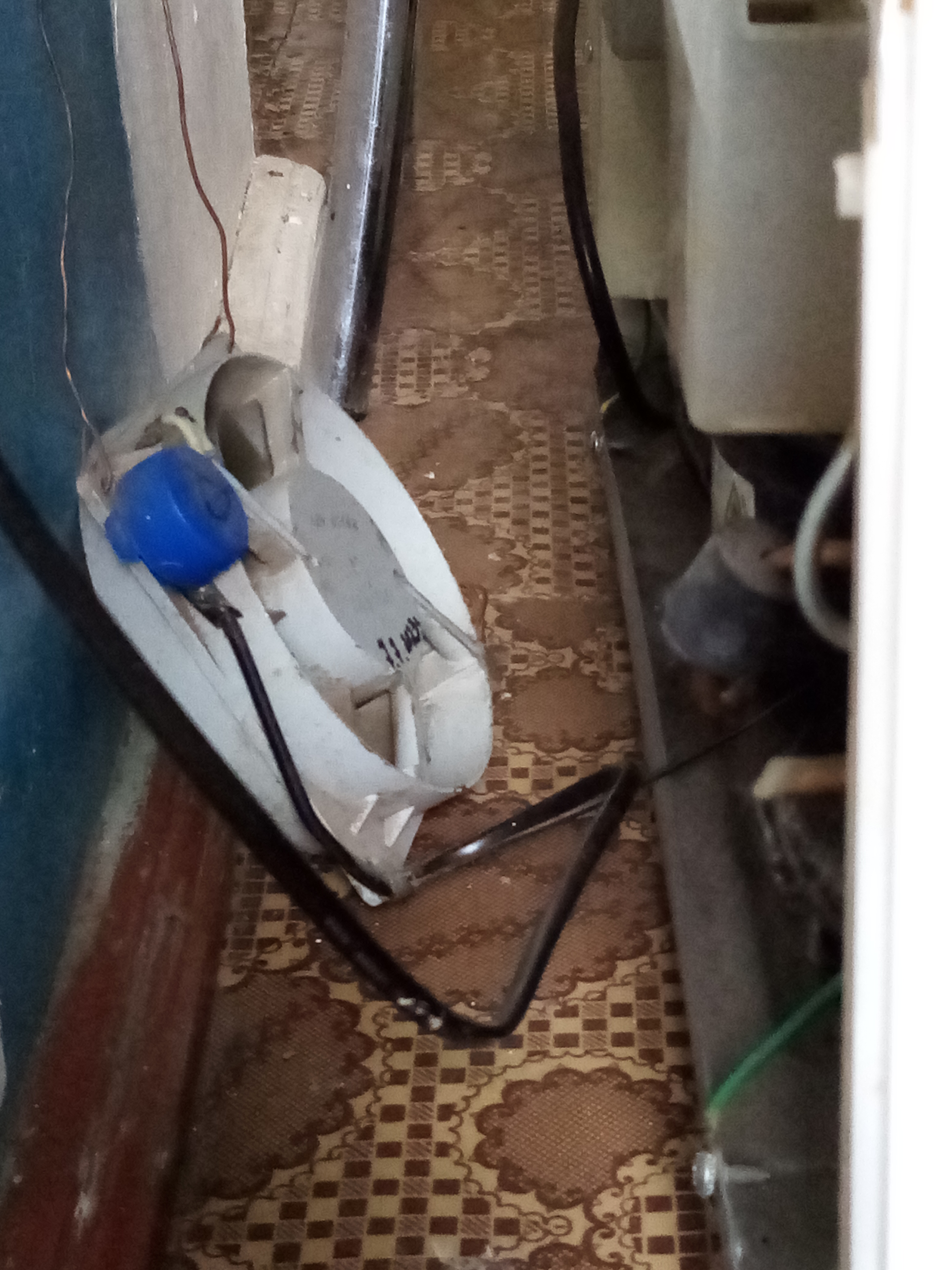

Куда подключить кулер на 220в.,чтобы охлаждал компрессор параллельно мотору?
