Printers
Samsung ML-2250
Samsung ML-2251N
Samsung ML-2251NP
Samsung ML-2252W
Samsung MFP soon
to be released
Dell 1600N
Photo 1
Photo 2
Photo 3
OEM Info
Part Number: ML-2250D5
Gram Load: 125 grams
Yield @ 5%: 5,000 pages
Resolution: 1200 dpi

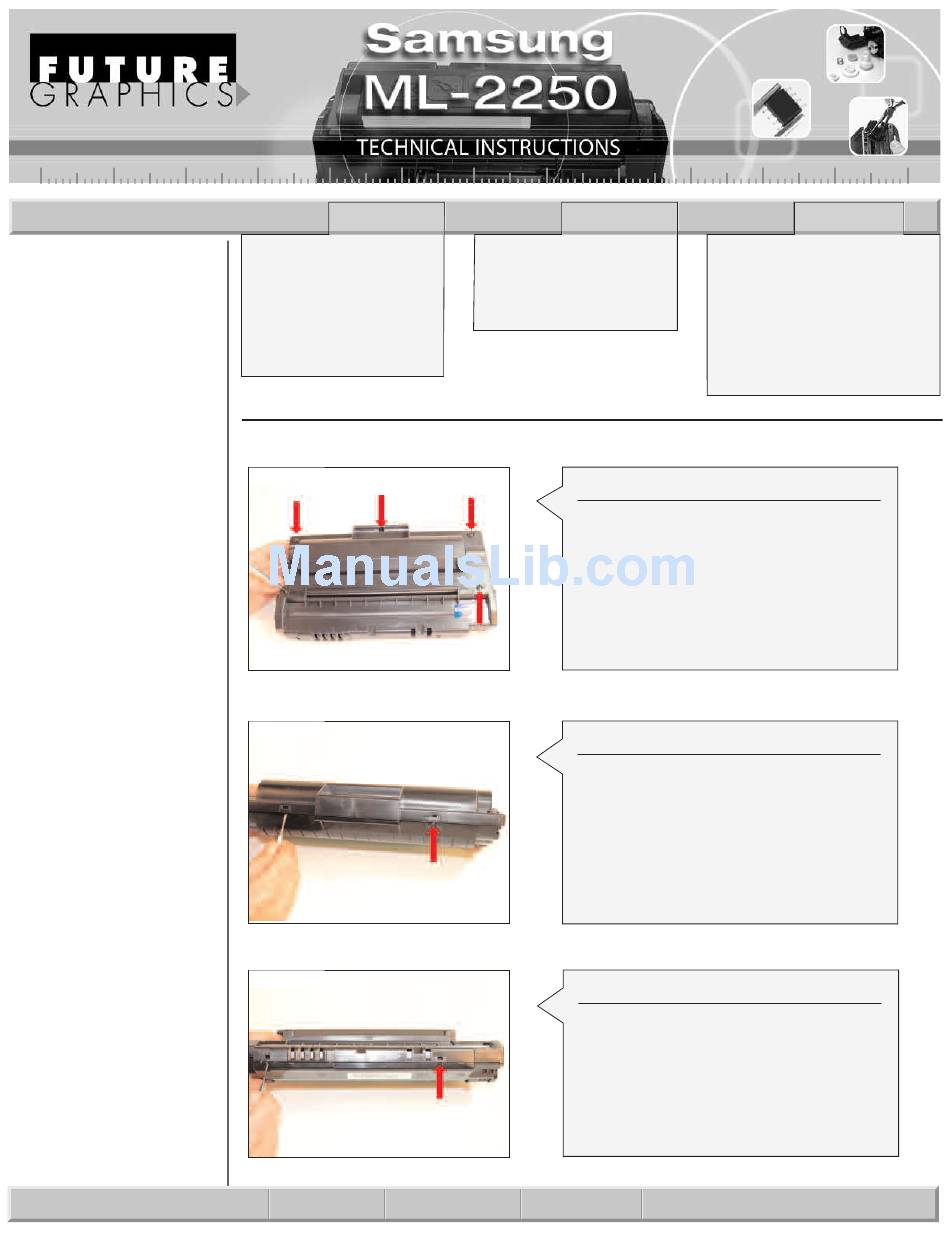

Step 1
Remove the five screws from the top of
the cartridge.
(See Photo 1)
Step 2
Using a small flat blade screwdriver,
release the two locking tabs located next
to the cartridge handle.
(See Photo 2)
Step 3
Rotate the cartridge 180∞ release the
two locking tabs located in the front of the
cartridge.
(See Photo 3)
Website:
Tools
Small Flat Blade Screwdriver
Philips Screwdriver
Supplies Needed:
Lint free cloth
Cotton Swab
Acetone
Toner
www.futuregraphicsllc.com
