Roberts SC9908 User Manual

Roberts SC9908 User Manual

3 band stereo radio cassette recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F M
8 8
9 4
9 6
1 0 0
1 0 4
P o w e r
M W
5 4 0
6 0 0
8 0 0
1 0 0 0
A la r m o ff
M o d e
S e t
L W
1 5 0
1 6 0
1 8 0
2 0 0
2 2 0
S C 9 9 0 8
3 B a n d S te re o R a d io C a s s e tte R e c o rd e r
w ith P ro g ra m m a b le C lo c k A la r m
SC9908
3 Band Stereo Radio Cassette
1 0 6
1 0 8
M H z
8 8 -1 0 8 M H z
k H z
1 2 0 0
1 6 0 0
5 4 0 -16 0 0 k H z
2 4 0
2 6 0
k H z
1 5 0 -2 6 0 k H z
Please read this manual before use
Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC9908 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts SC9908

Summary of Contents for Roberts SC9908

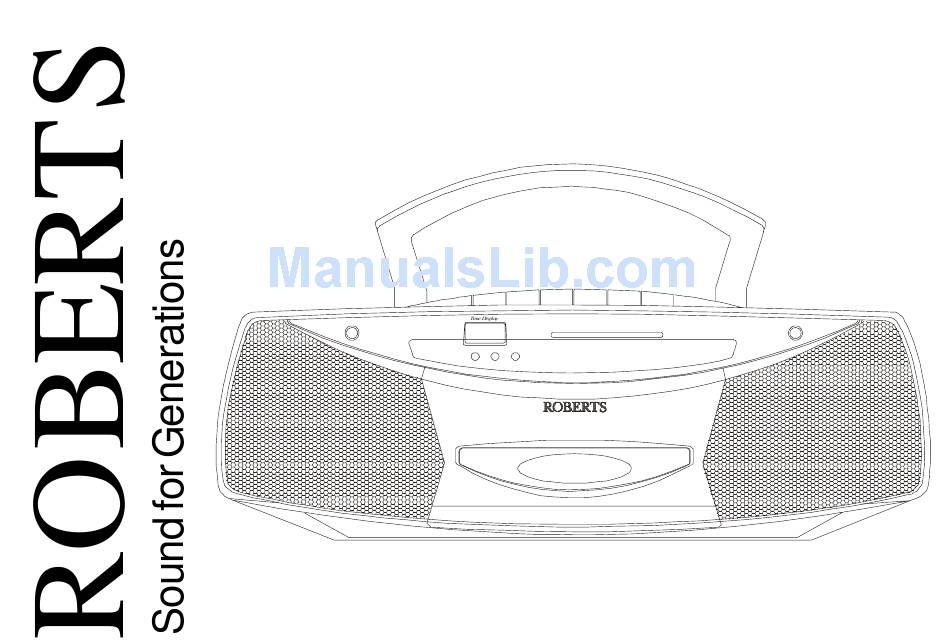

  • Page 1 3 B a n d S te re o R a d io C a s s e tte R e c o rd e r w ith P ro g ra m m a b le C lo c k A la r m Please read this manual before use SC9908 Recorder 8 8 -1 0 8 M H z...
  • Page 2 Controls (Top) Volume P h on e s 1. Headphone socket 2. Volume control 3. Telescopic aerial 4. Deep bass boost switch 5. Microphone O p e r a t io n Fun ction Of f M a n u a l Mi c Ra dio B u z z...
  • Page 3 Controls (Front) 16. Alarm off button 17. Mains indicator 18. Clock display If you need any further advice, please call our Technical Helpline on :- 0181 758 0338 (Mon-Fri) (on rear) Tim e Disp lay Mains 100 104 5 40 6 00 8 00 10 00...

  • Page 4: Battery Operation

    5. If your radio cassette is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy, that the SC9908 is used on the mains whenever possible with battery operation for occasional or stand-by use only.
  • Page 5 Listening to the radio FM operation 1. Ensure that the Operation switch is in the 'Manual' position. 2. Set the Function switch to the 'Radio' position. 3. Select 'FM' using the Waveband switch. 4. Adjust the Volume control until a hissing sound is heard. 5.
  • Page 6 Medium and long wave operation 1. Ensure that the Operation switch is in the 'Manual' position. 2. Set the Function switch to the 'Radio' position. 3. Select 'MW' or 'LW' using the Waveband switch. 4. Adjust the Volume control until a hissing sound is heard. 5.

  • Page 7: Listening To Cassette Tapes

    Listening to cassette tapes 1. Ensure that the Operation switch is in the 'Manual' position. 2. Set the Function switch to the 'Tape' position. 3. Press the Stop eject button to open the Cassette compartment . 4. Insert a pre-recorded cassette with the tape surface uppermost and the side with the desired recording facing towards you.

  • Page 8: Recording From The Radio

    Recording from the Radio 1. Ensure that the Operation switch is in the 'Manual' position. 2. Set the Function switch to the 'Radio' position. 3. Tune in to the desired station. 4. Adjust the Volume control to suit your requirements. 6.

  • Page 9: Recording From The Internal Microphone

    Recording from the Internal Microphone 1. Ensure that the Operation switch is in the 'Manual' position. 2. Set the Function switch to the 'Tape' position. 3. Insert a blank cassette with the tape surface uppermost. 4. Press the Record button to commence recording. Note : to reduce background noise it is important to speak as close as possible to the Internal microphone .

  • Page 10: Setting The Clock

    Setting the clock 1. Press the Set button six times, the display will show the hours digit. 2. Press the Mode button until the required hour is displayed. 3. Press the Set button, the display will show the minutes digit. 4.

  • Page 11: Setting The Date

    Setting the date 1. Press the Set button four times, the display will show the months digit. 2. Press the Mode button until the required month is displayed. 3. Press the Set button, the display will show the day of the month digit. 4.

  • Page 12: Setting The Alarm To Wake To Radio

    Setting the alarm to wake to buzzer 1. Set the alarm as previously described. 2. Set the Operation switch to the 'Buzz' position. 3. Press the Set button the hours and minutes digits will flash. 4. Repeatedly press the Mode button until the 5.
  • Page 13 Making a timed recording 1. Tune in the station you wish to record at the preset time 2. Set the alarm to wake to radio as previously described. 3. Insert a blank cassette into the Cassette compartment. 4. Ensure that the Operation switch is set to the 'Auto' position 3.

  • Page 14: Displaying The Alarm Time

    Displaying the alarm time 1. Whilst the current time is displayed press the mode button once. The alarm time stored will be displayed; after approximately two seconds the display will automatically switch back to current time. Displaying the date 1. Whilst the current time is displayed press the Mode button twice. The date will be displayed;...

  • Page 15: Headphones Socket

    Headphones socket A 3.5mm Headphone Socket located on the top of you radio cassette is provided for use with either headphones or an earpiece. Inserting a plug into the socket automatically mutes the internal loudspeaker. Preventing accidental erasure To safeguard your recordings against accidental erasure, break off the appropriate tab on the cassette as shown .

  • Page 16: Cleaning The Heads

    Cleaning the Heads The binder and oxide from magnetic tapes can accumulate on the pinch roller (A) the capstan shaft (B) and also the heads (C and D). This will impair the sound quality. To clean these parts proceed as follows:- 1.
  • Page 17 MW or LW bands. Mains supply The SC9908 will operate from a supply of AC 230 volts, 50Hz DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor.

  • Page 18: Specifications

    Specifications Power Requirements Mains: AC 230 volts, 50Hz Batteries: Radio/Cassette 4 x LR14 (C size) Clock Battery 1 x LR6 (AA size) Frequency Coverage 87.5 - 108MHz 525 - 1610kHz 150 - 260kHz The Company reserves the right to amend the specification without notice. Circuit Features Loudspeakers only...
  • Page 19 This instrument is guaranteed for twelve months from the date of delivery to the original owner against failure due to faulty workmanship or component breakdown, subject to the procedure stated below. Should any component or part fail during this guarantee period it will be repaired or replaced free of charge.
  • Page 20 ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 0181 758 0338 (Mon-Fri) Issue 1...
