Precor P82 Installation Manual

WARNING

Before you connect any cables to the console, make sure that the equipment is not connected
to any external power source.
For more equipment information and troubleshooting, visit us at www.precor.com.

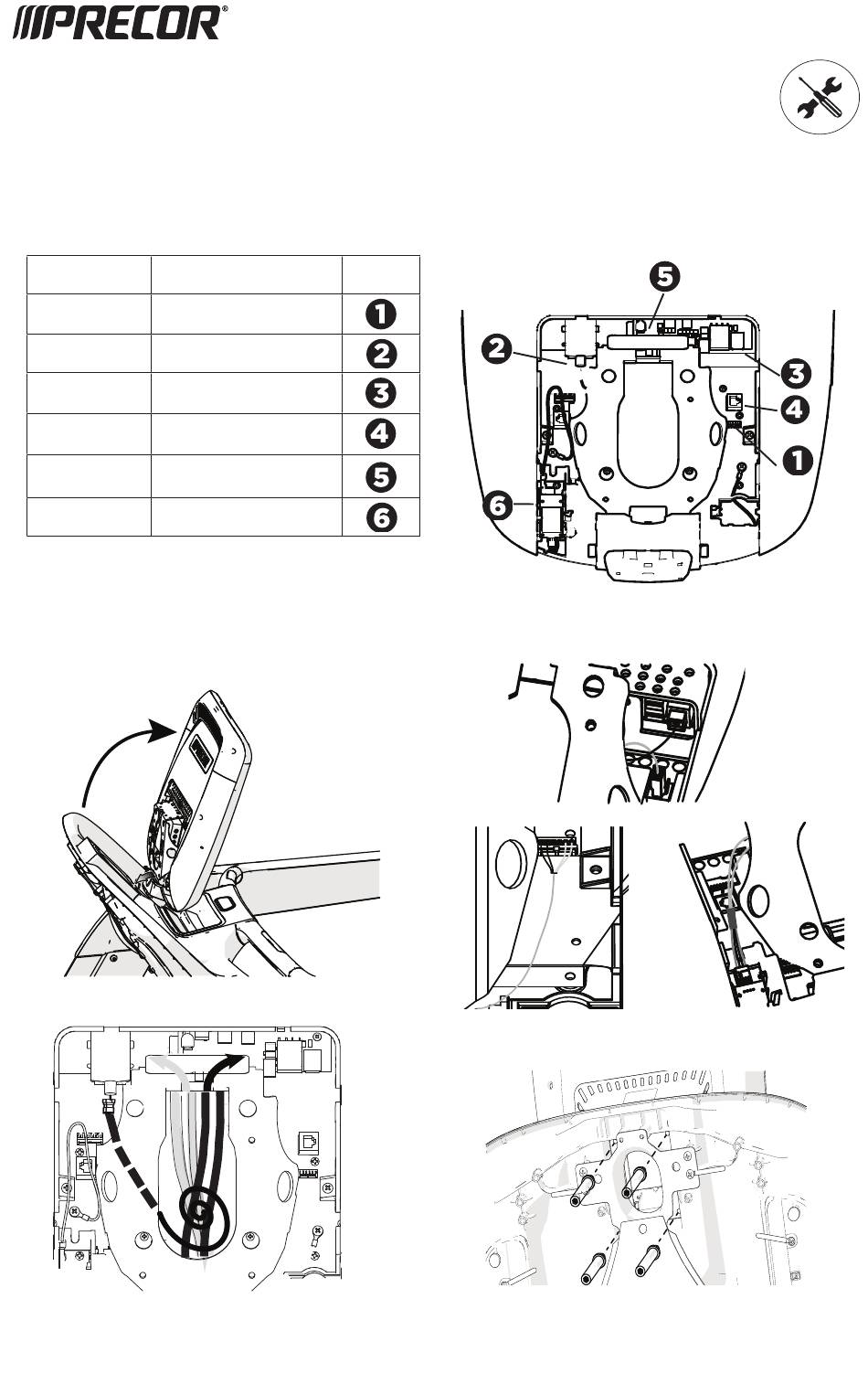

Cable Connector type
Safety key Six-contact strip, keyed
(TRMs only)
TV F-type coaxial
Ethernet (LAN) Eight-contact modular on round
black cable
Data from Eight-contact modular on flat
base unit gray cable
Power Two-contact plug,
polarized and latched
Heart rate sensors Four-contact strip, keyed

To attach and wire the console:

1. Set the console on the rectangular hook at the bottom of the console mount
and hold it in place.
2. Connect the TV coaxial cable and the power cable, then pass them through
the semicircular opening just above the console mount.
P82 CONSOLE
INSTALLATION GUIDE
Connector
location
3. Connect the cables as shown below. DO NOT attempt to route any cables through
other openings or through the steel channel above the mount.
4. Tilt the console back onto the mounting bracket and secure it with the mounting
bolts, making sure to fully tighten the bolts.
5. Follow the checklist and set of instructions on the next page to test that the console
and equipment are working.
6. Attach the fasteners to reinstall the console rear cover after you finish the tests.
