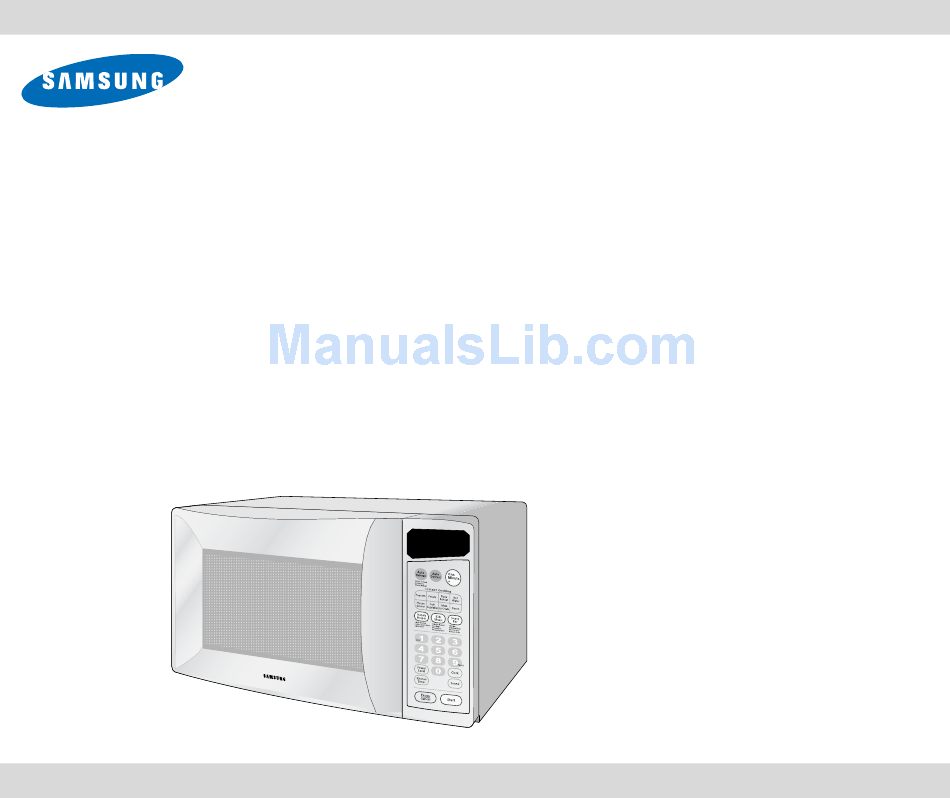

Microwave Oven
Owner's Manual
MW1135WB/BB/CB/SB
Safety ............................................................................................ 2
Your New Microwave oven.......................................................... 5
Checking Parts .......................................................................... 5
Warranty and Service Information ............................................. 5
Setting Up Your Microwave Oven ............................................. 5
Control Panel Buttons................................................................ 6
Operation ...................................................................................... 7
Turning on the Power and Selecting a Weight .......................... 7
Setting the Clock ....................................................................... 7
Using the Pause/Cancel Button................................................. 7
Using the Instant Cook Buttons ................................................. 8
Using the Handy Helper Button ................................................. 9
Using the Kids Meals Button ..................................................... 9
Using the Snack Bar Button .................................................... 10
Snack Bar Chart ...................................................................... 10
Reheating Automatically.......................................................... 10
Defrosting Automatically.......................................................... 11
Setting Cooking Times & Power Levels .................................. 12
One-stage Cooking.................................................................. 12
Multi-stage Cooking................................................................. 12
Using the More/Less Buttons .................................................. 12
Using the Kitchen Timer .......................................................... 13
Demonstration Mode ............................................................... 13
Setting the Child Protection Lock ............................................ 13
Using the One Minute + Button ............................................... 13
Switching the Beeper On/Off ................................................... 13
Cooking Instructions ................................................................. 14
Cooking Utensils...................................................................... 14
Testing Utensils ....................................................................... 14
Cooking Techniques................................................................ 15
General Tips ............................................................................ 15
Cooking Guide......................................................................... 16
Auto Defrosting Guide ............................................................. 18
Appendix..................................................................................... 20
Troubleshooting Guide ............................................................ 20
Care and Cleaning................................................................... 20
Specifications .......................................................................... 21
Warranty ..................................................................................... 21
Warranty Information ............................................................... 21
Guía Rápida(Spanish)................................................................ 23
Quick Reference(English) ......................................... Cover Back
Code No.: DE68-01166A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung MW1135WB
Summary of Contents for Samsung MW1135WB
-
Page 1: Table Of Contents
Setting Up Your Microwave Oven ... 5 Control Panel Buttons... 6 Operation ... 7 Turning on the Power and Selecting a Weight ... 7 Setting the Clock ... 7 Using the Pause/Cancel Button... 7 Using the Instant Cook Buttons ... 8 Using the Handy Helper Button ... -
Page 2: Safety
• As with any appliance, close supervision is necessary when used by children. • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by qualified service personnel. - Page 3 • Do not try to preheat oven or operate while empty. • Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break.
-
Page 4: Important Grounding Instructions
Longer cord sets or extension cords are available and may be used if care is exercised in their use. If a long cord or extension cord is used: 1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. -
Page 5: Your New Microwave Oven
Place the pre-assembled ring in the indentation in the center of the oven. Place the glass tray on top of the ring so that the three glass tabs in the center of the tray fit securely into the tabs on the floor of the oven. -
Page 6: Control Panel Buttons
4. Handy Helper, Kids Meals, Snack Bar Selects type of dish to be reheated. 5. Number Buttons Set cooking times or amounts and power levels other than high. 6. Power Level Press this pad to set a power level other than high. -
Page 7: Operation
Operation Turning on the Power and Selecting a Weight The first time you plug the power cord into an outlet, or after there has been an interruption in power, the display shows “ you can select the weight system for the display. You can choose between pounds (LBS) or kilograms (KG). -
Page 8: Using The Instant Cook Buttons
START ENTER COOK TIME TIME2 Lbs. QTY. When the cooking times is over, the oven will beep. The oven will then beep every minute. stant Cook Chart Item Weight Popcorn Regular •... -
Page 9: Using The Handy Helper Button
Handy Helper button repeatedly to select the item you want.(Refer to the Handy Helper Chart below) 2. Press the Number button to select the serving size you want. You can press “1” or “2” button for selecting serving size. Only “1” button(serving) is available for Sofetn Cream Cheese and Melt Chocolate.(Refer to the Handy Helper Chart below for the... -
Page 10: Using The Snack Bar Button
Do not cover. Reheating Automatically To reheat food, select the type of dish and the number of servings you want to reheat, and the microwave automatically sets the reheating time. Press the Auto Reheat button repeatedly to select the type of dish you wish to reheat. -
Page 11: Auto Reheat Chart
Reheat (8 oz./serving) Defrosting Automatically To thaw frozen food, set the weight of the food and the microwave automatically sets the defrosting time, power level and standing time. Press the Auto Defrost button. The display shows “0.5 lbs.” (0.2Kg if you have set your oven for metric measure). -
Page 12: Setting Cooking Times & Power Levels
For simple one-stage cooking, you only need to set a cooking time. The power level is automatically set to High. If you want to set the power to any other level, you must set it using the Power Level button. -
Page 13: Using The Kitchen Timer
Operation Using the Kitchen Timer Press the Kitchen Timer button. Use the Number buttons to set the length of time you want the timer to run. Press Start to begin Kitchen Timer. The display counts down and beeps when the time has elapsed. -
Page 14: Cooking Instructions
Not Recommended • Glass jars and bottles — Regular glass is too thin to be used in a microwave, and can shatter. • Paper bags — These are a fire hazard, except for popcorn bags that are designed for microwave use. -
Page 15: Cooking Techniques
Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help it cook. -
Page 16: Cooking Guide
• Cover poultry with wax paper to prevent spattering. • Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook. • Check the temperature in several places before letting the poultry stand the recommended time. -
Page 17: Guide For Cooking Vegetables In Your Microwave
Place fish on a microwave-safe roasting rack in a microwave-safe dish. • Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming. • Do not overcook fish; check it at minimum cooking time. -
Page 18: Auto Defrosting Guide Recipes
Notes Check foods when the oven signals. After the final stage, small sections may still be icy; let them stand to continue thawing. Do not defrost until all ice crystals have thawed. Shielding roasts and steaks with small pieces of foil prevents the edges from cooking before the center of the food has defrosted. -
Page 19: Broccoli And Cheese Casserole
2. Add flour, salt, mustard, and pepper; mix well. Cook at High for 30 to 60 seconds until mixture boils. Stir in milk until smooth. 3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils and thickens slightly, stirring twice. Stir in cheese until melted. -
Page 20: Appendix
Never operate the oven without food in it; this can damage the magnetron tube or glass tray. You may wish to leave a cup of water in the oven when it is not in use to prevent damage if the oven is accidentally turned on. -
Page 21: Specifications
SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor, Eight (8) Years Parts Warranty for Magnetron 25/32 ”(H) X 17 ”(D) - Page 22 The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
-
Page 23: Guía Rápida(Spanish)
3. Presione START. Cocinado Un 1. Presione el botón ONE MINUTE+ por cada Minuto + minuto de cocción. 2. El tiempo se vera en pantalla y el horno comenzara. Botones de 1. Presione botón que corresponde al alimento Cocinado que esta cocinando. -
Page 24: Quick Reference(English)
One Minute+ 1. Press the ONE MINUTE + button once for Cooking each minute of cooking. 2. The time will display and the oven will start. Instant Cook 1. Press button that corresponds to the food Buttons you are cooking (for example, POPCORN).
