Connecting the Cables

Before connecting any of the cables, make sure that
both the printer and the host computer are turned
off.

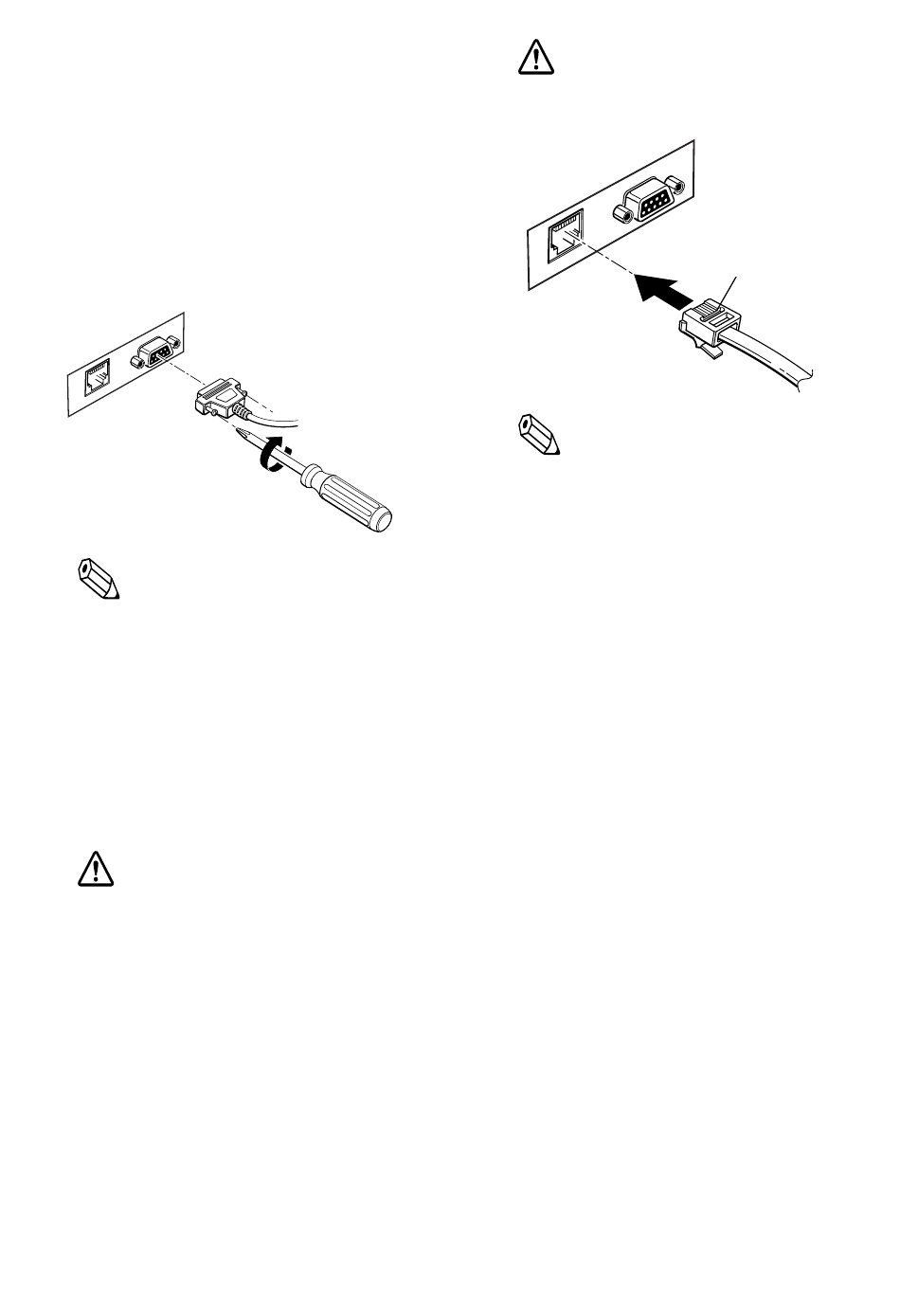

Connecting the interface cable
1. Make sure both the printer and the host
computer are turned off.
2. Plug the cable connector securely into the
UB-S09's interface connector.
3. Tighten the screws on both sides of the
connector.
Note:
If your interface connector has a grounding
wire, attach it to the printer using either of the
screws that fasten the UB-S09 to the printer.
4. Attach the other end of the cable to the host
computer.
Connecting the display module cable
1. Make sure both the printer and the host
computer are turned off.
2. Disconnect the power supply from the
printer.
CAUTION:
You must disconnect the power supply
because the electrical current is flowing in
some parts of the printer circuit even when the
power switch is turned off; otherwise you may
damage the UB-S09 and the printer.
3. Plug the cable connector (provided with the
direct connection display module) securely
into the UB-S09's display module connector
until it clicks.
CAUTION:
Do not connect this connector to an ordinary
telephone line.
Note:
Never connect customer display connectors to
both the UB-S09 and the TM printer at the
same time.
4. Connect the power supply to the printer.
2
customer display
connector
