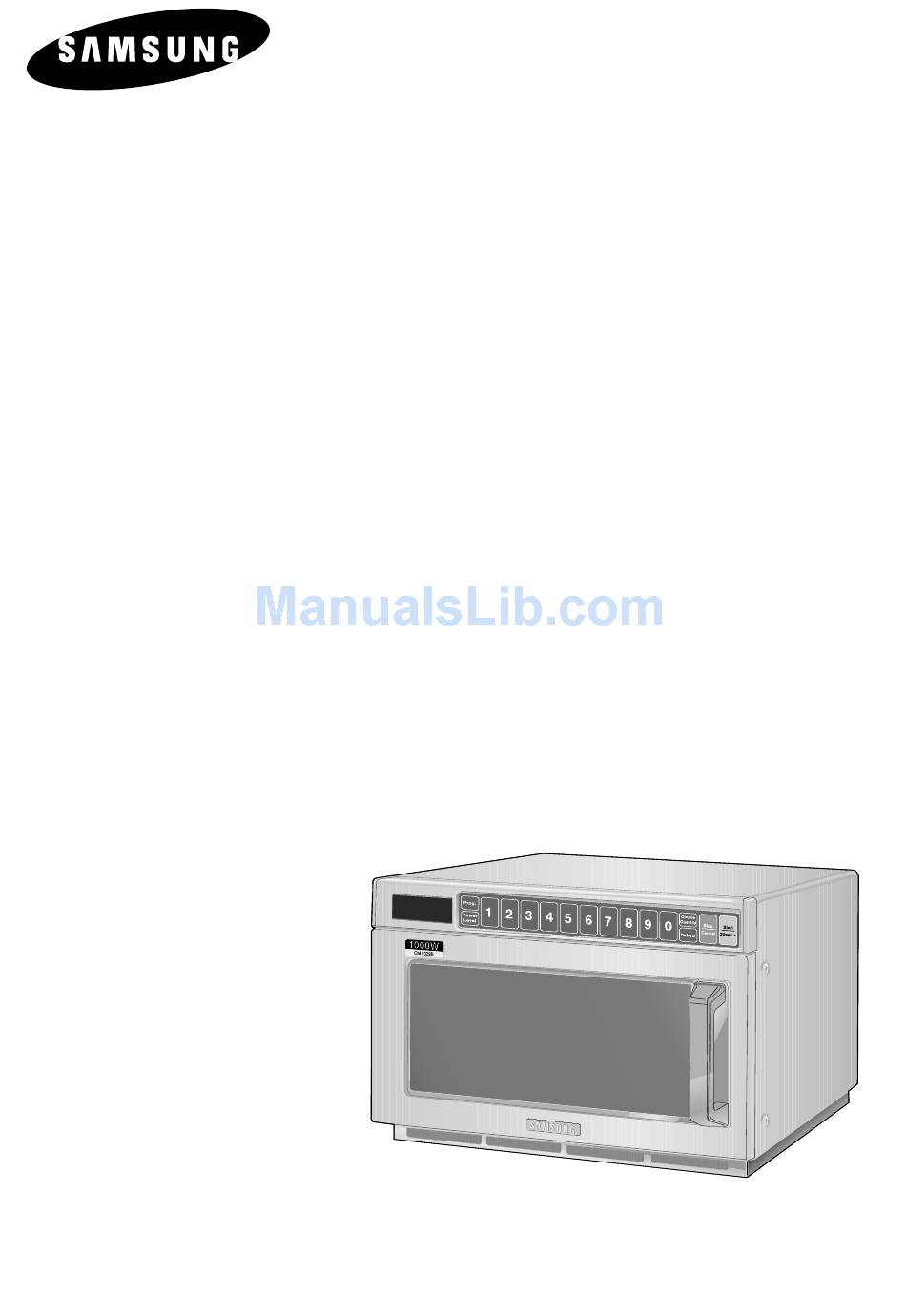

Page 1: Microwave Oven
Commercial Microwave Oven Owner’s Manual CM1029B (1000Watts) Code No. : DE68-01223A... -
Page 2: Warranty And Service Information
Warranty service can only be performed by a Samsung Authorized Service Center. If you should require warranty service, provide the above information with a copy of your sales receipt to the Samsung Authorized Service Center. For service assistance and the location of the nearest service center, please call 1-800-SAMSUNG (800-726-7864), or go on-line to WWW.SAMSUNGSUPPORT.COM... -
Page 3: Thank You For Choosing Samsung
Thank you for choosing Samsung! Your new oven represents the very latest in microwave cooking technology. This oven is a full-featured, easy-to-use appliance built to strict quality standards set by Samsung — the highest in the industry. We’re proud to offer you a product that will provide convenient, dependable service for years to come. - Page 4 When Using Any Electrical Appliance (cont.) • Do not immerse cord or plug in water. • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning door and oven surfaces, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.
- Page 5 If you use an extension cord, the interior light may flicker and the blower may vary when the microwave oven is on. Cooking times may be longer, too. WARNING: Do not cut or remove the third (ground) prong from the power cord under any circumstances.
-
Page 6: Table Of Contents
Cooking Guide... Technical Specifications ... Warranty Info ... Inside Back Cover You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven. Take the time to read them as they will help you take full advantage of the microwave oven features. -
Page 7: Oven
Oven CONTROL PANEL OVEN LAMP (125V 25W) DISPLAY STOP/CANCEL OVEN LAMP COVER START / 30sec+ CEILING COVER DOOR HANDLE AIR FILTER DOOR LATCHES PLATE TRAY SAFETY INTERLOCK DOOR HOLES... -
Page 8: Control Panel
Control Panel 1. DISPLAY 2. PROGRAM PAD 3. NUMBER PADS(Time, Memory Programming) 4. DOUBLE QUANTITY PAD 5. POWER LEVEL SELECTOR PAD 6. DEFROST SELECTOR PAD 7. STOP/CANCEL PAD 8. START/30sec+ PAD (One Touch Cook Pad) DISPLAY PROGRAM INDICATOR MEMORY PAD NUMBER INDICATOR POWER SOURCE CHECK INDICATOR... -
Page 9: Placement Of Your Microwave Oven
Plug the cable into a 3-pin, grounded socket. If the power cable of this appliance is damaged, it must be replaced by a special cable as supplied from an authorized Samsung Service Center. Be sure to remove the protective film from outer case. -
Page 10: Cleaning Your Microwave Oven
Only a qualified microwave service technician should perform repairs. NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition: Unplug it from the wall socket Contact the nearest Samsung Authorized Service Center... -
Page 11: Cookware Guide
Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. -
Page 12: Cooking/Reheating
CM1029B-2 6/14/00 10:24 AM Page 10 Cooking/Reheating When you first plug in the power cord, the oven beeps once and all the indicators are displayed in the display window for 5 sec. When heating cycle is completed and you open the door, the oven lamp and the cooling fan automatically turn on and goes off 1 min later. -
Page 13: Power Levels And Time Variations
Power Levels and Time Variations The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between the power levels below. Power Level Percentage HIGH(... -
Page 14: Using Start/30Sec+ Pad
Using Start/30sec.+ Pad Using the Defrost Feature When the oven operates for longer than 25 min under Defrosting cycle, you can NOT change the power level from Defrosting to Heating (Cooking/Reheating) mode. START PAD This is a ONE TOUCH COOK pad. By touching the pad once, you can start heating instantly. -
Page 15: Memory Pads Programming
Memory Pads Programming Press PROGRAM pad(hold for more than 2 seconds). Result: PROG indicator appears in the digital display. Press appropriate NUMBER pad for the desired memory number. Result: Selected memory program code appears below the PROGRAM indicator. Select power level by pressing the POWER LEVEL or DEFROST pad. Result: Default power level HIGH appears in the display at first press of the POWER LEVEL pad. -
Page 16: How To Operate Memory Cooking
How to Operate Memory Cooking After having finished memory programming, just press the NUMBER pad of the memory number you want to select. The oven will automatically start heating according to the pre-programmed cooking time and power level. Make sure the oven is plugged into a properly grounded electrical outlet and “ON”... -
Page 17: Double Quantity Pad Programming
Double Quantity Pad Programming Hold down Stop/Cancel and then press DOUBLE QUANTITY pad. Hold together for 2 seconds. Select desired program code by using NUMBER pads. Press NUMBER pads to set the magnification factor within the range from 1.00 to 9.99. Default factor is 1.65 preset from the manufacturer for increasing the cooking time. -
Page 18: How To Operate Double Quantity Pad
How to Operate Double Quantity Pad Press the Double Quantity pad. Press the desired memory number pad. Result: Cooking time which was multiplied by the preset factor appears in the display and cooking starts with time digits counting down. You don’t need to press Start pad to start heating. -
Page 19: Programming Air Filter Clean Time
Programming Air Filter Clean Time When the air filter check indicator (FILTER) appears in the display window after a certain time of use, you should clean the air filter according to the instructions “Cleaning the Air Filter” on page 20 in this booklet. -
Page 20: Error Codes
Error Codes Error Items Code Power frequency Error(50/60Hz) EEPROM Error Before Calling for Service Warning To avoid electrical shock which can cause severe personal injury, do not remove outer case at any time. Only authorized servicer should remove outer case. If oven does not operate: Confirm oven is plugged into dedicated circuit. -
Page 21: Hidden Keys
Hidden Keys Note: Press Key 1 and then the next one. Hold for 2 secs. Key Entry Definiens Key 1 Total power source supply time Total used time Program Code. (Data display after 2 sec.) Number of times of use by memory program code (New code can be set after data display) -
Page 22: Care Of Your Microwave Oven
If any of them are deformed, abnormal symptoms can happen such as arcing or sparks during operation. In case of such problems, contact the nearest Samsung Authorized Service Center. Cleaning the Air Filter Clean the Air Filter regularly according to the following instructions. -
Page 23: Replacement Of Lamp
Replacement of Lamp Important Remove the screw securing the lamp cover. You don’t need to remove outer panel to replace lamp. Remove the lamp by rotating it counter-clockwise. Replace with a new lamp by rotating it clockwise. Screw Lamp Cover Outer Panel Lamp Holder Lamp... -
Page 24: Cooking Guide
Cooking Guide Food Weight To Cook Popcorn Regular 3.5 oz. Light 3.0 oz. Fresh Vegetables Corn on cob 1 ea Corn on cob 2 ea Corn on cob 4 ea Cut-up Broccoli 8 oz. Green Beans 8 oz. Green Beans 32 oz. -
Page 25: Cooking Guide
Cooking Guide To cook: Weight Pizza 1 slice 4 oz. 2 slices 8 1/4 oz. 4 slices 15 oz. Fruit Pie 1 slice 5 1/2 oz. 2 slices 10 oz. 4 slices 24 oz. Muffins 1 muffin 2 3/4 oz. 2 muffins 5 oz. -
Page 26: Technical Specifications
Technical Specifications SAMSUNG strives continually to improve its products. Both the design specifications and these user instructions are thus subject to change without notice. Model Power source Oven Cavity Power consumption Microwave Output power Operating frequency Dimensions (W x H x D) - Page 27 Memo...
- Page 28 SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or recondi- tioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
-
Page 29: Warranty Info
Warranty Info Please complete the enclosed registration card and promptly return it by mail. If the registration card is missing, call Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864) within the USA. When contacting Samsung Electronics, please provide the product information, which is located on the serial tag usually found at the rear of the unit. - Page 30 ELECTRONICS Printed in Korea...
