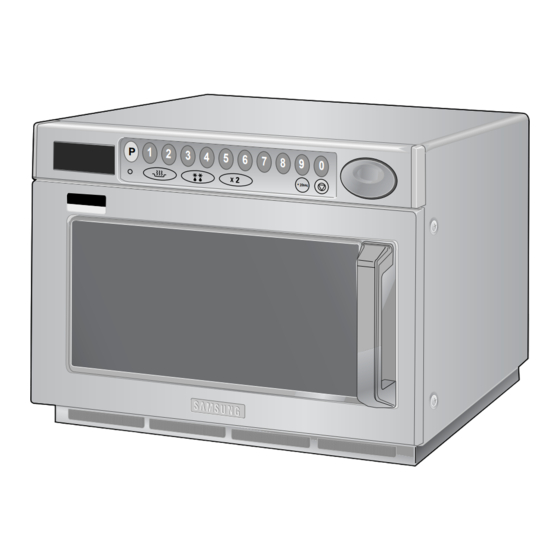

Oven OVEN LAMP CONTROL PANEL DISPLAY OVEN LAMP COVER DOOR HANDLE DOOR PLATE TRAY DOOR LATCHES Control Panel START BUTTON + 20sec CEILING COVER AIR FILTER DISPLAY SAFETY INTERLOCK PROGRAM HOLES INDICATOR MEMORY PAD NUMBER INDICATOR 1. DISPLAY 2. PROGRAM PAD 3.
Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven: • Safety precautions • Suitable accessories and cookware • Useful cooking tips At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily.
Safety Precautiones (continued) • In the event of scalding, follow these FIRST AID instructions: Immerse the scalded area in cold water for at least 10 minutes. Cover with a clean, dry dressing. Do not apply any creams, oils or lotions. •...
Cooking / Reheating One-stage cooking This oven is preset at the factory for automatic operation. Make sure the oven is plugged into a properly earthed electrical outlet and “ON” appears in the display window. Open the door(The oven lamp will be turned on.). Put the food into a suitable container, place it in the centre of the oven and then close the door securely (The oven lamp will go off.).
Cooking / Reheating (continued) Multi-stage cooking 1. Select the desired power level by pressing the POWER LEVEL Selector pad or DEFROST pad. Result : The selected power level will be displayed in the display window. 2. Set the desired heating time by pressing the NUMBER pads.
Stopping the Cooking You can stop cooking at any time so that you can: • Check the food • Turn the food over or stir it • Leave it to stand To stop the cooking... Temporarily Open the door or press Result : Cooking stops.
Using +20sec Pad This is a ONE TOUCH COOK pad. By touching the pad once, you can start heating instantly. You can increase the cooking time by pressing the +20sec pad while heating is being done. A cooking time increases by 20 seconds at each press on +20sec pad. But it can not exceed the maximum time.
Memory Pads Programming One-stage 1. Hold down PROGRAM LOCK( PROGRAM( ) pad. Hold together for 2 sec. Be sure to press the pads firmly. Result : PROG indicator appears in the digital display. 2. Press appropriate NUMBER pad for the desired memory number.
Page 10
Memory Pads Programming (continued) Multi-stage 1. Hold down PROGRAM LOCK( PROGRAM( ) pad. Hold together for 2 sec. Be sure to press the pads firmly. Result : PROG indicator appears in the digital display. 2. Press appropriate NUMBER pad for the desired memory number.
How to Operate Memory Cooking After having finished memory programming, just press the NUMBER pad of the memory number you want to select. The oven will automatically start heating according to the pre-programmed cooking time and power level. 1. Make sure the oven is plugged into a properly earthed electrical outlet and “ON”...
Programming Air Filter Clean Time When the air filter check indicator (FILTER) appears in the display window after a certain time of use, you should clean the air filter according to the instructions “Cleaning the Air Filter” on page 16 in this booklet.
Error Codes Erroe Items Code Error Beep Power frequency Error (50/60Hz) HVT-I Power One long beep for 2 sec Error HVT-II Power One long beep for 2 sec Error EEPROM Error One long beep for 2 sec Cause Power frequency is other than 50 Hz. Unplug the power cord plug and check if the power frequency is 50 Hz.
Hidden Keys Note: Press Key 1 and then the next one. Hold for 2 secs. Feature Key Entry Display Key 1 Next Continuity time CANCEL total Magnetron CANCEL oscillating time total Number of times CANCEL Start of use by memory program code Code No.
Page 16
Care of Your Microwave Oven (continued) Cleaning the Ceiling Cover 1. Hold side stoppers of ceiling cover with both hands and pull them in and down. Then take the ceiling cover out of the oven cavity. 2. Rinse ceiling cover in soapy water or Food Sanitizer Solution. 3.
Installation Instructions for Stacking Important 1. Disconnect the power cord from the wall socket before attempting installation. 2. For stacking installation, you must use the “bracket plate” which is enclosed with this unit. 3. The maximum stacking height is two units. Stacking the two units is limited to the following models.
Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.
Cooking Guide F : Frozen C : Chilled Recipe Method Power Level BREAD & PASTRIES To Defrost Vienna Baton 9" F DEFROST Vienna Baton 9" X 2 DEFROST Gateaux, ind. Slice F Place on plate DEFROST To warm Quiche 11" sliced Place on plate DEFROST 136g HIGH...
Page 20
Cooking Guide (continued) F : Frozen C : Chilled Recipe Method Power Level RECIPE DISH ENTREES To Reheat Amorini & Stilton Place in HIGH bake C microwave safe dish Chicken Tikka Pierce film HIGH masala F Thai Green Chicken Pierce film HIGH curry F Chilli con Carne F...
Cooking Guide (continued) F : Frozen C : Chilled Recipe Method Power Level FRESH VEGETABLES To cook 500g Potatoes, jacket HIGH 230~290g X 1 Potatoes, Mashed X 2 HIGH Potatoes, Mashed X 4 HIGH Ratatouille 500g HIGH Sprouts Cover, stir HIGH half way RICE, 500g...
Unplug it from the wall socket • Contact the nearest after-sales service centre Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Model...
