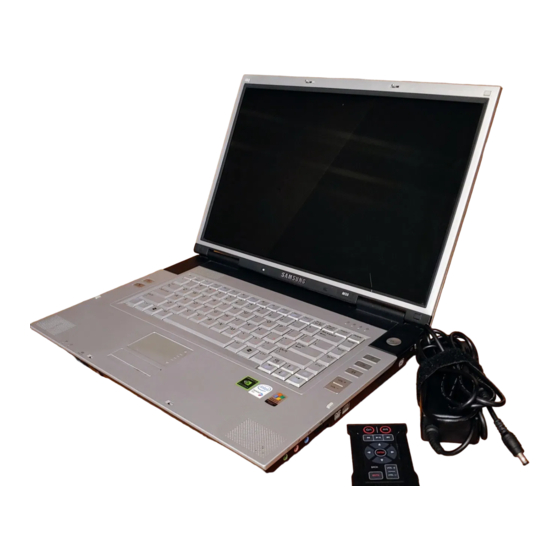

Samsung M55 Manual

Samsung laptop pc owner's manual
Hide thumbs Also See for M55:
Table of Contents

Advertisement

Quick Links

Download this manual

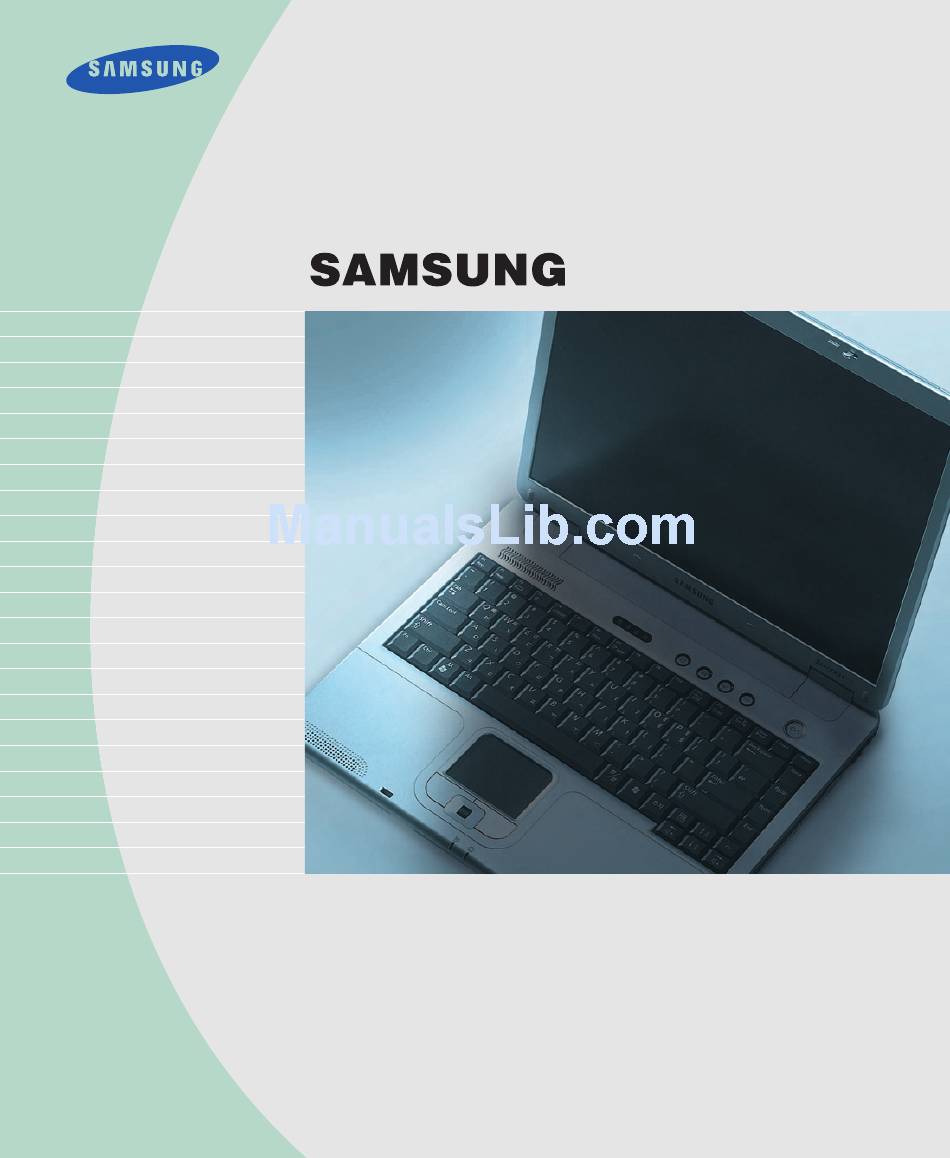

M55
The product images may differ from actual product appearance.
Manual
This manual describes how to use computer as well as information
on Windows, Internet, Upgrade, and Troubleshooting.

Advertisement

Table of Contents
loading

Related Manuals for Samsung M55

Summary of Contents for Samsung M55

  • Page 1 The product images may differ from actual product appearance. Manual This manual describes how to use computer as well as information on Windows, Internet, Upgrade, and Troubleshooting.

  • Page 2: Table Of Contents

    Proper Seating Posture During Computer Use ...1-15 2. Introducing Windows Windows XP Basics...2-2 Document Operations...2-7 3. Using The Computer Using the CD-Rom Drive...3-2 Enjoying Home Theater ...3-7 Using the Multi Card Slot...3-9 Using the PC Card Slot...3-11 Using EasyBox ...3-12 Using Samsung Update Plus ...3-14...
  • Page 3 Connecting to the Internet Using a Modem ...4-3 Configuring the Network Environment Settings for Wired LAN Connections...4-4 Configuring the Network Environment Settings for Wireless LAN Network (WLAN)..4-7 Using Samsung Network Manager...4-14 Using Network Service ...4-21 Using Bluetooth Devices...4-27 5. System Management Managing Power ...5-2...
  • Page 4 7. Recovering the Computer Using Magic Doctor ...7-2 Restoring the System ...7-3 Reinstalling Software ...7-5 Re-Installing Windows ...7-7 Q&A...7-10 Appendix System Specifications ...A-2 Wireless LAN Specifications ...A-3 Copyright...A-4 Safety Instructions ...A-5 Samsung Notebook Computer Global Warranty...

  • Page 5: Getting Started

    Chapter 1 Chapter 1 Getting Started This chapter provides basic information for using this computer. System overview and methods for general use are provided.

  • Page 6: Introducing The Computer

    Introducing The Computer Front View LCD Panel Keyboard (P. 1-9) Wireless LAN Button (P. 4-7) Etiquette Mode Button (P. 1-9) Status Indicators (P. 1-11) Speaker (L) Multi Card Slot (P. 3-9) Manual LCD Latch Touchpad Touchpad (P. 1-7) Speaker (R) Button Remote Control Sensor (P.

  • Page 7: Right View

    Right View USB 2.0 Port Headphone Jack / Line-In Jack S/PDIF Jack Microphone Jack (Optical, P. 3-7) Left View USB 2.0 Port Fan Vents Modem Port (P. 4-3) Network(LAN) Port (P. 4-4) CD Drive Monitor Port (Optional, P. 3-2) IEEE 1394 Port (6Pin) PC Card Slot (P.

  • Page 8: Rear View

    DC-In Port Bottom View HDD Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Manual Battery (P. 5-4) TV Output Port (S-Video, P. 6-8) Battery Latches Security Lock Port (P.

  • Page 9: Turning The Computer On And Off

    Turning the Computer On and Off Turning On 1. Insert the battery and connect the power according to the supplied Installation Guide. 2. Lift up the LCD panel and open it to a comfortable angle. 3. Press and then release the power button to turn the system on. Turning Off 1.

  • Page 10: Changing Users

    Creating and Changing User Accounts Multiple users can be registered in a single system so that each user may use their own customized working environment. Procedures to register and change user accounts are provided below. ■ Registering a new user 1.

  • Page 11: Touchpad

    Touchpad Movement of the pointer (arrow) on the screen will correspond to movement made with a finger on the touchpad. Touchpad buttons the two buttons below the touchpad provide identical functions to buttons of a mouse. Locking the touchpad You can lock the touchpad and use only the keyboard and mouse. To lock the touchpad function, press the <Fn>+<F9>...

  • Page 12: Using The Touchpad Scroll Function

    ■ Drag (Move / Select) Drag and drop a part to the required place. ■ Using the Touchpad Scroll Function The touchpad has a scroll function, which can be used like the wheel dial of a wheel mouse. Move up and down along the right edge of the touch pad (scrolling up and down) or left and right along the bottom edge of the touch pad (scrolling left and right) to scroll the screen.

  • Page 13: Using The Keyboard

    Using the Keyboard Function Keys <Fn> Key Numeric Keypad ■ Special Function Keys: Key Com- binations Name Places the computer into standby mode. To resume from standby Standby mode, press the power button. Gauge Shows the current power source and the remaining battery charge. Used to type the symbol for Euro currency.
  • Page 14 Key Com- binations Manual 1-10 Function Name Etiquette You can select Etiquette Mode when you require a quiet operating Mode environment. In low-noise mode, the operational speed of a pro- gram may be slowed down because the CPU operates at minimum speed, and the system may overheat because the fan is rotating only at low speed.

  • Page 15: Status Indicators

    Status Indicators Shows the operating status of the computer. Icon Name Num Lock Turns on when the numeric keypad is activated. Turns on when all alphabet characters you type will be Caps Lock in upper case. Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor position does not change in some applications.

  • Page 16: Adjusting Lcd Brightness

    Maintaining your LCD brightness settings after turning the system off and on 1. Turn the system on. When the Samsung Logo appears, press the <F2> key to enter Setup. 2. In the Boot menu, change the Bright Mode Control option to User Control.

  • Page 17: Adjusting The Volume

    Adjusting the Volume ■ Adjusting the Volume using the Volume Control Button Adjust the volume by using the Volume Control Button ( ■ To adjust using keyboard Press <Fn>+< > or <Fn>+< ■ Using the Volume Control Program On the taskbar, click the Volume ( For advanced volume control options, double-click the Volume ( adjust the settings in the [Master Volume] dialog.

  • Page 18: Using The Remote Control

    Using the Remote Control Using the remote control for the computer is described below. To use the remote control, install the supplied battery into the remote control first. ■ Installing Battery Move the groove ( ) on the cover to the coin and open the battery cover.

  • Page 19: Proper Seating Posture During Computer Use

    Proper Seating Posture During Computer Use The proper seating posture during computer use is provided here. Maintaining proper posture during computer use enhances performance and prevents physical bodily harm. If necessary, use a footrest to raise the level of your knees and ease the pressure on the thighs.
  • Page 20 Manual 1-16...

  • Page 21: Introducing Windows

    Chapter 2 Chapter 2 Introducing Windows This chapter provides basic information on using the computer’s main operating system Windows.

  • Page 22: Windows Xp Basics

    SAMSUNG P10 Windows XP Basics Windows is the computer’s main operating system, which needs to be familiarized with in order for efficiently computer use. Windows XP Tour A tour of the elementary functions provided by Windows XP. Click Start > Tour Windows XP.
  • Page 23 Understanding the Desktop The Desktop is the working area on the computer. It consists of the large workspace, which is more or less the entire the screen and a Taskbar at the bottom. Desktop Icons You can directly launch a program. Start Menu Start Button Start Button...
  • Page 24 Understanding the Start Menu The Start Menu includes everything that is required to start Windows. From the Start Menu it is possible to run a program, open a file, assign system users with the Control Panel, receive support by clicking Help and Support, and search desired items from computer or Internet by clicking Search.
  • Page 25 Understanding a Window A window is the basic component in working with the computer. The My Computer window, which is a window for the computer’s hard drive, will be used as an exam- ple here to show the basic composition of a window. Click Start >...

  • Page 26: Help And Support Center

    Help and Support Center Help and Support Center provides references and troubleshooting information regarding computer use. Please refer to help and support centre before calling the Samsung helpline. Click Start > Help and Support. Displays Help Index Related help information appears when a search keyword is entered.

  • Page 27: Document Operations

    Document Operations To create documents, WordPad or NotePad, which is included in Windows, or a separate specialized word processor program can be used, such as MS Word. Instructions for creating documents using WordPad is provided here. ■ Creating a New Document 1.

  • Page 28: Opening A Document

    ■ Opening a Document 1. Click Start > All programs > Accessories > WordPad. 2. Select File From the Menu, and click Open. 3. Click on the Look in field and specify the folder in which the file is saved. 4.

  • Page 29: Using The Computer

    Chapter 3 Chapter 3 Using The Computer This chapter investigates various different functions of the computer and provides information on using the related application programs for them.

  • Page 30: Using The Cd-Rom Drive

    Using the CD-ROM Drive This computer has one of the following CD drives. - RW-Combo Drive - DVD Super Multi Drive 1. Press the Eject button on the side of the CD drive. 2. When the tray slides out, place a CD onto it and push down until it clicks. 3.

  • Page 31: Using The Windows Media Player

    Using the Windows Media Player Window Media Player enables you to play and manage audio and video files. Click Start > Windows Media Player. Or click Start > All Programs > Accessories > Entertainment > Windows Media Player. Running the program the first time displays the set up screen. Define the settings according to the instructions displayed on the screen.

  • Page 32: To Play An Audio Cd

    To Play an Audio CD 1. Insert an audio CD into the CD drive, and a list of all available players is displayed automatically. 2. Select Windows Media Player, and click OK to play the audio CD. To Play a Video CD 1.

  • Page 33: To Write Data In Cd

    To Write Data in CD If your computer has CD-RW functionality, you can copy data to a blank CD or create an audio CD. 1. Insert a blank CD into the CD-RW drive. 2. Click Open Writable CD Folder and click OK. The CD-ROM drive window appears automatically.
  • Page 34 4. Select, drag and drop folders or files to copy onto the CD-ROM drive window. Click Write Files to CD in the CD-ROM drive window. 2. Click Write Files to CD 5. When the CD Write Wizard appears, enter the CD label, and click Next. The data will begin copying.

  • Page 35: Enjoying Home Theater

    Enjoying Home Theater This product supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surround- ing sound and vivid screen. Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D sur- rounding sound (Dolby 5.1 or DTS).
  • Page 36 ■ Step 2. Setting the Sound to Digital Sound Output on the Computer Since the sound of the computer is set to Digital Output by default when pur- chasing the computer, additional settings are not required. You can confirm the setting as follows. 1.

  • Page 37: Using The Multi Card Slot

    Using the Multi Card Slot Using the Multi Card Slot, you can use memory cards such as a Memory Stick, Memory Stick Pro, SD Card, MMC, or xD Card. A memory card is used as a removable disk and is useful for exchanging data between a computer and a digital device such as a digital camera.
  • Page 38 2. Click Start > My Computer. The inserted memory card is displayed. 3. You can write data to the memory card. If the memory card is not format- ted yet, format the memory card before use. To remove a memory card 1.

  • Page 39: Using The Pc Card Slot

    Using the PC Card Slot Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16 / 32 bit, type I or II PCMCIA card types. Before using the PC card slot, remove the slot protector. Push the eject button of the PC card slot once to pop it out.

  • Page 40: Using Easybox

    Learn about EasyBox Double-click the EasyBox( (Or select Start > All Programs > Samsung > EasyBox > EasyBox.) ▶ System : System management features are available, including disk defrag- ▶ BIOS ▶ Desktop : Desktop management features include changing the font size, execut- ▶...
  • Page 41 The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet. 1. Click Start > All Programs > Samsung > EasyBox > EasyBox. 2. Click Security from the top menu bar. 3. Select Windows Firewall Settings from the Security menu on the left.

  • Page 42: Using Samsung Update Plus

    Samsung Update Plus is software that examines and updates Samsung software and drivers installed on your Samsung computer to the latest version. To use Samsung Update Plus, your computer has to be connected to the Internet. ■ To Update Samsung Software and Drivers 1.
  • Page 43 To change the automatic update settings, click the Custom button in Figure 2 and change the settings. : Samsung Update Plus does not provide updates for additionally installed software and device drivers. Update List Chapter 3.Using The Computer...

  • Page 44: Using Avstation Premium

    AVStation premium is an integrated multimedia program that enables users to enjoy music, photographs, video, movies, etc. all with a single program. Start and Screen Layout To launch the program, select Start > All Programs > Samsung > AVStation premium > AVStation premium. Alternatively double-click the AVStation premium icon (...

  • Page 45: Music Station

    What is EDS (Enhanced Digital Sound)? EDS (Enhanced Digital Sound) is a sound quality enhancement technology devel- oped by Samsung Electronics. You can listen to clearer sound if you enable the EDS function when playing music or video on AVStation premium.

  • Page 46: Playing An Audio Cd

    The procedures to play an audio CD are described below. 1. Launch AVStation premium and insert an audio CD into the CD drive. 2. In the Audio CD window, select Play Audio CD using Samsung AVStation and click the OK button.
  • Page 47 ■ Playing a Music File If a music file is registered to the MUSIC Library, you can easily play the music file. For the procedures to register tracks to the Library, refer to (P. 3-20). 1. Move to MUSIC Station and double-click on All Music. 2.

  • Page 48: Adding Music Files To The Library

    ■ Adding Music Files to the Library MUSIC Library is a library holding music files used by MUSIC Station. The proce- dures to add music files saved on the computer to the Library are described below. You can add files, folders or search and add files. As an example, the proce- dures to add a folder are described below.

  • Page 49: Photo Station

    PHOTO Station Launch AVStation premium and click PHOTO on the Station Bar. Image Viewer Tab PHOTO Menu Bar PHOTO Library Register a File ■ Viewing an Image The procedures to view images registered to the PHOTO Library one by one and through a SlideShow are described below.
  • Page 50 3. Double-click on an image. The selected image is zoomed in on. Viewing an Image not registered to the Library Click File > Open, select an image file to view and click Open. The selected image file is registered to the Library and displayed in the Image Viewer window.
  • Page 51 ■ Editing an Image You can change the shape of an image, edit an image or apply special effects to an image. The image editor functions are described below. 1. Select an image to edit in the Image Viewer window, and select the Image Editor tab.
  • Page 52 ■ Adding Images to the Library The PHOTO Library is a library holding image files to be used by PHOTO Station. The procedures to add image files saved on the computer to the Library are described below. You can add files, add folders or search and add files. As an example, the pro- cedures to add folders are described below.

  • Page 53: Movie Station

    What is EDI (Enhanced Digital Image)? EDI (Enhanced Digital Image) is a visual quality enhancement technology devel- oped by Samsung Electronics. You can view a clearer and sharper picture by enabling the EDI function when watching TV or playing a video on AVStation pre- mium.

  • Page 54: Playing A Dvd

    1. Launch AVStation premium and insert a DVD title into the DVD drive. 2. In the 'What do you want Windows to do?' window, select Play DVD Video using Samsung AVStation and click the OK button. 3. The DVD title is played.
  • Page 55 Click on Capture Current Screen ( desired image appears on the screen and click the OK button. Captured images are saved in the C:\Program Files\Samsung\AVStation Premium 3.7\Data\Captured Images folder. In addition, you can view captured images in the PHOTO Station >...
  • Page 56 ■ Adding Videos to the Library The MOVIE Library is a library holding video files to be used by MOVIE Station. The procedures to add video files saved on the computer to the Library are described below. You can add files, add folders or search and add files. As an example, the pro- cedures to add folders are described below.
  • Page 57 Using AVStation now / AVStation premium Viewer Using these programs, you can play music, photographs, video and movies in full screen. You can enjoy multimedia using AVStation now when the computer is off and using AVStation premium Viewer when the computer is on. •...
  • Page 58 Alternatively press the Power button of the computer. Start / Exit AVStation premium Viewer ■ Starting Select Start > All Programs > Samsung > AVStation premium > AVStation pre- mium Viewer from Windows. Alternatively press the AVS button ( 3-30...

  • Page 59: Screen Layout

    ■ Exiting Move the mouse pointer to the top of the screen and click the Exit ( Screen Layout You can play a music file or audio CD. MUSIC : You can view a photograph or image file one by one or in a PHOTO : SlideShow.

  • Page 60: Using The Remote Control

    Using the Remote Control The basic uses of the remote control are described below. For more detailed informa- tion on the button functions, refer to "Using the Remote Control (Optional)" on P. 1- 3-32 Manual To move to the start screen while using the program, press the AVS ( button or <ESC>...
  • Page 61 MUSIC Station The procedures to play a music file or an audio CD are described below. ■ Playing a Music File The procedures to play a music file registered to the MUSIC Library are described below. (For the procedures to register files, refer to P. 3-20.) 1.
  • Page 62 ■ Playing an Audio CD 1. Launch AVStation now and insert an audio CD into the CD drive. 2. In the AVStation now start screen, click on Music. 3. Double-click the Audio CD in the left pane and double-click on an album or music file in the right pane.
  • Page 63 PHOTO Station The procedures to view images registered to the PHOTO Library one by one and through a SlideShow are described below. (For the procedures to register image files to the Library, refer to P. 3-24.) 1. Launch AVStation now and click on Photo. 2.

  • Page 64: Playing A Movie File

    MOVIE Station The procedures to play a video (movie) file or DVD/VCD title are described below. ■ Playing a Movie File The procedures to play a video file registered to the MOVIE Library are described below. (Refer to P. 3-28.) 1.
  • Page 65 ■ Playing a DVD 1. Launch AVStation now and insert a DVD title into the DVD drive. 2. In the AVStation now start screen, click on Movie. 3. Click on DVD/VCD and double-click on the DVD title. The DVD title is played. Chapter 3.Using The Computer 3-37...
  • Page 66 3-38 Manual...

  • Page 67: Connecting To The Internet

    Chapter 4 Chapter 4 Connecting to the Internet This chapter provides instructions on connecting to the Internet.
  • Page 68 Connecting to the Internet The following options show many ways to connect to the Internet. An appropriate option should be selected depending on the user’s working environment and the user’s system specifications. Option 1 Connecting using a modem and a telephone line. Option 2 Connecting using a High-speed communication Option 3 Connecting using a wired LAN Option 4 Connecting using a wireless LAN...

  • Page 69: Connecting To The Internet Using A Modem

    Connecting to the Internet Using a Modem 1. Connect the telephone line to the modem port. Do not use a digital telephone line. 2. To connect the modem to the Internet, and use e-mail, you have to apply to an Internet Service Provider (ISP) for an Internet service.

  • Page 70: Configuring The Network Environment Settings For Wired Lan Connections

    Configuring the Network Environment Settings for Wired LAN Connections A wired LAN environment is an environment where you can connect to the Internet using the company’s LAN or with a broadband modem. 1. Connect the network (LAN) cable to the LAN port of the system. 2.
  • Page 71 7. In the “This connection uses the following items” field, select Internet Protocol (TCP/IP), and click Properties. In the above screen, necessary network components can be added by clicking the Install button. 8. Enter the system’s IP and DNS server addresses on the General tab of the [Internet Protocol (TCP/IP) Properties] window.
  • Page 72 Using Both DHCP and Static IP Simultaneously When you are alternatively using networks with either DHCP or static IP address- ing, you can use alternative settings that enable simultaneous configurations of DHCP and static IP to use both of the network connections without reconfiguring. This function is provided only when your operating system is Windows XP.

  • Page 73: Configuring The Network Environment Settings For Wireless Lan Network (Wlan)

    Configuring the Network Environment Settings for Wireless LAN Network (WLAN) A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices. When a computer-to-computer network has been established, a comput- er that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.

  • Page 74: Connecting To An Access Point

    Connecting to an Access Point This section describes how to connect to an AP. You can use the network when you are connected to an AP. For more detailed information such as the network key (encryption key), ask your network administrator. 1.
  • Page 75 Connecting to computer-to-computer networks (peer-to-peer or ad hoc) In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
  • Page 76 Select ‘Computer-to-computer (ad hoc) networks only’, and click Close. 5. In the Wireless Networks tab, click Add. 6. Enter the network name (e.g. samsung), and unselect ‘The key is provided for me automatically’. Enter the encryption key in the Network key field, and click OK.
  • Page 77 7. Check that the configured network name (e.g. samsung) is in the ‘Preferred networks item’, and click OK. Now your wireless network setup has been completed. 4-11 Chapter 4. Connecting to the Internet...
  • Page 78 1. Right-click on the Wireless Network Connection ( and select View Available Wireless Networks. 2. Select the wireless network name (e.g. samsung) specified in “Connecting to computer-to-computer networks (peer-to-peer or ad hoc)”, and click Connect. 3. Enter a cryptographic key in the network key box and click Connect.

  • Page 79: Wireless Network Setup Using The Wireless Lan Setup Program

    Wireless Network Setup Using the Wireless LAN Setup Program The procedures to connect to an access point using a wireless LAN configuration pro- gram are described. Since the wireless LAN configuration program is included in the system software media, the user has to install the program. 1.

  • Page 80: Using Samsung Network Manager

    Using Samsung Network Manager Samsung Network Manager is a program that has been developed to enable users to use the network easily. Samsung Network Manager provides the following features. You can easily set up the network and printer settings. You can immediately use the network without defining new network settings again after moving locations.
  • Page 81 5. Select Internet direct connection and click the Next button. 6. Select the LAN device, setup the IP address and click the Next button. Select Device Select a device to be connected to the Internet. Select either Wired LAN or Wireless LAN.
  • Page 82 LAN AP. 1. Right-click over the Wireless Network Connection ( Taskbar and click View Available Wireless Networks. 2. Select an available wireless network (e.g. SAMSUNG) and click the Connect button. For information on available wireless LAN APs, ask your network administrator.

  • Page 83: Sharing Internet Access

    1. Run Samsung Network Manager when connected to the Internet. 2. Select an icon that represents the corresponding location from the Saved Locations window and then click Move.
  • Page 84 ▶ Setting Up a Sharing Server 1. Run Samsung Network Manager on the computer to be used as the sharing server. 2. Click the Add button. 3. Select a network location icon and enter the name of the location (e.g. Home).
  • Page 85 ·To connect through a wireless LAN, enter the wireless connection name (e.g. Samsung) you entered in the sharing server. If you have set a network key (security key) for the sharing server, enter the network key. 6. The setup information appears. Confirm the information and click the Next button.
  • Page 86 Network Status Diagnosis You can diagnose the network status when the network is not properly connected. 1. Run Samsung Network Manager. 2. Select Diagnose Status from the Manage menu. 3. The Network Connections figure window appears. Click the Start button to start the network diagnosis.

  • Page 87: Using Network Service

    Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Network services are provided for the computers that are connected to the network through wired or wireless network connections. (See Pages 4-4, 4-7, Configuring Network Environment Settings) Sharing files or folders This section describes how to share files and folders between computers connected to...
  • Page 88 ■ Step 1. Configuring Sharing 1. Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2. Click ‘IF you understand the security risks but want to share files without running the wizard, click here’. 3.
  • Page 89 ■ Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1. Click Start > My Computer. Under Other Places, click My Network Places in your computer.

  • Page 90: Sharing Printers

    Sharing Printers This section describes how to share a printer between computers connected to a net- work. To share a printer, complete the following procedures: ▶ Step 1. Configure printer sharing in the computer connected to the printer. ▶ Step 2. Add and use the shared printer in other computers on the network. ■...
  • Page 91 4. In the Printers and Faxes window, you will find the printer icon has been changed to another icon on a hand. ■ Step 2. Adding and Using a Shared Printer 1. From a different computer that wants to use the shared printer, click Start > Printers and Faxes.
  • Page 92 7. Read the warning about a shared printer, and click Yes to install the shared printer. 8. Select Yes for ‘Do you want to use this printer as a default printer?’, and click Next. 9. Click Finish. 10. When the printer sharing configuration has been completed, the shared printer appears in the Printers and Faxes window.

  • Page 93: Using Bluetooth Devices

    Using Bluetooth Devices Bluetooth is a wireless communication technology that allows access to devices near- by such as a computer, mobile phone, printer, keyboard or mouse without a cable connection. Bluetooth enables file transmissions, Internet access, a private area net- work function, and access to a keyboard, mouse and printer between devices sup- porting the Bluetooth function without a cable connection.

  • Page 94: Bluetooth Software Setup

    Bluetooth Device. In the setting up steps, enter a device name to be displayed in the Bluetooth Manager program. Enter a Name in the Computer Name field and select Laptop for the Computer Type field. Also, a step appears for selecting the services to be provided by your Bluetooth device for other Bluetooth devices.
  • Page 95 At this point, a warning message may appear informing you that there is no Microsoft logo. Since it does not affect the operation, continue the installation. 3. If the driver installation is complete, the next step proceeds which searches for nearby Bluetooth devices.

  • Page 96: Using Bluetooth

    Using Bluetooth Describes how to exchange files between computers supporting Bluetooth and how to use other Bluetooth devices. ■ Bluetooth Help Bluetooth Help provides detailed procedures on using Bluetooth functions. Double-click on My Bluetooth Settings on the Desktop and press the <F1> key (Help).

  • Page 97: Exchanging Files Between Bluetooth Computers

    ■ Exchanging Files between Bluetooth computers The procedures to exchange files and folders between Bluetooth computers are described below. 1. On the computer that is sending a file (hereafter Computer A), right-click the Bluetooth icon ( ) in the notification area and select Quick Connection > File Transmission >...
  • Page 98 3. If the Bluetooth PIN code requested notification window appears on the bot- tom right taskbar, click on the window, enter the Bluetooth PIN code and click the OK button. 4. After a short while, the Bluetooth PIN Code required dialog box appears on Computer B, enter the code that you have entered in Step 3 above.
  • Page 99 7. If the file transmission is complete, close the File Transmission window. The received files are saved in the C:\Documents and Settings\[user name]\My Documents\Bluetooth Exchange folder. ■ Connecting Keyboard, Mouse, Joystick and Headset devices The procedures to use Bluetooth HID devices (keyboard, mouse, joystick, etc.) or a headset, etc.
  • Page 100 The Bluetooth function of a Bluetooth PDA, mobile phone, mouse or keyboard may be turned off. To use them in connection with a Samsung computer sup- porting Bluetooth, you must check if the Bluetooth function of the device to con- nect to is turned on.

  • Page 101: System Management

    Chapter 5 Chapter 5 System Management This chapter provides information on efficient computer management.

  • Page 102: Managing Power

    Managing Power Use Power Options to save power consumption. You can switch Standby Mode while you are not using your computer or configure the system components to shut it down on a specified time. Specifying Power Save Time You can specify Turn Off Monitor, Turn Off Hard Disk, System Standby Mode, and Maximum Power Save Mode.

  • Page 103: Using The Power Button

    Using the Power button You can configure the function of the power button. Click Start > Control Panel > Performance and Maintenance > Power Options and select the Advanced tab. When the Power button is configured to put the system into Power-Saving Mode, manually shutting down the computer requires the Power button to be pressed and held for more than 4 seconds.

  • Page 104: Using The Battery

    Using the Battery Please refer to the following instructions when running the computer on battery power without connecting the AC power. This computer uses smart rechargeable Lithium-Ion (Li-Ion) battery. Precautions Ejecting and Attaching Battery 1. Shutdown system and close LCD. 2.

  • Page 105: Monitoring The Battery Charge

    > key combination on the keyboard, the remaining battery charge appears on the screen for a while. It appears only when the Samsung Display Manager program is installed on your computer. ■ To view on the battery Press the PUSH button on the battery. The remaining battery charge (%) will be displayed.

  • Page 106: Decreasing The Lcd Brightness

    You can easily change the power mode by selecting an optimized power mode and manu- ally optimizing the battery use time by setting each option. Click on Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager.
  • Page 107 Power Saving Effect This shows the relative battery use time for each power mode. The more effective the power saving, the longer the graph will appear. When Running a Game or Multimedia Application A game or multimedia application may not work smoothly in Maximum Battery Saving Mode.Using this is recommended when the AC adapter is connected or in Normal or higher modes.

  • Page 108: Upgrading Memory

    Upgrading Memory This computer has one or more memory module(s). Two memory module sockets are provided so that you can replace memory or install an additional memory module. 1. Using a screwdriver, open the memory-module compartment cover on the bottom of the system.
  • Page 109 3. Align the new memory module connectors accordingly and slide it into the slot at a 30˚ angle. 4. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, push the module while pressing the memory module tabs outward.

  • Page 110: Using The Security Lock

    Using the Security Lock The security lock is a device used to physically ‘fix’ the system when using it in a public place. The locking device needs to be purchased separately. The shape and methods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.

  • Page 111: Traveling With The Computer

    Traveling with the Computer When traveling, keep the system and the AC adapter disconnected. Otherwise, it may affect the functions of the system. Make sure that the system is not pressed by a book or heavy objects. The LCD may get damaged. When traveling by plane, use a bag designed for notebook PCs and hand-carry the computer.
  • Page 112 5-12 Manual...

  • Page 113: Customizing Your Computer

    Chapter 6 Chapter 6 Customizing your computer This chapter provides information how to use the system setup, customizinig screen settings.

  • Page 114: Using System Setup

    Using System Setup System Setup is a utility that enables the computer environment to be changed to suit the user. System Setup is used when changing the system password, booting priority, or when adding new devices. Please use extra care when configuring System Setup, as it may cause serious system error.
  • Page 115 System Setup Menus Menu Items Description Main Configures the basic system environment Advanced Configures OS and major chipset options of the system Security Configures system security options Boot Configures booting options Exit Exits System Setup For more information on System Setup menus or options, please refer to Help on the right side of the screen.

  • Page 116: Configuring The Password

    By configuring a supervisor password, you can restrict system access to autho- rized users only. Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center. 1. Select the Security menu in the System Setup. (To enter into System Setup, see Page 6-2.) 2.

  • Page 117: Setting The User Password

    ■ Setting the User Password You can configure user passwords so that other users can use the system. Before configuring a user password, a supervisor password must have been con- figured. Users can start the system with their user password, but cannot enter into the System Setup.

  • Page 118: Changing Booting Priority

    Changing Booting Priority You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to con- figure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.

  • Page 119: Configuring Resolution And Color Depth

    Configuring Resolution and Color Depth Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen.

  • Page 120: Using External Display Devices

    TV/DVI is not supported. In full screen MS-DOS mode of Windows, you cannot change the display device by pressing the shortcut key. Manual > key combination once, the Samsung Display Example) Select LCD+CRT Notebook Screen External Monitor Screen...
  • Page 121 ■ Using Dual View to View an Extended Screen Dual View is a function that enables you to view a computer screen over two dis- play devices. This is convenient when needing a wide screen for work. In Dual View mode, you can select the screen resolution and colour quality for each display device, as if there were two separate graphics cards.
  • Page 122 ■ Deactivating Dual View Mode Click the monitor ‘2’ icon, clear the ‘Extend my Windows desktop onto this monitor’ check box, and then click Apply. Manual 6-10 When you use Dual View, configuring the LCD as the 'Primary' monitor is recommended.

  • Page 123: Checking For Viruses

    Checking for Viruses The Norton AntiVirus software is provided as the virus inspection program. When you first run Norton AntiVirus, the Norton AntiVirus Configuration window pops up. If you complete the configuration and your computer connect to network, you can download and install the latest updates via the network. When the live update is done, virus scanning starts automatically.
  • Page 124 Manual 6-12...

  • Page 125: Recovering The Computer

    Chapter 7 Chapter 7 Recovering the Computer This chapter provides recovery procedures using the System Recovery CD when the computer is not operating properly.

  • Page 126: Using Magic Doctor

    Magic Doctor is troubleshooting software provided by Samsung Computer. A user can diagnose system problems via one-click or by selecting diagnostic items. 1. Click Start > All Programs > Samsung > Magic Doctor > Magic Doctor. 2. Click on an icon at the top of the screen.

  • Page 127: Restoring The System

    Restoring the System This description is only for models running Window XP. The System Restore function allows you to restore your computer to an earli- er copy (called restore point), and restores the settings if a problem occurs. The System Restore function is provided by Windows XP to enable the reso- lution of various problems without reinstalling Windows XP completely.

  • Page 128: Returning Your Computer To An Earlier Restore Point

    ■ Returning your computer to an earlier restore point The procedures to return your computer to an earlier restore point when a problem has occurred are described below. 1. Start > All Programs > Accessories > System Tools > System Restore. 2.

  • Page 129: Reinstalling Software

    Reinstalling Software If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and program using the System Software Media. This computer is optimized for Microsoft Windows XP, therefore drivers for other operating systems are not included on the System software Media.

  • Page 130: Installing Drivers And Programs

    ■ Installing drivers and programs 1. Click Standard Installation in the main window of the System Software Media. (Standard Installation is recommended) 2. The system is scanned to display the drivers and programs that need to be installed. 3. Click OK. The drivers and programs are automatically installed as factory defaults.

  • Page 131: Re-Installing Windows

    If there is insufficient free disk space for installing Windows (approximately less than 5 GB), Windows cannot be installed. 1. Insert the Samsung Recovery Solution media into the DVD-ROM drive and restart your computer. 2. When the Press any key to boot from DVD. . . message appears, press any key on the keyboard.
  • Page 132 4. The Windows installation will be performed. Installation will take approximately 15~20 minutes depending on the performance of the computer. If the Select Windows version (language) screen appears instead of the Windows installation screen: The Select Windows version screen may appear if you have formatted your hard disk drive.
  • Page 133 5. When the Windows installation is complete, the computer will automatically restart and the Notice window will appear. Insert the System Software Media into the DVD-ROM drive. After a short wait, the System Software Media Start screen will appear. The drivers and applications from the System Software Media need to be installed.

  • Page 134: Q&A

    Q&A This section provides information on possible problems, solutions and other references for system use. Windows Related Q1The system does not shutdown properly. A When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off.

  • Page 135: Display Related

    Display Related Q1 The LCD screen is too dark or too bright. A Turn on the LCD backlight or adjust the screen brightness. Press <Fn>+<F5> to turn on the LCD backlight or press <Fn>+< screen brightness. Q2 The screen saver disturbs screen viewing during Media Player or video file operation.
  • Page 136 Q7 The playback screen of a DVD title or an MPEG file is only dis- played on the LCD. A Video is displayed on a single display device by default, when LCD and CRT are selected simultaneously. 1. Right-click over the Desktop and select Properties from the pop-up menu. 2.

  • Page 137: Sound Related

    Q12 Pressing the shortcut key on the keyboard does not show the Samsung Display Manager icon. A The Samsung Display Manager icon only appears when both the Magic Keyboard and the Samsung Display Manager program are installed. Q13 The color is strange when the picture is displayed on the con- nected monitor (or projector).
  • Page 138 • Uninstalling the Sound Driver To remove the sound driver due to a problem or for an update, follow the pro- cedures below. If you do not follow the sequence below, the sound driver may not be removed or the reinstalled driver, or may not work properly. 1.

  • Page 139: Modem Related

    Modem Related Q1 I cannot hear the modem sound. A1 Check that the telephone line is properly connected to the modem. A2 Check that the modem driver is installed properly. 1. Click Start > Control Panel > Performance and Maintenance > System.
  • Page 140 Q3 How do I use my modem when dialing from overseas? A1 Check that the modem is correctly configured according to the current country. Because the values for communication may differ according to the country, you may not be able to connect via the modem due to an incorrect modem configura- tion.

  • Page 141: Wired Lan Related

    Wired LAN Related Q1 <Wake On LAN> Function. A <Wake On LAN> is a function that activates the system in rest mode when a sig- nal (such as ping or magic packet commands) arrives from network(wired LAN). ▶ To use <Wake On LAN> function 1.

  • Page 142: Wireless Lan Related

    Wireless LAN Related Q1 The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer. This is due to an inappropriate configuration. Check the following check lists: A1 If you are using a computer-to-computer (Ad Hoc) network connection, check that the name of the configured network (SSID) is correct.
  • Page 143 Q3 I cannot share an Internet connection. A1 It may require some time to synchronize the computers to share an Internet connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer. A2 Check if the connection between the network adapters is configured to bridge.
  • Page 144 A6 Check the network key settings (encryption key). When automatic code conversion (a passphrase function) has been selected and data communication is not functioning even with a normal wireless connection, it is recommended entering the network key (encryption key) manually. A7 Check the AP settings as follows.
  • Page 145 A4 Right-click the My computer icon, and select Manage. When the Computer Management window appears, double-click Services and Applications on the left, and then click Services from the sub menu tree. Select the Standard tab in the right pane, double-click Wireless Zero Configuration and check that Startup Type is configured to Automatic, and the Service status is Started.
  • Page 146 Q9 The network does not operate properly when both the wireless and the wired network connections are simultaneously configured with the same IP address. A You cannot use the wireless and the wired network connections using the same IP address simultaneously. To use either the wireless or the wired network in turn with the same IP address, you have to Disable whichever network device will not be using in the network connection of the Control Panel.
  • Page 147 Q12 After PROSet is installed, The “AEGIS Protocol (IEEE 802.1x) v2.2.1.0” appears in the [Local Area Connection Properties] window. A The AEGIS Protocol is a security authentication protocol that is automatically installed when PROSet is installed and does not affect the operation of other pro- grams.
  • Page 148 Game/Program Related Q1 3D game is not executed, or some functions are not working. A In the '2D' or 'Software Renderer' of the graphics option provided by the game, change the related settings and run it again. Q2 While playing a game, pressing the <Fn>+< work or the screen is not properly displayed.
  • Page 149 2. In the [Display Properties] window, select the Settings tab > Advanced > GeForce Go xxxx tab. 3. Select the PowerMizer item, slide the AC outlet and the battery sliders to Maximum Performance and then click the Apply button. Q7 The picture is not displayed properly for some games. A Some games such as 'Harry Potter and the Sorcerer's Stone', ‘Harry Potter and the Chamber of Secrets', etc.

  • Page 150: Security Center

    Security Center Q1 To change the popup window display settings when connected to the Internet. In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security. A1 To display most of the popup windows when connected to the Internet: 1.
  • Page 151 Q3 When you see a Windows Security Alert icon appear on the right part of the task bar. With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet.
  • Page 152 A5 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.

  • Page 153: Appendix

    Appendix Appendix Appendix System specifications, software types and safety instructions are provided here.

  • Page 154: System Specifications

    The system specifications are subject to change without notice. For detailed system specifications, refer to the product catalog. The capacity of the hard disk drive with Samsung Recovery Solution will be displayed as less than the specified capacity. Manual Specification ‚...

  • Page 155: Wireless Lan Specifications

    Wireless LAN Specifications Intel(R) PRO/Wireless LAN 3945ABG Network Connection Item Physical Dimensions Specifications operation temperature and humidity Power Saving Mode Power Receiving Mode Specification Transmission Mode Power Compatibility Operating System Network Specifications Media Access Protocol Security * This piece of equipment supports the Wi-Fi wireless LAN security standard, WPA (Wi-Fi Protected Access) and CCX (Cisco Compatible eXtensions).

  • Page 156: Copyright

    Copyright Samsung Co., Ltd. owns the copyright to this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronically, mechanically, or through audio, without the consent of Samsung Co., Ltd. The information in this document is subject to change without prior notice.

  • Page 157: Safety Instructions

    Safety Instructions Instructions for Setup ● Set up the system on a stable work surface. If the system is dropped it may be damaged or it may inflict injuries on the user. ● Set up the system in a clean, dry and airy place. If the system overheats, it may be damaged or it may cause fires.
  • Page 158 Instructions for careful handling ● Handle with care so as not to damage the data in the hard disk. - Since the hard disk is fragile and sensitive to external conditions, it may be damaged from temperature changes or impact during operation.
  • Page 159 ● Use only authorized parts and do not disassemble, repair or modify the computer unless at an authorized dealer. Use authorized service centers as the system may be damaged. ● Do not touch the power strip with wet hands. There is a danger of electric shock. ●...

  • Page 160: Samsung Notebook Computer Global Warranty

    SAMSUNG Notebook Computer Global Warranty 1. What is Global Warranty System (GWS) ? Warranty Repair Service will be provided by Samsung Electronics Co., Ltd as required during Warranty period. 2. What is process ? The GWS service only applies to the regions mentioned below.

  • Page 161: Web Site

    Customer Service Center General Enquiry Hotline: 2862-6001 Technical Support Hotline: 2862-6406 E-mail: service@sehk.samsung.com Web Site: http://www.samsung.com/hk...

Table of Contents
