Page 1: Theater System

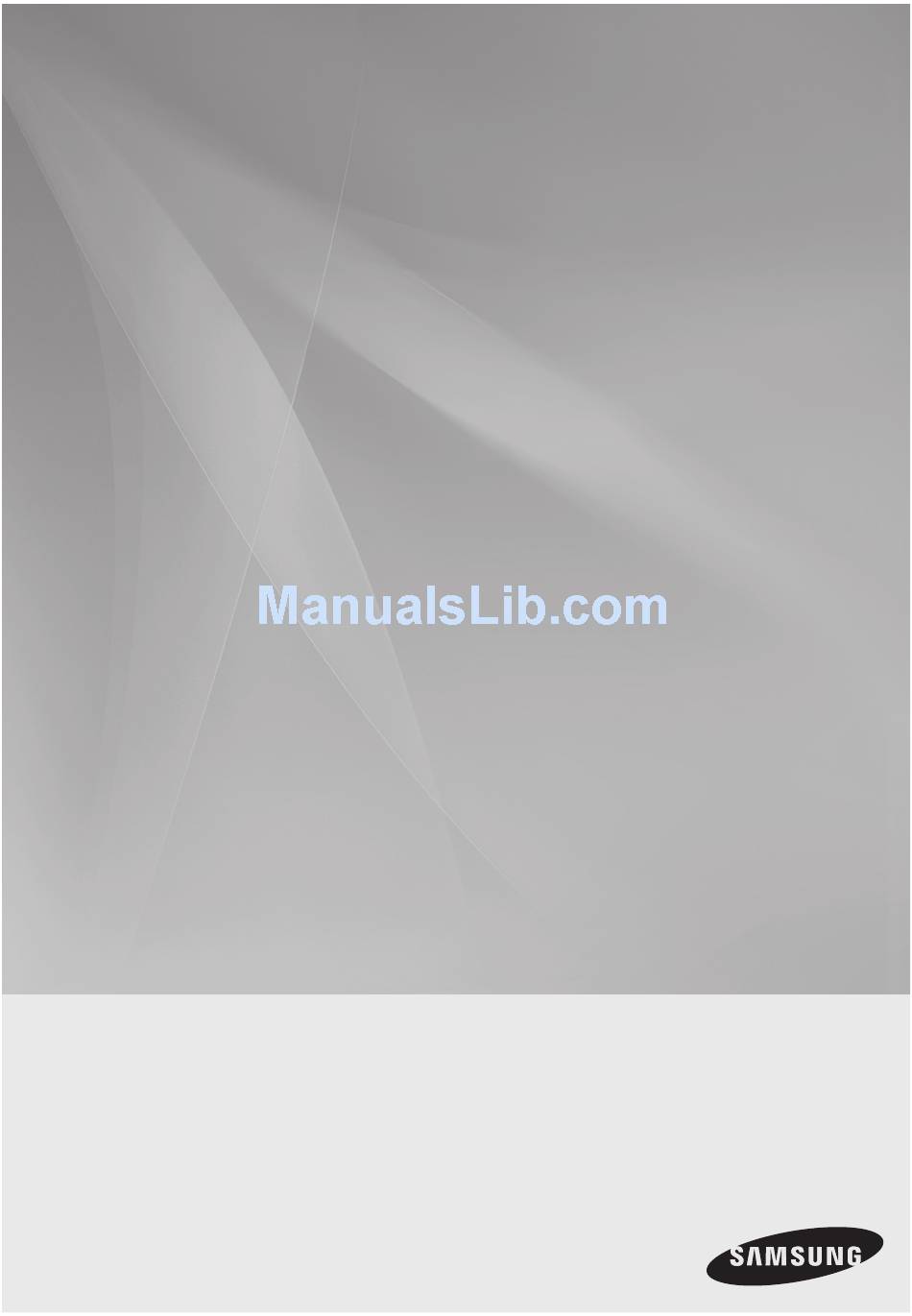

HT-TWZ415 Digital Home Theater System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register... - Page 2 Anynet+ (HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support Anynet+.) iPod support You can enjoy music files by your connecting iPod to the home theater with the supplied iPod dock.
-
Page 3: What's Included
WHAT’S INCLUDED Check for the supplied accessories below. Remote Control Video Cable FM Antenna iPod Dock Package User's Manual ASC microphone / Batteries (AAA size) SWA-4000 Wireless Receiver Module TX Card Speaker Cable (2EA) -
Page 4: Safety Information
safety information SAFETY WArNINgS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER (or BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION rISK OF ELECTrIC SHOCK DO NOT OPEN CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT... -
Page 5: Precautions
PrECAUTIONS Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. -
Page 6: Table Of Contents
contents SAfETy INfORmATION gETTINg STARTED DESCRIPTION REmOTE CONTROL CONNECTIONS bEfORE USINg yOUR hOmE fEATURES What’s included Safety Warnings Precautions Before Reading the User’s Manual Playable Discs Do not use the following types of disc! Copy Protection 10 Disc Type and Characteristics 11 Front Panel 12 Display 13 Rear Panel 14 Tour of the Remote Control 16 Setting the Remote Control 18 Connecting the Speakers 23 Conecting the Rear Speakers to the Wireles Receiving Amplifier 25 Connecting the Video Out to your TV 27 HDMI Function 28 Connecting an iPod 30 Connecting Audio from External... - Page 7 SySTEm SETUP CONvENIENT fUNCTION TROUbLEShOOTINg LANgUAgE CODE LIST USb hOST fEATURE SUPPORTED PRODUCTS APPENDIx 51 Setting the Language 52 Setting TV Screen Type 53 Setting Parental Controls (Rating Level) 53 Setting the Password 54 Setting The Wallpaper 54 To Select one of the 3 Wallpaper Settings You've Made 55 DVD Playback Mode 55 Setting the Speaker Mode 56 Setting the Delay Time 57 Setting the Test Tone 57 Setting the Audio 58 Setting the DRC (Dynamic Range Compression) 59 Setting the AV SYNC 59 Setting the HDMI Audio 60 Sound field (DSP)/EQ Function...
-
Page 8: Icons That Will Be Used In Manual
©2008 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. Definition This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode. -
Page 9: Playable Discs
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall. DVD players and the discs are coded by region. -
Page 10: Getting Started
getting started DISC TYPE AND CHArACTErISTICS This product does not support Secure (DRM) Media files. CD-r Discs ❖ Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. Use a 650MB/74 minute CD-R disc. -
Page 11: Description
description FrONT PANEL PHONES AUX IN 1 ASC IN DISC TRAY FUNCTION BUTTON TUNING DOWN & SKIP ( ) BUTTON STOP BUTTON PLAY/PAUSE ( ) BUTTON FUNCTION FUNCTION VOLUME TUNING UP & SKIP ( ) BUTTON OPEN/CLOSE BUTTON VOLUME CONTROL DIRECT PLAY 1~5 BUTTONS DISC CHANGE BUTTON CHANGE... -
Page 12: Display
description DISPLAY FUNCTION DISPLAY REPEAT INDICATOR HDMI INDICATOR DISC INDICATOR DVD INDICATOR CD INDICATOR 10 11 USB INDICATOR DTS DISC INDICATOR REPEAT INDICATOR DSP INDICATOR ASC (Auto Sound Calibration) INDICATOR SYSTEM STATUS DISPLAY 13 1 15 1 RADIO FREQUENCY INDICATOR DOLBY DIGITAL INDICATOR PRO LOGIC INDICATOR LPCM INDICATOR... -
Page 13: Rear Panel
rEAr PANEL TX CARD CONNECTION (WIRELESS) iPod JACK AUX IN 2 JACKS VIDEO OUTPUT JACK COMPONENT VIDEO OUTPUT JACKS External Digital Optical Input Jack FM 75Ω COAXIAL JACK HDMI OUT JACK COOLING FAN SPEAKER OUTPUT CONNECTORS The TX card enables communication between the main unit and the wireless receiver amplifi... -
Page 14: Remote Control
remote control TOUr OF THE rEMOTE CONTrOL DVD RECEIVER PORT REMAIN STEP PAUSE AUDIO TITLE P.BASS... - Page 15 DVD RECEIVER button tV button POWER button Number (0~9) buttons REMAIN button StEP button tuning Preset/CD Skip buttons VOLUME button MENU button AUDIO button PL II MODE button tUNER MEMORY, SD(Standard Definition)/HD(High Definition) button ZOOM button P.BASS button SLEEP button ASC button SLOW, MO/St button PL II EFFECt button...
-
Page 16: Setting The Remote Control
TV. If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. Operation range of the remote Control The remote control can be used up to approximately 23 feet (7 meters) in a straight line. -
Page 17: Tv Brand Code List
01, 15 Nikei Onking Onwa Panasonic 59, 60 Penney Philco Philips Pioneer Portland Proton Quasar Radio Shack RCA/Proscan Realistic Sampo Samsung Sanyo Scott Sears Sharp Signature 2000 (M.Wards) Sony 19, 65 Soundesign Spectricon Sylvania Symphonic Tatung Techwood Teknika Toshiba Vidtech... -
Page 18: Connections
connections This section involves various methods of connecting the Digital Home Theater to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. CONNECTINg THE SPEAKErS Position of the DVD Player Place it on a stand or cabinet shelf, or under the TV stand. -
Page 19: Installing The Cradle Stand
Speaker Components CENTER CENTER HoLe CoVer CRADLE STAND/ WALL MOUNT Front StanD Installing the Cradle Stand 1. Insert the stand so that it fi ts into the hole as described in the fi gure. 2. Turn the stand clockwise to lock it. (Turning it counter-clockwise will loosen from the hole.) 3. - Page 20 connections Installing the Wall Mount 1. Insert the wall mount so that it fi ts into the rear hole of the speaker as in the fi gure. 2. Turn the wall mount counter clockwise to fi x it. (This is the reverse direction to the cradle stand.) 3.
-
Page 21: Stand Base
How to Install the Speaker on the Stand Turn the STAND upside-down and connect it to the STAND BASE. Insert three small SCrEWS into three holes marked with arrows using a screwdriver as shown in the illustration. Insert a large SCrEW into the hole on the rear of the Speaker STAND. -
Page 22: Connecting The Front, Rear, Center And Subwoofer Speakers
connections Connecting the Front, rear, Center and Subwoofer Speakers Press down the terminal tab on the back of the speaker. Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab. Connect the connecting plugs to the back of the Home Theater. -
Page 23: Conecting The Rear Speakers To The Wireles Receiving Amplifier
CONECTINg THE rEAr SPEAKErS TO THE WIrELES rECEIVINg AMPLIFIEr Wireless receiving Module (SWA-4000) Rear Speaker (L) WIRELESS RECEIVER MODULE Connect the front, center and Subwoofer speakers to the DVD Player, referring to page 22. With the DVD Player turned off, insert the TX card into the TX Card Connection(WIRELESS) on the back of the main unit. - Page 24 This product(HT-TWZ415) is also compatible with the wireless receiver module SWA-3000. If the main unit doesn't make wireless connection, the system needs ID Setting between main unit and wireless receiver module.
-
Page 25: Connecting The Video Out To Your Tv
See your TV owner's manual for more information on how to select the TV's Video Input source. If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home Theater using the TV's remote control. (This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).) -
Page 26: Hdmi Auto Detection Function
(TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made. What is Anynet+? Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature. - If your Samsung TV has an - If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode. -
Page 27: Hdmi Function
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+. -
Page 28: Connecting An Ipod
Adjust the volume to a moderate level before you connect your iPod and DVD home theater. When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery. Make sure to connect the dock connector so that the label “SAMSUNg” faces upward. - Page 29 iPod models compatible with the dock mini (4GB, 6GB) 20GB, 30GB (color display) nano (aluminum) (2GB, 4GB, 8GB) The following 5 models must be used with the applicable dock insert as well as the dock before they can be connected to the system. ...
-
Page 30: Connecting Audio From External Components
connections CONNECTINg AUDIO FrOM EXTErNAL COMPONENTS AUX1 : Connecting an External Component/MP3 player Components such as an MP3 Player PHONES AUX IN 1 ASC IN Audio OUT Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player. - Page 31 AUX2 : rear Panel ipod Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. External Analog Component AUX2 : Connecting an External Analog Component Analog signal components such as a VCR. Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
-
Page 32: Cooling Fan
connections CONNECTINg THE FM ANTENNA Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. This unit does not receive AM broadcasts. -
Page 33: Theater
The DVD Home Theater's remote can be used to control Samsung TVs. Plug the main unit's power cord into the AC power supply. Press the DVD rECEIVEr button to operate the DVD Home Theater. Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback. -
Page 34: Selecting A Disc In The Disc Changer
playback DISC PLAYBACK Press the OPEN/CLOSE ( Load a disc. Place a disc gently into the tray with the disc’s label facing up. Press the DISC SKIP button. Rotate the carousel tray so you can load the third, fourth, and fi fth discs. Close the compartment by pressing the OPEN/CLOSE ( button again. -
Page 35: Mp3/Wma-Cd Playback
MP3/WMA-CD PLAYBACK Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played. Place the MP3/WMA disc on the disc tray. The MP3/WMA menu screen will appear and playback will start. The appearance of the menu depends on the MP3/WMA disc. WMA-DRM fi les cannot be played. -
Page 36: Jpeg File Playback
playback JPEg FILE PLAYBACK Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back with this Home Theater. Slide Mode Place the JPEG disc on the disc tray. Playback starts automatically. -
Page 37: Divx Playback
DIVX PLAYBACK The functions on this page apply to DivX disc playback. Skip Forward/Back During playback, press the [,] button. Goes to the next fi le whenever you press the ] button, if there are over 2 fi les in the disc. Goes to the previous fi le whenever you press the [ button, if there are over 2 fi les in the disc. - Page 38 playback DIVX PLAYBACK If the Disc has more than One Subtitle File If the disc has more than one subtitle fi le, the default subtitle may not match the movie and you will have to select your subtitle language as follows: In Stop mode, press the Cursor ,...
-
Page 39: Using The Playback Function
USINg THE PLAYBACK FUNCTION Displaying Disc Information You can view disc playback information on the TV screen. Press the INFO button. Depending on the disc, the disc information display may appear different. Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC. -
Page 40: Fast Playback
playback USINg THE PLAYBACK FUNCTION Fast Playback Press the (,) button. Each time the button is pressed during playback, the playback speed changes as follows: ( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞ PLAY ) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞ PLAY During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds. -
Page 41: Repeat Playback
repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 fi le). Press the rEPEAT button. Each time the button is pressed during playback, the repeat playback mode changes as follows: rEPEAT : CHAPTEr ➞ rEPEAT : TITLE ➞ rEPEAT : OFF DVD-VIDEO rEPEAT : TrACK ➞... -
Page 42: A-B Repeat Playback
playback USINg THE PLAYBACK FUNCTION A-B repeat Playback You can repeatedly play back a designated section of a DVD. Press the INFO button twice. Press the Cursor button to move to REPEAT PLAYBACK ( ) display. Press the Cursor , button to select A- and then press the ENTEr button. -
Page 43: Angle Function
Angle Function This function allows you to view the same scene in different angles. Press the INFO button. Press the Cursor button to move to ANGLE ( display. Press the Cursor , button or numeric buttons to select the desired angle. Each time the button is pressed, the angle changes as follows: 1/3 ➞... -
Page 44: Navigating Pages
playback USINg THE PLAYBACK FUNCTION Bonus group Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number. When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. -
Page 45: Audio Language Selection Function
Audio Language Selection Function Press the INFO button twice. Press the Cursor , button or numeric buttons to select the desired audio language. Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. -
Page 46: Moving Directly To A Scene/Song
playback USINg THE PLAYBACK FUNCTION Moving Directly to a Scene/Song Press the numeric buttons. The selected fi le will be played. When playing an MP3 or JPEG disc, you cannot use the Cursor , button to move to a folder. To move a folder, press the STOP Cursor ,... -
Page 47: Using The Title Menu
Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary. In Stop mode, press the MENU button. Press the Cursor , button to move to Title Menu. Press the ENTEr button. -
Page 48: Using The Ipod
playback USINg THE iPod You can enjoy playback of your iPod using the supplied remote control. Place the iPod in the Dock. Your iPod is automatically turned on. Connect the dock connector for iPod to the iPod jack on the DVD home theater. -
Page 49: Playing Media Files Using The Usb Host Feature
PLAYINg MEDIA FILES USINg THE USB HOST FEATUrE You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the USB port of the Home Theater. -
Page 50: Compatible Devices
playback Fast playback During playback, press the (,) button. Each time you press either button, the playback speed will change as follows: 2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) MP3 Player: HDD and fl ash type MP3 players. -
Page 51: System Setup
system setup For your convenience, you can set this DVD Home Theater's features for the best use in your home environment. SETTINg THE LANgUAgE OSD(On-Screen Display) language is set to English by default. In Stop mode, press the MENU button. Press the Cursor % button to move to Setup and then press the ENTEr button. -
Page 52: Setting Tv Screen Type
system setup SETTINg TV SCrEEN TYPE Depending on your TV type (Widescreen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button. Press the Cursor % button to move to Setup and then press the ENTEr button. -
Page 53: Setting Parental Controls (Rating Level)
SETTINg PArENTAL CONTrOLS (rATINg LEVEL) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press the MENU button. Press the Cursor % button to move to Setup and then press the ENTEr button. -
Page 54: Setting The Wallpaper
This selects one of the 3 wallpaper screens. 5. Press the EXIT button to exit the setup screen. OrIgINAL : Select this to set the Samsung Logo image as your wallpaper. USEr : Select this to set the desired image as your wallpaper. -
Page 55: Dvd Playback Mode
DVD PLAYBACK MODE Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. Press the MENU button while the disc tray is open. Press the Cursor % button to move to Setup and then press the ENTEr button. -
Page 56: Setting The Delay Time
system setup SETTINg THE DELAY TIME If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press the MENU button. Press the Cursor % button to move to Audio and then press the ENTEr button. -
Page 57: Setting The Test Tone
SETTINg THE TEST TONE Use the Test Tone feature to check the speaker connections. In Stop mode, press the MENU button. Press the Cursor % button to move to Audio and then press the ENTEr button. Press the Cursor % button to move to TEST TONE and then press the ENTEr button. -
Page 58: Setting The Drc (Dynamic Range Compression)
system setup SETTINg THE AUDIO Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button. Press the SOUND EDIT button and then press the Cursor , button. Adjusting Front/rear Speaker Balance You can select between 00, -06, and OFF. The volume decreases as you move closer to –6. -
Page 59: Setting The Av Sync
SETTINg THE AV SYNC Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to match the video. In Stop mode, press the MENU button. Press the Cursor % button to move to Audio and then press the ENTEr button. -
Page 60: Sound Field (Dsp)/Eq Function
system setup SOUND FIELD (DSP)/EQ FUNCTION DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing Press the DSP/EQ button. -
Page 61: Dolby Pro Logic Ii Effect
DOLBY PrO LOgIC II EFFECT This function works only in Dolby Pro Logic MUSIC mode. Press the PL II MODE button to select MUSIC mode. Press the PL II EFFECT button. Press the , buttons to select the desired effect setting. PANORAMA : You can select either 0 or 1. -
Page 62: Asc (Auto Sound Calibration) Setup
system setup ASC (Auto Sound Calibration) SETUP By setting the ASC function just once when you relocate or install the unit, you can have the unit automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound field optimized for your environment. L: F ront peaker... - Page 63 ASC (Auto Sound Calibration) SETUP Plug the ASC microphone into the ASC input jack. Place the ASC microphone at the listening position. Press ASC button. To create the optimal 5.1 channel sound fi eld, the selections are in the following sequence: L ➞...
-
Page 64: Main Unit
radio LISTENINg TO rADIO remote Control Press the TUNEr button to select the FM band. Tune in to the desired station. Automatic Tuning 1 : When the [,] button is pressed, a preset broadcast station is selected. Automatic Tuning 2 : Press and hold the , , . button to automatically search for active broadcasting stations. -
Page 65: Convenient Function
convenient function SLEEP TIMEr FUNCTION You can set the time that the Home Theater will shut itself off. Press the SLEEP button. SLEEP will be displayed. Each time the button is pressed, the preset time changes as follows : ➞ ➞... -
Page 66: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. SYMPTOM Disc tray does not open. - Page 67 SYMPTOM • Disc is rotating but no picture is produced. • Picture quality is poor and picture is shaking. Audio language and subtitles do not work. Menu screen does not appear even when the menu function is selected. Aspect ratio cannot be changed. •...
-
Page 68: Language Code List
language code list Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 51). Code Language Code 1027 Afar 1181 1028 Abkhazian 1183 1032 Afrikaans 1186 1039 Amharic 1194 1044 Arabic 1196 1045 Assamese 1203... -
Page 69: Usb Host Feature Supported Products
FLEX DRIVE Serotech AnyDrive A.L tech MP3 PLAYEr Product Company Creative MuVo NX128M Creative Iriver H320 Iriver 20G HDD MP3 Player YH-920 Samsung 20G HDD MP3 Player YP-T7 Samsung YP-MT6 Samsung YP-T6 Samsung YP-T9 Samsung YP-ST5 Samsung YP-T5 Samsung YP-K5... -
Page 70: Handling Discs
appendix CAUTIONS ON HANDLINg AND STOrINg DISCS Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. -
Page 71: Specifications
Rated input Speaker Maximum input Dimensions (W x H x D) Weights - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. AC 120V, 60Hz 90 W 11.5 Ibs 16.9 (W) x 17.3 (H) x 2.9 (D) inches +41°F to +95°F... - Page 72 appendix SWA-4000 Power Requirements Power Consumption Weight Dimensions (W x H x D) Operating Temperature Range +5°C ~ +35°C Operating Humidity Range Output Frequency range S/N Ratio AC120V~ 60Hz 40 W 2.9 lbs 3.0 x 10.1 x 6.9 inches 10% ~ 75% 166W x 2 20Hz~20KHz 75dB...
-
Page 73: Limited Warranty To Original Purchaser
All warranty repairs must be performed by a SECA Authorized Service Center. (the name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG) LABOR PARtS... -
Page 74: Contact Samsung Worldwide
Contact SAMSUNG wORLD wIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR Latin America... - Page 75 Code No. AH68-02047N (0.0)
