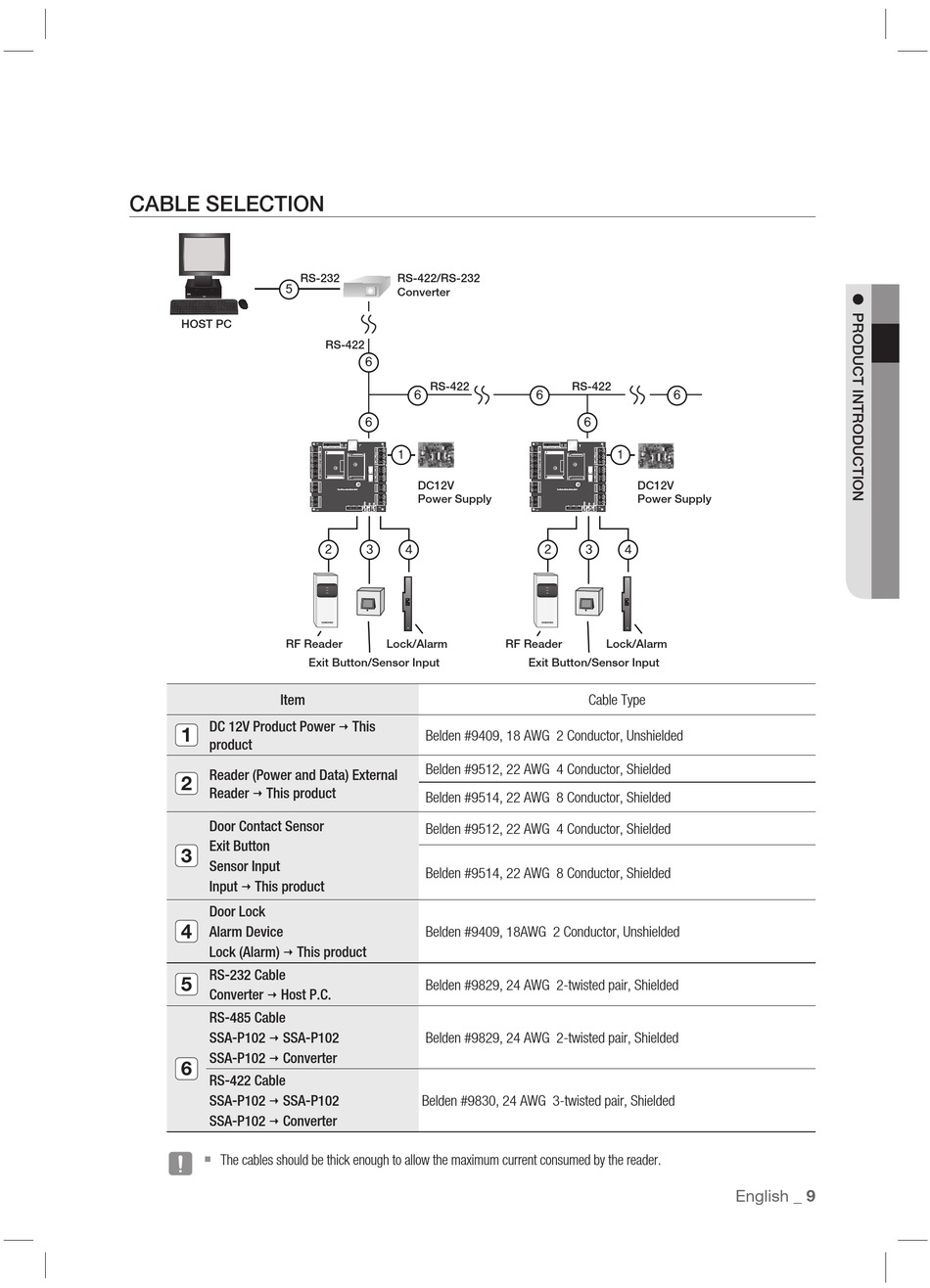

CABLE SELECTION

RS-232
HOST PC
RF Reader
Item
DC 12V Product Power
1
product
Reader (Power and Data) External
2
Reader This product
Door Contact Sensor
Exit Button
3
Sensor Input
Input This product
Door Lock
4
Alarm Device
Lock (Alarm) This product
RS-232 Cable
5
Converter Host P.C.
RS-485 Cable
SSA-P102 SSA-P102
SSA-P102 Converter
6
RS-422 Cable
SSA-P102 SSA-P102
SSA-P102 Converter

J
The cables should be thick enough to allow the maximum current consumed by the reader.
RS-422/RS-232
Converter
RS-422
RS-422
DC12V
Power Supply
Lock/Alarm
Exit Button/Sensor Input
This
Belden #9409, 18 AWG 2 Conductor, Unshielded
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
Belden #9409, 18AWG 2 Conductor, Unshielded
Belden #9829, 24 AWG 2-twisted pair, Shielded
Belden #9829, 24 AWG 2-twisted pair, Shielded
Belden #9830, 24 AWG 3-twisted pair, Shielded
RS-422
DC12V
Power Supply
RF Reader Lock/Alarm
Exit Button/Sensor Input
Cable Type
English _ 9
