installation and external connection

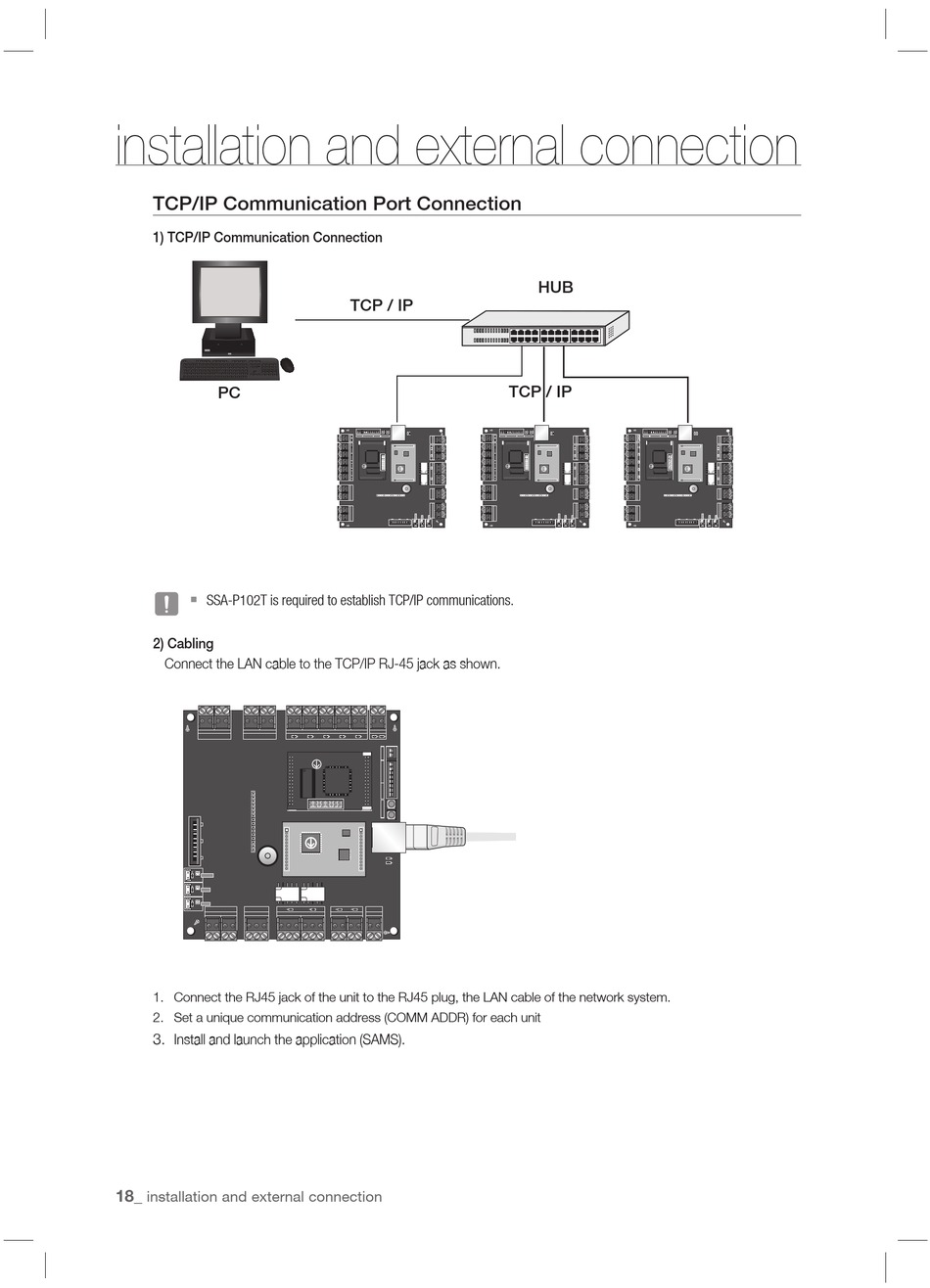

TCP/IP Communication Port Connection
1) TCP/IP Communication Connection
PC
J
SSA-P102T is required to establish TCP/IP communications.
2) Cabling
Connect the LAN cable to the TCP/IP RJ-45 jack as shown.
1.
Connect the RJ45 jack of the unit to the RJ45 plug, the LAN cable of the network system.
2.
Set a unique communication address (COMM ADDR) for each unit
3.
Install and launch the application (SAMS).
18_
installation and external connection
TCP / IP
TCP / IP
HUB
