OUTDOOR HOUSING
SHG-220/SHG-220S
Installation Manual
Instalationshandbuch
Manuel D'installation
Manual De Instalación
GB
D
F
E
C
J
K

Advertisement

Table of Contents
loading

  Related Manuals for Samsung SHG-220

  Summary of Contents for Samsung SHG-220

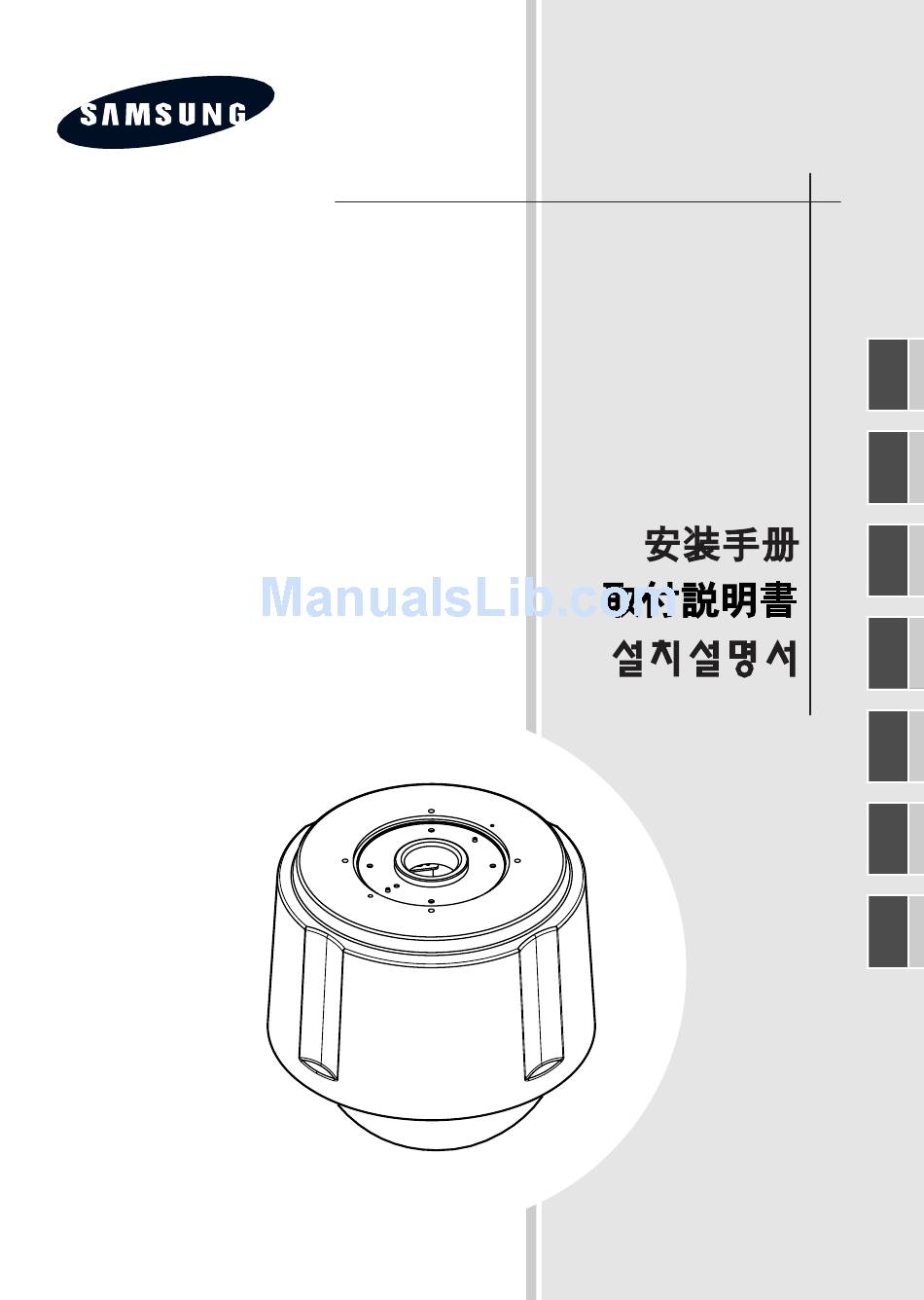

  • Page 1 OUTDOOR HOUSING SHG-220/SHG-220S Installation Manual Instalationshandbuch Manuel D’installation Manual De Instalación...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.
  • Page 3: Safety Precautions

    FCC & ICES INFORMATION (U.S.A.AND CANADIAN MODELS ONLY) WARNING - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada.
  • Page 4: Precautions Before Installation

    Summary The Outdoor Housing (SHG-220/SHG-220S) is used for installating the Smartdome Camera on an outdoor wall or ceiling. Precautions Before Installation • Make sure that the proposed location can support the combined weights of the Corner Mounted Adaptor, Wall Mounted Adaptor, Outdoor Housing and Smartdome Camera (about 11 kg).
  • Page 5 Connect the Outdoor Housing power cable to the camera adaptor's AC 24V-out connector. Connect the power cable, video-out cable and communications cable to the camera adaptor. (For details, refer to the Smartdome Camera User's Guide.) After tidying up the cables, align the camera adaptor lever with the cover top boss and fasten it to the cover top using four screws (M4 x 8).
  • Page 6 Disengage the dome from the Smartdome Camera. 1) Loosen the (M2) screw on the side of Smartdome Camera, turn the dome clockwise about 15 degrees and pull it off. Align the arrow on the camera adaptor with the arrow on the Smartdome Camera, insert the three bosses on the back of the camera into the three camera adaptor holes, together with the connectors, and turn the camera about 15 degrees...
  • Page 7 Secure the camera body to the camera adaptor using the screw (BH M3 x L8) provided with the Smartdome Camera. • To disengage the camera from the camera adaptor, loosen the engaging screw (BH M3 x L8), turn the camera counterclockwise while the locking lever is turned clockwise, and pull the camera off.
  • Page 8: Product Specifications

    Insert three pins into the side of the Housing and insert the screws (M3 x L12) into the pins from below. Product Specifications External dimensions: ø 266 x H259 Weight: 3.7kg Suitable Temperature range: - 40°~ 50°C Suitable Humidity range: 0~100% Fan operating temperature: 45°C or higher...
  • Page 9 Accessories Screw(BH M3 X L12) ... 3 PIN ... 3 SILICON GREASE 5g ... 1...
  • Page 10 AB68-00235A PRINTED IN KOREA...

This manual is also suitable for:

Shg-220s
