JB Systems SW-416 Manual

DMX SWITCH PACK

MAIN FUNCTIONS

1. 4 Channels switch pack with DMX input/output.
2. Main input: AC 230V with Maximum 15A fuse holder.
3. Power switch rated at 16A/250V switch with built-in light.
4. Output: 6.3A per channels on the socket.
5. DMX input/output with dip switches to set the DMX address.
6. 4 LEDs to monitor the outputs both on front and back panel.
7. 1 Power LED on the back panel.

SPECIFICATIONS

1. Power input: AC 230V 50Hz.
2. Load: 6.3A per channel ( Max ) , Total 15A ( Max ).
3. Weight: 2.4 kg
4. Dimension: 480 x 100 x 88 mm

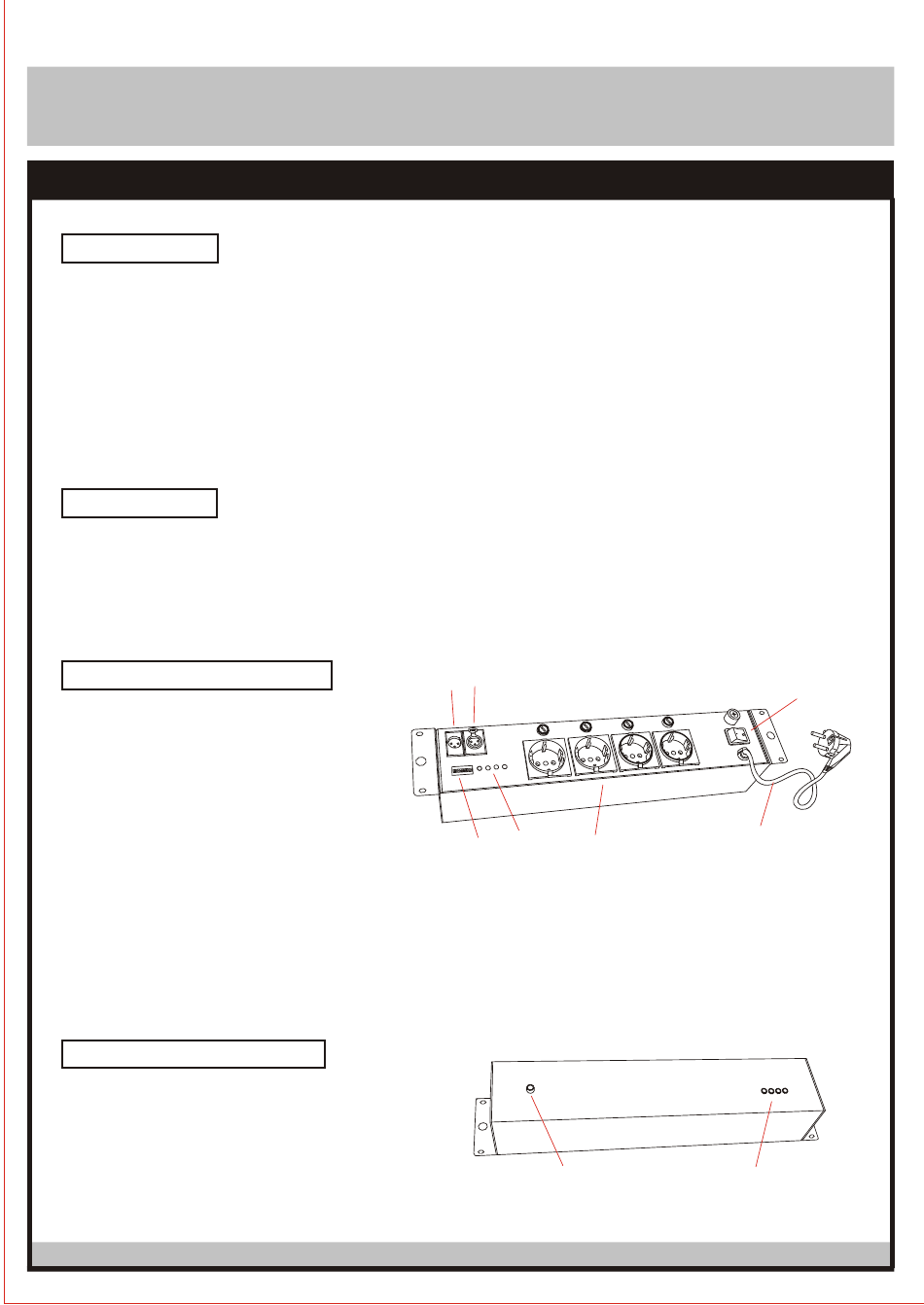

GENERAL FUNCTIONS ( FRONT )

1. Power Switch: The switch is used to
turn the unit ON / OFF.
2. Power Cord : It is used to supply main
power to the fixture.
3. DMX Input: It is used to receive incoming
DMX signal, such as DMX controller .
4. DMX Output: It is used to transmit the incoming DMX signal to another DMX fixture.
5. Dip Switches: These switches are used to assign a DMX address to the unit.
6. Power Output: It is used for the ON/OFF control for different equipment, such as lighting effects.
7. Channel LEDs: It will be on when the channel is working.

GENERAL FUNCTIONS ( REAR )

1. Power LED: It will be lighted when the unit is ON.
2. Channel LEDs: It will be lighted when the channel
is working.
3 3 4 4
7 7
6 6
5 5
1 1
SW-416
1 1
2 2
2 2
