Nexxt Nebula 300Plus Quick Installation Manual

1

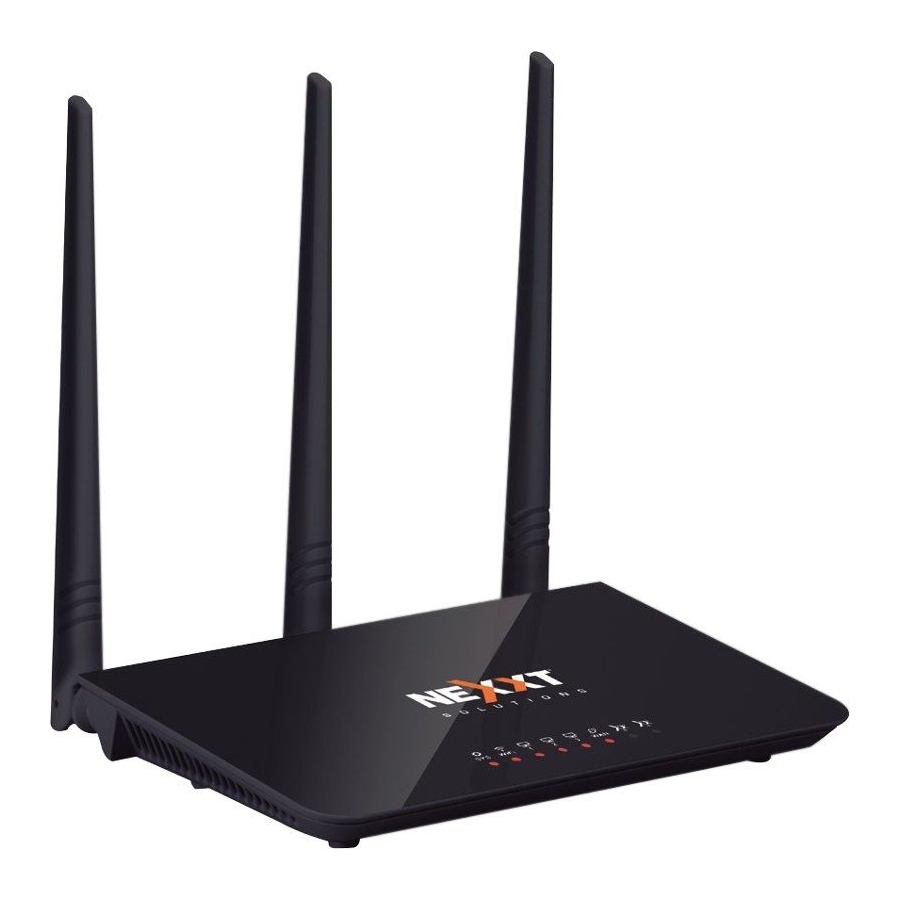

Thank you for purchasing the new Nebula 300+
wireless-N router from Nexxt Solutions™. If any of
the following items are mismatched, missing or
damaged, please contact the merchant from
whom you purchased the unit for immediate
replacement.
• Wireless-N router
• 100/240V power adapter
• Network cable
• Quick installation guide
4
LED
Status Description
indicator
Blinking The system is working properly
No power is being supplied to the router or
SYS
Off
the device is malfunctioning
The Wi-Fi radio is enabled
Solid
The device is actively sending or
Blinking
WiFi
transmitting data using wireless link
Off
The Wi-Fi radio is disabled
The link between the router and a device
Solid
is established through that port
The device is actively sending or
Blinking
LAN 1~3
transmitting data over that port
Off No link is detected on that port
7
1. Antennas: Three high-gain 5dBi omnidirectional
antennas.
2. WAN port: This RJ45 port is where you will connect the
DSL/cable modem, or ethernet line.
3. LAN ports (1/2/3): Connect 10/100Mbps ethernet
devices such as computers, switches, and hubs to any of
these RJ45 ports.
4. Power: Connect the supplied power adapter to this jack.
5.WPS/Reset:
・ Press this button for about one second to enable WPS
encryption. Within two seconds, enable the WPS feature
on the client device to establish a connection.
・ Press this button for about eight seconds to restore the
device to its factory default settings. All LED indicators will
light up.
10

Router configuration

1.Log into the router by accessing the web base
utility. To do so, in the browser's address field enter
the default address http://192.168.0.1 or
nexxtwifi.com.
Note: To access the router wirelessly, look for the
SSID, Nexxt_XXXXXX (whereby X represents the
last 6 numbers of the MAC address).
Quick installation guide
2

Preliminary steps

This advanced network device works as a router,
wireless AP , and universal repeater. Before setting
up the router, you must verify that you have
high-speed internet access available. The most
widely used connection nowadays is broadband
DSL or cable. The description used in this guide is
based on that type of connection.
5
LED
Status Description
indicator
The link between the router and a device
Solid
is established through that port
The device is actively sending or
Blinking
WAN transmitting packets over that port
No ethernet cable is connected to that
Off
port
There is no function or indication
N
associated with this LED
N
8

Hardware installation

1. Power off your PC, cable/DSL modem and the router.
2. Find the optimum location for the router. The best place is
usually at the center or your wireless network with the
antennas in the upright position.
3. Connect one end of the supplied power adapter to the AC
input jack located on the rear panel of the router, before
plugging the other end to a standard electrical wall outlet.
4. Connect your network devices to the LAN ports of the router.
Then using an ethernet cable, connect your modem to the
WAN port in order to gain internet access.
5. Finally, power on the router, your PC and modem.
11
2. In this stage, the wireless router web interface will
come up. The system will then prompt you to enter the
default password. Type admin and click Login to
continue.
3

Product layout

Front panel

LED indicators on the front panel provide information
about network activity, the connection and link status of
the ports in real time. They also facilitate activity monito-
ring and troubleshooting the performance of the device.
6

Back panel

The rear panel
1
provides the physical
connectors for power
and the client network
devices.
2 3 4 5
9
A.Telephone Line/FTTH
(Fiber To The Home)/
Cable Acces
Modem
WAN 3 2 1 PWR
WAN
Ethernet Cable
Internet
O
B.Ethernet Access
The defaul name is
Ethernet Cable
Nexxt XXXXXX
Internet
The is no defaul WIFI password.
*Images herein are for references only. The actual product may differ.
12
3. Next, the Basic settings page will be displayed. In this
window, you will be prompted to select the Internet
Connection Type, which will depend on the type of
connection offered by your existing Internet Service
Provider (ISP): PPPoE, for dial-up or DHCP for other
broadband connections. You can also set it up to use
a Static IP configuration. By default, the router will
auto-detect the connection type and set it to the
corresponding configuration. You can also setup the
wireless password and SSID under the Wireless
Settings area (by default, this is blank). For security
purposes, we recommend using a security key at this
stage. It must contain at least 8 characters. Click
OK to complete the initial set up of the router.
N
WPS/RST
