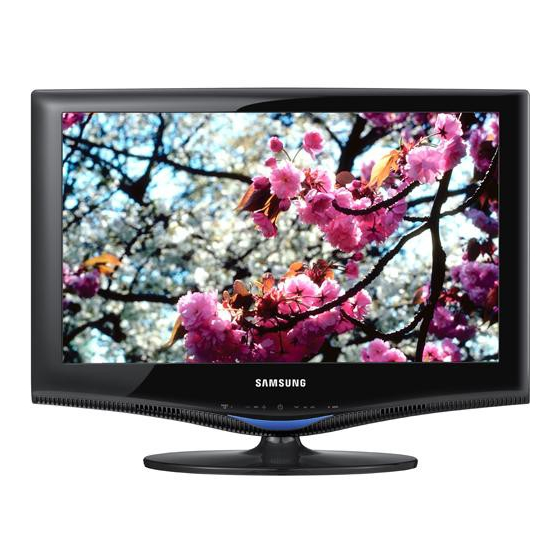

Samsung 350 BN68 User Manual

Series 350
Table of Contents

Advertisement

Available languages

Available languages

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Comuníquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de
atención al cliente de SAMSUNG.
Country
Customer Care Center
Web Site
CANADA
1-800-SAMSUNG(726-7864)
www.samsung.com/ca
U.S.A
1-800-SAMSUNG(726-7864)
www.samsung.com/us
Address
Samsung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga,
Ontario L5R 4B2 Canada
Samsung Electronique Canada Inc.,
Service à la Clientèle 55 Standish Court
Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
BN68-01975S-00
LCD TV
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model
Serial No.

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Samsung 350 BN68

  • Page 1 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comuníquese con SAMSUNG WORLDWIDE Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.
  • Page 2 Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
  • Page 3: Table Of Contents

    CONTENTS GENERAL INFORMATION ■ List of Features ...2 ■ Accessories ...2 ■ Viewing the Control Panel ...3 ■ Viewing the Connection Panel ...4 ■ Remote Control ...6 ■ Installing Batteries in the Remote Control ...6 CONNECTIONS ■ Connecting VHF and UHF Antennas ...7 ■...
  • Page 4: General Information

    GENERAL INFORMATION Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice in order to enhance product performance. List of Features ¦ ●...
  • Page 5: Viewing The Control Panel

    Viewing the Control Panel ¦ The product color and shape may vary depending on the model. The front panel buttons can be activated by touching them with your finger. 1 REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV. 2 SOURCEE: Toggles between all the available input sources.
  • Page 6: Viewing The Connection Panel

    Viewing the Connection Panel ¦ The product color and shape may vary depending on the model. 1 PC/DVI AUDIO IN – Connect to the audio output jack on your PC. – DVI audio outputs for external devices. 2 ANT IN –...
  • Page 7 6 POWER INPUT – Connects the supplied power cord. 7 H (HEADPHONE) – Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. Using the sound function is restricted when connecting headphones to the TV. Prolonged use of headphones at a high volume may damage your hearing.
  • Page 8: Remote Control

    Remote Control ¦ You can use the remote control up to a distance of about 23 feet from the TV. The performance of the remote control may be affected by bright light. The product color and shape may vary depending on the model. 1 POWER: Turns the TV on and off.
  • Page 9: Connections

    CONNECTIONS Connecting VHF and UHF Antennas ¦ If your antenna has a set of leads that look like the diagram to the right, see ‘Antennas with 300 Ω Flat Twin Leads’ below. If your antenna has one lead that looks like the diagram to the right, see ‘Antennas with 75 Ω Round Leads’.
  • Page 10: Connecting A Dvd / Blu-Ray Player / Cable Box / Satellite Receiver (Set-Top Box) Via Hdmi

    Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two- way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.) Incoming cable Splitter 1.
  • Page 11: Connecting A Dvd / Blu-Ray Player / Cable Box / Satellite Receiver (Set-Top Box) Via Dvi

    Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via DVI ¦ This connection can only be made if there is a DVI Output connector on the external device. DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) 1.
  • Page 12: Connecting A Vcr

    Connecting a VCR ¦ VCR Rear Panel 2 Audio Cable (Not supplied) 1 Video Cable (Not supplied) 1. Connect a Video Cable between the AV IN [Y/VIDEO] jack on the TV and the VIDEO OUT jack on the VCR. 2. Connect Audio Cables between the AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the VCR. If you have a ‘mono’...
  • Page 13: Connecting A Camcorder

    Connecting a Camcorder ¦ Using a Video Cable Camcorder 1. Connect a Video Cable between the COMPONENT IN / AV IN [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder. 2. Connect Audio Cables between the COMPONENT IN / AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.
  • Page 14: Connecting A Pc

    Connecting a PC ¦ Using a D-Sub Cable 1. Connect a D-Sub Cable between PC IN connector on the TV and the PC output connector on your computer. 2. Connect a PC Audio Cable between the PC/DVI AUDIO IN jack on the TV and the Audio Out jack of the sound card on your computer.
  • Page 15: Operation

    OPERATION Viewing the menus ¦ Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions. 1. Press the MENU button. The main menu is displayed on the screen. Its left side has the following icons: Picture, Sound, Channel, Setup, Input, Support.
  • Page 16: Plug & Play Feature

    Plug & Play Feature ¦ When the TV is initially powered on, basic settings proceed automatically and subsequently. 1. Press the POWER P button on the remote control. You can also use the POWER P button on the TV. The message Select Language of the OSD. is displayed. 2.
  • Page 17: Channel Control

    CHANNEL CONTROL Configuring the Channel Menu ¦ Antenna → Air / Cable ❑ Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Press the TOOLS button to display the Tools menu. You can also set the Antenna by selecting Tools → Switch to Cable (or Switch to Air).
  • Page 18 Programmed  Shows all current reserved Programs. Select a channel in the All Channels, Added Channels or Favorite screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button. Then you can watch the selected channel. Using the Color buttons with the Channel List –...
  • Page 19: Picture Control

    Advanced Settings ❑ Samsung’s new TVs allow you to make even more precise picture settings than previous models. Advanced Settings is available in Standard or Movie mode. In PC mode, you can only make changes to Gamma and White Balance from among the Advanced Settings items.
  • Page 20: Picture Options

    Dynamic Contrast → Off / Low / Medium / High  You can adjust the screen contrast so that the optimal contrast is provided. Gamma  You can adjust the primary color (red, green, blue) Intensity. (-3 ~ +3) Color Space  Color space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most natural color.
  • Page 21: Using Your Tv As A Computer (Pc) Display

    Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1.
  • Page 22: Setting Up The Tv With Your Pc

    Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video.
  • Page 23: Sound Control

    SOUND CONTROL Configuring the Sound Menu ¦ Mode → Standard / Music / Movie / Clear Voice / Custom ❑ You can select a sound mode to suit your personal preferences. Equalizer ❑ The sound settings can be adjusted to suit your personal preference. Mode  Selects the sound mode among the predefined settings. Balance L/R ...
  • Page 24: Setup

    Speaker Select ❑ When you watch TV with it connecting to a Home theater, turn the TV speakers off so you can listen to sound from the Home theater’s (external) speakers. External Speaker: Used to listen to the sound of the External (Home Theater) Speakers. ...
  • Page 25 Timer 1 / Timer 2 / Timer   Three different on / off timer settings can be made. You must set the clock first. ● On Time: Set the hour, minute, am/pm, and activate/inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.) ●...
  • Page 26 MPAA Rating  You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advance information on which films are appropriate for children. ● G: General audience (no restrictions). ●...
  • Page 27 Caption (On-Screen Text Messages) ❑ Caption → Off / On  You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen. Press the CC button on the remote control to turn the Caption on or off. The Caption feature doesn’t work in Component, HDMI or PC modes.
  • Page 28: Input / Support

    ● Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s call center for assistance. ● No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment.
  • Page 29 Software Upgrade ❑ Samsung may offer upgrades for TV’s firmware in the future. Please visit Samsung.com or contact the Samsung call center to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the SERVICE port located on your TV.
  • Page 30: Appendix

    Troubleshooting ¦ If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, please visit Samsung.com or contact the Samsung call center. Problem Poor picture. Poor sound quality.
  • Page 31: Installing The Stand

    Problem The picture appears distorted in the corner of the screen. The ‘Resets all settings to the default values.’ message appears. This TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen.
  • Page 32: Wall Mount Kit Specifications (Vesa)

    Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 33: Securing The Installation Space

    Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product. Install the product so the required distances shown in the figure are kept. When using a stand or wall-mount, use parts provided by Samsung Electronics only. –...
  • Page 34: Specifications

    Specifications ¦ Model Name Screen Size (Diagonal) PC Resolution (Optimum) Sound (Output) Dimensions (WxDxH) Without Stand With stand Weight Without Stand With Stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity Stand Swivel Left / Right Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus.
  • Page 35: Dimensions

    NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors. © 2009 Samsung Electronics America, Inc...
  • Page 36 Tenga cuidado en la selección y duración de los formatos de televisión utilizados para la visualización. La garantía limitada de Samsung no cubre el envejecimiento desigual de la LCD como resultado de la selección y uso de formatos, así como otras imágenes retenidas.
  • Page 37 CONTENIDO INFORMACIóN GENERAL ■ Listado de características ...2 ■ Accesorios ...2 ■ Aspecto general del panel de control ...3 ■ Aspecto general del panel de conexiones ...4 ■ Mando a distancia ...6 ■ Instalación de las pilas en el mando a distancia ...6 CONExIONES ■...
  • Page 38: Información General

    INFORMACIóN GENERAL Las ilustraciones de este manual se proporcionan sólo como referencia y pueden ser diferentes del producto real. El diseño y las especificaciones del producto se pueden cambiar sin previo aviso para mejorar el rendimiento del producto. Listado de características ¦...
  • Page 39: Aspecto General Del Panel De Control

    Aspecto general del panel de control ¦ El color y la forma del producto pueden variar según el modelo. Los botones del panel frontal se pueden activar al tacto. 1 SENSOR DEL MANDO A DISTANCIA: Dirija el mando a distancia hacia este punto del TV. 2 SOURCEE: Cambia entre todas las fuentes de entrada disponibles.
  • Page 40: Aspecto General Del Panel De Conexiones

    Aspecto general del panel de conexiones ¦ El color y la forma del producto pueden variar según el modelo. 1 PC/DVI AUDIO IN – Se conecta al terminal de salida de audio del PC. – Salidas de audio DVI para dispositivos externos. 2 ANT IN –...
  • Page 41 6 ENTRADA DE ALIMENTACIóN – Permite conectar el cable de alimentación suministrado. 7 H (AURICULARES) – Los auriculares pueden estar conectados a la salida de auriculares del aparato. Cuando los auriculares están conectados, se desactiva el sonido de los altavoces incorporados. El uso de la función de sonido está...
  • Page 42: Mando A Distancia

    Mando a distancia ¦ Puede utilizar el mando a una distancia del televisor de hasta 7 metros. El exceso de luz puede influir en el rendimiento del mando a distancia. El color y la forma del producto pueden variar según el modelo. 1 POWER: Enciende o apaga el 2 BOTONES NUMÉRICOS: Permiten cambiar de canal.
  • Page 43: Conexiones

    CONExIONES Conexión de antenas de VHF y UHF ¦ Si su antena tiene un conjunto de cables con este aspecto, consulte ‘Antenas de par de cables planos de 300 Ω’ a continuación. Si la antena tiene un cable como el que se muestra en el diagrama de la derecha, consulte ‘Antenas con cables coaxiales de 75 ohmios’.
  • Page 44: Conexión De Un Reproductor De Dvd / Blu-Ray / Receptor Por Cable / Satélite (Decodificador) A Través De Hdmi

    Conexión a un decodificador que decodifica algunos canales Si su decodificador sólo decodifica algunos canales (como los canales de pago), siga las instrucciones siguientes. Necesitará un divisor de dos vías, un conmutador de RF (A/B) y cuatro largos de cable RF. (Estas opciones se encuentran en la mayoría de tiendas de electrónica.) Cable de entrada Divisor...
  • Page 45: Conexión De Un Reproductor De Dvd / Blu-Ray / Receptor Por Cable / Satélite (Decodificador) A Través De Dvi

    Conexión de un reproductor de DVD / Blu-ray / receptor por cable / satélite (decodificador) a través de DVI ¦ Solo es aplicable si hay un conector de salida de DVI en el dispositivo externo. Reproductor DVD / Blu-ray / Receptor por cable / satélite (decodificador) 1. Conecte un cable de DVI a HDMI o un adaptador de DVI-HDMI entre el terminal HDMI (DVI) IN del televisor y el terminal DVI del reproductor DVD / Blu-ray / receptor por cable / satélite (decodificador).
  • Page 46: Conexión De Un Reproductor De Vídeo

    Conexión de un reproductor de vídeo ¦ Panel posterior del VCR 1. Conecte un cable de vídeo entre el terminal AV IN [Y/VIDEO] del televisor y el terminal VIDEO OUT del aparato de vídeo. 2. Conecte los cables de audio entre los terminales AV IN [R-AUDIO-L] del televisor y los terminales AUDIO OUT del aparato de vídeo.
  • Page 47: Conexión De Una Videocámara

    Conexión de una videocámara ¦ Uso de un cable de vídeo Videocámara 1. Conecte un cable de vídeo entre el terminal COMPONENT IN / AV IN [VIDEO] del televisor y el terminal VIDEO OUT de la videocámara. 2. Conecte los cables de audio entre los terminales COMPONENT IN / AV IN [VIDEO] del televisor y los terminales AUDIO OUT de la videocámara.
  • Page 48: Conexión A Un Pc

    Conexión a un PC ¦ Uso de un cable D-Sub 1. Conecte un cable D-Sub entre el conector PC IN del televisor y el conector de salida de PC del ordenador. 2. Conecte un cable de audio PC entre el terminal PC/DVI AUDIO IN del televisor y el terminal de salida de audio de la tarjeta de sonido del ordenador.
  • Page 49: Funcionamiento

    FUNCIONAMIENTO Visualización de los menús ¦ Antes de usar el televisor, siga los pasos detallados a continuación para saber cómo desplazarse por los menús para seleccionar y ajustar las funciones. 1. Pulse el botón MENU. En la pantalla aparece el menú principal. En el lado izquierdo hay los siguientes iconos: Imagen, Sonido, Canal, Configuración, Entrada, Soporte técnico.
  • Page 50: Función Plug & Play

    Función Plug & Play ¦ Cuando se enciende el televisor por primera vez, se configuran seguidos y automáticamente dos ajustes básicos del usuario. 1. Pulse el botón POWER P del mando a distancia. También puede usar el botón POWERP del televisor. Aparece el mensaje Select Language of the OSD..
  • Page 51: Control De Los Canales

    CONTROL DE LOS CANALES Configuración del menú de canales ¦ Antena → Aire / Cable ❑ Antes de empezar a memorizar los canales disponibles, debe indicar el tipo de origen de la señal conectada al TV (es decir, antena o sistema de cable). Pulse el botón TOOLS para ver el menú Herramientas. También puede configurar la antena con Herramientas → Cambiar a Cable (o Cambiar a Aereos).
  • Page 52 Grabación con temporizador  Muestra todos los programas actualmente reservados. Seleccione un canal en la pantalla Todos los canales, Canales agregados o Favoritos pulsando los botones ▲ / ▼ y pulse el botón ENTERE. A continuación puede ver el canal seleccionado. Uso de los botones de colores en la lista de canales –...
  • Page 53: Control De La Imagen

    La energía consumida durante el uso se puede reducir significativamente si se disminuye el nivel del brillo de la imagen. Configuración avanzada ❑ Los nuevos televisores Samsung permiten una configuración más precisa aun de la imagen que los modelos anteriores. Configuración avanzada está disponible en los modos Normal o Cine.
  • Page 54 Contraste Dinám. → Apagado / Bajo / Medio / Alto  Se puede ajustar el contraste de la pantalla para conseguir un contraste óptimo. Gamma  Se puede ajustar la intensidad de los colores primarios (rojo, verde y azul). (-3 ~ +3) Espacio de color  El espacio de color es una matriz compuesta por los colores rojo, verde y azul. Seleccione su espacio de color favorito y disfrute de unos colores auténticamente naturales.
  • Page 55: Uso Del Televisor Como Una Pantalla De Ordenador (Pc)

    (En caso contrario, póngase en contacto con el fabricante del ordenador o con el distribuidor de Samsung.) 1. Primero, haga clic en ‘Panel de control’ en el menú Inicio de Windows.
  • Page 56: Ajuste Del Televisor Con El Ordenador

    Modos de pantalla Si la señal del sistema es igual al modo de señal estándar, la pantalla se ajusta automáticamente. Si la señal del sistema no es igual al modo de señal estándar, ajuste el modo consultando la guía del usuario de la tarjeta de vídeo; de lo contrario, puede no haber señal de vídeo.
  • Page 57: Control De Sonido

    CONTROL DE SONIDO Configuración del menú de sonido ¦ Modo → Normal / Música / Cine / Voz clara / Favorito ❑ Puede seleccionar el modo de sonido que se ajuste a sus preferencias personales. Ecualizador ❑ Es posible ajustar los parámetros del sonido según sus preferencias personales. Modo  Selecciona el modo de sonido entre los valores predefinidos. Balance I/D ...
  • Page 58: Configuración

    Seleccionar altavoz ❑ Cuando se ve el televisor conectado a un sistema Home Cinema, se debe apagar el altavoz del televisor para que la salida de audio del televisor utilice los altavoces del Home Cinema (externos). Altavoz externo: Utiliza los altavoces externos (Home Cinema) para la salida del sonido. ...
  • Page 59 Temporizador 1 / Temporizador 2 / Temporizador   La activación y desactivación del temporizador se puede configurar de tres maneras. Debe ajustar el reloj en primer lugar. ● Hora de encendido: Ajuste la hora, los minutos, am/pm y activar/desactivar. (Para activar el temporizador con la configuración deseada, establézcalo en Activar.) ●...
  • Page 60 Clas. MPAA  Puede bloquear las películas según su clasificación. La Asociación americana de cinematografía (MPAA) ha creado un sistema de clasificación que proporciona a padres y tutores información sobre qué películas son apropiadas para los niños. ● G: Todos los públicos (sin restricciones). ●...
  • Page 61 Subtítulo (mensajes de texto en pantalla) ❑ Subtítulo → Apagado / Encendido  Puede activar o desactivar la función de subtítulos. Si los subtítulos no están disponibles, no se mostrarán en la pantalla. Pulse el botón CC del mando a distancia para activar o desactivar la función de subtítulos. La función de subtítulos no está...
  • Page 62: Entrada / Soporte Técnico

    Sí: Si durante la prueba de sonido sólo se oye sonido de un altavoz o no se oye sonido en ninguno, seleccione Sí. Puede haber un problema en el televisor. Póngase en contacto con el centro de servicio de Samsung.
  • Page 63 Samsung puede ofrecer actualizaciones para el firmware del televisor en el futuro. Visite Samsung.com o póngase en contacto con el centro de llamadas de Samsung para recibir información acerca de la descarga de las actualizaciones y del uso de una unidad USB. Las actualizaciones se pueden realizar conectando una unidad USB al puerto SERVICE situado en el televisor.
  • Page 64: Apéndice

    ¦ Si cree que el televisor tiene un problema, compruebe primero esta lista de posibles problemas y soluciones. Si ninguno de los consejos funciona, visite Samsung.com o póngase en contacto con el centro de llamadas de Samsung. Problema Imagen deficiente.
  • Page 65: Instalación Del Soporte

    Problema La imagen no está centrada en la pantalla. La imagen aparece distorsionada en la esquina de la pantalla. Aparece el mensaje ‘Restablece todos los ajustes predeterminados de fábrica’. El panel LCD TFT utiliza un panel que consta de muchos píxeles de ínfimo tamaño (3 133 440) que requieren de una tecnología altamente sofisticada para su fabricación.
  • Page 66: Especificaciones Del Equipo De Montaje En La Pared (Vesa)

    Samsung no se hace responsable de este tipo de accidentes. Samsung no se hace responsable de daños o lesiones personales cuando se usa un montaje mural que no cumple las especificaciones VESA o si el cliente no sigue las instrucciones de instalación del producto.
  • Page 67: Seguridad En El Espacio De Instalación

    En caso contrario, se podría producir un incendio por un incremento de la temperatura interna del producto. Instale el producto a la distancia requerida como se muestra en la ilustración. Cuando utilice un soporte o un montaje mural, use sólo las piezas proporcionadas por Samsung Electronics. –...
  • Page 68: Especificaciones

    Especificaciones ¦ Nombre del modelo Tamaño de pantalla (Diagonal) Resolución de PC (óptima) Sonido (Salida) Dimensiones (An x Pr x Al) Sin el soporte Con el soporte Peso Sin el soporte Con el soporte Consideraciones medioambientales Temperatura de funcionamiento Humedad de funcionamiento Temperatura de almacenamiento Humedad de almacenamiento Soporte giratorio...
  • Page 69: Dimensiones

    NOTA: No todos los dibujos están necesariamente a escala. Algunas dimensiones están sujetas a cambio sin previo aviso. Consulte las dimensiones antes de efectuar la instalación del televisor. La empresa no se responsabiliza de los errores tipográficos o de impresión. © 2009 Samsung Electronics America, Inc. 16.7...

This manual is also suitable for:
