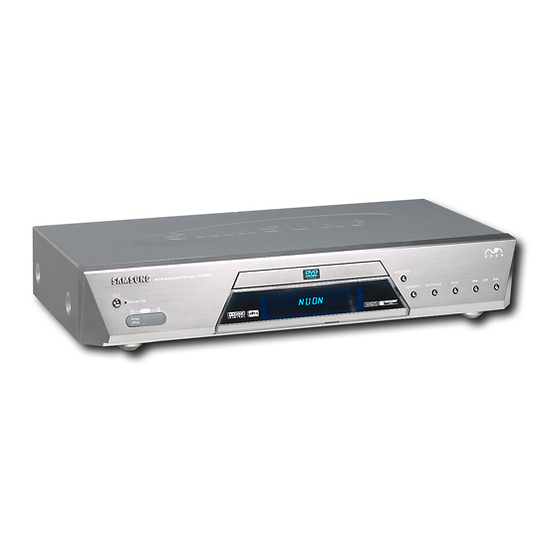

Summary of Contents for Samsung DVD-N501
- Page 1 SAMSUNG ELECTRONICS AMERICA INC. 105 CHALLENGER ROAD, RIDGEFIELD PARK, NJ 07660 U.S.A. FOR YOUR NEAREST SAMSUNG SERVICE CENTER DIAL 1-800-SAMSUNG AH68-00856C...
- Page 2 • This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere. • This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.
-
Page 3: General Features
Number Play Region Number Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. -
Page 4: Table Of Contents
efore You Start Accessories Remote Control Batteries for Remote Control (AA Size) Video/Audio Cable User’s Manual Install Batteries in the Remote 1 Open the battery cover on the back of the remote. 2 Insert two AA batteries. Make sure that the polarities (+ and -) are aligned correctly. -
Page 5: Description-Front Panel
escription-Front Panel 5 6 7 8 Front Panel Controls 1 STANDBY/ON OPEN/CLOSE • When the unit is first plugged in, • Press to open and close the disc tray. this indicator lights. SCREEN FIT 2 NUON PORTS • Allows you to eliminate the black bars •... -
Page 6: Tour Of The Remote Control
our of the Remote Control DVD Function Buttons 1 DVD POWER Button 2 NUMBER Buttons 3 STEP Button • Advances play one frame at a time. 4 VOLUME Button 5 TV/VIDEO Button 6 ZOOM Button 7 S.FIT Button(ZOOM OUT) 8 SEARCH Buttons •... -
Page 7: Choosing A Connection
DVD player with a TV and other components. Before Connecting the DVD Player • Always turn off the DVD player, TV, and other components before you con- nect or disconnect any cables. • Refer to user’s manual of the components you are connecting for more infor- mation on those particular components. -
Page 8: Setting Up The Language Features
Menu The Menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental control, even adjust the player to the type of television screen you have. Press the MENU button on the remote. -
Page 9: Setting Up The Movie
etting Up the Language Features Using the Preferred Subtitle Press the MENU button. Press the ENTER button. Press the UP/DOWN buttons to select Preferred Subtitle. Press the ENTER button. Use the UP/DOWN or LEFT/RIGHT buttons to ex) Setting up in English. select ‘English’. -
Page 10: Setting Up The Audio
etting Up the Audio Press the MENU button. Use the UP/DOWN buttons to select Audio. Press the ENTER but- ton. Use the UP/DOWN buttons to select the desired item. Press the ENTER button. Use the LEFT/RIGHT button to select the desired item. Press the ENTER button. -
Page 11: Setting Up The Lock
etting Up the Lock The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. Setting the Rating Level Press the MENU button. -
Page 12: Search & Skip
laying a Disc Stop Press the STOP button during play. Remove Press the OPEN/CLOSE button. Pause Press the PLAY/PAUSE or STEP button on the remote during play. Pause Press the PLAY/PAUSE or STEP button on the remote during play. • Screen stops, no sound. •... -
Page 13: Repeat A-B & 3D Sound
The simulated surround effect (SPATIALIZER N-2-2) depends on the disc contents. If you connect the unit to your stereo system, you can enhance sound quality and produce a greater surround effect. This feature is useful when you are using the DVD player with a two channel stereo through the analog outputs. - Page 14 ediaMacro Zoom & Pan MediaMacro Zoom & Pan For DVDs, VCDs This function allows complete control over what part of the picture you want to see. You can select any portion of the screen and magnify that portion up to 15 times. Press the ZOOM button on the remote control, and the Zoom screen appears on the upper...
-
Page 15: Display & Screen Fit
Display & Screen Fit Using the ANGLE Button The DVD-N501 displays each angle in a portion of the screen, allowing you to select any angle at the touch of the remote. Press the ANGLE button to see if an ‘ANGLE ( upper right hand corner of the screen. -
Page 16: Selecting The Subtitle Language
electing the Subtitle Language You can select a desired subtitle quickly and easily with the SUBTITLE button. Using the SUBTITLE Button Press the SUBTITLE button. Use the UP/DOWN buttons to select the desired subtitle language. Press the ENTER button. Use the UP/DOWN buttons to determine whether or not the subtitle will be displayed. -
Page 17: Digest Play
DVD player. When playing a regular DVD movie disc that is not NUON enhanced while the DVD-N501 is in NUON mode, your player’s performance will not be affected. No set changes are required. - Page 18 3 play When a MP3 disc is inserted in your DVD player, the disc will be played immediately. MP3 Play Press the DISC MENU button. The Disc menu will come up. Use the UP/DOWN buttons to select the artist you want to hear, then press the ENTER button.
-
Page 19: Specifications
Audio *Frequency Response Output *S/N Ratio *Dynamic Range *Total Harmonic Distortion • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. pecifications AC 120 V, 60 Hz 6.2lbs 16.9(W) x 9.4(D) x 3.1(H)/inch +41°F to +95°F... -
Page 20: Warranty
Transportation to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defective during the limited warranty period specified above. - Page 21 REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
