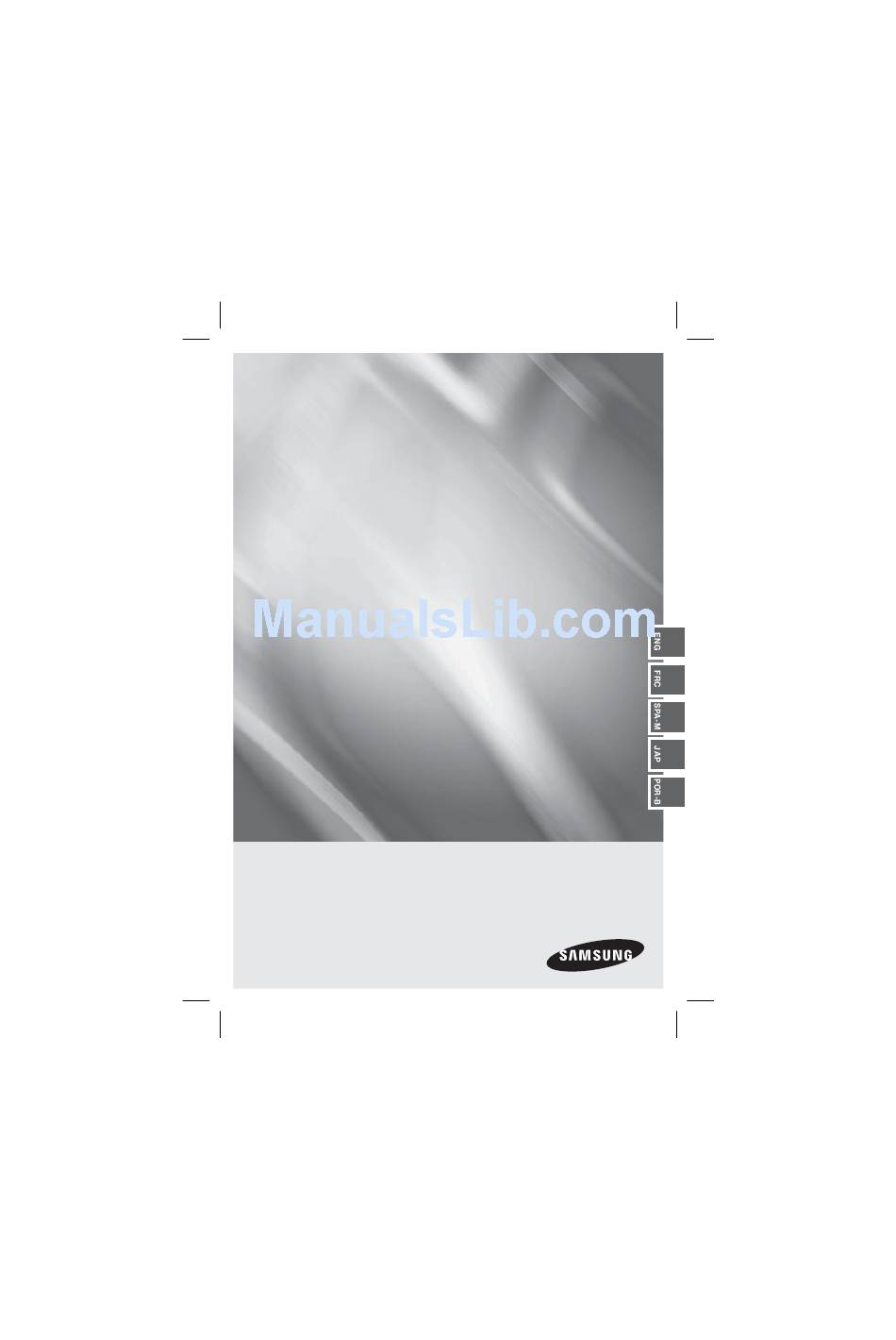

DIGITAL COLOR CAMERA

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsungsecurity.com
SCC-B2331(P)
SCC-B2031P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-B2031P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samsung SCC-B2031P

  • Page 1: User Manual

    DIGITAL COLOR CAMERA user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsungsecurity.com SCC-B2331(P) SCC-B2031P...
  • Page 2: Safety Information

    fi re or electric shock. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.) When cleaning, do not spray water directly onto parts of the product.
  • Page 3 CAUTION Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive vibration or magnetic interference. Do not install in a location subject to high temperature (over 140°F), low temperature (below -14°F), or high humidity.
  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifi...
  • Page 5: Table Of Contents

    Connecting the Auto Iris Lens Connector Connecting cables and checking operation wide sult have y, or Contents Introduction Features PRODUCT & ACCESSORIES Part Names and Functions Installation Mounting the lens How to use OSD Menu Using Icons in the Menu Main Menu Profi...
  • Page 6: Introduction

    Introduction FEATURES ❖ High Resolution • This camera has realized high resolution of 600 lines using the top-notch full digital image processing and special algorithm technologies. ❖ Intelligent Motion Detection & Tracking • This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it sounds an alert if an object passes / enters /exits the virtual fence or virtual area.
  • Page 7: Product & Accessories

    ❖ Product & Accessories • Main Product • Accessories C Mount Adapter Camera Holder(Mount) Introduction Camera User’s Manual Auto Iris Lens Connector English –...
  • Page 8: Part Names And Functions

    Introduction PART NAMES AND FUNCTIONS ❖ Side View Auto Iris Lens Connector Auto Iris Lens Control Cable • Auto Iris Lens Connector This groove is used for screwing the mount adapter, a part of the bracket where the camera will be installed. •...
  • Page 9 Introduction ❖ Rear Panel <AC24/DC12V (SCC-B2331(P))> alled. <AC220V~240V(SCC-B2031P)> English –...
  • Page 10 Introduction Input/Output Connector This connector has input and output ports for, DAY/NIGHT switching, and alarm output signals. Function ALARM OUT Alarm out port for motion detection. (Open collector type) Grounding Port. Displays the current still image when it receives the Trigger signal. TRIGGER IN (Normal Open Type) This is a port for selecting an external high speed shutter mode.
  • Page 11: Installation

    CONNECTING THE AUTO IRIS LENS CONNECTOR Connect each uncovered shutter control cables to the Auto Iris Lens Connector as the following DC Control Video Control Type Type Damp(-) Power (+12V) Damp(+) Not applicable Drive(+) Video Signal e the Drive(-) Ground ...
  • Page 12: Connecting Cables And Checking Operation

    Installation CONNECTING CABLES AND CHECKING OPERATION Finally connect the power adapter to the Connect one end of the BNC cable to the camera. You can connect 2 lines of the power VIDEO OUT Port on the rear of the camera. adapter to the camera using the Slot Head screwdriver as shown in the picture.
  • Page 13: How To Use Osd Menu

    How to use OSD Menu USING ICONS IN THE MENU • (EXIT) Exits the menu setting. Before you exits the menu setting, select SAVE to save your settings, or select QUIT to cancel. • (RET) Returns to the previous menu. •...
  • Page 14: Profi Le

    How to use OSD Menu PROFILE PROFILE STANDARD BACKLIGHT DAY/NIGHT GAMING CUSTOM In the PROFILE menu, you can confi gure the following camera settings at once. CAMERA SET Menu STANDARD BACKLIGHT Previous Sub-menus Menu IRIS LENS LEVEL BACKLIGHT User setting User setting WEIGHT allowed...
  • Page 15 How to use OSD Menu CAMERA SET Menu STANDARD Previous Sub-menus Menu MODE ATW2 BLUE NIGHT User setting BRIGHTNESS allowed MODE User setting allowed User setting BLUE allowed DETAIL ❖ It will be set automatically so you can easily check the traffi c conditions. ❖...
  • Page 16: Camera Setup

    How to use OSD Menu ❖ CAMERA SETUP CAMERA ID CAMERA SET ABCDEFGHIJKLMNOPQRSTUVWXYZ0 CAMERA ID 123456789 :?-+*()/ IRIS MOTION (F.FAST)--- SHUTTER SENS-UP AUTO X4 CAMERA-1... FLICKERLESS (OFF)--- The CAMERA ID menu is used for you to assign a unique name to a camera. If you press the SETUP switch with the CAMERA ID menu DAY/NIGHT AUTO...
  • Page 17 How to use OSD Menu The LEVEL menu is used to adjust the overall brightness, where “+” will increase the brightness and “–” will decrease it. If you set the BACKLIGHT option to BLC, you will see a menu where you can set the BLC area.
  • Page 18 How to use OSD Menu [OFF, AUTO 1/100(PAL:1/120), AUTO 1/250, AGC FIX AUTO 1/500, AUTO 1/1000, AUTO 1/2000, AUTO LEVEL [01] 1/4000, AUTO 1/10K , 1/100(PAL:1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10K , EXT] The SHUTTER menu is used to set the fi xed high-speed electronic shutter, auto high speed electronic shutter and external high speed electronic shutter(EXT).
  • Page 19 How to use OSD Menu 1/4000 1/10K  Note : If IRIS mode is set to ELC, the SHUTTER menu will be – deactivated as you adjust the brightness using the electronic shutter. /120) If the SENS-UP function is set to AUTO, only items of –...
  • Page 20: White Bal

    How to use OSD Menu You can select from LOW, MID and HIGH for RED and BLUE. The screen will be displayed in the brightness of DAY NIGHT, which is a colors according to your settings. brightness level in switching from the color fi lter to Black-and-White.
  • Page 21 How to use OSD Menu If AGC is set to OFF or FIX, you can not access the d in – NIGHT menu. – For adjusting the white balance, the following 5 modes are provided: • ATW1(Auto Tracing White Balance mode 1): The camera can automatically adjust the color temperature in real time, according to the ambient conditions.
  • Page 22: Intelligence

    How to use OSD Menu image on the same screen using the Picture In INTELLIGENCE Picture function.  Note : MOTION If more than one privacy zone is set and the PRIVACY – MASK AREA SET is set to ON, the PIP function will be deactivated. DISPLAY If the INTELLIGENCE function is set to FENCE mode, the SENSITIVITY...
  • Page 23: Alarm Out

    How to use OSD Menu Set the sensitivity of the motion detection. ❖ RESOLUTION [1~5] If setting it to high, the camera can detect even a trivial movement of the target. ❖ ALARM OUT If you set a desired menu item to ON, the camera will sound an alert if it detect the appropriate motion.
  • Page 24: Other Set

    How to use OSD Menu OTHER SET PRIVACY ZONE SET1 PIXEL LEVEL <POINT> <POSITION> EXTERNAL TRG FACTORY DEFAULTS OSD COLOR - How to set the point You can set each position of the 4 points. ❖ EXTERNAL TRG If you press the SETUP switch in <POINT>, Set the EXTERNAL TRG menu to ON and press you will see the points available in the the SETUP switch to display the appropriate...
  • Page 25: System Information

    How to use OSD Menu SYSTEM INFORMATION SYSTEM INFO TYPE 3_BOX_NOR_N SERIAL NO. 000000000000000 CAMERA VER. 0.50_090101 You can view the system information including, camera version LANGUAGE LANGUAGE ENGLISH FRANÇAIS ESPAÑOL 日文 INGLÊS will SER, The camera supports 5 different languages. Select a preferred language.
  • Page 26: Specifi Cations

    Specifi cations SPECIFICATIONS Items Sub-items Camera Type CCTV Camera (WDR & DAY/NIGHT) Device Image Total Pixels Effective System Scanning Line Frame Scanning Internal Mode Horizontal Frequency Line-lock Mode Internal Mode Vertical Frequency Line-lock Mode Condition Sens-up F No. Level Min. Scene Illumination 512 times 512 times...
  • Page 27 Specifi cations Items Sub-items Horizontal Resolution Vertical Video Output S/N Ratio S/N Ratio Lens Drive Type MANUAL/AI(VIDEO/DC) Lens Mount Type Input Alarm Output Coaxitron (Data On Coax cable) Remote Control RS-485 Yes (Multi Protocol, 8ea) Operating Temperature Environmental Conditions Humidity AC24V ±...
  • Page 28 Specifi cations Items Sub-items SCC-B2331P / SCC-B2031P Camera Type CCTV Camera (WDR & DAY/NIGHT) Device Image Total Pixels Effective System Scanning Line Frame Scanning Internal Mode Horizontal Frequency Line-lock Mode Internal Mode Vertical Frequency Line-lock Mode Condition Sens-up F No.
  • Page 29 Power Power Consumption (With DC Lens) LED Indicator SCC-B2331P : 64(W) x 58(H) x 109.2(D) mm Dimensions SCC-B2031P : 64(W) x 58(H) x 129.2(D) mm (WxHxD) Package 173(W) x 99(H) x 115(D) mm SCC-B2331P : Approx. 305g Physical Specifi cation SCC-B2031P : Approx.
