Page 1: User Manual

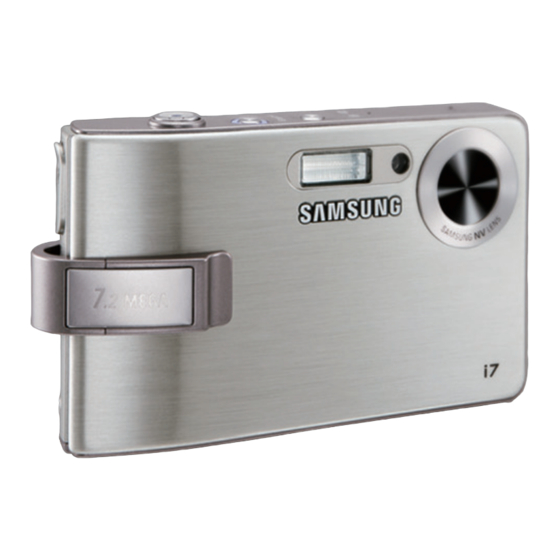

User Manual Thank you for buying a Samsung camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. ENGLISH...
Page 2: Getting To Know Your Camera
Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction.
Page 3 Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.
Page 4: Table Of Contents
Caution CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Leaking, overheating, or damaged battery could result in fire or injury. Use battery with the correct specification for the camera. Do not short circuit, heat or dispose of battery in fire. Do not insert the battery with the polarities reversed.
Page 5 Contents Effect Voice memo Effect : Colour Effect Protecting images Effect : Image editing Deleting images Effect : FUN DPOF DPOF : STANDARD PLAY DPOF : Index DPOF : Print size Starting play mode Copy To Card Playing back a still image PictBridge Playing back a movie clip PictBridge : Picture Selection...
Page 6: System Chart
System chart Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. < Included items >...
Page 7: Identification Of Features
Identification of features Front & Top Power button Shutter button Flash Face Recognition (FR) / Lock button Microphone Speaker Self-timer / AF lamp Lens Self-timer lamp Icon Status Description For the 2 seconds, the lamp blinks quickly at Blinking 0.25-second intervals before taking a picture. A picture will be taken after about 10 seconds and Blinking 2 seconds later a second picture will be taken.
Page 8 Identification of features Back Zoom W (Thumbnail) / Zoom T (Digital zoom) / Volume button LCD monitor (Touch Screen) Do not rotate the LCD clockwise. It causes LCD breakage. The LCD can be rotated counter-clockwise 180 Camera Status Lamp Status Power on After taking a picture When the USB cable is...
Page 9: Connecting To A Power Source
Number of images and battery life : Using the SLB-1137C Battery chamber cover Still image Movie Tripod socket Multimedia These figures are measured under Samsung’s standard conditions and shooting conditions and may vary depending on the user's methods. Connecting to a Power Source SLB-1137C Lithium Ion 1100mAh 3.7V...
Page 10: Using An Ac Cable
Connecting to a Power Source INFORMATION Important information about battery usage. When the camera is not used, turn off the camera power. Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.
Page 11: Inserting The Memory Card
Connecting to a Power Source CAUTION Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. If the charging LED of the AC Charger does not turn on or blink after inserting the rechargeable battery, please check whether the battery is inserted correctly.
Page 12: Memory Card
Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear of the memory card is not covered by the Samsung warranty.
Page 13: When Using The Camera For The First Time
Instructions on how to use the memory card When using a 256MB MMC (Multi Media Card), the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type. Recorded Super Fine Normal...
Page 14 When Using the Camera for the First Time Touch Screen Adjustment 1. Select the [CALIBRATION] menu. 2. Press the point with the supplied Touch Pen. SETUP SETUP / CALIBRATION CALIBRATION LANGUAGE ENGLISH DATE&TIME 07/02/01 When you calibrate the LCD monitor, press the Calibration point exactly or menus on the LCD monitor won't be selected or set.
Page 15: Recording
When Using the Camera for the First Time: Touch Screen Touch Screen can be used for selecting the menu or confirming the selected menu. See the following instructions for using the Touch Screen. To select or set the menu exactly, using the supplied Touch Pen is recommended. Ex : Changing the Image Size [Pressing the icon] [Confirming...
Page 16: Starting The Recording Mode
Starting the recording mode : Optical / Digital Zoom bar / Digital Zoom rate (p.24) 00013 : Number of available shots remaining (p.12) : Available recording time (Movie clip / Voice recording) (p.12) 00:00:00 : Card inserted indicator (p.10) : Recording mode (p.16) : Face Recognition (p.20) : Mic.
Page 17: Selecting Modes
Starting the recording mode Selecting modes Recording mode Press the M (Mode) button or Press the Recording mode icon and the menu will display as shown. SHOOTING SHOOTING Program Movie Auto Program SCENE SCENE SHOOTING SCENE Nightscene Portrait Children MP3, PMP, Text Viewer, Tour Guide mode Select a multi-media mode by rotating the LCD monitor.
Page 18: How To Use The Auto Mode
Starting the recording mode How to use the AUTO mode ( Please select this mode for quick and easy picture taking with minimal user interaction. 1. Insert the battery (p.10) taking note of the correct polarity (+ / -). 2. Insert the memory card (p.10). As this camera has a 450MB internal memory, it is not essential to insert the memory card.
Page 19: How To Use The Asr
Starting the recording mode How to use the ASR (Advanced Shake Reduction) mode ( This mode will reduce the effect of camera shake and help you get a well- exposed image in dim conditions. Press the ASR icon. Things to watch out for using the ASR mode 1.
Page 20: How To Use The Movie Clip Mode
Starting the recording mode How to use the MOVIE CLIP mode ( A movie clip can be recorded for as long as the available recording time of the memory capacity allows (Max. 2 Hour). 1. Select the MOVIE CLIP mode. (Available recording time will display on the LCD monitor) 2.
Page 21: Face Recognition
Starting the recording mode The scene modes are listed below. [Nightscene] ) : Use this for shooting still images at night or in other dark conditions. [Portrait] ) : To take a picture of a person. [Children] ) : To take a picture of fast moving objects, for example, children.
Page 22: Things To Watch Out For When Taking Pictures
Starting the recording mode INFORMATION This function can detect up to 9 persons. When the camera recognises many people at the same time, it will focus on the nearest person. When Face detection begins, the Digital Zoom cannot operate. When Face detection begins, the Effect mode cannot operate. The face in focus will be highlighted in green;...
Page 23: Focus Lock
Things to watch out for when taking pictures Under certain conditions the auto focus system may not perform as expected. - When photographing a subject that has little contrast. - If the subject is highly reflective or shiny. - If the subject is moving at high speed. - When there is strong reflected light, or when the background is very bright.
Page 24: Using The Camera Buttons To Set The Camera
Using the camera buttons to set the camera The recording mode function can be set up by using the camera buttons. POWER button Used for turning the camera’s power on / off. If there is no operation during the specified time, the camera's power will be turned off automatically to save battery life.
Page 25: Zoom W / T Button
ZOOM W / T button This camera has a 3X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 15X. TELE Zoom Optical zoom TELE : Pressing the ZOOM T button. This will zoom into the subject i.e.
Page 26: Mode Button
ZOOM W / T button INFORMATION Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place. You may notice a decrease in image quality when using the digital zoom. To view a clearer digital zoom image, press the shutter button halfway at the maximum optical zoom position and press the zoom T button again.
Page 27: Setting Up The Camera Mode
Setting up the camera mode You can set up the camera mode by pressing the mode icon. In Night scene mode, you can select the shutter speed and aperture value. Main menu Sub menu Self-timer Macro Flash Image Size Quality Metering Drive mode White Balance...
Page 28: Macro
Macro ( You can take macro pictures. Select a desired macro icon on the LCD monitor. [Auto Focus-AF icon] [Auto Macro ( [Macro ( [Super Macro ( Types of focus modes and focus ranges (W : Wide, T : Tele) Mode Focus Type Super macro (...
Page 29: Flash
Macro ( Available focusing method, by recording mode ( : Selectable, Mode Auto macro Super macro SCENE Mode Auto macro Super macro Flash ( You can select a proper flash mode in accordance with the enviroment. Select a desired flash icon on : Infinity focus range) the LCD monitor.
Page 30 Flash ( INFORMATION If you press the shutter button after selecting the Auto, Fill-in, Slow synchro flash, the first flash fires to check the shooting condition (Flash range and Power ratio of flash). Do not move the camera until the second flash fires. Using the flash frequently will reduce the life of the battery.
Page 31: Image Size
Flash ( Available flash mode, by recording mode Image Size : Selectable) You can select the image size appropriate for your application. Still Image Movie Clip SIZE [STILL IMAGE mode] INFORMATION The higher the resolution, the lower the number of shots available because high resolution images require more memory.
Page 32: Quality / Frame Rate
Quality / Frame rate You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality. Mode STILL IMAGE mode Icon Sub menu Super Fine Fine Normal File Format jpeg jpeg jpeg...
Page 33: Continuous Shot
Continuous shot You can select the drive mode like continuous shot, motion capture, AEB and wise shot. - Single : Take one picture only - Continuous : Images will be taken continuously until the shutter button is released. The shooting capacity depends on the memory.
Page 34: White Balance
White balance The white balance control allows you to adjust the colours to appear more natural. Auto WB : The camera automatically selects the appropriate white balance settings, depending on the prevailing lighting conditions. Daylight : For taking images outside. Cloudy : For taking images under a cloudy and overcast sky.
Page 35: Exposure Compensation
Exposure compensation This camera automatically adjusts the exposure according to the ambient lighting conditions. You can change the exposure value by using the icon. A negative exposure compensation value reduces the exposure. Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.
Page 36: Using The Lcd Monitor To Adjust The Camera Settings
Using the LCD monitor to adjust the camera settings You can use the menu on the LCD monitor to set up recording functions. The items indicated by are default settings. Menu Sub menu Auto Focus Center AF Multi AF Voice Memo Voice Record Soft+ Soft...
Page 37: Voice Memo
Voice Memo You can add your voice-over to a stored still image. Recording Auto Focus Center AF Voice Memo Voice Record Sharpness Normal - If the voice memo indicator is displayed on the LCD monitor, the setting is completed. - Press the shutter button and take a picture. The picture is stored on the memory card.
Page 38: Sharpness
Voice Recording Pausing while recording a voice Using this function, you can record your favorite voice clips into a voice recording file without having to create multiple voice recording files. 1. Press the Pause icon ( ) to pause recording. 2.
Page 39: Contrast
Contrast You can set the difference between the bright part of the image and the dark part of the image. Recording Contrast Normal - High : The difference between bright part of the image is high. - Normal : The difference between bright part of the image is normal. - Low : The difference between bright part of the image is low.
Page 40: Effect
Effect It is possible to add special effects to your images by using this icon. Still image mode : You can select the colour, special colour, image editing and Fun menu. Movie clip mode : You can select the colour menu. Available Effects, by recording mode INFORMATION Color Effect...
Page 41: Effect : Colour Effect
Effect : Colour Effect By using the camera's digital processor, it is possible to add special effects to your images Colour Press the Effect menu in an available recording mode (p.39) Color Effect Color Normal Custom Color Color Mask Select a desired sub menu by pressing the : No effect is added to the image.
Page 42 Effect : Colour Effect Colour mask With this menu, you can select a part you want to highlight. The rest of the image will be black & white. Press the Effect menu in an available recording mode. (p.39) Color Effect Color Normal Press the OK icon and the Mask mark will...
Page 43: Effect : Image Editing
Effect : Image editing Saturation You can change the saturation of the image. Press the Effect menu in an available recording mode (p.39). Image Adjust Select Saturation menu Saturation ) and a bar for changing the saturation will display. Image Adjust / Saturation Change the saturation by pressing the Save...
Page 44: Effect : Fun
Effect : FUN Cartoon Press the Effect menu in an available recording mode (p.39). If the The size of Cartoon image is fixed to 1M. Cartoon Photo Frame Select ( High Light Composite Press the LCD monitor You can delete the capture image and take an image again.
Page 45 Effect : FUN Photo Frame You can add 9 types of frame-like borders to a still image you want to capture. Date & Time information will not be printed on the stored image taken with Photo Frame menu. Press the Effect menu in an available recording mode (p.39). Cartoon Photo Frame High Light...
Page 46 Effect : FUN Preset focus frames You can make the subject stand out from its surroundings. The subject will be sharp and in focus while making the rest out of focus. Press the Effect menu in an available recording mode.(p.39) FUN / High Light Cartoon Photo Frame...
Page 47 Effect : FUN Composite shooting You can combine 2 - 4 different shots in a still image. Press the Effect menu in an available recording mode (p.39) Cartoon Photo Frame High Light Composite Select a desired menu by pressing icon and press the OK icon. : Cancels the composite shooting : 2 different shots are combined in a still image.
Page 48 Effect : FUN INFORMATION You can use the Zoom W / T button during the composite shooting. If you press the Play mode or Mode button during the composite shots, each camera working mode is executed. The images captured before will be deleted. Changing a part of composite shot before taking the last shot Before taking the last composite shot, you can change a part of composite shot.
Page 49 Effect : FUN Changing a part of composite shot after taking the last shot 1. After taking the last shot, a cursor to select a frame will display. Press a desired frame on the LCD monitor to take an image again. 2.
Page 50: Starting Play Mode
Starting play mode Turn the camera on and select Play mode by pressing the play mode button ). The camera can now play back the images stored in the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card.
Page 51: Movie Clip Capture Function
Starting play mode Movie clip capture function : capture still images from the movie clip. How to capture the movie clip 1. Press the pause icon and the shutter button while playing the movie clip. 2. The paused movie clip is saved in a new file name.
Page 52: Playing Back A Recorded Voice
Starting play mode INFORMATION When a voice is playing back, you can use the earphones. If you want to extract the movie clip at the beginning of the frame, press the Zoom T button before starting the movie clip. If the time line bar passes by the start point by pressing the REW ( icon, the first frame of the movie clip will display.
Page 53: Lcd Monitor Indicator
LCD monitor Indicator The LCD monitor displays shooting information about the displayed image. ISO : 100 AV : F3.5 TV :1/45 Flash :Off 3072x2304 2007/02/01 Description Battery Folder name & File name Memory card indicator Playback mode Protect Movie Clip / Voice Memo Previous / Next image DPOF Menu / Effect...
Page 54: Using The Camera Buttons To Adjust The Camera
Using the camera buttons to adjust the camera In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions. Play mode button If you have turned on the camera by pressing the POWER button, you can press the PLAY MODE button once to switch to Play mode and press it again to switch to Recording mode.
Page 55 Thumbnail ( ) / Enlargement ( Image enlargement 1. Select an image that you want to enlarge and press the enlargement button. 2. Different parts of the image can be viewed by pressing the icon. 3. Pressing the thumbnail button will zoom back to the original full sized image.
Page 56: Info Button
Info ( ) button Pressing the Info button, information of displayed image will display on the LCD monitor. Info ( ) button Info ( ) button Printer ( You can print images with this button after connecting the camera to a PictBridge printer. In some instances the camera may not connect to the printer, this will depend on the make of the printer.
Page 57: Delete Icon
Delete ( ) icon This deletes images stored on the memory card. 1. Select an image that you want to delete by pressing the icon and press the DELETE ) icon. 2. Select the submenu values by pressing the icon and then press the OK icon. - If [No] is selected : cancels "Delete Image".
Page 58 Effect: Image Editing A large sized image can be resized to a smaller sized image, but not vice versa. Only JPEG images can be resized. Movie clip (AVI), Voice recording (WAV) files can’t be resized. You can change the resolution of only those files compressed in the JPEG 4:2:2 format.
Page 59: Effect: Colour
Effect: Image Editing Trimming You can extract part of the image and save it separately. Image Edit Resize Rotate Trimming 1. Select an image that you want to enlarge and press the enlargement button. 2. Different parts of the image can be viewed by pressing the icon.
Page 60 Effect: Colour Custom colour You can change the R (Red), G (Green) and B (Blue) values of the image. Color Effect Color Effect / Custom Color Color Custom Color Color Filter Color Mask : Selects R, G, B : Change the values Colour Filter With this menu, You can change the colour information of the image (excluding Red, Blue, Green and Yellow) to Black and White colour.
Page 61: Effect: Image Adjustment
Effect: Colour Colour mask With this menu, you can select a part you want to highlight. The rest of the image will be black & white. Color Effect Color Select ( ) and a mark for Custom Color selecting part will display. Color Filter Color Mask +, - icon : Changing the mask size...
Page 62 Effect: Image adjustment Contrast control You can change the contrast of the image. 1. Select ( ) and a bar for selecting the contrast will display. 2. Change the contrast by pressing the icon. 3. Press the SAVE icon and the image will be saved as a new file name.
Page 63: Effect: Fun
Effect: Fun You can add fun effects to the saved image. Pressing the Shutter button or the Play mode button in the FUN menu activates the capture mode. Image Edit Color Effect Image Adjust Cartoon You can add a text box on the image to make the image cartoon like. Cartoon Photo Frame Select the cartoon...
Page 64 Effect: Fun After pressing the ( ) icon, you can change the type and location of the text box by pressing the icon. FUN / Cartoon 2 Press the Set icon and press the SAVE icon. The image is saved as a new file name.
Page 65 Effect: Fun Photo Frame You can add 9 types of frame-like borders to a still image you want to capture. Date & Time information will not be printed on the stored image taken with Photo Frame menu. Cartoon Photo Frame High Light Composite Select a desired frame by pressing the...
Page 66 Effect: Fun Preset focus frames You can make the subject stand out from its surroundings. The subject will be sharp and in focus while making the rest out of focus. FUN / High Light 1 Cartoon Photo Frame High Light Composite Select a desired frame by pressing the icon and press the OK icon.
Page 67 Effect: Fun Composite image You can combine 2 - 4 different shots in a still image. Cartoon Photo Frame High Light Composite INFORMATION If you press the Shutter and Play mode button, a capture mode is executed. Selecting 2 composite shots. FUN / Composite 1 [Selecting the second image : FUN / Composite 1...
Page 68 Effect: Fun The second image is selected. Press the Set icon. FUN / Composite 1 Pressing the Set icon Press the SAVE icon and the image will be saved. After selecting the last composite image, you can change a part composite image.
Page 69 Effect: Fun Sticker You can add various stickers on the image. Sticker Select ( Pen Tool Press the LCD monitor and the selected sticker is added. Save You can add the other stickers (Max. 2 stickers) by pressing the ( Press the ( ) icon to delete the sticker.
Page 70: Setting Up The Play Back Function Using The Lcd Monitor
Setting up the play back function using the LCD monitor PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU icon displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY mode button or shutter button.
Page 71: Slide Show
Setting up the play back function using the LCD monitor Menu tab Main menu Sub menu Auto Draft Quality Normal Fine Auto Date Auto File Name Reset Menus are subject to change without prior notice. Slide Show ( Images can be displayed continuously at pre-set intervals. Secondary menu Page You can view the slide show by connecting the camera to an external monitor.
Page 72 Slide Show ( Effect : Unique screen effects can be used for the slide show. Slide Show Show Start Effect Music Interval - [Off] : Normal display. - [Effect1] : Image moves from the top left. - [Effect2] : Image is displayed slowly from the centre outwards. - [Effect3] : Image is displayed slowly.
Page 73: Voice Memo
Slide Show ( Slide show type: Selects a slide show type. Slide Show Slide Show Playback Play Mode Sound Setup 1 Setup 2 - [One Play] : The slide show is closed after one cycle. - [Repeat Play] : The slide show is repeated until cancelled. Voice memo ( You can add your voice to a stored still image.
Page 74: Protecting Images
Protecting images This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock). Protecting Images Playback Voice Memo Protect Delete DPOF 1. Select a desired sub menu. [Select] : Selection window for an image to be protected / released is displayed.
Page 75: Deleting Images
Deleting images Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image and SKIN image are stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.
Page 76: Dpof : Standard
DPOF : STANDARD This function allows you to embed print quantity information on a stored image. 1. Select the [Standard] menu. 2. Select a desired sub menu. [One Pic] : Selection window for an image to print is displayed. : Select an image to print. : Select the number of prints.
Page 77: Dpof : Print Size
DPOF : Print size You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers. Setting the Print Size 1. Select the [Size] menu. 2. Select a desired sub menu by pressing the icon and press the OK icon.
Page 78: Pictbridge
PictBridge You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed. Setting up the camera for connection to the printer 1.
Page 79: Pictbridge : Picture Selection
PictBridge : Picture Selection You can select images you want to print Setting the Number of Copies to Print 1. Press the Menu button and the PictBridge menu will display. 2. Select the [Images] menu. 3. Select a desired sub menu. - Select [One Pic] or [All Pics].
Page 80: Pictbridge : Reset
PictBridge : Reset Initialises user-changed configurations. 1. Select the [Reset] menu by pressing the icon. 2. Select a desired sub menu. - If [No] is selected : Settings will not be reset. - If [Yes] is selected : All print and image settings will be reset.
Page 81: Sound
Sound ( [ Volume ] You can set select a volume of sound, start up sound, shutter sound, warning sound and AF sound. Sound Volume Medium Start Sound Shutter Sound Shutter Sound 1 Beep Sound Beep Sound 1 [Volume] sub menu : [Off], [Low], [Medium], [High] [ Start up sound ] You can select the sound that is activated whenever the camera is turned on.
Page 82: Setup Menu
Sound ( [ AF sound ] If you set AF sound to ON, AF sound will be activated when a subject is focused so that you can be aware of the camera operation status. Sound AF Sound [AF sound] sub menu : [Off], [On] Setup menu In this mode, you can set up basic settings.
Page 83: Setup Menu 1
Setup menu Menu tab Main menu Sub menu Quick View Power Off 1, 3, 5, 10 min LCD save Calibration Video Out NTSC Format Reset Menus are subject to change without prior notice. Setup menu 1 [ File name ] Page This function allows the user to select the file naming format.
Page 84: Language
Setup menu 1 [ LANGUAGE ] There is a choice of languages that can be displayed on the LCD monitor.Even if the battery is removed and inserted again, the language setting will be preserved. Setup1 File Series LANGUAGE English Date&Time Imprint - LANGUAGE sub menu : English, Korean, French, German, Spanish, Italian, S.Chinese, T.Chinese,...
Page 85: Imprinting The Recording Date
Setup menu 1 [ Imprinting the recording date ] There is an option to include DATE / TIME on still images. Setup1 File Series LANGUAGE English Date&Time Imprint Sub menus [Off] : The DATE & TIME will not be imprinted on the image file. [Date] : Only the DATE will be imprinted on the image file.
Page 86: Start Up Image
Setup menu 1 [ Start up image ] You can select the image that is first displayed on the LCD monitor whenever the camera is turned on. Setup1 Normal AF Lamp Start Image Start up image : [Off], [LOGO], [User Image] - Use a saved image for the start-up image with the [User Image] in the [RESIZE] menu in the play mode.
Page 87: Auto Power Off
Setup menu 2 [ Auto power off ] This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage. Setup 2 Quick View 0.5sec Power Off 3min LCD Save Calibration Sub menus [1, 3, 5, 10 min] : The power will turn off automatically if not used for the period of time specified.
Page 88: Calibration
Setup menu 2 [ Calibration] This menu will increase the sensitivity of the Touch Pen. Press the Touch Point on the LCD monitor with the Touch Pen. Setup 2 Quick View 0.5sec Power Off 3min LCD Save Calibration After pressing the Touch Point three times, the Setup 2 / Calibration menu is set and pre-view image will display.
Page 89: Formatting A Memory
Setup menu 2 - NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico. - PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway. - When using a TV as an external monitor, you will need to select the external or AV channel of the TV.
Page 90: Initialisation
Setup menu 2 [ Initialisation ] All camera menu and function settings will be restored to their default values. However, values for DATE / TIME, LANGUAGE, and VIDEO OUT will not be changed. Setup 2 Video Out NISC Format Reset Sub menus [No] : Settings will not be restored to their defaults.
Page 91: Downloading Files
MP3 / PMP / TEXT VIEWER Mode Downloading files To use MP3, PMP and TEXT VIEWER functions, MP3, PMP(multimedia files) and TEXT files must be saved in the internal memory or memory card of this camera. 1. Save the desired files on your PC. 2.
Page 92: Starting The Mp3 / Pmp / Text Viewer Mode
CJ-movie sample.sdc 0:00:00 / 0:04:55 Who bent my camera? ANSI 1.Samsungcamera.txt Thank you for buying a Samsung Camera. This manual will guide you through using the camera, includin capturing images, downloading images and using the application software. Please read this manual carefully before...
Page 93: Text Viewer Mode
Starting the MP3 / PMP / TEXT VIEWER mode INFORMATION The order of play lists on the browsing menu and the order of file saved in the memory are the same. A title coded with unsupported language is displayed as "--------". The automatic power off function will not operate if the a file is playing back.
Page 94: Using The Camera Buttons To Adjust The Camera
LCD monitor indicator for MP3 / PMP / TEXT VIEWER mode Current page / Whole page Encoding Type (ANSI,Uni) ANSI Text mode 1.Samsungcamera.txt Thank you for buying a Samsung Scroll icon Camera. This manual will guide you through using the camera, includin capturing images, downloading images and using the Play list icon (p.95)
Page 95: Play & Pause / Control Icon
Using the camera buttons to adjust the camera Play & Pause / Control icon When a file is playing back, press the icon to pause the file. Pressing it again will resume playback. MP3 mode When an MP3 file is not played back, you can search the MP3 files by pressing icon.
Page 96: Equalizer Icon
MP3 / PMP / TEXT VIEWER mode functions can be changed by using the LCD monitor. Press the MENU icon and the menu will display on the LCD monitor. Menu tab Equalizer TEXT LIST Samsung camera.txt [TEXT VIEWER Mode] Main menu Sub menu Play All Repeat One...
Page 97: Play Mode
Setting up the playback function using the LCD monitor Menu tab Main menu 1.1 sec Auto Scroll 1.7 sec 2.3 sec MP3 BGM ENGLISH TEXT VIEWER DEUTSCH ESPAÑOL ITALIANO P”CCK»… PORTUGUÊS Language DANSK BAHASA Magyar Delete Select Delete Menus are subject to change without prior notice. Play mode Sub menu Page...
Page 98: Playing Back The Slide Show
Setting up the playback function using the LCD monitor Playing back the slide show While the MP3 file is playing back, captured images are displayed on the LCD monitor continuously. MP3 MENU Play Mode Play All MP3 Skin Default 1 Slide Show [Play] : Display the images once.
Page 99: Delete
Setting up the playback function using the LCD monitor Delete Files stored on the memory card will be deleted. In the MP3 mode, only MP3 files are deleted. In the PMP mode, only multimedia files are deleted. In the TEXT VIEWER mode, TEXT files are deleted. 1.
Page 100: Srs
Setting up the playback function using the LCD monitor You can select the 3D (3 dimentional multi-sound) Sound that has fine low and high pitched sound. PMP MENU Seeking Normal [Off]: cancels the SRS. [On]: selects the SRS. Auto Scroll The playing text is scrolled automatically and displays on the LCD monitor.
Page 101: Mp3 Bgm Setting
Setting up the playback function using the LCD monitor MP3 BGM Setting You can play MP3 files when you are playing the text. TEXT VIEWER MENU Auto Scroll MP3 BGM Language ENGLISH [Off] : You cannot play the MP3 files. [On] : When you are playing the text, you can play the MP3 files.
Page 102: World Tour Guide
You can get the useful travel information for destinations around the world. Korean, English and Chinese information is available and the language can be varied in accordance with the sales region. You can download the tour guide information from the Samsung Camera website. Download the tour guide information In order for you to use the World Tour Guide function, the tour information file should be stored on the internal memory of the camera.
Page 103 World Tour Guide Select the tour site. You can find the detail information and pictures by pressing each icons. Checking the site image Guide of the site Tour Guide Mode icon Tour guide information displays. Select the tour place. INFORMATION Return to start Multimedia mode Down...
Page 104: Important Notes
- Don't get fingerprints or foreign substances on the surface of the lens. If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the batteries and the memory card if you do not intend using the camera for an extended period of time.
Page 105: Warning Indicator
- Take a picture to test the camera and always carry a spare fully charged battery. - Samsung cannot be held responsible for camera malfunctions. Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and can be illegal in some areas.
Page 106: Before Contacting A Service Centre
Warning indicator Low Light! When taking pictures in dark places Take pictures in Flash Photography mode. Out Of Number When selecting too many printing pages in the PictBridge menu. Select printing page within the limitation. DCF Full Error Violation of DCF format Copy the images to a PC and format the memory.
Page 107 Before contacting a service centre The flash does not fire Flash off mode has been selected Dis-engage flash off mode The camera mode can't use the flash Refer to the FLASH instruction (p.28) Incorrect date and time is displayed The date and time have been set incorrectly or the camera has adopted the default settings Reset the date and time correctly The camera buttons do not operate...
Page 108: Specification
Specification Image Sensor - Type : 1/2.5 CCD - Effective Pixel : Approx. 7.2 Mega Pixels - Total Pixel : Approx. 7.4 Mega Pixels Lens - Focal Length : f = 6.3 ~18.9mm (35mm equivalent : 38 ~114mm) : NV lens - F No.
Page 109: Software
3072x2304 3072x2048 3072x1728 2592x1944 2048x1536 1024x768 Super Fine Fine Normal These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Image Play Multi Media Interface Power Source - Rechargeable battery : Lithium Ion (SLB-1137C, 1100mAh, 3.7V)
Page 110 Specification MP3 Specification Audio - Frequency : 20Hz ~ 20KHz - Earphone Port : 2.5mm Port (Stereo Type) - Output : Maximum Volume Left 40mW + Right 40mW (16 ) - Noise Ratio : 88 dB with 20 KHz LPF File - File Format : MP3 (MPEG-1/2/2.5 Layer 3) - Bit Rate : 48 ~ 320kbps (Including VBR)
Page 111: Software Notes
Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty. Before reading these instructions, you should have a basic knowledge of computers and O/S (Operating Systems).
Page 112: Setting Up The Application Software
After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. You can visit the Samsung web-site through the internet. http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean 1.
Page 113 Setting up the application software 3. To play back the movie clip recorded with this camera on the computer, install 4. Install the software following instructions on the monitor. the XviD codec. The XviD codec is distributed according to and under the terms and conditions of the GNU General Public License and everyone can copy, modifiy and distribute this codec freely, but WITHOUT ANY WARRANTY, IMPLIED OR EXPRESSED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE;...
Page 114: Starting Pc Mode
Setting up the application software 5. After restarting the computer, connect the PC to the camera with the USB cable. 6. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognize the camera. If your OS is Windows XP, an image viewer program will open.
Page 115: Removable Disk
Starting PC mode Disconnecting the camera and PC : Refer to "Removing the Removable Disk" (p.115) INFORMATION Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. Removable Disk Downloading stored images You can download the still images stored on the camera to your PC's hard disk...
Page 116: Removing The Removable Disk
Removable Disk CAUTION We recommend that you should copy the images to the PC to view them. Opening images directly from the removable disk may be subject to unexpected disconnection. When you upload a file that is not taken by this camera to the Removable Disk, the [File Error!] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.
Page 117: Setting Up The Usb Driver For Mac
2. Check whether the Removable Disk is on the [My Computer]. 3. Remove the [Samsung Digital Camera] on the Device manager. 4. Disconnect the USB cable. 5. Remove the [Samsung USB Driver] on the Add / Remove Programs Properties. 6. Uninstallation is complete.
Page 118: Digimax Converter
Digimax Converter Multimedia (Movie, Video clip, etc) files can be converted into movie clips that can be played back on this camera. This software is only compatible with Windows. How to use the Digimax Converter 1. Double click the Digimax Converter icon ) on the desktop.
Page 119: Digimax Master
Digimax Converter INFORMATION - If you installed various multi-codecs on your computer, it may cause converting problems. In this case, remove all codecs and install a proper multi-codec. - Install a latest Windows Media Player. - Visit device (PC, Graphic card, Sound card) manufacturer web-site and upgrade them with the latest version.
Page 120 Digimax Master 4. Select a destination and make a new folder in which to save downloaded images and folders. - Folder names can be made in order of date and images will be downloaded. - Folder name will be made as you want and images will be downloaded.
Page 121 Digimax Master Image edit : You can edit the still image. - Image edit functions are listed below. Edit menu : You can select the following menus. [Tools] : You can resize or crop the selected image. See the [Help] menu. [Adjust] : You can modify image quality.
Page 122: Faq
Please check the following if the USB connection malfunctions. Case 1 The USB cable is not connected or you are using a cable with an incorrect specification. Use a USB cable with the correct specification. Case 2 The camera is not recognized by your PC. Sometimes, the camera may appear under [Unknown Devices] in Device Manager.
Page 123 When the movie clip doesn’t play back on the PC When the movie clip recorded by the camera doesn’t play back on the PC, the causes are mostly due to the codec installed on the PC. When codec for play back the movie clip isn’t installed Install the codec as listed below.
Page 124: Correct Disposal Of This Product
This product should not be mixed with other commercial wastes for disposal. Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.
Page 125 MEMO MEMO...
Page 126 TEL : 49 ( 0 ) 6196 66 53 03 FAX : 49 ( 0 ) 6196 66 53 66 www.samsungcamera.de TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD No.9 zhangheng Street. Micro-Electronic Industrial Park Jingang Road Tianjin China. POST CODE : 300385...

Samsung I7 User Manual

Recording

Software

Quick Links

User Manual

Related Manuals for Samsung I7

Summary of Contents for Samsung I7

Table of Contents
