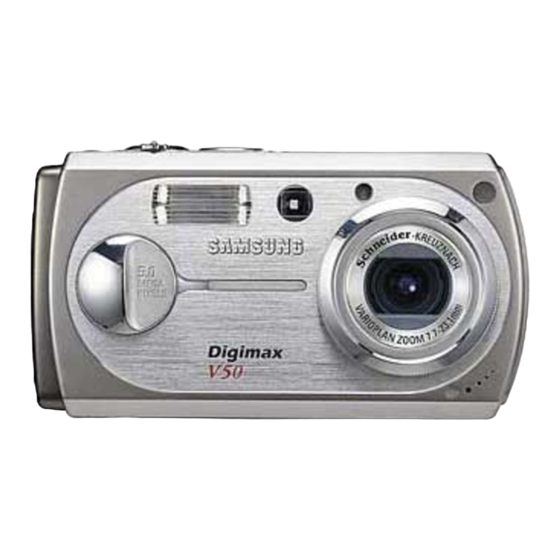

Page 1 ENGLISH User's Manual Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera.
Page 2 Instructions Use this camera in the following order Set up the camera driver Take a picture Insert the USB cable Check the camera’s power Check [Removable Disk] To play back a video shot with this camera, be sure to use the QuickTime player supplied on the software CD-ROM.
Page 3: Table Of Contents
Contents READY Getting to know your camera About the icons Danger Warning Caution An FCC warning This digital camera can be used for Manufacturer's contents Identification of features Front & Top Back & Bottom Side/ 5-function button Mode dial Connecting to a Power Source Using the batteries Removing the battery Using the AC power adapter...
Page 4 Contents LEFT/ RIGHT/ MENU/ OK button LCD button Delete button COPY button Setting up the play back function using the LCD monitor Deleting images Copy Pictures Protecting images Starting the slide show Resize Rotating an image DPOF DPOF : STANDARD DPOF : INDEX DPOF : PRINT SIZE DPOF : CANCEL...
Page 5: Getting To Know Your Camera
Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction.
Page 6: Danger
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source (batteries or AC Power Adapter). You must contact your dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a fire or electric shock.
Page 7: Caution
Increase distance between the camera and the affected device. Use a different socket away from the affected device. Please contact a Samsung agent or a radio/TV engineer. This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for...
Page 8: This Digital Camera Can Be Used For
This digital camera can be used for Printing images using a dedicated printer, DPOF and PictBridge compatible printer or a DPOF-equipped photo lab. (refer to page 71~78) Down loading image files from camera to computer. (refer to page 110) Viewing images on a TV. (refer to page 86) Taking a picture.
Page 9 This digital camera can be used for Creation of a digital photo album. Recording your voice. (refer to page 25) You can even create your own unique gift wrap paper by using your digital images. Taking a self-portrait and using the image to personalize calendar.
Page 10: Manufacturer's Contents
Manufacturer's contents Please check that you have the correct contents before using this product. marked contents are optional. Digital Camera Pouch User manual Product warranty SD memory card Memory Stick Duo Digimax Power Pack : SLB-1437A KIT Battery charger Rechargeable (SBC-L2) battery AV cable...
Page 11: Identification Of Features
Identification of features Front & Top Mode dial Shutter button Jog dial Flash Viewfinder Function lamp& Self-timer lamp SCL-T3755/W3755 conversion lens and SLA-3537 connection adapter are designed for the Digimax digital cameras. They are sold separately depends on the camera model. Please check local retailers for the purchase.
Page 12: Back & Bottom
Identification of features Back & Bottom Flash indicator lamp(Red) Autofocus indicator lamp(Green) Viewfinder MF/ DELETE button AEL/ COPY button LCD monitor Tripod socket * When using the digital zoom to take a picture, the composition of the picture may be different depending on whether you are using the LCD monitor or the viewfinder.
Page 13: Side/ 5-Function Button
Identification of features Side/ 5-function button Battery holder SD(MMC) memory card slot Memory Stick DUO slot Battery chamber Mode dial You can select the desired working mode by using the mode dial located on the top of the camera. This digital camera has 8 recording modes. These are listed below. AUTO mode PROGRAM mode Battery...
Page 14 Identification of features A/S/M mode MySET mode VOICE RECORDING mode MOVIE CLIP mode NIGHT SCENE mode SCENE mode The Aperture and Shutter can be set manually in the ASM mode. - A : Aperture priority mode - S : Shutter priority mode - M : Manual mode This mode allows users to save frequently used shooting settings for later use.
Page 15 Identification of features Function lamp & Self-timer lamp Function Power on Blue light blinks and then turns off when the camera is ready to take a picture. After taking a picture Blue lamp blinks once. While movie recording Blue lamp blinks at a 1-second interval. While voice recording Blue lamp blinks at a 1-second interval.
Page 16: Connecting To A Power Source
Connecting to a Power Source There are two ways in which to provide the camera with power. You can use batteries or alternatively, you can use an AC(100 ~ 250V) Adapter (DC 5.0V 2.0A). We recommend using batteries for a digital camera (Within a year from the date of manufacture).
Page 17: Using The Ac Power Adapter
Connecting to a Power Source INFORMATION Important information about battery usage As for the AA type alkaline battery, you can only use the high capacity type. Do not use the normal type alkaline battery. When the camera is not used, turn off the camera power. Do not recharge the non rechargeable batteries.
Page 18: Instructions On How To Use The
Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty. The memory card is an electronic precision device.
Page 19 Instructions on how to use the memory card INFORMATION If you open the battery chamber cover when the camera power is turned on, the power will turn off automatically.(Except for the exclusive type SLB-1437 battery) Don't remove the memory card when the Auto focus lamp(Green) is blinking as this may cause damage to data in the memory card.
Page 20: Inserting The Memory Card
Inserting the memory card 1. Turn off the camera’s power and pull the battery chamber cover in the direction of the arrow to open. 2. Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor), and then push the memory card into the card slot until you hear a click.
Page 21: When Using The Camera For The First Time
When Using the Camera for the First Time If the camera is turned on for the first time, a menu will be displayed to set date, time and language in the LCD monitor. This menu will not be displayed after setting up the date, time and language.
Page 22: Lcd Monitor Indicator
LCD monitor indicator The LCD monitor displays information about the shooting functions and selections. Description Battery Recording mode Camera shake warning Flash Self-timer Voice memo Macro Metering SD card/ MS DUO indicator Manual/ Continuous auto focus Auto focus frame Date/ Time Exposure compensation [ Image &...
Page 23: Starting The Recording Mode
LCD monitor indicator White Balance Sharpness Image quality Image size / Continuous shot Number of available shots remaining Remaining time (Movie clip/ Voice recording) Optical/ Digital Zoom bar Starting the recording mode How to use the AUTO mode ( 1. Insert the batteries (p.16). Insert the batteries taking note of the polarity (+ / -). 2.
Page 24 Starting the recording mode How to use the PROGRAM mode ( Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed. Steps from 1-4 are the same as those for AUTO mode. 5.
Page 25 Starting the recording mode How to use the MySET mode ( This mode allows users to save frequently used shooting settings for later use. Steps from 1-4 are the same as those for AUTO mode. 5. Select the MySET mode by rotating the mode dial. 6.
Page 26 Starting the recording mode How to use the MOVIE CLIP mode ( Steps from 1-4 are the same as those for AUTO mode. 5. Select the MOVIE CLIP mode by rotating the mode dial. 6. The MOVIE CLIP mode icon and available recording time will display on the LCD monitor.
Page 27 Starting the recording mode How to use the SCENE mode ( Use the menu to easily configure optimal settings for a variety of shooting situations including portrait, children, landscape, close-up, sunset, dawn, backlight, fireworks, beach scenes and snowscape. Steps from 1-4 are the same as those for AUTO mode. 5.
Page 28: Things To Watch Out For When Taking Pictures
Things to Watch Out for When Taking Pictures Pressing the shutter button down half way. Lightly press the shutter button to confirm focus and flash battery charge. (See page. 29) Press the shutter button all way down to take the picture. [ Lightly press the shutter button ] The available recording time may vary depending on shooting conditions and camera settings.
Page 29: Using The Camera Buttons To Adjust The Camera
Using the camera buttons to adjust the camera The RECORDING(AUTO, PROGRAM, A/S/M, MySET, VOICE RECORDING, MOVIE CLIP, NIGHT SCENE, SCENE) mode function can be set up by using the camera buttons. POWER button Used for turning the camera's power on / off. If there is no operation during the specified time, the camera's power will be turned off automatically to save battery life.
Page 30: Tele Zoom
ZOOM W/T button This camera has a 3X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 15X. TELE Zoom Optical zoom TELE Digital zoom TELE WIDE Zoom Optical zoom WIDE Digital zoom WIDE Optical zoom Digital zoom : Pressing the ZOOM T button.
Page 31 ZOOM W/T button Use the conversion lens Use the optional conversion lens for more flexibility in setting the focus distance. Types of the conversion lens 1. WIDE conversion lens : Install the WIDE conversion lens (model name: SCL-W3755) to change the focus of camera lens in 0.7 times. 2.
Page 32: Voice Memo/ Up Button
ZOOM W/T button INFORMATION To use the digital zoom the LCD monitor has to be turned on. Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place. The zoom function can’t be activated during the movie clip recording.
Page 33: Macro/ Down Button (Focusing)
Voice memo( 3. Press the shutter button and take a picture. The picture is stored on the memory card. 4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo. INFORMATION A distance of 40cm between you and the camera (microphone) is the best distance to record sound.
Page 34: Focus Lock
Macro( ) / Down button (Focusing) Available focusing method, by recording mode( O : Selectable , X : Not selectable, Mode Auto Macro Mode Auto Macro Focus lock To focus on the subject positioned outside of the center, use the focus lock function. Using the Focus Lock 1.
Page 35: Flash/ Left Button
FLASH( ) / LEFT button When the menu is displayed on the LCD monitor, pressing the LEFT button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH ( Selecting the flash mode 1.
Page 36 FLASH ( Flash mode indicator Icon Flash mode Auto flash Auto & Red eye reduction Fill in flash Slow synchro Flash off Available flash mode, by recording mode ) / LEFT button Description If the subject or background is dark, the camera flash will operate automatically.
Page 37: Self-Timer / Remote / Right Button
Self-timer( When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self- timer ( ) and Remote ( also like to be in the image.
Page 38 Self-timer( Using the remote controller. 1. Turn the mode dial to select shooting mode except the voice recording mode. 2. Press the self-timer ( displayed in the LCD. 3. Press the remote controller shutter button for a 2 seconds delayed shooting. [ Remote controller shutter button ] Replacing batteries for the remote controller Make sure the + polarity is toward the top and the - polarity is toward the bottom while...
Page 39: Menu/ Ok Button
MENU/ OK button If the menu is displayed, use the 5-Function buttons to change the data values and for your changes to be accepted If the menu is not displayed, press the MENU/OK button to display a menu for the current camera mode on the LCD monitor.
Page 40 S button Main menu A/S/M mode Exposure compensation : This camera automatically adjusts the exposure according to the ambient lighting conditions. You can also select the exposure value by using the S button. Compensating Exposure 1. Press the S button, and then use the UP and DOWN buttons to select the exposure compensation icon ( The exposure compensation menu bar will appear as shown.
Page 41 S button White balance : The white balance control allows you to adjust the colours to appear more natural looking. Selecting a White Balance 1. Press the S button, and then use the UP and DOWN buttons to select the white balance icon ( The white balance menu bar will appear as shown.
Page 42 S button ISO : You can select the ISO sensitivity when taking pictures. The speed or specific light-sensitivity of a camera is rated by ISO numbers. Selecting an ISO Sensitivity 1. Press the S button, and then use the UP and DOWN buttons to select the ISO icon ( The ISO menu bar will appear as shown.
Page 43 S button A/S/M : The user can manually set shutter speed or aperture value in the menu. Selecting the A/S/M shooting mode. 1. Turn the mode dial to select the ASM shooting mode. 2. Press the S button and use the Up and Down buttons to select the A/S/M shooting mode icon ( ASM ) to open the A/S/M shooting mode menu as shown in the picture.
Page 44 S button Long Time shutter : This camera automatically adjusts the shutter speed and aperture values to the shooting environment. However, in NIGHT SCENE mode, you can set the shutter speed and aperture values to your preference. Adjusting the shutter speed and aperture values 1.
Page 45: Mf Button
MF button Use this button to select the focusing method. Repeatedly press the MF button to rotate [Manual focusing] [Continuous automatic focusing] Automatic focusing Manual focusing Continuous automatic focusing : The camera keeps focusing while the object is moving even Modes where the Continuous automatic focusing is available : Program, A/S/M mode, Children mode in the scene shooting modes, and MySET mode.
Page 46: Lcd Button
LCD button You can check the recording status in the LCD monitor. In any mode with the exception of VOICE RECORDING mode, pressing the LCD button will change the display as shown below. Pressing the LCD button [ Image & full information ] [ Image &...
Page 47: Using The Lcd Monitor To Adjust The Camera Settings
Using the LCD monitor to adjust the camera settings You can use the menu on the LCD monitor to set up recording functions. In any mode with the exception of VOICE RECORDING mode, pressing the MENU button displays the menu on the LCD monitor.
Page 48 Using the LCD monitor to adjust the camera settings Menu tab Main menu EFFECT SHARPNESS SHOOTING LOAD SAVE SCENE * Menus are subject to change without prior notice. Sub menu Camera working mode NORMAL B & W SEPIA NEGATIVE SOFT NORMAL VIVID SINGLE...
Page 49: How To Use The Menu
How to use the menu 1. Turn on the camera and press the MENU button. A menu for each camera mode appears. However, there is no menu for Voice Recording mode ( 2. Use the LEFT and RIGHT buttons to navigate through the menus. 2592 QUALITY TIFF...
Page 50: Quality
Quality You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality. Mode Icon TIFF Sub menu TIFF File Format INFORMATION TIFF is the highest quality and NORMAL is the lowest setting. Choose the setting appropriate for your needs.
Page 51: Metering
Metering If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures. MULTI ( ) : Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area.
Page 52: Sharpness
Sharpness You can adjust the sharpness of the picture you want to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.
Page 53: Save / Load The Camera Configuration
Save / Load the camera configuration (MySET) Use the MySET mode to save frequently used camera settings (SAVE) and use it later (LOAD) Saving the camera configuration : Available in the PROGRAM, A/S/M and NIGHT SCENE 1. Use the camera buttons and menu to set desired camera configuration.
Page 54: Scene
Scene Select the [SCENE] submenu to automatically configure optimal settings, depending on the selected scene. Only available in the Scene Mode. Sub menu Icon PORTRAIT CHILDREN LANDSCAPE CLOSE UP SUNSET DAWN BACKLIGHT FIREWORKS BEACH &SNOW INFORMATION When the close-up, sunset, dawn, fireworks are selected, it is possible that camera shake will occur.
Page 55: Starting Play Mode
Starting play mode Turn the camera on and select Play mode by pressing the play mode button ( The camera can now play back the images stored in the memory. If you have turned on the camera by pressing the POWER button, you can press the PLAY MODE button once to switch to Play mode and press it again to switch to Recording mode.
Page 56: Playing Back A Movie Clip
Starting play mode Playing back a movie clip Steps from 1-2 are the same as those to play back a still image. 3. Select the recorded movie clip that you want to play back by using the LEFT/RIGHT button. If you select a movie clip, the movie clip indicator ( displayed on the LCD monitor.
Page 57: Lcd Monitor Indicator
LCD monitor indicator The LCD monitor displays information about the shooting conditions. Description Battery Play mode File Type Voice memo Protect indicator DPOF indicator Current memory card Stored image number If you press the LCD button, you can check the following recording information: SIZE : 2592X1944 AV : F2.7 TV : 1/60...
Page 58: Using The Camera Buttons To Adjust The Camera
Using the camera buttons to adjust the camera In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions. Thumbnail ( You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.
Page 59: Voice Memo/ Up Button
Thumbnail( The maximum enlargement rate in proportion to the image size. Image size 2592 Maximum enlargement rate Trimming : You can extract part of the image that you want and save it separately. 1. Select an image that you want to enlarge and press the enlargement button.
Page 60: Play & Pause/ Down Button
Voice ( ) memo / Up button 3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside. 4.
Page 61: Left/ Right/ Menu/ Ok Button
LEFT/ RIGHT/ MENU/ OK button LEFT / RIGHT/ MENU/ OK buttons activate the following. - LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor. - RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move an secondary menu.
Page 62: Delete Button
Delete( ) button This deletes images stored on the memory card. Deleting Images in Play Mode 1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press the DELETE( button. 2. A message will display as shown alongside on the LCD monitor.
Page 63: Copy Button
COPY button This function is used to copy images in a memory card to another memory card. Copying an image 1. Press the play mode button and use the Left/Right buttons to select an image to copy. 2. Press the Copy button to display the following message. 3.
Page 64: Lcd Monitor
Setting up the play back function using the LCD monitor PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows.
Page 65: Setting Up The Play Back Function Using The Lcd Monitor
Setting up the play back function using the LCD monitor Menu tab Main menu CANCEL SELECT PRINTER SETUP PRINT RESET Menus are subject to change without prior notice. Sub menu STANDARD INDEX SIZE ONE PIC ALL PICs DEFAULT PAPER SIZE LAYOUT PAPER TYPE PRINT QUALITY...
Page 66: Deleting Images
Deleting images Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.
Page 67: Copy Pictures
Copy Pictures If all memory card slots are full, use this function to copy images in one memory card to another. Copy Pictures 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [COPY] menu tab.
Page 68: Protecting Images
Protecting images This is used to protect specific shots from being accidentally erased (LOCK). It also unprotects images that have been previously protected (UNLOCK). Protecting Images 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [PROTECT] menu tab.
Page 69: Starting The Slide Show
Starting the slide show Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor. 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [SLIDE] menu tab.
Page 70: Resize
Resize Change the resolution (size) of pictures taken. Select [LOGO] to save an image to be the start-up image. The resized image will have a new file name. 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [RESIZE] menu tab.
Page 71: Rotating An Image
Rotating an image You can rotate the stored images by 90, 180, or 270 degrees. You can view a picture in its proper orientation if the picture has been taken with the camera oriented vertically or up-side- down. The rotated image can’t be enlarged or trimmed. 1.
Page 72: Dpof : Standard
DPOF : STANDARD This function allows you to embed print quantity information on a stored image. 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [DPOF] menu tab. 3. Select the [STANDARD] menu by pressing the UP/ DOWN button and press the RIGHT button.
Page 73: Dpof : Print Size
DPOF : PRINT SIZE You can specify the print size when printing images stored on the memory card. The [PRINT SIZE] menu is available only for DPOF 1.1 compatible printers. Setting the Print Size 1. Press the play mode button and press the menu button. 2.
Page 74: Pictbridge
PictBridge You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. TIFF, Movie clips and voice files cannot be printed. You can set up the following settings from the PictBridge menu. SELECT PRINTER SETUP PRINT...
Page 75: Pictbridge: Picture Selection
PictBridge: Picture Selection You can select the scope of the PictBridge function. 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.74) 2. The [PICTBRIDGE] menu will appear. 3.
Page 76: Pictbridge: Print Setting
PictBridge: Print Setting You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures. 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.74) 2.
Page 77: Pictbridge: Picture Printing
PictBridge: Picture Printing Printing Pictures 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.74) 2. The [PICTBRIDGE] menu will appear. 3. Select the [PRINT] menu by pressing the UP/ DOWN button and press the RIGHT button.
Page 78: Pictbridge : Dpof Auto Print
PictBridge : DPOF AUTO PRINT This allows you to directly print the files with DPOF information. For instructions on how to set up DPOF, refer to pages 72 to 73. 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.74) 2.
Page 79: Setup Menu
Setup menu In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode. The items indicated by Menu tab Main menu FILE PWR SAVE LANGUAGE FORMAT DATE. TIME IMPRINT LAMP SOUND...
Page 80: File Name
Setup menu Menu tab Main menu VIDEO Q.VIEW RESET CARD SELECT File name This function allows the user to select the file naming format. Assigning File Names 1. In any mode other than Voice Recording mode, press the MENU button. 2.
Page 81: Auto Power Off
File name INFORMATION The first stored folder name is 100SSCAM, and the first file name is SA500001. Whenever you store an image, the file number is increased by 1. The file numbers are named from SA500001 to SA509999 automatically, 9999 files will be stored in a folder.
Page 82: Language
Language There is a choice of languages that can be displayed on the LCD monitor. Even if the batteries or AC adapter are removed and inserted again, the language setting will be preserved. Setting Language 1. In any mode other than Voice Recording mode, press the MENU button.
Page 83: Setting Up The Date/ Time/ Date Type
Setting up the Date/ Time/ Date type You can change the date and time that will be displayed on the captured images and set up the date type. Setting Date/Time & Selecting Date type 1. In any mode other than Voice Recording mode, press the MENU button.
Page 84: Function Lamp
Imprinting the recording date INFORMATION The Date & Time are imprinted at the bottom right side of the still image. The date will be imprinted as a DATE TYPE setting. TIME is imprinted in the following way : [Hour : Minute: Second] and hours are shown using the 24 hour clock.
Page 85: Sound
Sound If you set the operation sound to ON, various sounds will be activated for camera startup, when button are pressed, and if there is a card error, so that you can be aware of the camera operation status. Setting Operation Sounds 1.
Page 86: Selecting Video Out Type
Selecting Video out type The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI. Setting the Video Out Type 1.
Page 87: Quick View
Quick view If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is possible only with still images. Setting Quick View 1.
Page 88: Initialization(Reset All)
Initialization(RESET ALL) All camera menu and function settings will be restored to their default values. However, values for DATE/TIME, LANGUAGE, and VIDEO OUT will not be changed. Initializing the Camera 1. In any mode other than Voice Recording mode, press the MENU button.
Page 89: Setting Up The Mycam Menu
Setting up the MYCAM menu You can set up a start up image, start up sound and shutter sound. Every camera working mode (with the exception of Voice recording mode) has the MyCAM menu. The items indicated by Menu tab Main menu START IMAGE START SOUND...
Page 90: Start Up Sound
Start up sound You can select the sound that is activated whenever the camera is turned on. Setting the Startup Sound 1. In any mode with the exception of Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [MYCAM] menu tab.
Page 91: Important Notes
Important notes Be sure to observe the following precautions! This unit contains precision electronic components. Do not use or store this unit in the following locations. - Areas exposed to severe changes in temperature and humidity. - Areas exposed to dust and dirt. - Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
Page 92 Important notes If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card. Camera Maintenance - Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Page 93: Warning Indicator
Warning indicator There are several warnings that may appear on the LCD display Warning indicator - Memory card error CARD ERROR ! - There is insufficient memory capacity to take CARD FULL ! an image - There are no images stored on the memory card NO IMAGE ! - A memory card is not inserted...
Page 94: Before Contacting A Service Center
Before contacting a service center Please check the following Symptom - There is low battery capacity - An AC Power Adapter is The camera not connected doesn t switch on - Batteries are inserted incorrectly with the reverse polarities - The batteries are exhausted The camera - The Camera is turned off power ceases...
Page 95 Before contacting a service center Symptom - A picture was taken within 0.8 m from the subject without setting an The images are appropriate macro mode unclear - Taking a picture beyond the flash range - The lens is smudged or dirty The flash does - Flash off mode has been...
Page 96 Before contacting a service center Symptom Colour of image is different to - White balance setting is the original incorrect scene Images are too - Exposure is excessive bright - The external monitor has not been connected No image on properly with the camera external monitor - There are incorrect files...
Page 97: Specifications
Specifications Type Image Sensor Effective Pixel Total Pixel Focal Length F No. Lens Digital Zoom Optical Viewfinder Viewfinder LCD Monitor Type Focusing Range Type Shutter Speed Control Exposure Compensation ISO Equivalent Modes Flash Range Recharging Time Sharpness Effect White Balance Voice Recording Date Imprinting Still Image...
Page 98: Software
1024 : TIFF 12, S.Fine 70, Fine 130, Normal 183 640 : TIFF 29, S.Fine 183, Fine 305, Normal 457 * These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Single image, Thumbnails, Slide show, Movie clip Trimming, Resizing Digital output connector : USB 2.0...
Page 99: Software Notes
Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty. Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).
Page 100: About The Software
You should allow 5~10 seconds for running the automatic setup program according to the capability of the computer. If the frame does not show, run the [Windows Explorer] and select [Samsung.exe] in the CD-ROM Drive root directory. Before connecting the camera to the PC, you should first install the camera driver.
Page 101: Setting Up The Application Software
INFORMATION Close other programs before installing the application software. Before installing the application software, disconnect the USB connection. You can visit the Samsung web-site through the internet. http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean 1. Click the [Install] menu in the Autorun frame.
Page 102 Setting up the application software 5. The Software License Agreement window will open, asking you to agree to the licensing. Use the button on the bottom left to select the language of your choice, and then click [Agree] to accept the license agreement. The installation will proceed to the next stage.
Page 103 Setting up the application software The QuickTime program folder will appear. Click on the Close button to close the folder. 11. Set the transfer rate for downloading content from the Internet, and then click [Next >]. 13. Specify the file types you want to associate with QuickTime.
Page 104 Setting up the application software * The QuickTime Player will launch, the readme file will open, and the Step 15 window will open. Click on the Close 1 and Close 2 buttons to exit the program. 15. A window where you can choose the program you want to install will appear.
Page 105 Setting up the application software 18. A destination selection window will open. Click [Next >]. To copy to the files to another folder, click [Browse..] and choose a folder you want. 19. A window will open, asking you to choose a folder to which program icons will be added.
Page 106 Setting up the application software 23. The Software License Agreement window will be displayed. If you agree to this, click [Yes], the window will then move to the next step. If you disagree, click [No] and the installation program will be canceled. 24.
Page 107 Setting up the application software 27. Installation is complete. To apply changes, you must restart the computer. Select [Yes, I want to restart my computer now], and then click [Finish]. 28. After restarting the computer, connect the PC to the camera with the USB cable. 29.
Page 108 2. Refer to FAQ (p.119) to check for a possible solution to the problem. 3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host Controller), download the patch file from the Samsung Camera web page. (http://www.samsungcamera.com)
Page 109: Starting Pc Mode
Starting PC Mode If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode". In this mode, you can download stored images to your PC through the USB cable. The LCD monitor is always turned off in PC mode.
Page 110 Starting PC Mode Downloading stored images You can download the still images stored on the camera to your PC's hard disk and print them or use a photo editing software to edit them. 1. Connect the camera to your PC with the USB cable. 2.
Page 111 Starting PC Mode 6. Press the right mouse button and a pop-up menu will open. Click [Paste]. 7. An image file is transferred from the camera to your PC. - By using [Digimax Viewer], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.
Page 112: Removing The Usb Driver For Windows 98Se
Removing the USB Driver for Windows 98SE To remove the USB driver, refer to the process shown below. 1. Trace [Start Settings] and click [Control Panel]. 2. Double-click [Add/Remove programs]. 3. The [Add/Remove Programs Properties] window will open. Click [Digimax V50] and click the [Add/Remove] button.
Page 113: Removable Disk
Removable Disk To use this camera as a Removable Disk, install (p.101) the USB Driver. 1. Before turning the camera power on, connect the camera to the PC with the USB cable. 2. Click [Removable Disk] under [My computer] or [Windows Explorer]. 3.
Page 114: Removing The Removable Disk
Removing the removable disk Windows 98SE 1. Check whether the camera and PC are transferring a file. If the auto focus lamp blinks, you have to wait until the lamp illuminates. 2. Unplug the USB cable. Windows 2000/ME/XP (The illustrations may be different from the real display in accordance with the Windows O/S.) 1.
Page 115: Setting Up The Usb Driver For Mac
Removing the removable disk 6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely. 7. Unplug the USB cable. Setting up the USB Driver for MAC 1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.
Page 116: Digimax Viewer 2.1
Refer to the [Help] menu in Digimax viewer 2.1 for further information. 1. To open Digimax Viewer, click the [Start Samsung Digimax Viewer 2.1 2.1 ] and Digimax Viewer 2.1 will then open.
Page 117: Using Photoimpression
Using PhotoImpression With PhotoImpression, you can edit or store still images that you downloaded from the camera. This software is only available in Windows version. To start the program, click [Start The following screen will appear. [ Command Button ] You can use PhotoImpression to perform the following tasks.
Page 118 Using PhotoImpression Tool Bar Button Description Resize Layer Flip Layer Horizontally Undo Copy Delete Layer INFORMATION For detailed instructions on how to use PhotoImpression, please refer to the program's Help. Button Description Rotate Layer Rotate All Layers Redo Paste Close Picture...
Page 119: Faq
Please check the following if the USB connection malfunctions. [Case 1] The camera power is off. Turn the camera power on. We recommend using an AC power adapter in PC mode. [Case 2] USB Driver is not installed correctly. Install the USB Driver correctly. Refer to page 101. [Case 3] The USB cable is not connected or you are using a cable with an incorrect specification.
Page 120 Win XP There must be USB Host Controller and USB root hub under [Universal Serial Bus controllers]. In addition, double-click on the USB Universal Host Controller and the USB Root Hub to check if the Device Status states "This device is working properly". If the Device Status says the device is "not working properly", click the "Driver"...
Page 121 MEMO...
Page 122 MEMO...
Page 123 MEMO...
Page 124 SAMSUNG TECHWIN CO., LTD. OPTICS & DIGITAL IMAGING DIVISION 145-3, SANGDAEWON 1-DONG, JUNGWON- GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-121 TEL : (82) 31-740-8086,8088, 8090, 8092, 8099 FAX : (82) 31-740-8398, 8111 SAMSUNG OPTO-ELECTRONICS AMERICA, INC. HEADQUARTERS 40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.

Samsung DIGIMAX V50 User Manual

Ready

Recording

Play

Setup

Software

Quick Links

Related Manuals for Samsung DIGIMAX V50

Summary of Contents for Samsung DIGIMAX V50

Table of Contents
