Page 1: Advanced Operations

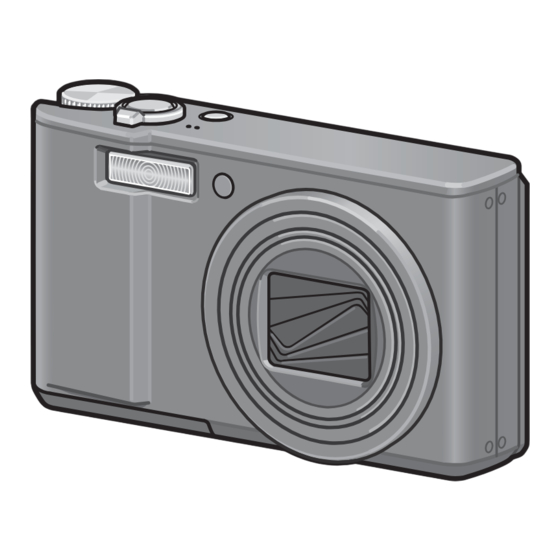

Camera User Guide Basic Operations If you are using the camera for the first time, read this section. This section provides a basic overview of how to turn on the camera, take pictures and play back pictures. Advanced Operations Read this section when you want to learn more about the different camera functions.
Page 2 This manual provides information on how to use the shooting and playback functions of this product, as well as warnings on its use. To make the best use of this product’s functions, read this manual thoroughly before use. Please keep this manual handy for ease of reference. Safety Precautions Test Shooting Copyright...
Page 3: Safety Precautions
Safety Precautions Warning Symbols Various symbols are used throughout this instruction manual and on the product to prevent physical harm to you or other people and damage to property. The symbols and their meanings are explained below. This symbol indicates matters that may lead to imminent risk of death or serious Danger injury if ignored or incorrectly handled.
Page 4 Turn off the power immediately in the event of abnormalities such as smoke or unusual odors being emitted. Remove the battery as soon as possible, being careful to avoid electric shocks or burns. If you are drawing power from a household electrical outlet, be sure to unplug the power cord from the outlet to avoid fire or electrical hazards.
Page 5 Do not touch the internal components of the equipment if they become exposed as a result of being dropped or damaged. The high-voltage circuitry in the equipment could lead to an electric shock. Remove the battery as soon as possible, being careful to avoid electric shocks or burns.
Page 6: Using The Manuals
The following two manuals are included with your CX1. “Camera User Guide” (This booklet) This guide explains the usage and functions of the camera. It also explains how to install the provided software on your computer. * The “Camera User Guide” (English edition) is available from the provided CD-ROM as a PDF file.
Page 7: Key Features
The illustrations in this manual may differ from the actual product. In addition, some of the display screens have been enlarged. Key Features Equipped with a high magnification 7.1× wide angle zoom lens This camera has a compact body, featuring a 28-200mm* 7.1×...
Page 8 Multi-pattern auto white balance (P.122) Try setting the white balance to [Multi-P AUTO] when shooting in lighting situations that combine sun and shade or areas illuminated by the flash and areas not illuminated by the flash. Using [Multi-P AUTO] makes it possible to capture images with more faithful color tones.
Page 9 Select Trim Cancel Execute Easy shooting mode for reliable shooting even by beginners (P.38) Easy mode lets you set [Picture Quality/Size] and other essential functions. With this mode, even first-time users can comfortably use the camera. When you shoot a subject at close range, for example, the macro mode is enabled automatically.
Page 10: Table Of Contents
Safety Precautions ... 1 Using the Manuals... 4 Key Features ... 5 Contents ... 8 Basic Operations If you are using the camera for the first time, read this section. Packing List ... 14 Optional Accessories ...16 Names of Parts... 17 How to Use the Mode Dial...
Page 11 Changing the Display with the DISP. Button ... 56 About the Electronic Level ...58 About the Histogram Display ...60 Advanced Operations Read this section when you want to learn more about the different camera functions. 1 ADJ. Button Functions Assigning Functions from the Shooting Menu ...62 Shifting the AE and AF Targets ...64 2 Using the Fn (Function) Button Backlight Compensation Function (Easy Shooting Mode)...67...
Page 12 Picture Quality Mode/Image Size ... 97 Focusing Modes ... 99 Multi-Target AF ...100 Manual Focus (MF)...101 Exposure Metering Modes ... 103 Picture Quality and Color ... 104 Custom Settings...105 Flash Exposure Compensation ... 106 Bracket Shooting ... 107 Auto Bracketing...107 White Balance Bracketing...108 Color Bracketing ...109 Focus Bracketing ...110...
Page 13 Trimming Images... 140 Correcting the Image Brightness and Contrast ... 142 Correcting Images Automatically ...142 Correcting Images Manually ...143 Correcting the White Balance... 145 Correcting Skewed Images ... 147 Preventing the Deletion of Files ... 149 Displaying Slide Shows ... 152 Copying the Contents of the Internal Memory to an SD Memory Card...
Page 14 Language Settings ... 189 TV Playback Method ... 190 8 Direct Printing About the Direct Print Function ... 191 Connecting the Camera to a Printer ... 192 Printing Still Images... 193 Printing One or All Still Images ...193 Printing Several Still Images ...195 9 Downloading Images to Your Computer For Windows ...
Page 15: Basic Operations
Basic Operations If you are using the camera for the first time, read this section. Packing List... 14 Names of Parts... 17 How to Use the Mode Dial ... 19 Picture Display ... 20 Getting Ready ... 24 Basic Shooting... 34 Playing Back Images ...
Page 16: Packing List
Open the package and make sure all the items are included. * The actual appearance of items included may differ. The serial number of the camera is provided on the bottom face of the camera. Rechargeable Battery Battery Charger Packing List USB Cable (Mini B cable) Used to connect the camera to a computer or Direct Print-...
Page 17 Camera User Guide (This booklet) Caution----------------------------------------------------------------------------------------------- The CD-ROM supports the following languages. Operations are not guaranteed on operating systems with languages other than those listed below. Japanese, English, French, German, Spanish, Italian, Chinese (Traditional, Simplified), Korean Note --------------------------------------------------------------------------------------------------- Attaching the handstrap to the camera Thread the small end of the strap through the strap eyelet on the camera and loop the ends as shown.
Page 18: Optional Accessories
Optional Accessories Soft Case (SC-90) Used to store your camera. Neck Strap (ST-2) A double-loop neck strap with embroidered RICOH logo. Note --------------------------------------------------------------------------------------------------- Attaching the neck strap to the camera Remove the end of the neck strap from the connector and attach it as shown in the figure. •...
Page 19: Names Of Parts
Names of Parts Camera Front View Item Name Mode Dial Shutter Release Button POWER Button Microphone Lens Cover Zoom Lever z (Telephoto)/Z (Wide-angle) 8 (Enlarged View)/9 (Thumbnail View) Flash AF Auxiliary Light/Self-Timer Lamp Lens Refer to P.19, 36, 38, 74, 81, 82, 85, 90 P.34 P.30...
Page 20: Rear View
Rear View Picture Display Strap Eyelet Terminal Cover Speaker USB Terminal AV Output Terminal N (Macro) ADJ./OK Button F (Flash) 6 (Playback) Button MENU Button Fn (Function) Button t (Self-timer)/ D (Delete) Button DISP. Button Power (DC input) Cable Cover Battery/Card Cover Tripod Screw Hole Instructions in this manual to “Press the ADJ./OK button !"#$”...
Page 21: How To Use The Mode Dial
How to Use the Mode Dial Set the mode dial to the desired mode before shooting still images or movies. Turn the mode dial to the symbol of the function you want to use. Mode Dial Symbols and Descriptions Symbol Function Auto Shooting Mode MY1, MY2 My Settings Mode...
Page 22: Picture Display
Example of Picture Display when Shooting Pictures Still Image Mode Picture Display Interval Interval Interval Interval 6 7 9 10 1 second 1 second 1 second 1 second...
Page 23 Movie Mode Shutter button Shutter button Shutter button Shutter button Item Name Flash Mode Flash Exposure Compensation Muti-Target AF Focus mark Scene Modes/ Continuous Mode/ Plus Normal Shooting Shooting Mode Types Remaining Number of Still Images Recording Destination AE Lock Picture Quality 10 Image Size 11 Focus Mode/Backlight...
Page 24: Movie Mode
Note --------------------------------------------------------------------------------------------------- • The number of remaining shots available may differ from the actual number of shots, depending on the subject. • Movie recording time and the maximum number of still pictures may vary depending on the capacity of the recording destination (internal memory or SD memory card), shooting conditions, and the type and manufacturer of the SD memory card.
Page 25: Battery Level Indication
Battery Level Indication A battery symbol appears at the lower right of the picture display to indicate the battery level. Recharge the battery before it is depleted. Battery Symbol The battery is sufficiently charged. Green The battery level begins to drop. Recharging is recommended. The battery level is low.
Page 26: Getting Ready
Getting Ready Turn the power on and get ready to shoot. Note --------------------------------------------------------------------------------------------------- • If the camera is on, make sure it is turned off before inserting or removing the battery. • For information on how to turn the camera off, see P.30. About the Battery This camera uses the Rechargeable Battery DB- 70, a dedicated lithium-ion battery supplied with...
Page 27: About The Sd Memory Card (Available In Stores)
[Card Error] is displayed when an SD memory card is loaded in the camera or the card has been used with a computer or other digital camera, you must format the card with this camera prior to use. (GP.163)
Page 28 Write-protecting your images ---------------------------------------------------------------- Move the write-protection switch on the SD memory card to LOCK to prevent your still images from being accidentally erased or the card from being formatted. If you unlock the card (by returning the switch to its original position), it is once again possible to erase images and format the card.
Page 29: Charging The Rechargeable Battery
Charging the Rechargeable Battery The rechargeable battery needs to be charged before use. The battery is not charged at the time of purchase. Insert the battery into the battery charger, making sure that the match those on the battery charger. •...
Page 30: Loading The Rechargeable Battery And Sd Memory Card
Loading the Rechargeable Battery and SD Memory Card After recharging the rechargeable battery, load the rechargeable battery and the SD memory card. If the camera is on, make sure to turn it off before loading or removing the battery and card. Open the battery/card cover.
Page 31 Insert the rechargeable battery. • When the rechargeable battery is loaded in place, it is locked with the hook shown in the figure. Close the battery/card cover and slide it back into place. Removing the Rechargeable Battery Open the battery/card cover. Release the hook that locks the rechargeable battery.
Page 32: Turning The Power On/Off
Turning the Power On/Off To turn the power on: Press the POWER button. • After the start sound, the picture display turns on. Using the Camera in Playback Mode • Pressing and holding the 6 (Playback) button turns on the camera in playback mode, allowing you to start playback at once.
Page 33 About Auto Power Off--------------------------------------------------------------------------- • If the camera goes unused for a set period of time, it automatically turns itself off to save power. (Auto Power Off) • The auto power off setting can be changed. (GP.178) About LCD Auto Dimmer Mode -------------------------------------------------------------- When [LCD Auto Dim] is set to [On] on the setup menu (GP.179), the picture display dims to conserve battery power if the camera is not moved for approximately five seconds.
Page 34: Setting The Language
Setting the Language When the power is turned on for the first time, the language setting screen appears (for the picture display language). After setting the language, go on to the date/time setting (for printing the date and time on your photos). You can shoot without these settings.
Page 35: Setting The Date And Time
Setting the Date and Time When the power is turned on for the first time, the date/time setting screen appears. Press the ADJ./OK button !"#$ to set the year, month, date, time and format. • Change the setting with !" and move the item with #$.
Page 36: Basic Shooting
Basic Shooting Now you are ready. Holding the Camera Hold the camera as shown below for best results. Hold the camera with both hands and lightly press both elbows against your body. Put your finger on the shutter release button. Caution----------------------------------------------------------------------------------------------- •...
Page 37 Preventing Camera Shake --------------------------------------------------------------------- If you move the camera when pressing the shutter release button, the still image might not come out clearly due to camera shake. Camera shake tends to occur in the following cases: • When shooting in a dark place without using the flash •...
Page 38: Shooting With Auto Shooting Mode
Shooting with Auto Shooting Mode Turn the mode dial to 5 to shoot with auto shooting mode. The shutter release button works in two steps. When you press the shutter release button halfway (Half-press), the auto-focus function is triggered to determine the focal distance. Next, press it all the way down (Full-press) to shoot.
Page 39 To take a picture with the subject in the foreground in focus against a background, half-press the shutter release button to focus on the subject, and then compose your shot. Subject to be focused on Shooting range Gently press the shutter release button all the way. •...
Page 40: Shooting With Easy Shooting Mode
Shooting with Easy Shooting Mode Turning the mode dial to EASY limits the shooting functions that can be changed and allows you to shoot with easy operations and without having to make any complicated settings. With this mode, even first-time users can comfortably use the camera without worrying about the settings.
Page 41: Using The Zoom Function
Using the Zoom Function Turning the zoom lever toward z (Telephoto) allows you to take a close-up picture of the subject. Turning the zoom lever toward Z (Wide-angle) allows you to take a wide-angle picture. With the camera ready to shoot, turn the zoom lever toward z or Z.
Page 42 Using the Digital Zoom ------------------------------------------------------------------------- While you can use the normal zoom to enlarge the subject up to 7.1×, digital zooming allows you to enlarge the subject still further (up to another 4.8× for still images or 4.0× for movies). To use digital zooming, turn and hold the zoom lever toward z until the maximum magnification is reached on the zoom bar, then momentarily release the zoom lever, and then turn the zoom lever again toward z.
Page 43: Shooting Close-Ups (Macro Shooting)
Shooting Close-Ups (Macro Shooting) The macro shooting function lets you take shots of subjects that are very close to the lens. This is good for shooting small subjects because you can shoot up to approximately 1 cm (0.4 in.) away from the front of the lens. Press the ADJ./OK button toward N (Macro).
Page 44 Note --------------------------------------------------------------------------------------------------- • If macro mode is selected when the zoom position is set to the wide-angle side (28 mm focal length*), the zoom position is automatically fixed at 32 mm*. (*Equivalent to that on a 35 mm camera.) • The minimum shooting distance and shooting range when using the zoom are shown below.
Page 45: Using The Flash
Using the Flash You can select the flash mode that best suits your shot. At the time of purchase, the camera is set to [Auto]. Flash Range * When ISO Setting (GP.124) is set to [Auto] or [ISO 400] Wide-angle Approx.
Page 46 Note --------------------------------------------------------------------------------------------------- • The flash mode setting is retained until you press the ADJ./OK button toward F (Flash) again. • The flash does not fire when shooting movies, in continuous mode, in multi-target AF, in dynamic range double-shot, and in bracket shooting. •...
Page 47: Using The Self-Timer
Using the Self-Timer You can set the self-timer to shoot after either two or ten seconds, or you can select [Custom] to customize the self-timer setting. With [Custom], you can take a set number of pictures at a set interval. Use [Custom Self-Timer] on the shooting menu to set the shooting interval and number of pictures for [Custom].
Page 48: Playing Back Images
Playing Back Images Viewing Your Images In playback mode, you can check still images you have taken. You can also delete or zoom in on the images. Press the 6 (Playback) button. • The camera switches to playback mode and the last image taken is displayed.
Page 49 • Files displayed with the S symbol are images taken with M-Cont Plus, Speed Cont, or Multi-trgt AF. See P.128 for more information on playing back images. • To switch the camera from playback mode to shooting mode, press the 6 button again. Note --------------------------------------------------------------------------------------------------- Setting your favorite image files to [Flag Function Setting] on the playback menu allows you to easily display these files.
Page 50: Thumbnail View
Thumbnail View When playing back images on the picture display, the playback screen can be divided into 20 frames or 81 frames. Press the 6 (Playback) button. • The last file recorded is displayed. Turn the zoom lever toward 9 (Thumbnail View). •...
Page 51 Switching to Single-Picture Display Press the ADJ./OK button !"#$ to select a file. Press the ADJ./OK button or turn the zoom lever once or twice toward 8 (Enlarged View).
Page 52: Enlarging Images
Enlarging Images You can enlarge a still image displayed on the picture display. Image Size 640 × 480 1280 × 960 Image sizes other than those above Press the 6 (Playback) button. • The last file recorded is displayed. Press the ADJ./OK button !"#$ to display the still image you want to enlarge.
Page 53 • Pressing the DISP. button at this point changes the display as follows. Last File Last File Pressing the ADJ./OK button !"#$ at this point moves the area displayed. Pressing and holding the DISP. button Turn the zoom lever toward 9 (Thumbnail View) to return to the original size.
Page 54: Deleting Files
Deleting Files You can delete unwanted or failed shooting files from the SD memory card or internal memory. Note --------------------------------------------------------------------------------------------------- • You can use the [Recover File] function to restore needed files that you accidentally deleted. (GP.157) • When [LCD Confirmation Time] is set to [Hold] on the setup menu (GP.177), the image displayed on the screen after being taken can be deleted.
Page 55: Specifying Multiple Files Separately
Specifying Multiple Files Separately Press the ADJ./OK button !" to select [Delete Multi] and then press the ADJ./OK button. • If thumbnail view was displayed in Step 2 on P.52, skip Step 4. Press the button !" to select [Sel. Indiv.] and then press the ADJ./OK button.
Page 56: Specifying A Range Of Multiple Files
Specifying a Range of Multiple Files Press the ADJ./OK button !" to select [Delete Multi] and then press the ADJ./OK button. • If thumbnail view was displayed in Step 2 on P.52, skip Step 4. Press the ADJ./OK button !" to select [Sel. Range] and then press the ADJ./OK button.
Page 57: Deleting All Files
Press the ADJ./OK button #$ to select [Yes] and then press the ADJ./OK button. Deleting All Files Press the ADJ./OK button !" to select [Delete All] and then the ADJ./OK button. Press the button #$ to select [Yes] and then press the ADJ./OK button.
Page 58: Changing The Display With The Disp. Button
Changing the Display with the DISP. Button Pressing the DISP. button allows you to change the screen display mode and toggle the information displayed on the picture display. During Shooting Mode Normal Symbol Display Picture Display Off (Synchro-Monitor Mode) Grid Guide Display ------------------------------------------------------------------------------- This displays auxiliary lines on the picture display to help you compose your picture.
Page 59 • When [Level Setting] is set to [Display] or [Display+Sound] (GP.182), the level indicator is displayed during normal symbol display and histogram. (GP.58) • If any of the following operations is performed, the picture display turns on even when it is turned off. •...
Page 60: About The Electronic Level
About the Electronic Level When [Level Setting] is turned on in the setup menu or by pressing and holding the DISP. button (GP.182), the camera uses a level indicator and level sound to let you know whether the image is level during shooting.
Page 61 Level indicator display When level: The level indicator becomes green, indicating that the scale is in the middle. When tilted to the right or left: The mark on the level indicator becomes orange, indicating the opposite side of the direction in which the camera is tilted.
Page 62: About The Histogram Display
About the Histogram Display When Histogram is on, a histogram appears in the lower right corner on the picture display. A histogram is a graph indicating the number of pixels on the vertical axis and the brightness on the horizontal axis (from left to right, shadows (dark areas), midtones, and highlights (bright areas)).
Page 63: Advanced Operations
Advanced Operations Read this section when you want to learn more about the different camera functions. 1 ADJ. Button Functions ... 62 2 Using the Fn (Function) Button ... 66 3 Shooting Mode Types... 74 4 Shooting Menu ... 93 5 Playback Functions ...
Page 64: Adj. Button Functions
1 ADJ. Button Functions Instructions in this manual to “Press the ADJ./OK button !"#$” indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button. The ADJ./OK button has the following functions.
Page 65 Press the ADJ./OK button #$ to select the desired item. • The screenshots below are examples of the screen display when [Exposure Comp.], [White Balance], [ISO], and [Quality] are assigned to [ADJ Button Setting 1] to [ADJ Button Setting 4] with the setup menu.
Page 66: Shifting The Ae And Af Targets
Shifting the AE and AF Targets When you are taking a picture, you can use the ADJ./OK button to shift the target for the automatic exposure (AE) and/or the auto focus (AF) without having to move the camera. This is particularly useful when you are using a tripod to take pictures.
Page 67 Note ---------------------------------------------------------------------------------------------- • In scene mode and movie mode, the macro target can be shifted by pressing the ADJ./ OK button and selecting U. See Step 3 and beyond on P.68 for the operating procedure after selecting U. • If the macro target shift function is activated using the Fn button (GP.68) and not canceled, P will not be displayed even if the ADJ./OK button is pressed.
Page 68: Using The Fn (Function) Button
2 Using the Fn (Function) Button When a function is assigned to the Fn (Function) button with [Set Fn Button] on the setup menu ( one function to another simply by pressing the Fn button. The following functions can be assigned to the Fn button. For the operating procedure of each function, see the corresponding reference page.
Page 69: Backlight Compensation Function (Easy Shooting Mode)
Backlight Compensation Function (Easy Shooting Mode) You can use the backlight compensation function when the main subject looks too dark in situations such as shooting a dark subject against a bright background. Assigning [Backlight Comp] to the Fn (Function) button in easy shooting mode (GP.169) and then pressing the Fn button during shooting allows you to switch between on and off for the backlight compensation function.
Page 70: Shifting The Af Target For Macro Shooting
Shifting the AF Target for Macro Shooting You can shift the AF target without moving the camera to take a close-up picture. You can lock the focus ( where the macro target is shifted and shoot the picture. This is particularly useful when you are using a tripod to take pictures.
Page 71: Locking The Exposure
Locking the Exposure Assigning [AE Lock] to the Fn (Function) button (GP.169) and then pressing the Fn button during shooting allows you to lock or cancel the exposure. Turn the mode dial to 5, SCENE, R or Q. Set [Set Fn Button] to [AE Lock] on the setup menu. •...
Page 72: Af/M-Trgt Af
AF/M-trgt AF Assigning [AF/M-trgt AF] to the Fn (Function) button (GP.169) and then pressing the Fn button during shooting allows you to switch between auto focus and multi-target AF. Pressing the Fn button switches focus modes depending on the [Focus] setting on the shooting menu (GP.99), as shown below. [Focus] setting Press the Fn button Multi AF...
Page 73: Af/Mf
AF/MF Assigning [AF/MF] to the Fn (Function) button (GP.169) and then pressing the Fn button during shooting allows you to switch between auto focus (AF) and manual focus (MF). Pressing the Fn button switches focus modes depending on the [Focus] setting on the shooting menu (GP.99), as shown below.
Page 74: Af/Snap
Locking the focus at the focus lock position -------------------------------------- You can press the Fn button to switch AF/MF and lock the focus at the focus lock position (AF Lock). Use the following operating procedure. 1 With the camera set to auto focus, half-press the shutter release button to focus on the subject.
Page 75: Switching Between On And Off For Various Functions
Switching Between On and Off for Various Functions Assigning one of the following functions to the Fn button (GP.169) and then pressing the Fn button allows you to switch between on and off for that function. Step Zoom, AT-BKT, WB-BKT, CL-BKT, FOCUS-BKT, Min.
Page 76: Shooting Mode Types
3 Shooting Mode Types Scene Mode (SCENE) You can use scene mode to select from among ten still image modes, and shoot with settings automatically optimized for shooting conditions. Scene Modes Use when taking portrait pictures. Portrait Automatically recognizes the subject’s face and adjusts the focus, exposure, and white balance.
Page 77 Use to straighten a rectangular object, such as a message board or business card, shot at an angle to make it look as if it were shot squarely. For detailed operations, see P.78. Skew Correct Mode In skew correction mode, choose from [N1280] or [N640] for [Picture Quality/Size].
Page 78 Press the ADJ./OK button !"#$ to select the scene mode. Press the ADJ./OK button. • The scene mode type is displayed at the top of the picture display. Press the shutter release button to shoot the picture. Changing the shooting menu or setup menu setting in scene mode ----- Press the MENU button in shooting mode and then press the ADJ./OK button !"#$ to select the [MODE] tab.
Page 79: Using Face Recognition Mode
Using Face Recognition Mode Turn the mode dial to SCENE. • The camera is ready to shoot and the selected scene mode is displayed at the top of the picture display. Press the MENU button. • The scene mode selection screen appears. Press the ADJ./OK button !"#$ to select [Face].
Page 80: Using Skew Correction Mode
Using Skew Correction Mode Turn the mode dial to SCENE. • The camera is ready to shoot and the selected scene mode is displayed at the top of the picture display. Press the MENU button. • The scene mode selection screen appears. Press the ADJ./OK button !"#$ to select [Skew Correct Mode].
Page 81: Shooting In Zoom Macro Mode
Shooting in Zoom Macro Mode Turn the mode dial to SCENE. • The camera is ready to shoot and the selected scene mode is displayed at the top of the picture display. Press the MENU button. • The scene mode selection screen appears. Press the ADJ./OK button !"#$ to select [Zoom Macro].
Page 82: Changing The Text Density
Changing the Text Density If you are shooting with [Text Mode] in scene mode, you can use the ADJ./OK button to change the shading of text. You can select from [Deep], [Normal] and [Light]. To change the setting, use the shooting menu or the ADJ./OK button. This section explains easy ways to change the setting with the ADJ./OK button.
Page 83: My Settings Mode (My1/My2)
My Settings Mode (MY1/MY2) Setting the mode dial to MY1 or MY2 allows you to shoot with preset settings. Use [Reg. My Settings] on the setup menu to make the MY1 and MY2 settings. (GP.166) Turn the mode dial to MY1 or MY2. •...
Page 84: Dynamic Range Double Shot Mode (Q)
Dynamic Range Double Shot Mode The “dynamic range” of a digital camera refers to the range of brightness that can be processed by the camera. When you shoot a scene with high contrast, such as both a subject in sunlight and a subject in a shaded area, the bright areas appear overly bright and the image does not look natural.
Page 85: Dynamic Range Expansion Effect
Caution------------------------------------------------------------------------------------------ • The digital zoom is disabled. • The flash cannot be used. • Dynamic range double shot may not be effective if the shooting location is overly bright or dark. • When shooting a fast-moving subject, the subject may be distorted in the recorded image.
Page 86: Dynamic Range Expansion Plus Normal Shooting
Dynamic Range Expansion Plus Normal Shooting This records two images, an image taken with expanded dynamic range and an image taken with normal shooting. Expanded dynamic range image Turn the mode dial to Display the shooting menu. • For the operating procedure, see P.96. Press the ADJ./OK button "...
Page 87: Continuous Mode (R)
Continuous Mode (R) Turn the mode dial to R to use the various continuous shooting functions. Caution------------------------------------------------------------------------------------------ The time until image recording is complete may be longer when using the internal memory. Note ---------------------------------------------------------------------------------------------- • The flash cannot be used. •...
Page 88: M-Cont Plus
Press the ADJ./OK button !" to select [Continuous Mode] and then press the ADJ./OK button. • The symbol appears on the screen. Compose your picture and then press and hold the shutter release button. • Pictures continue to be taken for as long as you hold down the shutter release button.
Page 89: Shutter Release Button
Turn the mode dial to R. Press the MENU button. • The continuous mode selection screen appears. Press the ADJ./OK button !" to select either of the following. • [M-Cont Plus (Low)] : The camera memorizes the scene while you hold down the shutter release button, and once you release it, 30 consecutive images of the previous 2 seconds are recorded.
Page 90: Speed Cont
Speed Cont Speed Cont allows you to record 120 consecutive images in the (approx.) 1 second (120 frames per second) or 120 consecutive images in the (approx.) 2 seconds (60 frames per second) from when the shutter release button is pressed. The consecutively shot still images are grouped together as a set and are recorded as one MP file.
Page 91 Caution------------------------------------------------------------------------------------------ • When shooting a fast-moving subject, the subject may be distorted in the recorded image. • Flickering may be recorded as a horizontal band when shooting under fluorescent lights. Note ---------------------------------------------------------------------------------------------- The image size is fixed at N640(VGA). MP file ------------------------------------------------------------------------------------------- MP is a file format for recording a set of still images.
Page 92: Movie Mode (3)
Movie Mode (3) Shooting Movies You can shoot movies with sound. You can set the image size to either 640 × 480 or 320 × 240 pixels. You can set the number of frames shot per second (frame rate) to either 30 or 15.
Page 93: Setting The Frame Rate
Note ---------------------------------------------------------------------------------------------- • The flash cannot be used. • While shooting movies, only digital zoom can be used (up to 4.0×). (GP.40) • When the shutter release button is pressed in Step 2, the camera focuses on the subject. • The remaining recording time may not change uniformly because it is recalculated from the remaining memory capacity during movie recording.
Page 94 Note ---------------------------------------------------------------------------------------------- • Movie recording time may vary depending on the capacity of the recording destination (internal memory or SD memory card), shooting conditions, and the type and manufacturer of the SD memory card. • The estimated total recording time is shown below. The maximum recording time per shooting is 90 minutes or the equivalent of 4 GB.
Page 95: Shooting Menu
4 Shooting Menu About the Shooting Menu Press the MENU button in shooting mode to display the shooting menu. The shooting menu can be used to set the following shooting settings. Setting Options [Default Settings] Picture Quality/Size F3456(9M), [N3456(9M)], F3:2(8M), F1:1(6M), N3072(7M), N2592(5M), N2048(3M), N1280(1M), N640(VGA) Movie Size...
Page 96 Setting ISO Setting Restore Defaults Available Settings for Each Shooting Mode --------------------------------------- The displayed items vary depending on the shooting mode. See the following table. Refer to P.95 for more information on the items that can be set for each scene mode. Setting Picture Quality/Size Movie Size...
Page 97 When Mode Dial is Set to SCENE ------------------------------------------------------ When the mode dial is set to SCENE, the displayed items differ depending on the selected scene mode. See the following table. Setting Picture Quality/Size Density Size Focus Exposure Metering Image Settings Flash Exposure Compensation Auto Bracket Time Exposure...
Page 98: Using The Menu
Using the Menu In the instructions of this manual, the menu selection is confirmed when you “Press the ADJ./ OK button” (as in Step 5 below), but you can also confirm the setting and return to the menu screen by pressing the ADJ./OK button #. Press the MENU button in shooting mode.
Page 99: Picture Quality Mode/Image Size
Picture Quality Mode/Image Size The file size of a shot still image depends on the picture quality mode and image size settings. For movies, choose the movie size. Figures inside the bold frame indicate those shown on the screen. Still Images Image Size Picture Quality Mode...
Page 100: The Desired Setting
Note ---------------------------------------------------------------------------------------------- • For picture quality mode, select normal mode (N) or fine mode (F), depending on the desired compression ratio. Normal mode: The compression ratio is high, resulting in a small file. Normally, shooting is done in this mode. Fine mode: The compression ratio is low, resulting in a large file, but the picture quality is better than in Normal.
Page 101: Focusing Modes
Focusing Modes If you shoot the subject in the default focusing mode, the camera focuses automatically with Auto Focus (AF). Select from the following 6 focusing modes. Focusing Modes Symbol Mode None Multi AF None Spot AF Multi-trgt AF MF (Manual Focus) Enables you to adjust the focus manually. (GP.101) Snap A (Infinity) Display the shooting menu.
Page 102: Multi-Target Af
Multi-Target AF When you half-press the shutter release button, the camera automatically determines multiple focus positions. When you then press the shutter release button all the way down, the camera shifts among the different focus positions, taking 7 consecutive pictures. The 7 still images are grouped together as a set and are recorded as an MP file.
Page 103: Manual Focus (Mf)
Compose your picture and half-press the shutter release button. • The camera automatically detects multiple focus positions. • The V symbol appears on the screen when a focus position is detected. • The determined focus positions are displayed only during playback. (GP.130) •...
Page 104 Press the ADJ./OK button " to select [Focus] and press the button $. Press the button !" to select [MF]. Press the ADJ./OK button. • [MF] and the focus bar are displayed on the screen. Press and hold the ADJ./OK button as required. •...
Page 105: Exposure Metering Modes
Exposure Metering Modes You can change the metering method (the range to use for metering) used to determine the exposure value. There are three light metering modes. Exposure Metering Modes Symbol Mode Description (None) Multi The entire shooting range is divided into 256 partitions, and each is metered to determine the overall exposure value.
Page 106: Picture Quality And Color
Picture Quality and Color You can change the picture quality of an image, including the contrast, sharpness, color and color depth. You can select from the following picture quality settings. Picture Quality Modes Type Description Hard The Contrast, Sharpness, and Color Depth are increased to create a stronger, sharper image.
Page 107: Custom Settings
Custom Settings Display the shooting menu. • For the operating procedure, see P.96. Press the ADJ./OK button " to select [Image Settings] and press the button $. Press the button !" to select [Cust. Settings] and press the button $. •...
Page 108: Flash Exposure Compensation
Flash Exposure Compensation You can adjust the light intensity of the flash. You can set the light intensity from -2.0 EV to +2.0 EV in increments of 1/3 EV. Display the shooting menu. • For the operating procedure, see P.96. Press the ADJ./OK button "...
Page 109: Bracket Shooting
Bracket Shooting Bracket shooting is the function for performing automatic consecutive shooting while changing the exposure, white balance, color, or focus position. Note ---------------------------------------------------------------------------------------------- • This function is not available in dynamic range double-shot mode, easy shooting mode, and continuous mode. •...
Page 110: White Balance Bracketing
Press the shutter release button to shoot the picture. • Three consecutive shots are taken at ±0, -0.5EV, and +0.5EV based on the set exposure compensation setting. When shooting is completed, three still images are displayed on the picture display. They are, from left to right, at -0.5EV (darker), standard exposure compensation setting, and +0.5EV (brighter).
Page 111: Color Bracketing
Press the shutter release button to shoot the picture. • Three images (a reddish image, an image equal to the current white balance, and a bluish image) are automatically recorded. Note ---------------------------------------------------------------------------------------------- • The white balance can be changed using the shooting menu. (GP.122) •...
Page 112: Focus Bracketing
Contrast, Sharpness and Color Depth During Color Bracket Shooting ------------------------------------------------------------------- During color bracket shooting, the contrast, sharpness, and color depth values set in [Image Settings] are applied. However, the values for [Normal] in [Image Settings] apply when [Image Settings] is set to [Black & White] or [Sepia]. Focus Bracketing With focus bracketing, the camera automatically takes 5 consecutive pictures while adjusting the focus in the following order.
Page 113 Press the ADJ./OK button. • The symbol appears on the screen. Half-press the shutter release button. • The camera focuses according to the [Focus] setting. Press the shutter release button all the way down. • The camera takes 5 consecutive pictures based on the focus position in Step 6.
Page 114: Long Time Exposure
Long Time Exposure You can select [1 second], [2 seconds], [4 seconds], or [8 seconds] for time exposure. By using long time exposure, you can capture the movement of moving subjects such as the trail of fireworks and car lights when shooting a night scene.
Page 115: Shooting Several Pictures With The Custom Self-Timer
Shooting Several Pictures with the Custom Self-Timer Set the shooting interval and the number of pictures as indicated below when you want to shoot several pictures with the self-timer. Available Setting Description Pictures Set this between 1 and 10 pictures. The default setting is [2 Pics]. Interval Set this between 5 and 10 seconds.
Page 116: Fixing The Minimum Aperture
Fixing the Minimum Aperture When [Fix Minimum Aperture] is set to [On], the range in which objects are in focus is greater, as still pictures are shot with a smaller aperture. Display the shooting menu. • For information on using the shooting menu, see P.96. Press the ADJ./OK button "...
Page 117: Shooting Pictures Automatically At Set Intervals
Shooting Pictures Automatically at Set Intervals You can set the camera to automatically take pictures at fixed intervals. You can set the shooting interval from 5 seconds to 1 hour in increments of 5 seconds. Display the shooting menu. • For information on using the menu, see P.96. Press the ADJ./OK button "...
Page 118 Caution------------------------------------------------------------------------------------------ • The interval shooting setting is cleared when the camera is turned off. • The time until the next picture can be taken according to the shooting menu setting may be longer than the time set for interval shooting. In this case, the shooting interval becomes longer than the set time.
Page 119: Camera Shake Correction
Camera Shake Correction You can prevent camera shake by turning on the camera shake correction function. At the time of purchase, the camera shake correction function is turned on. Display the shooting menu. • For information on using the menu, see P.96. Press the ADJ./OK button "...
Page 120: Limiting The Shutter Speed
Limiting the Shutter Speed The maximum shutter speed can be limited to the following: 1/8 second, 1/4 second, and 1/2 second. When this function is set to [Off], the maximum shutter speed varies depending on the ISO setting. Display the shooting menu. •...
Page 121: Imprinting The Date On Images
Imprinting the Date on Images You can insert the date (YY/MM/DD) or the date and time (YY/MM/ DD hh:mm) at the lower right of a still image. Display the shooting menu. • For information on using the menu, see P.96. Press the ADJ./OK button "...
Page 122: Exposure Compensation
Exposure Compensation The exposure setting enables you to select the brightness level for your picture. Normally, if your subject is centered, backlight compensation is automatically activated, and you can shoot with the correct exposure. In the following cases, or when you intentionally want to change the exposure, you can adjust the exposure setting.
Page 123 Note ---------------------------------------------------------------------------------------------- When shooting in particularly bright places, you may not be able to correct the exposure level. In that case, the [!AE] symbol appears on the screen.
Page 124: White Balance
White Balance Adjust the white balance so that a white subject will appear white. At purchase, the white balance mode is set to [Multi-P AUTO]. Change the setting in situations where the white balance is difficult to adjust effectively, such as when shooting an object of a single color or when shooting under multiple light sources.
Page 125: Manual Settings
Caution------------------------------------------------------------------------------------------ • The white balance function is not available when [Image Settings] is set to [Black & White] or [Sepia], or scene mode is set to [Face] or [Text Mode]. • [Multi-P AUTO] is not available in continuous mode and movie mode. Note ---------------------------------------------------------------------------------------------- •...
Page 126: Iso Sensitivity
ISO Sensitivity ISO sensitivity indicates how sensitive film is to light. A greater value means higher sensitivity. High sensitivity is suitable for shooting an object in a dark place or a fast-moving object while minimizing blurring. You can select from the following ISO settings: Auto, Auto-Hi, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800, and ISO 1600.
Page 127 Note ---------------------------------------------------------------------------------------------- • When the ISO setting is set to [Auto], the maximum sensitivity is equivalent to ISO 400 if the flash is used. When the image size is 3456 × 2592, the ISO setting is [Auto] and the flash is not fired, the ISO setting is between 80 and 200. •...
Page 128: Restoring The Shooting Menu Settings To Their Defaults
Restoring the Shooting Menu Settings to their Defaults To return the shooting menu settings to their defaults, follow the steps below. Display the shooting menu. • For information on using the menu, see P.96. Press the ADJ./OK button " to select [Restore Defaults] and press the button $.
Page 129: Playback Functions
5 Playback Functions Instructions in this manual to “Press the ADJ./OK button !"#$ “ indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button. Playing Back Movies To play back movies, follow the steps below.
Page 130: Playing Back Mp Files
Playing Back MP Files When you shoot one still image with M-Cont Plus, Speed Cont, or Multi-trgt AF, the image is recorded as one MP file. Use the following method to play back MP files. Note ---------------------------------------------------------------------------------------------- • Images shot in normal continuous mode can be played back in the same way as normal still images.
Page 131: Slide Show
ADJ./OK Stop Stop Stop Stop • The operations during slide show are shown below. Pause/Playback Fast Forward Rewind Slow Playback Slow Rewind Next Frame Previous Frame First Frame Last Frame To play back files other than MP files, return to Step 2 and press the ADJ./OK button !"#$.
Page 132: Exporting Mp Files
Exporting MP Files You can extract specific frames from an MP file shot using M-Cont Plus, Speed Cont, or Multi-trgt AF and save each frame as an individual still image. Note ---------------------------------------------------------------------------------------------- • The images are saved in the same sizes used for shooting. •...
Page 133 Selecting One Frame Press the button !" to select [1 Frame]. • Press the button #$ to select the frame. Press the ADJ./OK button. Specifying Multiple Frames Separately Press the button !" to select [Sel Mult] and then press the ADJ./OK button.
Page 134 Specifying a Range of Multiple Frames Press the button !" to select [Sel Mult] and then press the ADJ./OK button. • If thumbnail view was displayed in Step 2 on P.130, skip Step 5. Press the button !" to select [Sel.
Page 135 Selecting All Frames Press the button !" to select [All Frames] and press the button $. Press the button #$ to select [Yes] and then press the ADJ./ OK button.
Page 136: Playback Menu
6 Playback Menu Instructions in this manual to “Press the ADJ./OK button !"#$” indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button. About the Playback Menu Press the MENU button in playback mode to display the playback menu.
Page 137: Using The Menu
Using the Menu Press the 6 (Playback) button to select the playback mode. Press the MENU button. • The playback menu appears. Press the ADJ./OK button !" to select the desired item. • If the DISP. button is pressed at this point, the cursor moves to the playback menu tab.
Page 138: Saving Images You Want To Quickly Display (Flag Function Setting)
Saving Images You Want to Quickly Display (Flag Function Setting) You can set useful image files, such as a train time table or a map, to [Flag Function Setting], and then press the Fn (Function) button during playback to easily display these files whenever you like. Up to three files can be saved with [Flag Function Setting].
Page 139: Setting/Canceling Multiple Files At One Time
Setting/Canceling Multiple Files at One Time Press the 6 (Playback) button. Turn the zoom lever toward 9 (Thumbnail View). • The screen is divided into 20 frames and thumbnails are displayed. Press the ADJ./OK button !"#$ to select the first file you want to set or cancel.
Page 140: Displaying An Image Set To Flag Function Setting (Flag Function Display)
Displaying an Image Set to Flag Function Setting (Flag Function Display) Press the 6 (Playback) button. Press the Fn (Function) button, or select [Flag Function Display] from the playback menu, and press the ADJ./OK button $. • The file set to [Flag Function Setting] with the smallest file number is displayed.
Page 141: Resizing Images
Resizing Images You can reduce the image size of a shot still image to create a new file with a different image size. Original F3456/N3456/F3:2/F1:1/N3072/N2592/N2048/N1728 N1280 N1280 Caution------------------------------------------------------------------------------------------ You can resize only still images. Movies or MP files cannot be resized. Note ---------------------------------------------------------------------------------------------- •...
Page 142: Trimming Images
Trimming Images This function allows you to trim a still image you have shot and then save it as a separate file. Press the 6 (Playback) button. Press the ADJ./OK button !"#$ to display the file you want to trim. Press the MENU button.
Page 143 • The size of the trimmed image varies depending on the original image size and the trimming level (the trimming frame size). Refer to the table shown below. (The initial trimming frame displayed on the [Trim] screen is the second trimming level. You can display the first trimming level (maximum frame size) by turning the zoom lever toward 9.) Original image size...
Page 144: Correcting The Image Brightness And Contrast
Correcting the Image Brightness and Contrast You can use either [Auto] or [Manual] mode to correct the brightness and contrast in still images you have shot and then record the corrected images. [Manual] mode allows you to correct the image by adjusting the histogram. Note ---------------------------------------------------------------------------------------------- See P.60 for more information on the histogram display.
Page 145: Correcting Images Manually
Correcting Images Manually Press the ADJ./OK button !" to select [Manual] and press the button $. • The original image appears at the upper left of the screen, the histogram is at the lower left, and the corrected image is shown on the right.
Page 146 Sample correction methods ------------------------------------------------------------- • Example 1) To adjust the overall image brightness: Select the middle point and move it to the left to brighten the entire image. Selecting the middle point and moving it to the right darkens the entire image. •...
Page 147: Correcting The White Balance
Correcting the White Balance This function allows you to correct the green, magenta, blue and amber color tones in still images you have taken and then record the corrected images. Press the 6 (Playback) button. Press the ADJ./OK button !"#$ to display the file you want to correct.
Page 148 Press the ADJ./OK button. • Messages appear during the correction process, and then the corrected image is recorded. The original image remains unchanged. Caution------------------------------------------------------------------------------------------ • You can only use white balance compensation for still images shot using this camera. • You cannot correct the white balance for movies or MP files. •...
Page 149: Correcting Skewed Images
Correcting Skewed Images You can straighten rectangular objects, such as a message board or business card, shot at an angle, to make them look as if they were shot squarely. Press the 6 (Playback) button. Press the ADJ./OK button !"#$ to display the file you want to straighten.
Page 150 Note ---------------------------------------------------------------------------------------------- • The image size does not change for skew corrected images. • If the image size is large, skew correction will take time. Resize the image (GP.139) before performing skew correction to speed up the process. • The following table shows the approximate time required for skew correction. Image Size 3456 ×...
Page 151: Preventing The Deletion Of Files
Preventing the Deletion of Files You can protect files from being accidentally deleted. Caution------------------------------------------------------------------------------------------ Protected files cannot be deleted normally. However, they will be deleted if you format the memory where the files are stored. Press the 6 (Playback) button. •...
Page 152: Specifying A Range Of Multiple Files
Protecting Multiple Files Separately Press the button !" to select [Sel Mult] and then press the ADJ./OK button. • If thumbnail view was displayed in Step 2 on P.149, skip Step 5. Press the button !" to select [Sel. Indiv.] and then press the ADJ./OK button.
Page 153 Press the button !"#$ to select the starting point for the range of files you want to specify and press the ADJ./OK button. • If you make a mistake when selecting the starting point for the range of files, press the DISP. button to return to the screen for selecting the starting point.
Page 154: Displaying Slide Shows
Displaying Slide Shows You can display the recorded still images and movie files sequentially on the screen. This is called a slide show. To view a slide show, follow the steps below. Press the 6 (Playback) button. • The last file recorded is displayed. Press the MENU button.
Page 155: Copying The Contents Of The Internal Memory To An Sd Memory Card
Copying the Contents of the Internal Memory to an SD Memory Card You can copy all movies, still images, and sound data stored in the internal memory onto an SD memory card at once. Turn the camera off. Insert an SD memory card. Turn the camera on.
Page 156: Using A Printing Service (Dpof)
Using a Printing Service (DPOF) The still images recorded on an SD memory card can be printed out if you take them to a store that offers a digital camera print service. To use a print service, you must make print settings on your camera.
Page 157: Setting/Canceling Dpof For All Files
Setting/Canceling DPOF for All Files Press the 6 (Playback) button. Press the MENU button. • The playback menu appears. Press the ADJ./OK button " to select [DPOF] and press the button $. Press the button !" to select [Select All] or [Cancel All]. Press the ADJ./OK button.
Page 158 Press the ADJ./OK button " to select [DPOF] and press the button $. Press the button !" to set the number of copies to print. • Press the button ! to increase the number of copies, or press the button "...
Page 159: Restoring Deleted Files
Restoring Deleted Files You can restore all deleted files. Deleted files cannot be restored after performing any of the following operations. • Turning the camera off • Switching from playback mode to shooting mode • Using DPOF, Resize, Copy to Card from Internal Memory, Skew Correction, Level Compensation, White Balance Compensation or Trim.
Page 160: Viewing On A Television
Viewing on a Television You can view files you have taken on a TV screen. The camera displays everything on the TV screen just as it would on the picture display. To use your television for viewing, connect your camera to the television with the AV cable that came with your camera.
Page 161 Caution------------------------------------------------------------------------------------------ • When the AV cable is connected to the camera, the picture display and the speaker output turn off. • Do not force the AV cable into the terminal. • Do not apply excessive force with the AV cable connected. •...
Page 162: Setup Menu
7 Setup Menu Instructions in this manual to “Press the ADJ./OK button !"#$” indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button. About the Setup Menu You can change the camera settings by displaying the setup menu from the shooting menu (GP.93) or playback menu (GP.134).
Page 163: Using The Menu
Setting Options [Default Settings] Auto Rotate [On], Off Card Sequence No. On, [Off] Date Settings Language/N Español, Video Out Mode NTSC, PAL The default setting varies depending on where you purchased the camera. Note ---------------------------------------------------------------------------------------------- • In easy shooting mode, the quantity and order of the items in the setup menu are different from other shooting modes.
Page 164 Press the ADJ./OK button !" to select the desired item. • If the DISP. button is pressed at this point, the display returns to the screen shown in Step 3. • Press the ADJ./OK button " at the bottom item to display the next screen. Press the ADJ./OK button $.
Page 165: Formatting The Sd Memory Card
If the error message [Card Error] is displayed when an SD memory card is loaded into the camera or the card has been used with a computer or other digital camera, you must format the card prior to use with this camera.
Page 166: Formatting The Internal Memory
Formatting the Internal Memory If the error message [Format internal memory.] is displayed, you must format the internal memory prior to use. Caution------------------------------------------------------------------------------------------ Formatting the internal memory deletes all of the images recorded in the memory. If you have images in the internal memory that you do not want to delete, copy the images to the SD memory card before formatting the internal memory.
Page 167: Adjusting The Picture Display Brightness
Adjusting the Picture Display Brightness To adjust the brightness of the picture display, follow the steps below. Display the setup menu. • For the operating procedure, see P.161. Press the ADJ./OK button " to select [LCD Brightness] and press the button $. •...
Page 168: Registering My Settings
Registering My Settings The My Settings function allows you to easily shoot with your desired settings. You can register two groups of settings as “My Settings”. Setting the mode dial to MY1 allows you to shoot with the settings registered in [MY1].
Page 169 Settings Saved in [Reg. My Settings] Shooting mode (5/3/MY1/MY2/SCENE/Q/R) Picture Quality/Size Focus Focal distance used in Manual Exposure Metering Image Settings Flash Exposure Compensation Dynamic Range Expansion Plus Normal Shooting Auto Bracket CL-BKT FOCUS-BKT WB-BKT Time Exposure Custom Self-Timer Fix Minimum Aperture Camera Shake Correction Slow Shutter Limit Date Imprint...
Page 170: Fixing The Focal Length Of The Zoom
Fixing the Focal Length of the Zoom Step zooming allows you to set the focal length of the zoom so that it stops at seven levels (28, 35, 50, 85, 105, 135, 200 mm*). * Equivalent to that on a 35 mm camera Available Settings On (Step zooming on) Off (Step zooming off) *Default setting...
Page 171: Fn (Function) Button Settings
Fn (Function) Button Settings When a function is assigned to the Fn button, you can easily switch from one function to another simply by pressing the Fn button. The following functions can be assigned to the Fn button. For information on how to use the Fn button, see the corresponding reference page.
Page 172 Note ---------------------------------------------------------------------------------------------- The items that can be set for each shooting mode are shown below. Available Settings Backlight Comp Macro Target Step Zoom AE Lock AF/M-trgt AF AF/MF AF/Snap AT-BKT WB-BKT CL-BKT FOCUS-BKT Min. Aperture The functions not marked with a circle (O) can also be assigned to the Fn button, but they will not operate if the button is pressed in scene mode or movie mode.
Page 173: Adj. Button Settings
ADJ. Button Settings When functions are assigned to the ADJ./OK button, you can display various shooting setting screens with fewer button operations and without displaying the shooting menu. You can use [ADJ Button Setting 1] to [ADJ Button Setting 4] to assign camera functions that can be activated by pressing the ADJ./ OK button.
Page 174 Note ---------------------------------------------------------------------------------------------- • The items that can be set for each shooting mode are shown below. Available Settings Exposure Comp. White Balance Quality Focus Image Expo. Metering Auto Bracket Flash Comp. Min. Aperture Density The items for scene mode, easy shooting mode, and movie mode are fixed and cannot be changed.
Page 175: Iso Auto-High Settings
ISO Auto-High Settings You can change the upper limit of the ISO setting for [Auto-Hi] (Auto high sensitivity setting) (GP.124) in [ISO Setting] on the shooting menu. Available Settings AUTO 400 *Default setting AUTO 800 AUTO 1600 Display the setup menu. •...
Page 176: Af Auxiliary Light
AF Auxiliary Light You can set whether to use the AF auxiliary light when shooting with auto focus. When [AF Auxiliary Light] is set to [On], the AF auxiliary light lights when it is difficult to measure the distance with auto focus when shooting in dark surroundings, and the auto focus distance is measured.
Page 177: Operation Sound Settings
Operation Sound Settings The following five operation sounds are made during camera operation. Start sound : Sound when the camera is turned on. Shutter sound : Sound when the shutter release button is pressed. Focus sound : Sound when the shutter release button is half-pressed and the camera focuses on the subject.
Page 178: Adjusting/Muting The Operation Sound Volume
Adjusting/Muting the Operation Sound Volume The operation sound volume can be changed. Available Settings (Mute) (Small) (Medium) *Default setting (Large) Display the setup menu. • For the operating procedure, see P.161. Press the ADJ./OK button " to select [Volume Settings] and press the button $.
Page 179: Lcd Image Confirmation Time
LCD Image Confirmation Time Immediately after you press the shutter release button, the still image taken is displayed on the screen for a moment so you can check it. By default, the image confirmation time is set to 0.5 second, but this can be changed. Available Settings Off (The image is not displayed for confirmation.) 0.5 seconds *Default setting...
Page 180: Auto Power Off
Auto Power Off If you do not operate the camera for a set period of time, it shuts off automatically to conserve battery power (Auto Power Off). By default, auto power off is set to one minute, but you can change this setting.
Page 181: Lcd Auto Dimmer Mode
LCD Auto Dimmer Mode When [LCD Auto Dim] is set to [On], the picture display dims to conserve battery power if the camera is not moved for approximately five seconds. Move the camera or press any button to return to the original picture display brightness. The default setting is [On].
Page 182: Auto Resize Zoom
Auto Resize Zoom This function allows you to crop and record a shot image. Conventional digital zoom enlarges a portion of an image to a set magnification. Whereas, auto resize zoom saves the cropped portion of the image, the image quality is not decreased, however the image size may become smaller.
Page 183 Press the ADJ./OK button. Turn and hold the zoom lever toward z (Telephoto) until the maximum magnification is reached on the zoom bar, then momentarily release the zoom lever, and then turn the zoom lever again toward z. • Each time you turn the zoom lever toward z, the image is resized by one setting.
Page 184: Level Confirmation
Level Confirmation When [Level Setting] is turned on, the camera uses a level indicator and sounds to let you know whether the image is level. You can select from the following level confirmation settings. For information on how to use the level function during shooting, see P.58. Available Settings Display *Default setting...
Page 185: Shooting Information Display Frame
Shooting Information Display Frame When [Shooting Info. Display Frame] is set to [On], you can display the shooting information display frame for normal symbol display or histogram display (GP.56). With the shooting information display frame, the shooting information is not displayed over the subject, so you can more easily compose your shot.
Page 186: Minimum Shooting Distance Display
Minimum Shooting Distance Display During shooting, the minimum shooting distance changes depending on the zoom position. To display the minimum shooting distance on the screen, set [Minimum Distance] to [Show]. Display the setup menu. • For the operating procedure, see P.161. Press the ADJ./OK button "...
Page 187: Automatic Rotation Of Playback Images
Automatic Rotation of Playback Images You can set the camera to automatically rotate the image during playback according to the position of the camera. Available Settings Description On *Default setting The playback image is automatically rotated. The playback image is not automatically rotated. When [Auto Rotate] is set to [On], the direction of the playback image will be as follows.
Page 188 Caution------------------------------------------------------------------------------------------ • The playback image is not automatically rotated, even when [Auto Rotate] is set to [On], in the following cases. • When playing back images shot in movie mode. • In thumbnail view (GP.48) • When playing back images shot with the camera tilted too far forward or backward. •...
Page 189: File Name Settings
File Name Settings When you shoot a still image, it is stored on an SD memory card or in the internal memory with a consecutively numbered file name that is automatically assigned. When you switch SD memory cards, you can set your camera to continue consecutive numbering from the previously loaded card.
Page 190: Date And Time Settings
Date and Time Settings You can shoot still images with the time or date stamped onto the picture. The date/time setting on the setup menu is explained here. Display the setup menu. • For the operating procedure, see P.161. Press the ADJ./OK button " to select [Date Settings] and press the button $.
Page 191: Language Settings
• Once you have set the language, the display returns to the setup menu. Press the MENU button or the ADJ./OK button. Note ---------------------------------------------------------------------------------------------- Only Japanese and English can be selected for CX1 cameras sold in Japan. (Russian) (Simplified Chinese) (Traditional Chinese) (Korean)
Page 192: Tv Playback Method
TV Playback Method You can view your still images and movies on a television screen by connecting your camera to a television with the AV cable that came with your camera. (GP.158) Your camera is set to NTSC video format (used in North America and other countries/regions) for use with television equipment and other audiovisual equipment.
Page 193: Direct Printing
About the Direct Print Function The Direct Print standard enables direct printing from a camera to a printer by connecting them via a USB cable. Photos can be printed quickly and easily from your digital camera without using a computer. Caution------------------------------------------------------------------------------------------ You cannot print AVI files (movies) or MP files with this function.
Page 194: Connecting The Camera To A Printer
Connecting the Camera to a Printer Connect your camera to a printer using the USB cable provided. Make sure that the camera is off. Connect your camera to a printer using the USB cable provided. • Your camera turns on automatically. •...
Page 195: Printing Still Images
Printing Still Images You can print still images from the camera with a PictBridge- compatible printer. Still images are sent from the internal memory when no SD memory card is loaded or from an SD memory card when one is loaded. Caution------------------------------------------------------------------------------------------ Do not disconnect the USB cable during printing.
Page 196 Press the ADJ./OK button !" to select an item, and then press the button $ to display the detailed options screen. • When [Connecting…] is displayed, the connection to the printer is not yet established. When a connection is established, [Connecting…] disappears and [Direct Print] appears.
Page 197: Printing Several Still Images
Note ---------------------------------------------------------------------------------------------- • To specify the settings as the default settings next time the camera is connected to the printer, press the MENU button when the screen in Step 7 is displayed. When the screen at the right appears, press the ADJ./OK button #$ to select [Yes] and press the ADJ./OK button.
Page 198 Press the button !" to set the number of copies to print. Repeat Steps 7 and 8 to select all the still images to be printed and the number of copies for each. Press the ADJ./OK button. • The Direct Print menu appears. Press the ADJ./OK button !"...
Page 199: Downloading Images To Your Computer
9 Downloading Images to Your Computer The screen images shown here may differ from the images displayed on your computer depending on your computer OS. For Windows Refer to P.210 for Macintosh. You can download images to a computer using either of the following methods.
Page 200: System Requirements For Using The Supplied Cd-Rom
System Requirements for Using the Supplied CD-ROM The following environments are necessary for using the supplied CD-ROM. Please check your computer, or the computer’s user manual. Operating Systems Supported Memory Hard drive space required for installation Display Resolution Display Colors CD-ROM Drive USB Port Caution------------------------------------------------------------------------------------------...
Page 201: Cd-Rom Setup
CD-ROM Setup Once you insert the supplied CD-ROM in the CD-ROM drive, the installer screen appears automatically. Item Name Installing the software Browse User’s Manual (Software Version) Browse CD-ROM Content When [Installing the software] Is Clicked The following software will be installed: Software Description DL-10...
Page 202 Caution------------------------------------------------------------------------------------------ • Do not install the software when the camera is connected to your computer with a USB cable. • The names for DC Software items differ from the names for Caplio Software items provided with previous models as shown below. Caplio Software RICOH Gate La Caplio Viewer...
Page 203: Windows Vista
Here is an example of the Windows XP screen. Start your computer and insert the supplied CD-ROM in the CD-ROM drive. Operating systems other than Windows Vista • The installer screen appears automatically. Windows Vista • The Autorun screen appears automatically.
Page 204 Confirm where you want to install and then click [Next]. • The [Select Program Folder] screen appears. Confirm the destination location and then click [Next]. • The Irodio Photo & Video Studio installer starts. Install Irodio Photo & Video Studio following the messages displayed on the screen.
Page 205: When [Browse User's Manual (Software Version)] Is Clicked
When [Browse User’s Manual (Software Version)] Is Clicked The “Software User Guide” (PDF file) on the CD-ROM is displayed on your computer screen. If you have Acrobat Reader installed on your computer, simply click [Browse User’s Manual (Software Version)]. Acrobat Reader must be installed to view the PDF file.
Page 206: Uninstalling The Software
Start your computer, and insert the supplied CD-ROM into the CD-ROM drive. Operating systems other than Windows Vista • The installer screen appears automatically. Windows Vista • The Autorun screen appears automatically. • Select [Run Autorun.exe]. The installer screen appears automatically. Click [Browse CD-ROM Content].
Page 207: Downloading Images Using Dl-10
Select [DC Software], and then click the [Change/ Remove] button. Confirm file deletion and click [OK]. • The [Shared File Detected] dialog box appears. Select the [Don’t display this message again.] check box, and then click [Yes]. • The uninstallation process begins. When it is finished, close the displayed window.
Page 208: Downloading Images Without Using Dl-10
• DL-10 automatically creates a folder called [Digital Camera] inside your [My Documents] folder. Downloaded images are saved in folders with the date of each shot, inside the [Digital Camera] folder. (The files will continue to be saved in the [Caplio] folder if you were previously using Caplio Software.) Set the correct date and time on the camera...
Page 209 Connect the USB cable to the USB terminal of your camera. • Your camera turns on. • Your computer automatically reads a file necessary for recognizing the camera as a drive. • After this preparation, the camera is displayed as a drive under [My Computer].
Page 210: Downloading Images From An Sd Memory Card
Downloading Images from an SD Memory Card---------------------------------- It is possible to download images from an SD memory card to the computer via a PC card slot or card reader. Depending on the type of PC card slot or card reader, a memory card adapter may be required when using an SD memory card.
Page 211: Disconnecting The Camera From Your Computer
Disconnecting the Camera from Your Computer Perform the following operations when disconnecting the camera from your computer. (The display is an example of Windows XP. The terms are different for other operating systems but the operations are the same.) Double-click the [Safely Remove Hardware] icon at the right end of the task bar.
Page 212: For Macintosh
For Macintosh Refer to P.197 for Windows. This camera supports the following Macintosh operating systems. • Mac OS 9.0 to 9.2.2 • Mac OS X 10.1.2 to 10.5.5 Caution------------------------------------------------------------------------------------------ • You cannot download images from this camera to a Macintosh running Mac OS 8.6. •...
Page 213: Disconnecting The Camera From Your Computer
From the displayed drive, copy a file to the desired location. • The figure below shows the folder configuration in the drive. • When the contents of the internal memory are displayed, the drive name is [RICOHDCI]. Caution------------------------------------------------------------------------------------------ • Do not force the USB cable into the terminal. •...
Page 214: 10 Appendices
10 Appendices Troubleshooting Error Messages If an error message is displayed on the screen, check the information on the reference page and take the corresponding action. Error Message Insert card. Set date. The file number limit has been exceeded. Unmatched File Insufficient memory.
Page 215: Camera Troubleshooting
Camera Troubleshooting Power Supply Problem Cause The camera does not Battery is not loaded or is turn on. exhausted. An unacceptable battery is used. The camera is automatically turned off by auto power off. The battery is loaded in wrong direction.
Page 216 Shooting Problem The camera does not shoot even if you press the shutter release button. Unable to view the shot image. Images do not appear on the picture display. Although the camera is set to auto focus, it is unable to focus. Although the camera is not in focus, the green frame appears in the...
Page 217 Problem Cause The flash does not fire or The flash cannot be used in the the flash cannot charge. following cases: • In bracket shoting • In continuous mode • In movie mode In some scene modes, the flash is disabled by default.
Page 218 Problem The level indicator is not displayed. The image is tilted even though it was shot with the level indicator in the middle or while the level sound was sounding. Cause [Level Setting] is set to [Off] or [Sound]. The display is set to a setting other than normal symbol display or histogram.
Page 219 Playback/Deleting Problem Cause Cannot play back, or the The camera is not in playback playback screen does mode. not appear. The VIDEO/AV cable is not connected properly. The Video Out Mode setting is incorrect. The contents of the SD No SD memory card is loaded, or memory card cannot be an SD memory card with no stored played back, or the...
Page 220: Other Problems
Other Problems Problem Cannot load the SD memory card. The camera does not operate even when the buttons are pressed. The date is incorrect. The set date disappeared. Auto power off does not work. The operation sound cannot be heard. Images do not appear on the TV.
Page 221: Software And Computer Troubleshooting
Warning Messages Under Windows XP Service Pack 3 and Windows Vista When software for your Ricoh digital camera is used on a computer with Windows XP Service Pack 3 or Windows Vista installed, the following warning message may appear at software activation or USB connection.
Page 222 Click the [Exceptions] tab. Check that the software is in [Programs and Services]. Click the [Add Program] button to add software that uses the network. If you clicked the [Ask Me Later] button: Each time the program is activated, the [Windows Security Alert] dialog box appears.
Page 223: Specifications
Specifications No. of effective pixels (camera) Approx. 9.29 million effective pixels Image Sensor 1/2.3" CMOS (Approx. 10.29 total million pixels) Lens Focal Length 4.95 mm to 35.4 mm (equivalent to 28 mm to 200 mm on a 35-mm camera) F-aperture F3.3 to F5.2 Normal shooting: Approx.
Page 224 Recording Media Recording 3456 × 2592 Data 3456 × 2304 Capacity 2592 × 2592 3072 × 2304 2592 × 1944 2048 × 1536 1728 × 1296 1280 × 960 640 × 480 Recording Still Image File Format Multi-Picture Movie Compression Format Other Major Shooting Functions...
Page 225: Number Of Images That Can Be Stored
Number of Images That Can Be Stored The following table shows the approximate number of images that can be recorded in the internal memory and onto an SD memory card at various image size and picture quality settings. Picture Quality/ Internal Mode Size...
Page 226 Note ---------------------------------------------------------------------------------------------- • The maximum recording time is the estimated total recording time. The maximum recording time per shooting is 90 minutes or the equivalent of 4 GB. • The maximum number of consecutive shots that can be taken using continuous mode is 999.
Page 227: Defaults Settings/Functions Whose Defaults Are Restored When The Camera Is Turned Off
Defaults Settings/Functions Whose Defaults Are Restored When the Camera Is Turned Off Turning the camera off may reset some function settings to their defaults. The table below indicates whether or not the function is reset to its default when the camera is turned off. Function Shooting Picture Quality/Size...
Page 228 Function Setup LCD Brightness Reg. My Settings Step Zoom Set Fn Button ADJ Button Setting 1 ADJ Button Setting 2 ADJ Button Setting 3 ADJ Button Setting 4 ISO Auto-High Settings AF Auxiliary Light Operation Sounds Volume Settings LCD Confirmation Time Auto Power Off LCD Auto Dim Digital Zoom Image...
Page 229: Using Your Camera Abroad
Using Your Camera Abroad Battery Charger (Model BJ-7) The battery charger can be used in regions with a current of 100-240V, 50Hz/60Hz. If you are going to travel to a country that uses a different shaped wall outlet/plug, please consult your travel agent on a plug adapter suitable for wall outlets in your country of destination.
Page 230: Cautions On Use
Cautions on Use Cautions on Use • This product was manufactured for use in the country in which it was purchased. The warranty is only valid in the country in which the camera was purchased. • Should the product fail or malfunction while you are abroad, the manufacturer assumes no responsibility for servicing the product locally or bearing the expenditure incurred therefore.
Page 231 Conditions in which condensation may easily occur:-------------------------- • When the camera is moved to an environment where the temperature differs greatly. • In humid places. • In a room immediately after being heated, or when the camera is exposed directly to cooled air from an air-conditioner or another similar appliance.
Page 232: Care And Storage
Care and Storage Care • Please note that if fingerprints, dirt, etc. get onto the lens, picture quality will suffer. • When dust or dirt does get on the lens, do not touch it directly with your fingers, and either use a blower (available in stores) to blow it off, or a soft cloth to gently dust it off.
Page 233: Warranty And Servicing
Warranty and Servicing 1. This product is backed by a limited warranty. During the warranty period mentioned in the Warranty supplied with your camera, any defective parts will be repaired free of charge. In the event of a camera malfunction, contact the dealer from which you purchased the camera or your nearest Ricoh Repair Center.
Page 234: Information To The User
An AC adapter with a ferrite core must be used for RF interference suppression. COMPLIANCE INFORMATION STATEMENT Product Name: DIGITAL CAMERA Model Number: CX1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
Page 235: Index
Index ADJ Button Setting 1, 2, 3, 4 ... 171 ADJ./OK Button ... 18, 62, 127 AE Lock ... 69 AE/AF Target Shift ... 64 AF Auxiliary Light ... 17, 174 Auto Bracket ... 107 Auto Focus (AF) ... 99 Auto Power Off ...
Page 236 Interval Shooting ... 115 Irodio Photo & Video Studio ... 199, 203, 205 ISO Auto-High Settings ... 173 ISO Setting ... 124 Landscape... 74 Language/N... 32, 189 LCD Auto Dim ... 179 LCD Brightness ... 165 LCD Confirmation Time... 177 Lens...
Page 237 USB Cable ... 14, 192, 205, 206, 210 USB Driver ... 199 USB Terminal ... 18, 192, 206, 207, 210 Video Out Mode ... 190 Volume Settings ... 176 White Balance ... 122 White Balance Bracket (WB-BKT) ... 108 White Balance Compensation ... 145 White Saturation Highlights Display ...
Page 238: Telephone Support Numbers In Europe
Telephone Support Numbers in Europe (from within the UK) (from outside of the UK) Deutschland (innerhalb Deutschlands) (außerhalb Deutschlands) France (à partir de la France) (en dehors de la France) Italia (dall’Italia) (dall’estero) España (desde España) (desde fuera de España) http://www.service.ricohpmmc.com/ 02073 656 580 +44 2073 656 580...
Page 239: If A Problem Arises
From environmental friendliness to environmental conservation and to environmental management Ricoh is aggressively promoting environment- friendly activities and also environment conservation activities to solve the great subject of management as one of the citizens on our precious earth. To reduce the environmental loads of digital cameras, Ricoh is also trying to solve the great subjects of “Saving energy by reducing power consumption”...
