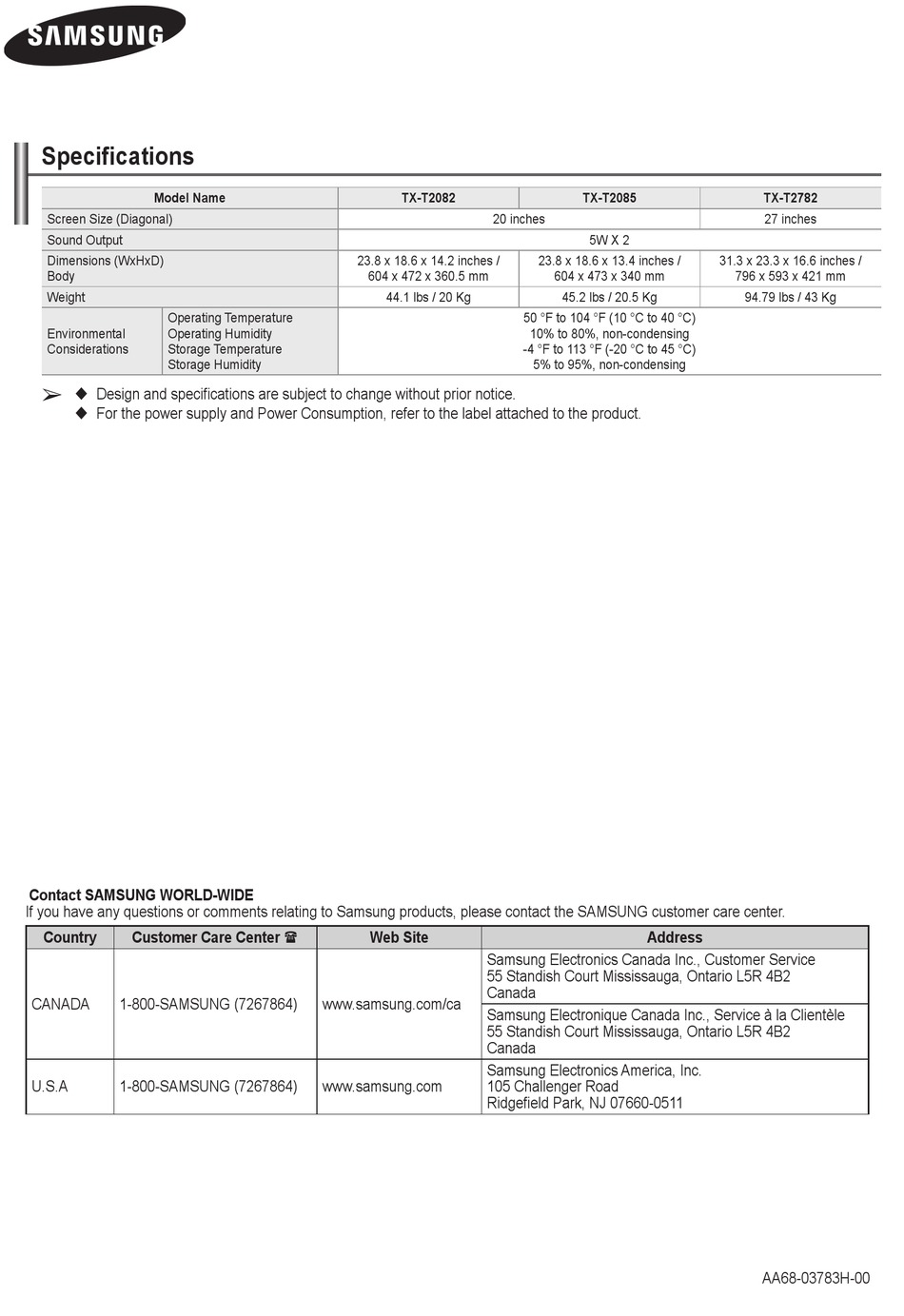

Specifications
Model Name
Screen Size (Diagonal)
Sound Output
Dimensions (WxHxD)
Body
Weight
Operating Temperature
Environmental
Operating Humidity
Considerations
Storage Temperature
Storage Humidity
➢
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Country
Customer Care Center
CANADA
1-800-SAMSUNG (7267864)
U.S.A
1-800-SAMSUNG (7267864)
TX-T2082
23.8 x 18.6 x 14.2 inches /
604 x 472 x 360.5 mm
44.1 lbs / 20 Kg
Web Site
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
www.samsung.com/ca
Samsung Electronique Canada Inc., Service à la Clientèle
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
Samsung Electronics America, Inc.
www.samsung.com
105 Challenger Road
Ridgefield Park, NJ 07660-0511
TX-T2085
20 inches
5W X 2
23.8 x 18.6 x 13.4 inches /
604 x 473 x 340 mm
45.2 lbs / 20.5 Kg
50 °F to 104 °F (10 °C to 40 °C)
10% to 80%, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5% to 95%, non-condensing
Address
TX-T2782
27 inches
31.3 x 23.3 x 16.6 inches /
796 x 593 x 421 mm
94.79 lbs / 43 Kg
AA68-03783H-00
Advertisement
Table of Contents
Related Manuals for Samsung TX-T2085
Summary of Contents for Samsung TX-T2085
-
Page 1: Specifications
For the power supply and Power Consumption, refer to the label attached to the product. Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center ... - Page 2 TX-T2082 TX-T2085 TX-T2782 COLOR TELEVISION Owner’s Instructions Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference. ▪ Model _______________ ▪ Serial No. _______________...
-
Page 3: Table Of Contents
Be careful in the selection and duration of television formats used for viewing. Uneven CRT aging as a result of format selection and use, as well as other burned-in images, is not covered by your Samsung limited warranty. © 2007 Samsung Electronics Co., Ltd. All rights reserved. -
Page 4: General Information
You can control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. TX-T2782 TX-T2082/TX-T2085 ➢ The product color and shape may vary depending on the model. 1 Remote Control Sensor Aim the remote control towards this spot on the TV. -
Page 5: Viewing The Connection Panel
3 COMPONENT IN Connect Component video/audio. Side of the TV TX-T2782 TX-T2082/TX-T2085 4 SERVICE (USB) Connect for service and software upgrade. 5 ANT IN Connect to an antenna(air) or cable TV system. 6 Headphone Connect a set of external headphones to this jack for private listening. -
Page 6: Remote Control
Remote Control You can use the remote control up to a distance of about 23 feet from the TV. When using the remote control, always point it directly at the TV. ➢ This is a special remote control for the visually impaired, and has Braille points on the POWER, Channel, and Volume buttons. ... -
Page 7: Connection
Connection Connecting VHF and UHF Antennas Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna(such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below. Place the wires from the twin leads under the screws on a 300-75 Ω adapter(not supplied). Use a screwdriver to tighten the screws. -
Page 8: Connecting A Vcr
Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system(according to the instructions on page 6). Skip step 1 if you have not yet connected to an antenna or a cable system. ➢... -
Page 9: Connecting A Dvd Player/Set-Top Box
Connecting a DVD Player/Set-Top Box The rear panel jacks on your TV make it easy to connect a DVD player/Set-Top Box. ➢ Each DVD Player/Set-Top Box has a different back panel configuration. When connecting a DVD Player/Set-Top Box, match the color of the connection terminal to the cable. Connect Component Cables between the COMPONENT IN [Y, P ] jacks on the TV and the COMPONENT OUT... -
Page 10: Operation
Operation Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently: Press the POWER button on the remote control. The message Start Plug & Play is displayed. Press the ENTER button, then the Language menu is displayed. Press the ▲... -
Page 11: Memorizing The Channels
Memorizing the Channels Your TV can memorize and store all of the available channels for both air and cable channels. After the available channels are memorized, use the CH to scan through the channels. This eliminates the need to change channels by entering the channel digits. -
Page 12: To Select The Source
To Select the Source Use to select TV or other external input sources such as DVD players, VCRs, etc. connected to the TV. Press the MENU button to display the menu. Press the ENTER button to select Input. Press the ENTER button to select Source List. Press the ▲... -
Page 13: Changing The Screen Size
Press the ▲ or ▼ button to select Contrast, Brightness, Sharpness, Color, or Tint, then press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. ➢ You can not adjust the Tint in DTV or Component mode. Press the ENTER button to return to Mode. -
Page 14: Digital Noise Reduction
Digital Noise Reduction If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Picture, then press the ENTER button. Press the ▲... -
Page 15: Customizing The Sound
Customizing the Sound The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings.) Press the MENU button to display the menu. Press the ▲ or ▼ button to select Sound, then press the ENTER button. Press the ▲... -
Page 16: Automatic Volume Control
Automatic Volume Control Reduces the differences in volume level among broadcasters. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Sound, then press the ENTER button. Press the ▲ or ▼ button to select Auto Volume, then press the ENTER button. Press the ▲... -
Page 17: Adding And Erasing Channels - Analog
Adding and Erasing Channels - Analog You can add or delete a channel to display the channels you want. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲... -
Page 18: Checking The Digital-Signal Strength - Digital
Checking the Digital-Signal Strength - Digital Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital(HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels. -
Page 19: Setting The Time
Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. -
Page 20: Viewing Closed Captions(On-Screen Text Messages) - Digital
Viewing Closed Captions(On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Caption, then press the ENTER button. Press the ENTER button to select Caption. -
Page 21: Setting The Blue Screen Mode
Depending on the particular broadcast, it might be necessary to make changes to Channel and Field. Press the ▲ or ▼ button to select Channel or Field, then press the ENTER button. Press the ▲ or ▼ button to select 1 or 2, then press the ENTER button. ➢... - Page 22 Setting Up Your Personal ID Number(PIN) Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Enter New PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Confirm New PIN screen appears. Re-enter the same 4 digits.
- Page 23 How to Set up Restrictions Using the ‘Canadian English’ (for Canada Models) 12 Press the ▲ or ▼ button to select Canadian English, then press the ENTER button. 13 Press the ▲ or ▼ button to select an appropriate restriction. Press the ► button. Press the ▲...
-
Page 24: Upgrading The Software
Upgrading the Software Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on the back of your TV.
