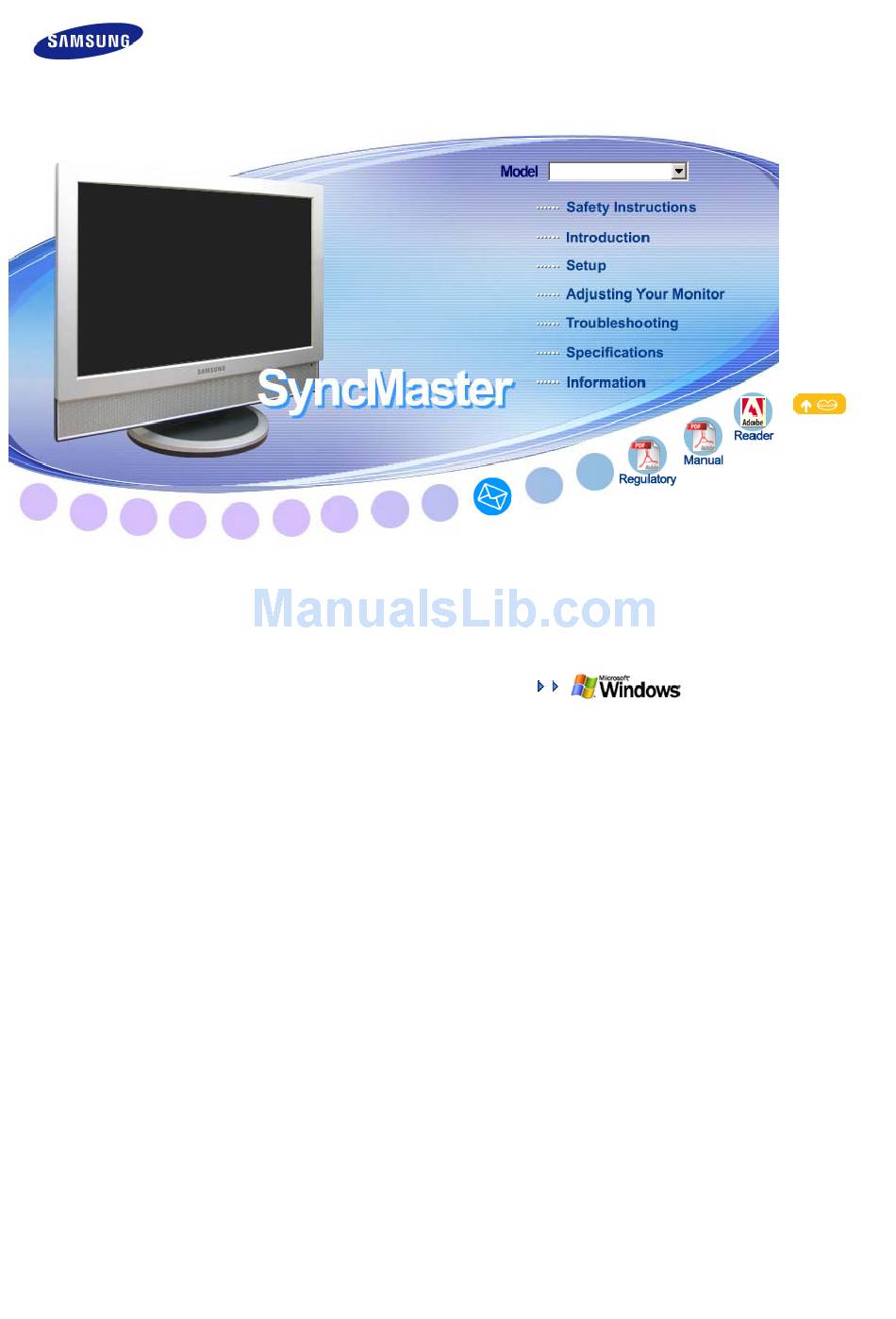

- Page 1 SyncMaster 941MW / 941MG Install Driver...
- Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to active screen mode.
- Page 3 Do not use a damaged or loose plug. This may cause electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage.
- Page 4 Installation Be sure to contact an authorized Service Center, when installing your monitor in a location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc.
- Page 5 Any increase in the internal temperature may cause fire. Put down the monitor carefully. Failing to do so may damage the monitor. Do not place the monitor face down. This may damage the TFT-LCD surface. The installation of the bracket must be done by a qualified professional. Installing the bracket by unqualified personnel may result in injury.
- Page 6 Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. Contact the SAMSUNG customer care center or Customer Center for interior cleaning once a year. Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire.
- Page 7 If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - unplug it immediately and contact an authorized dealer or the Service Center. This may cause electric shock or fire. Keep the product away from places exposed to oil, smoke or moisture;...
- Page 8 Never insert anything metallic into the monitor openings. This may cause electric shock, fire or injury. Do not insert metal objects such as chopsticks, wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc.
- Page 9 Place the product out of children's reach, as they could damage by hanging onto it. A falling product may cause injury to the person or even fatality. When not using the product for an extended period of time, keep the product unplugged.
- Page 10 height so that the top of the monitor is slightly below eye level. Adjust the monitor angle so that there is no reflected light on the screen.Try to maintain your arms perpendicular to your armpits. Keep your arms level with the back of your hands. Keep the angle of the elbow perpendicular.
- Page 11 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Without Stand With Stand Manual Warranty Card Quick Setup Guide User's Guide, Monitor Driver (Not available in all locations) Cable...
- Page 12 D-Sub Cable Audio Cable Power Cord Other Remote Control Batteries (AAA X 2) Sold separately TV Antenna Cable RCA Cable (Video-Yellow, Component(P , Y) Cable (Coaxial Cable) Audio-Red and White) S-VIDEO Cable Earphones/Headphones SCART Cable DVI Cable Front 1. SOURCE...
- Page 13 1. SOURCE Press the SOURCE button to change the input signal source. Changing the source is allowed only in external devices that are connected to the monitor at the time. To switch Screen modes: [PC] → [DVI] → [TV] → [Ext.] → [AV] → [S-Video] → [Component] >>Click here to see an animation clip 2.
- Page 14 Rear (The configuration at the back of the monitor may vary from product to product.) POWER DVI/PC IN EXT(RGB) COMPONENT IN Power terminal Connect the power cord for your monitor to the POWER on the back of the monitor. This product may be used with 100 ~ 240VAC(+/- 10%).
- Page 15 ANT IN / S-VIDEO / VIDEO / L - AUDIO - R Connecting the monitor Remote Control The performance of the remote control may be affected by a TV or other electronic device operated near the monitor, causing malfunction due to interference with frequency. 1.
- Page 16 POWER Turns the monitor On/Off. 2. Number button Selects TV channels in the TV mode. Used to change channels when PIP is selected and the PIP Source is set to TV. 3. -/-- (One/Two-Digit channel selection ) Use to select a channel numbered ten or over. Press this button, and the "--"...
- Page 17 In TV mode, selects TV channels. SOURCE Press the 'SOURCE' button to change the input signal source. Changing the source is only allowed for external devices that are connected to the monitor at the time. INFO Current picture information is displayed on the upper left corner of the screen. EXIT Exits from the menu screen.
- Page 18 25. MAGIC-CH MagicChannel enables you to watch only certain channels. This function is available only in Korea.
-
Page 19: Connecting The Monitor
Connecting the monitor 1.Connecting to a Computer Connect the power cord for your monitor to the POWER on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use appropriate connection for your computer. 2-1. -
Page 20: Connecting To Other Devices
1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the RGB port on the Macintosh computer. [RGB] 2. Turn on the monitor and Macintosh. Connecting to Other devices This monitor allows the user to connect it to such input devices as a DVD player, a VCR or camcorder, or a DTV or TV without disconnecting the PC. - Page 21 1-2. Connecting EXT.(RGB) - It only applies to AV DEVICE that supports SCART. Connect to the DVD Devices input if the device has a EXT (RGB) jack. You can watch DVD simply by hooking up the DVD player with the monitor as long as the power is on. 1.
-
Page 22: Using The Stand
Is weak signal causing poor reception? Purchase and install a signal amplifier for better reception. 3. Connecting DVD/DTV Set Top Box Connect to the DVD/DTVSet Top Box input if the device has a DVD/DTV connector. You can watch Component simply by hooking up the Component with the monitor as long as the power is 1. - Page 23 This monitor supports various types of VESA-standard bases. You need to either fold or remove the base in use in order to install a VESA base. 1. Folding the base The monitor may be reclined from 0 to 23 degrees. 2.
-
Page 24: Installing The Monitor Driver (Automatic)
Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. -
Page 25: Installing The Monitor Driver (Manual)
Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown below. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ®... - Page 26 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next"...
- Page 27 This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor Homepage. http://www.samsung.com/ 9. Click the "Close" button then click "OK" button continually. 10. Monitor driver installation is completed.
- Page 28 If you can see the "Digital Signature Not Found" window then click the "Yes"button. And click the "Finish" button then the "Close" button. ® ® Microsoft Windows Millennium Operating System 1. Click "Start" , "Setting" , "Control Panel". 2. Double click "Display" icon. 3.
- Page 29 Input Available Mode : PC / DVI The default setting may be different depending on the selected Input Mode (input signal SOURCE selected in External Input List) and the selected resolution. Description Source List Use to select PC, TV, or other external input SOURCEs connected to the Monitor.
- Page 30 When external AV devices such as VCRs or DVDs are connected to the monitor, PIP allows you to watch video from those devices in a small window super-imposed on the PC Video signal. (Off / On) - Available in PC / DVI Mode Only 1) PIP : Turn the PIP Screen on or off.
- Page 31 Available Mode : PC / DVI The default setting may be different depending on the selected Input Mode (input signal SOURCE selected in External Input List) and the selected resolution. Description MagicBright™ MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the image you are watching.
- Page 32 Auto The values of Fine, Coarse, Position are adjusted automatically. Adjustment By changing the resolution in the control panel, auto function is performed. - The direct button on the remote control is the 'AUTO' button. - Available in PC Mode Only Size You can switch the Size.
- Page 33 - The direct button on the remote control is the 'P.MODE' button. 1) Dynamic 2) Standard 3) Movie 4) Custom Custom You can use the on-screen menus to change the contrast and brightness according to personal preference. 1) Contrast : Adjusts the contrast. 2) Brightness : Adjusts the brightness.
- Page 34 Available Mode : PC / DVI The default setting may be different depending on the selected Input Mode (input signal SOURCE selected in External Input List) and the selected resolution. Description Mode The Monitor has a built-in high fidelity stereo amplifier. The direct button on the remote control is 'S.MODE' button.
- Page 35 Channel Available Mode : PC / DVI The default setting may be different depending on the selected Input Mode (input signal SOURCE selected in External Input List) and the selected resolution. Description Country Select the country in which the product is being used before you use the Auto Store feature.
- Page 36 Sort It's used to exchange the numbers of two channels. Name If channel name information is broadcast when you store the channels either manually or automatically, the names are assigned to the channels directly. You can however change these names or assign new names as required. Fine Tune Due to weak signals or an incorrect antenna configuration, some of the channels may not be tuned correctly.
- Page 37 Reset Picture parameters are replaced with the factory default values. 1) Image Reset 2) Colour Reset 1) Image Reset 2) Colour Reset...
- Page 38 Self-Test Feature Check Check the following items yourself before calling for service. Contact the problems that you cannot solve by yourself. Self-Test Feature Check Not Optimum Mode Maintenance and Cleaning Symptoms & Recommended Actions 1. Self-Test Feature Check Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
- Page 39 Finish. Do not use benzene, thinner or other flammable substances, or a wet cloth. We recommend a Samsung cleansing agent is used to prevent damage to the screen. Never use acetone, benzene or thinner. (They may cause flaws or deformation of the screen surface.) The user will be required to pay costs and related expenses for repair of damages caused by him/her.
- Page 40 the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your Installation Screen Audio Remote Control 1. Problems related to Installation Problems related to the monitor installation and their solutions are listed.
- Page 41 dark shadows. White color is poor. Power Indicator blinks green. Screen is blank and power indicator light is steady green or blinks every 0.5 or 1 seconds The screen is blank and is blinking. 3. Problems related to Audio Problems related to audio signals and their solutions are listed below. Problems No sound The sound level is too low.
- Page 42 How can I set the Power Saving function? How can I clean the outer case/LCD Panel? * Contact the video card manufacturer for details. Windows XP : Set the resolution in the Control Panel→Appearance and Themes→Display→Screen Saver . Set the function in the BIOS-SETUP of the computer. (Refer to Windows/Computer Manual).
- Page 43 General General Model Name SyncMaster 941MW LCD Panel Size 19 " Wide Diagonal (48 cm) Display area 408.24 mm(H) x 255.15 mm(V) Pixel Pitch 0.2835 mm(H) x 0.2835 mm(V) Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16.7 M Colors Resolution...
-
Page 44: Preset Timing Modes
466 x 406 x 217 mm / 18.3 x 16.0 x 8.5 inch / 6.2 kg / 13.7 lbs (With Stand) 466 x 371 x 66 mm /18.3 x 14.6 x 2.6 inch (Without Stand) VESA Mounting Interface 100 mm X 100 mm Environmental considerations Operating Storage... - Page 45 IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC,1152 x870 68.681 VESA, 640 x 480 37.500 VESA, 640 x 480 37.861 VESA, 800 x 600 35.156 VESA, 800 x 600 37.879...
- Page 46 General General Model Name SyncMaster 941MG LCD Panel Size 19 " Wide Diagonal (48 cm) Display area 408.24 mm(H) x 255.15 mm(V) Pixel Pitch 0.2835 mm(H) x 0.2835 mm(V) Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16.7 M Colors...
- Page 47 466 x 406 x 217 mm / 18.3 x 16.0 x 8.5 inch / 6.2 kg / 13.7 lbs (With Stand) 466 x 371 x 66 mm /18.3 x 14.6 x 2.6 inch (Without Stand) VESA Mounting Interface 100 mm X 100 mm Environmental considerations Operating Storage...
- Page 48 IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC,1152 x870 68.681 VESA, 640 x 480 37.500 VESA, 640 x 480 37.861 VESA, 800 x 600 35.156 VESA, 800 x 600 37.879...
-
Page 49: Contact Samsung Worldwide
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (7267864) CANADA 1-800-SAMSUNG (7267864) MEXICO 01-800-SAMSUNG (7267864) ARGENTINE 0800-333-3733 BRAZIL 4004-0000 CHILE 800-726-7864 (SAMSUNG) COLOMBIA 01-8000112112 COSTA RICA... - Page 50 CZECH REPUBLIC 844 000 844 DENMARK 70 70 19 70 FINLAND 030-6227 515 FRANCE 3260 SAMSUNG(7267864) (€ 0,15/min) GERMANY 01805-121213 (€ 0,14/Min) HUNGARY 06-80-SAMSUNG (7267864) ITALIA 800 SAMSUNG (7267864) LUXEMBURG 0032 (0)2 201 24 18 NETHERLANDS 0900 20 200 88 (€ 0,10/Min)
- Page 51 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860 7267864 (SAMSUNG) U.A.E 800SAMSUNG (7267864) 8000-4726 Terms Sync Signal Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal color images by the set resolution and frequency.
- Page 52 Channel Fine Tuning This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The Samsung LCD TV has both automatic and manual channel fine-tuning features to enable the viewer to adjust their desired settings.
- Page 53 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 54: Product Information (Image Retention Free)
PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention. - Page 55 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
-
Page 56: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
