Summary of Contents for Samsung SMC-211FN
-

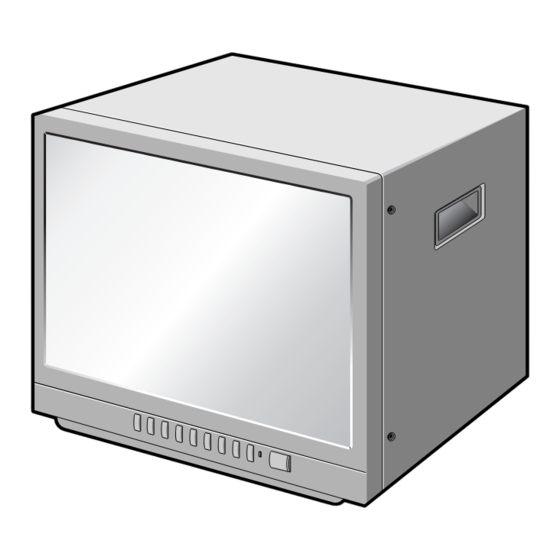

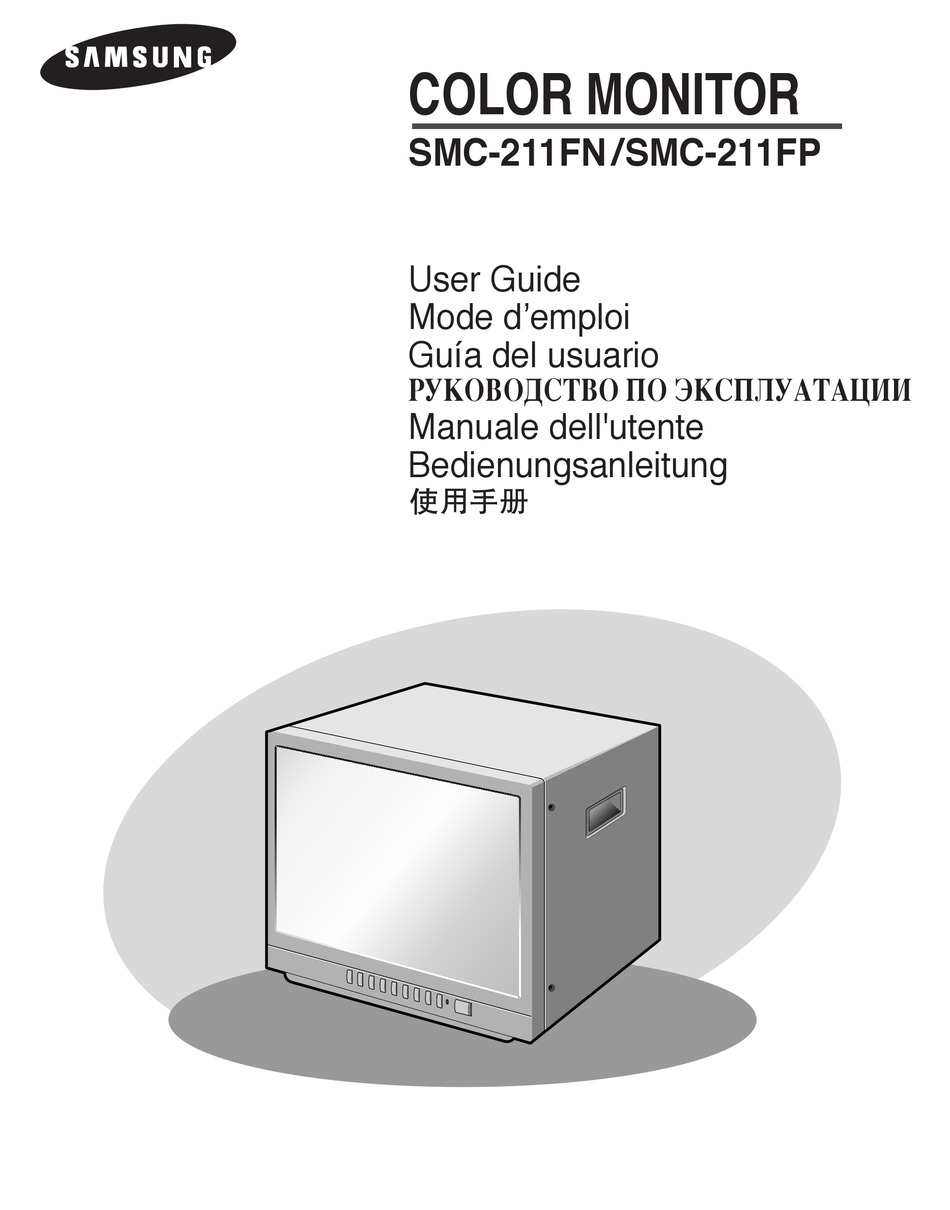

Page 1: Color Monitor
COLOR MONITOR SMC-211FN /SMC-211FP User Guide Mode d’emploi Guía del usuario êìäéÇéÑëíÇé èé ùäëèãìÄíÄñàà Manuale dell'utente Bedienungsanleitung... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Graphic Symbol Explanation The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’...
-
Page 4: Important Safeguards
Item 5. 6. Attachments : Do not use attachments not recommended by Samsung as they may cause hazards. 7. Water and Moisture : Do not use this monitor near water for example,... - Page 5 The monitor may fall, causing serious injury to a child or adult and serious damage to the appliance. Use only with a cart, stand, tripod. bracket or table recommended by Samsung or sold with the monitor. Any mounting of the monitor should follow Samsung’s instructions and should use a mounting accessory recommended by Samsung.
- Page 6 13. Lightning : For added protection for this monitor during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the monitor due to lightning and power-line surges. 14.
-
Page 7: Fcc Information
18. Replacement Parts : When replacement parts are required, be sure the service technician has used replacement parts specified by Samsung or have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock or other hazards. - Page 8 Information to user Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 9: Ic Compliance Notice
The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD. America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA IC Compliance Notice This Class (A) digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. -
Page 10: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ...English-2 IMPORTANT SAFEGUARDS ...English-4 FCC information ...English-7 Front Panel Components and Controls ...English-11 SMC-211FN, SMC-211FP • ...English-11 Using buttons on the front panel Settings Range of Each Button ...English-13 Rear Panel Components and Controls ... English-15 Connections... -
Page 11: Front Panel Components And Controls
Front Panel Components and Controls SMC-211F Using buttons on the front panel SMC-211F Power Switch On/off switch. If you press this button, the monitor is turned on and the LED of selected input signal is lit. VIDEO Input Selection Switch It selects video and audio input signal. - Page 12 CONTRAST Switch This control adjusts the contrast of the screen image. Press CONTRAST switch and then VOLUME(DATA) switch to control the contrast. BRIGHT Switch This control adjusts the bright of the screen image. Press BRIGHT switch and then VOLUME(DATA) switch to control the bright. COLOR Switch This control adjusts the color intensity of the screen image.
-
Page 13: Settings Range Of Each Button
Settings Range of Each Button MENU Contrast Brightness Sharpness Color Tint (NTSC) Language (depending on the model) Adjusting Settings of Menus : Contrast, Brightnesss, Sharpness, Color, and Tint(NTSC), with VOLUME • Select each Menu and then press • A bar with which settings of the selected menu can be adjusted will be displayd. •... - Page 14 Default values of the PRESET settings are : Preset Default setting Contrast Brightness Sharpness Color Tint (NTSC) Green 50, Red 50 Language English (depending on the model) English-14...
-
Page 15: Rear Panel Components And Controls
Rear Panel Components and Controls SMC-211F S-VIDEO IN VIDEO A (IN) / VIDEO B (IN) This is connector for inputting Video signals. VIDEO A (OUT) / VIDEO B (OUT) This is connector for outputting Video signals. S-VIDEO IN This is S-VIDEO input connector. AUDIO A (IN) / AUDIO B (IN) This is connector for inputting audio signals. -
Page 16: Connections
Connections SMC-211F Camera A Camera B TimeLaps VCR English-16... -
Page 17: Maintenance
Maintenance If the quality of the picture on the COLOR MONITOR is poor and cannot be improved, inspect all system connections and cable runs. Repairs should be performed by a qualified technician with adequate test equipment and facilities. English-17... -
Page 18: Specifications
Specifications System Video In/Out Audio In/Out Power Source Power Consumption Dimensions (W x D x H) Weight Resolutions Video System Horizontal Stabilization Vertical Stabilization Sub Carrier Stabilization Audio Convergence Overscan Operating Temperature Operating Humidity SMC-211FPV / SMC-211FNV (NTSC/PAL) 21” diagonal, 0.74 stripe pitch, 90° deflection 2 Channel Input/2 Channel Ouput S-Video INPUT 1.0Vp-p BNC jack 2 Channel Input/2 Channel output... - Page 19 Part No.: AA68-03477A-00 Printed in Korea...
