Summary of Contents for Afinia H400PLUS

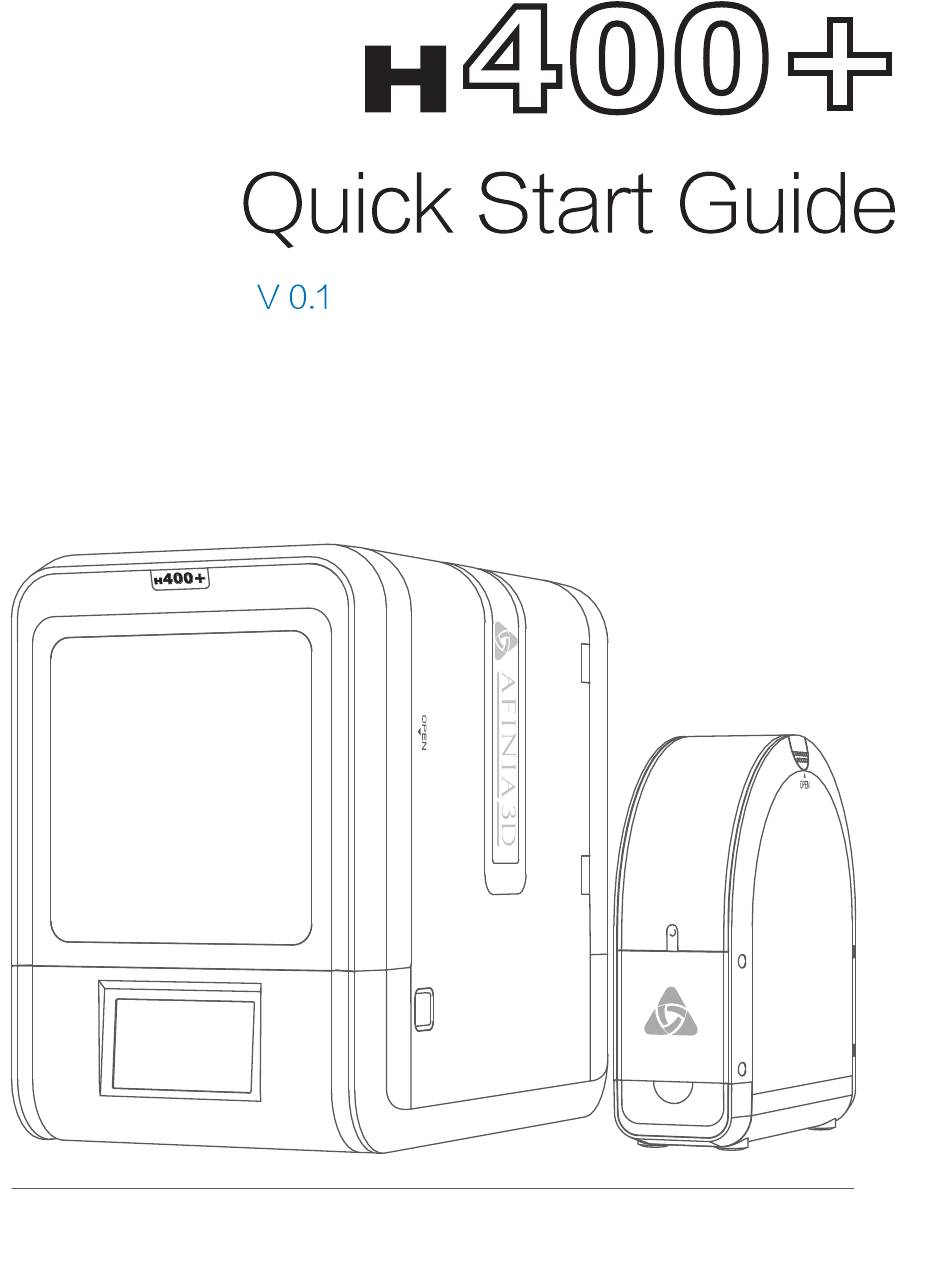

- Page 1 400+ Download full user manual at www.afinia.com/support...
-
Page 3: Table Of Contents
Unpacking Install Printer Install Software Load Filament Network Setup Load and Print Model... -
Page 5: Unpacking
Unpacking After unboxing the machine, remove the cushions inside the printer. Open the front door and remove the top lids. Find the print head in the accessory box. ... -
Page 6: Install Printer
Install Printer Align the extruder mount to the extruder mount slots, then press down on the extruder until it locks into position. Install the FFC cable as shown above. The extruder needs to be pressed down to the bottom of the mount. When installed correctly, Notice: the red and blue shaded parts... -
Page 7: Install Software
Please go to www.afinia.com/support/downloads to download the Studio software and install it on your computer. Afinia 3D Studio Software Connect the printer to your Detect your nozzle height. computer. a. Click the Initialize button to initialize the printer. b. Click the Calibrate button. -
Page 8: Load Filament 4\5
Load Filament Insert filament and guiding tube into Put filament into the external the machine through the hole on the back spool holder and insert filament into the door. guiding tube. Make sure the section of guiding tube inside the machine is no less than 28 cm. - Page 9 Push the guiding tube into the filament Gently push the filament into the entrance and insert the tube into the holding filament entrance and down until it stops. After reaching the print temperature, clip on the mount. the printer will beep and start extruding filament.
-
Page 10: Network Setup
Network Setup The H400+ can be connected to your network either via ethernet or Wi-Fi. For ethernet connection, follow instructions 1, 2, 3. For Wi-Fi connections, follow instructions 1, 2, 4, 5, 6. Click the button. Click the “Config” button. Plug the network cable into the back of To use a WiFi connection, toggle the the machine. -
Page 11: Load And Print Model
Load and Print 3D Models Click the “Build” button at the main Connect the printer to the computer via USB, ethernet or Wi-Fi. menu to enter the print setup interface, click “+” button to load a file (image or STL/UP3 file). Build Use the adjustment wheel to setup Click “Print”. - Page 12 Afinia 3D 8150 Mallory Court, PO BOX 846 Chanhassen, MN 55317 youtube.com/afinia3dprint Phone Support: 952-279-2643 Support: support@afinia.com Web: www.afinia.com...
