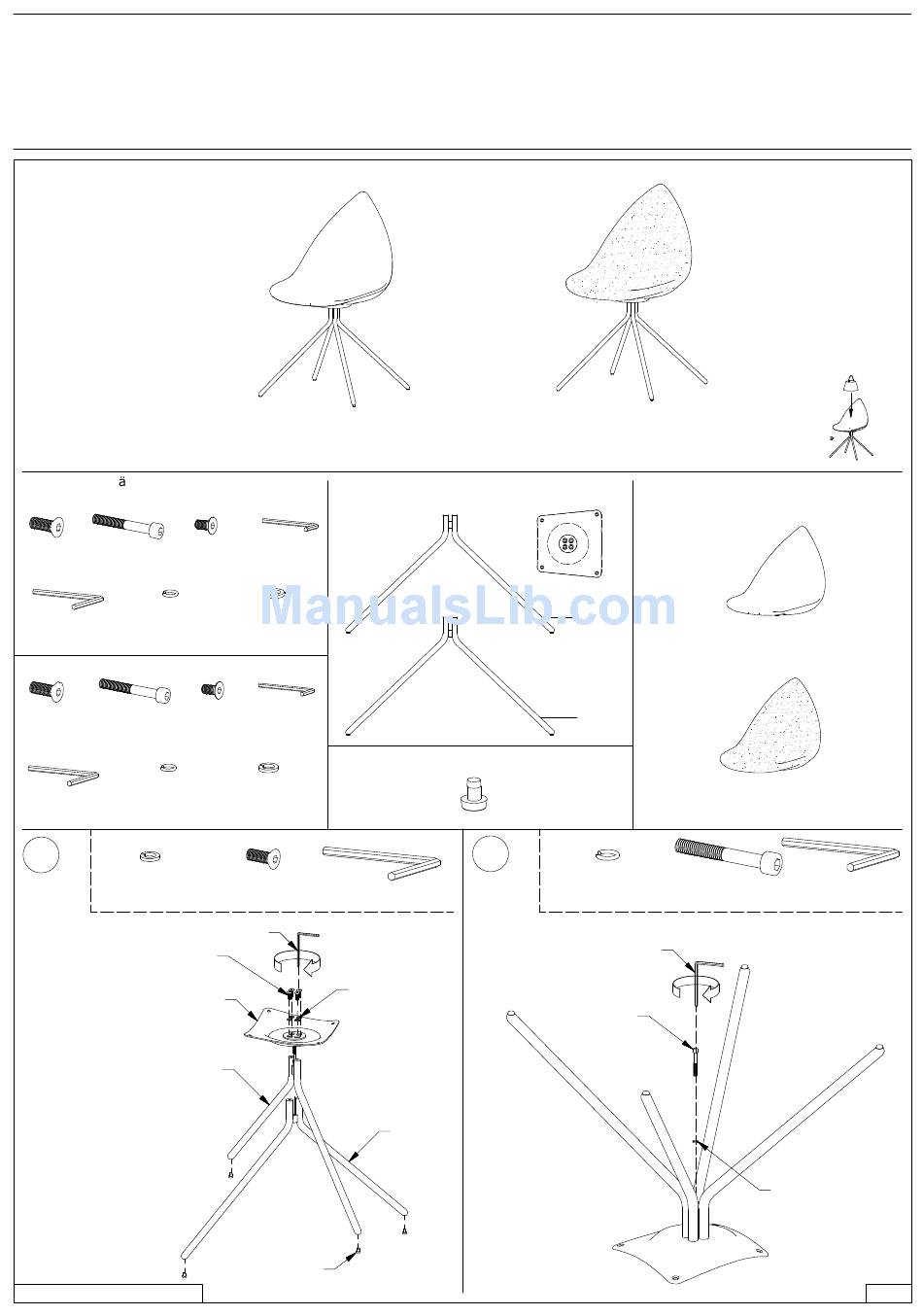

BoConcept Ottawa 402-D034 Assembly Instructions

Samlevejledning - Assembly Instructions - Montageanleitung - Instructions d'assemblage - Instrucciones de montaje
Beslag - Beschl ge - Fittings - Set de montage
Fittingbag No: 937000015 (Black)
B x 1 C x 4
Ax4
970001641 979900213
979900287
M6x45 mm M6x12 mm
M8x20 mm
E x 1
F x 1
970001206 979900062
Allen key 5 mm.
spring washer D10.5,d6,5x2
Fittingbag No: 937000019 (Chrome/Brass)
Ax4 B x 1
979900284 979900286 979900285
M8x20 mm M6x45 mm
F x 1
E x 1
979900062
970001206
spring washer D10.5,d6,5x2
Allen key 5 mm.
FIG.
1
Gx4
979900094
Spring washer 13,0,d8,5 x 2
004372
003740
944002140 - 20-12-2017/ 6

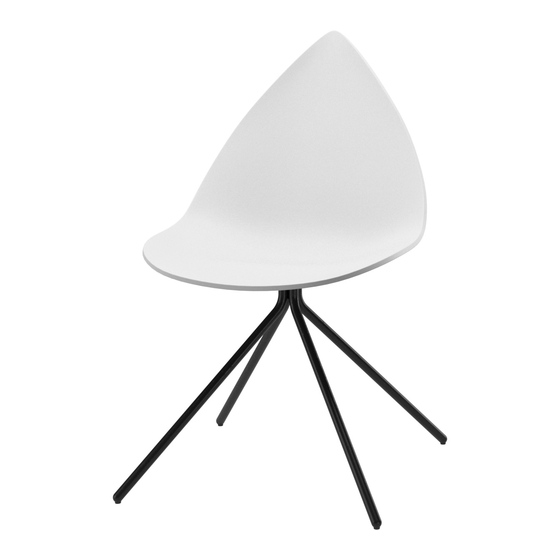

Ottawa Dining chair
402-D033
2060+2140
<1x2140, 1x2060>
Colli 1
D x 1
970003040
Allen key 4 mm.
Gx4
979900094
Spring washer 13,0,d8,5 x 2
D x 1
C x 4
970003040
Allen key 4 mm.
M6x12 mm
Fittingbag No: 937000088
Gx4
979900094
Spring washer 13,0,d8,5 x 2
E x 1
Ax4
M8x20 mm Allen key 5 mm.
E
A
G
970003714
Design by BoConcept
x 4
970003714
FIG.
2
003739
402-D034
2090+2140
<1x2140, 1x2090>
Korpus - Korpus - Carcase - Carcasse
004372
003740
003739
F x 1
Bx1
979900062
Cap screw M6x45 mm black
spring washer D10.5,d6,5x2
E
B
125kg/275lb
402-2060
402-2090
E x 1
Allen key 5 mm.
F
1 /2
