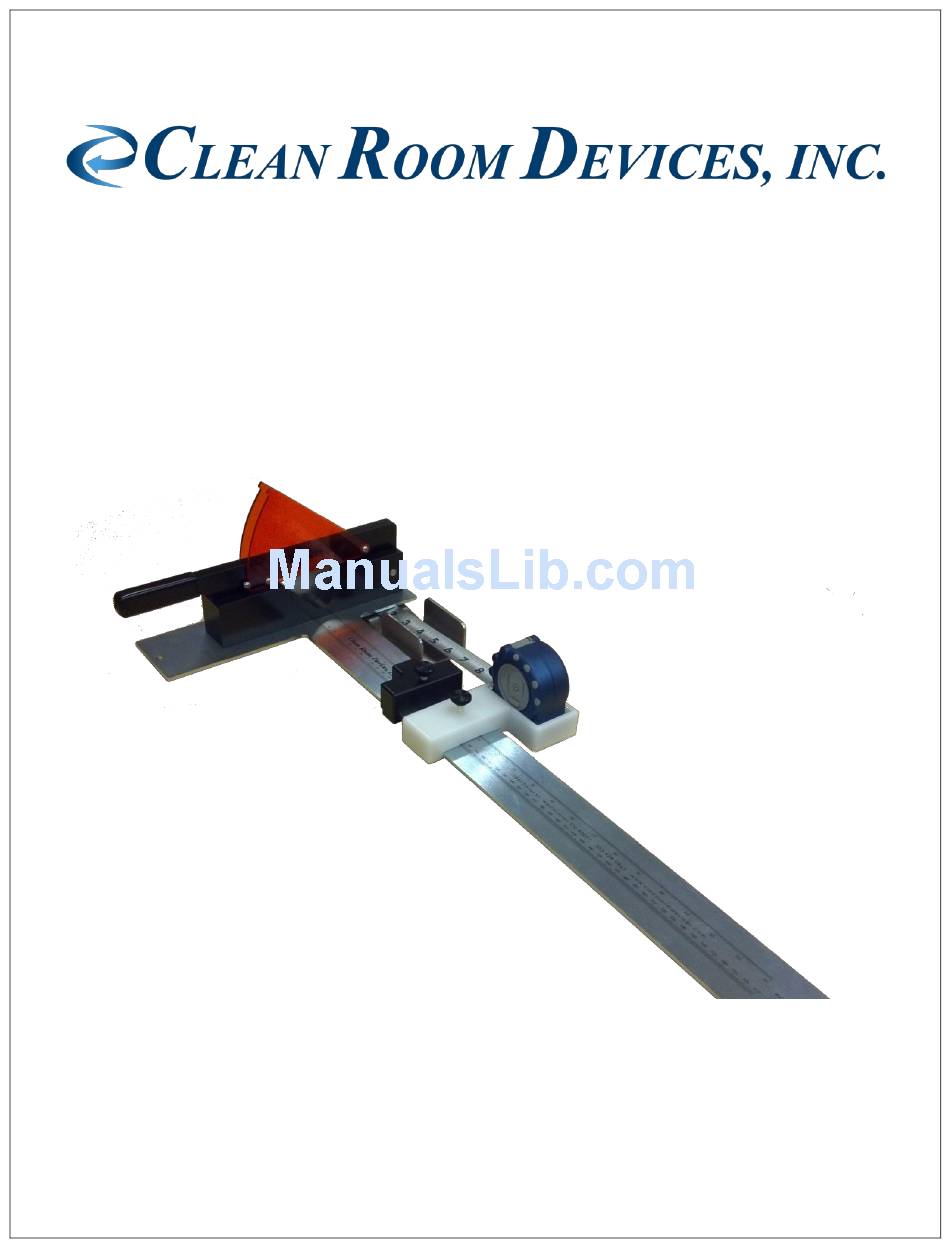

CRD162 TUBING CUTTER OPERATIONS MANUAL VERSION 1.2 LAST EDITED 05.01.2018 cleanroomdevices.com... -
Page 2: Table Of Contents
Table of Contents Title Page……………………………………….……………..………………………………….1 Table of Contents…………………….…………………………………………………….……..2 General Product & Safety Information…………………………………………….…..…3 Product Information Safety Information Installation………………………………………………….………………..….………..3 Operation…………………………………………………………………..……...…..….4 Troubleshooting………………………………………….……………….…………..…..7 Maintenance…………………………………………………………………….…….…..7 Blade Replacement Periodic Cleaning Parts List………………………………………………………………………………….8 Product Specifications……………………………………………………………………9 Durometer Scale………………………………………………………………………….9 Warranty…………………………………..…………………………….………..……..10 Warranty Warranty Period... -
Page 3: General Product & Safety Information
1.0 General Product & Safety Information Product Information The CRD162 Tubing Cutter is designed to cut flexible tubing (including heatshrink) up to 90 durometer, shore A, including any non-metallic braided materials. The cutter will cut a maximum diameter of 1.5”... -
Page 4: Operation
3.0 Operation Cutting up to 24” For cutting lengths from 3/4” to 24”, locate the “BLACK” slide block to the desired cut length using the scale. Secure the slide block into position by rotating the thumb-screw clockwise; take care not to over tighten. Figure 3.1.1 Figure 3.1.1 ... - Page 5 Cutting up to 16’ When the desired cut length exceeds the 24” scale, simply remove the “BLACK” slide block from the scale by loosening the thumb screw counterclockwise and sliding the block off the cutter base. Slide the “WHITE” slide block onto the scale. You can now remove the tape measure from the holster and attach it to the “WHITE”...
- Page 6 You can now separate the slide block with attached measuring tape and extend it to the desired cut length up to 16’. Figure 3.1.3 Figure 3.1.3 While working on any surface simply use the locking mechanism on the measuring tape to secure the slide block from moving.
-
Page 7: Troubleshooting
1. Fully loosen the thumb screw to slide. Slide block does not move in either direction. 2. Visually inspect the slide path for dirt or debris. Clean as require 5.0 Maintenance Blade Replacement Lift the cutter handle all the way back. You now have access to the cutting blade, loosen the (2) screws that sandwich the blade between the spacer bar and the cutter handle. -
Page 8: Parts List
6.0 Parts List Item Part Number Description CD160-002 Cutter Base CD160-003 Cutter Handle CD130-006 Stainless Steel Base P00353 Handle Cover CD160-005 Rotating Guard P00378 #8 SS Washer P00436 Wear Resistant Acetal Flat Washer P00441 Threaded Female Round Standoff CB200 Large Chevron Blade P00489 Plastic Bearing 5/16”... -
Page 9: Product Specifications
7.0 Product Specifications Unit Weight 8 LBS / 3.63 KG 28-1/8” L x 12-1/4” W x 6.5” H Overall Dimensions 8.0 Durometer Scale... -
Page 10: Warranty
For additional information contact: www.cleanroomdevices.com Clean Room Devices, Inc. 10855 Dover Street, Suite 100 Westminster, CO 80021...
