Please take time to read and understand these installation instructions.
CORSA recommends that installation of this system be performed by a qualified service center or professional
muffler installer who has the necessary equipment, tools and experienced personnel. However, if you decide
to perform this install, the use of a hoist and an additional person will be required.
CAUTION: Never work on a hot exhaust system. Allow time for the vehicle to cool. Always wear eye protection
when working under a vehicle.
Please confirm that all parts are present before beginning the factory exhaust system removal
and CORSA exhaust system installation.

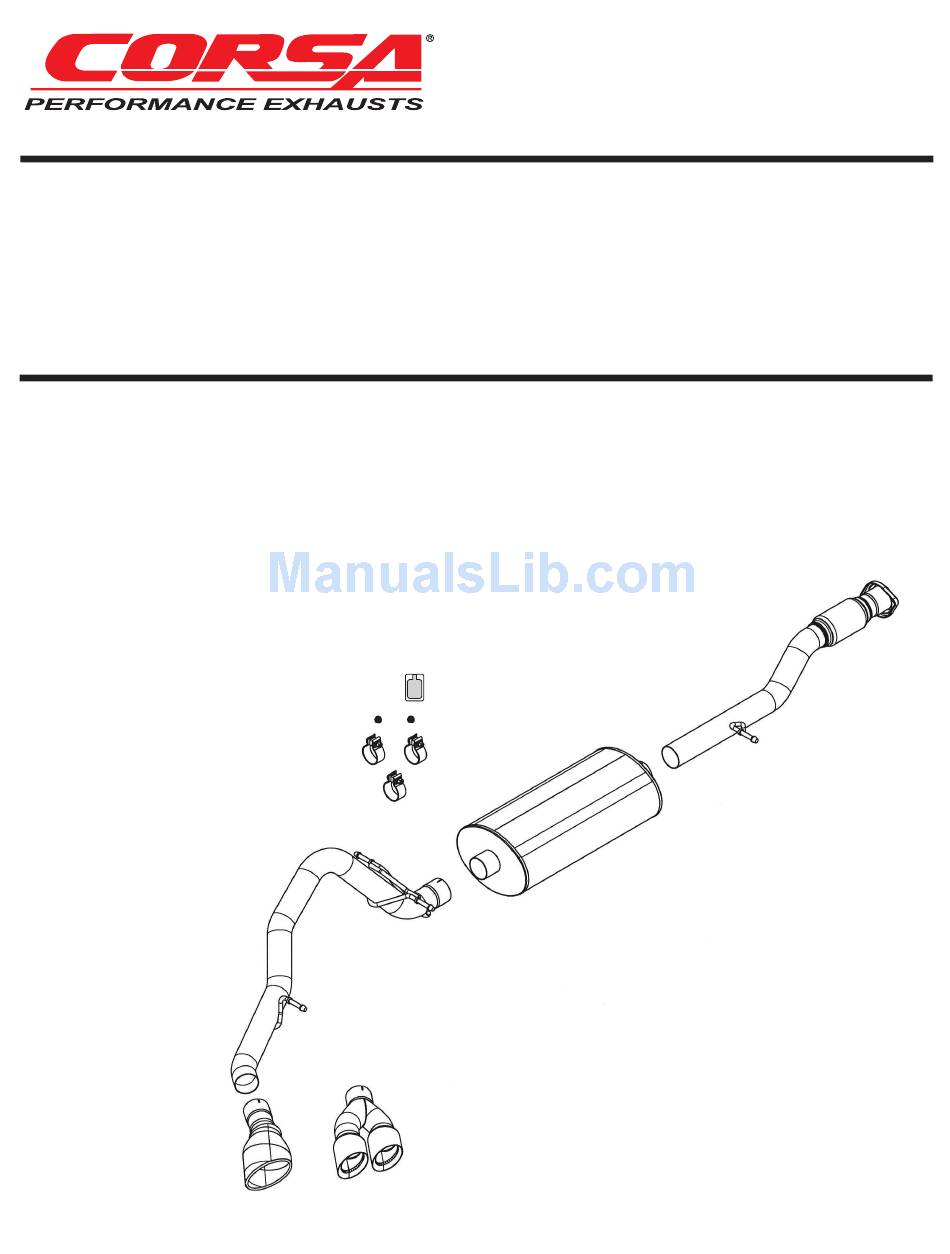

Bill of Materials:
• Head Pipe Assembly
(16AV4004)
• Touring Muffler 14661 or
Sport Muffler 14638
• Tailpipe Assembly
(16AV4005)
• Side Swept 4.0" Pro-Series Tip
Assembly (16TA3000) or
Hydroformed Tip Assembly
(16SE3006)
• Hardware Kit
(16TA7018)
• (1) Packet Anti-Seize
Lubricant
Tailpipe Assembly
(16AV4005)
Hydroformed Tip
Assembly (16SE3006)
Exhaust System Installation: Cat-Back Exhaust System
2007-08 Avalanche/Suburban/Yukon XL 5.3L GMT900
Single Side Exit
Twin Pro-Series 4.0" Tips / SPORT PN 14246 / TOURING PN 14247
Hydroformed Oval Tip / SPORT PN 14248 / TOURING PN 14249
Recommended Tools:
• Safety Glasses
• 15mm socket and ratchet
• Chain style pipe cutter
• Grommet pullers
Anti-Seize
Lubricant
Hardware Kit
(16TA7018)
Touring Muffler 14661
Sport Muffler 14638
Side Swept Pro-Series 4.0"
Tip Assembly (16TA3000)
• Vehicle Spare tire removal kit
• Soapy water
• Torque wrench
Head Pipe Assembly
(16AV4004)
