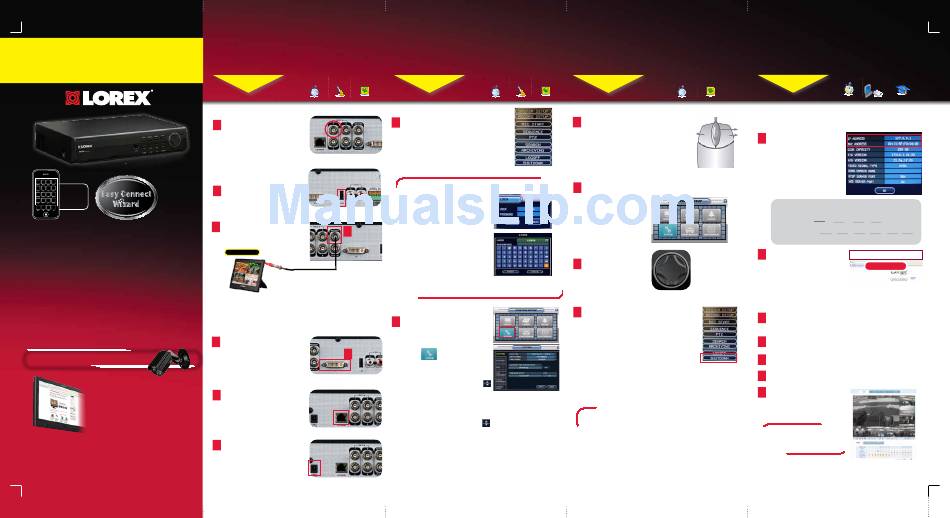

Lorex LH600 Access Series Quick Setup Manual

Quick Setup Guide

LH600 Access Series
Instant
Mobile
Viewing
PACKAGE CONTENTS:
1 x Digital Video Recorder with pre-installed HDD*
1 x Power Adapter
1 x Remote Control
1 x Mouse
1 x Ethernet Cable
1 x DVI to VGA Adapter
1 x User Manual
1 x Quick Start Guide
1 x Software CD
ATTENTION:
• * Number of Channels/ Port configuration and HDD (hard disk drive)
capacity may vary by model. Check your package for specific content
information.
• Monitor and Cameras are not included.
• Broadband Router and Computer are required for local and remote
monitoring (not included).
It's all on the Web
For detailed setup information, please refer to
your included User's Manual. For additional
information, please visit our website
www.lorextechnology.com
* For setup of Instant Mobile Viewing
and MAC Compatibility refer to your
User Manual.
Information in this document is subject to change without notice. As our
products are subject to continuous improvement, Lorex Technology INC. and
our subsidiaries reserve the right to modify product design, specifications
and prices, without notice and without incurring any obligation. E&OE © 2010
LOREX. All rights reserved.
Time

BASIC SYSTEM SETUP

under 15 minutes under 30 minutes under 60 minutes
Time
Hand Tools Hardware
BASIC INSTALLATION GUI DE
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Easy
STEP 1
Skill Level
Hand Tools Hardware Hi Speed
Router
easy Intermediate

Connecting Cameras

Skill Level
(not included)
Connect the BNC cameras to the
1
Intermediate advanced
easy
BNC ports on the rear panel.
NOTE:
Test the cameras prior to
selecting a permanent mounting
location by temporarily connecting
the cameras and cables to your
system.

Connecting the USB Mouse

(not included)
Connect a USB mouse to the
2
USB port on the rear panel of
the system.

Connecting a Monitor

From the Monitor-OUT BNC port
3a
connect a BNC terminated cable 3a
to the RCA OUT of the LCD
monitor (not included).
OPTIONAL
Tip: Adjust the contrast and brightness of your
monitor and the camera(s) color settings to
optimize the image quality.
Connect one end of the monitor's power cable to its power port and the
other end to the power outlet. Press the DISPLAY button at the front
panel of the DVR repeatedly until you reach the desired display mode
(i.e. full screen, quad, auto-sequence).
OR
Connect the included DVI to
3b
VGA adapter to the DVI port at
the back of the DVR. Connect 3b
the VGA/DVI Cable from the LCD
monitor (not included) to the
VGA/DVI adapter.

Connecting the Ethernet Cable

Connect one end of the Ethernet
4
cable (for remote monitoring) to
one of the router's (not included)
LAN ports and the other end to
the DVR's Network Port.

Connecting the Power Cable

Connect the power cable to the
5
DC 12V port on the rear panel of
the system; connect the power
adaptor to an outlet, power strip,
or surge protector. Wait for the
system to boot up into the main
screen.
Time
BASIC SYSTEM SETUP
over 60 minutes under 15 minutes under 30 minutes under 60 minutes
Time
Hi Speed Hand Tools Hardware
BASI C I NSTA L LATIO N GU IDE
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Easy
STEP 1
Skill Level
Hand Tools Hardware Hi Speed
CONTINUED
Router
advanced easy Intermediate
Quick Menu Skill Level
(Mouse option only)
The Quick menu gives you an overview of all
6
Intermediate advanced
easy
the available settings on your DVR.
To open Quick Menu:
1. Right-click anywhere on the screen in
the main viewing window OR
2. Press the MENU button on the front panel.
NOTE: If you are configuring the system, you
cannot open Quick menu.
By default, the system does not require a password to login.
TIP:
It is recommended to change
the default password after the initial
setup is complete.
Default
USER ID : ADMIN
(case sensitive)
PASSWORD: 1234
The Virtual Keyboard
The system automatically opens the
virtual keyboard when you double-
click a blank field, or when you need
to enter system information.
To use the Virtual Keyboard:
1. Click any desired letter, number, or character.
NOTE: Click "A" to shift between upper and lowercase letters.
Setting the Date & Time
1. Right-click anywhere on in the
7
main viewing window to open the
Quick menu.
2. Click SYSTEM SETUP. The System
Setup window opens.
3. Click SYSTEM. The System
window opens.
4. Beside DATE TIME, click on the
time (yyyy/mm/dd; hh/mm/ss)
and adjust the values using the
buttons.
NOTE:
It is highly recommended
OR
to set the time on the system
• Double-click the values to open
prior to doing any recording. All
the number window to input the
recording must be stopped on
values.
the system in order to set the
5. Beside DATE FORMAT, use the time.
button to adjust the date format.
6. Click APPLY to save your settings.
Time
NAVIGATION AND CONTROLS
over 60 minutes under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Hi Speed Hand Tools Hardware Hi Speed
BAS IC IN S TAL LATI O N GU IDE
Router
Time: 20 Minutes Skills - Easy
STEP 2
Skill Level
advanced easy Intermediate advanced
Mouse
Left-Button: While in a split-screen display
1
mode, double-click an individual channel
3
to view it in full-screen; double-click again
1
2
to return to the split-screen display mode.
While navigating menus, click to select a
menu option. Right-Button: Right-click
anywhere on the screen to open the Quick
Menu. Scroll-Wheel: N/A
Main Menu
Right click anywhere on the monitor screen and from the QUICK
2
menu, select SYSTEM SETUP to access the MAIN MENU options.
1. DISPLAY
2. CAMERA
3. SOUND
4. SYSTEM
5. EVENT/SENSOR
6. DISK MANAGE
Direction Pad
Use the direction pad to
3
navigate thrrough the
system menus.

Powering On/Off the System

To power on the system:
4
1. Press the POWER button on the remote
control or front panel. The system powers
on. Wait for the system to boot up into the
main screen. By default, the system
begins recording continuously from any
connected cameras.
To power off the system:
1. Press the POWER button on the front panel
of the system. A confirmation window opens.
2. Click YES to shut down the system. OR
3. Right-click anywhere on the screen. The Quick
Menu opens.
4. Click SHUTDOWN. A confirmation window opens.
5. Click YES to shut down the system.
Congratulations! You have completed STEP 1 & 2 successfully. Your system is now
ready to use. Refer to the owner's manual to learn how to record, search, playback,
and use other advanced features and all other features available with this system.
Time
SET-UP LOCAL VIEWING ON YOUR
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
PC
Hand Tools Hardware
Hi Speed
Time

REMOTE VIEWING INSTALLATION GUIDE

Router
Time: 60 Minutes Hardware Skills - Advanced
STEP 3A
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time
PC/Router
Skill Level
Hand Tools Hardware Hi Speed
ON YOUR PC
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
easy Router Intermediate advanced
This step relates to local viewing over the LAN (local area network) by using
Skill Level
Hand Tools Hardware Hi Speed
a PC and a router located on the same network as that of the System.
Retrieve the System Information Intermediate
easy advanced
Router
1. Right-click in the main Skill Level
1
viewing window to open
the Quick Menu.
easy Intermediate advanced
2. Click SYSTEM SETUP>
tomsmith
SYSTEM>SYSTEM
MANAGEMENT
3. Beside SYSTEM
INFORMATION, click
the PRESS button.
Record the IP and MAC Addresses in the section below:
IP ADDRESS : . . .
MAC ADDRESS : : : : : :
(Required for DDNS registration)
1. Launch Internet Explorer.
2 http://your local IP address
2. In the address bar, enter the
IP address of your System EXAMPLE
recorded in the previous
step.
NOTE: Enter http:// followed by
the IP address of your system,
then a semi-colon, and then
the HTTP Port number (i.e.
http://192.168.X.XXX:80).
Enter in your System's User ID and Password.
3
USER ID: ADMIN, PASSWORD: 1234. The Web Remote Viewer
window opens.
Click the Active X menu bar near the top of the browser. Click Install
4
ActiveX Control.
Click Install when the security window opens.
5
Click the ActiveX toolbar when the main Web Remote Viewer
6
window opens. Click Install ActiveX Control.
Click Install when the security
7
window opens. The Web Remote
Viewer automatically detects and
connects to your system after the
ActiveX plug-in installs.
Congratulations! You have completed 3A
successfully. You can now view,
playback images on your Local
Computer via LAN (local area network).
LOCAL LIVE SITE
LH600 Series Quick Setup Guide - English - R1
