Samsung SGH-X150 Quick Manual

SGH-X150
QUICK GUIDE
This guide explains how to set up your phone
and gives a quick overview of the main functions
of the phone.
Printed in Korea
Code No.: GH68-08379A
World Wide Web
English. 10/2005. Rev.1.0
http://www.samsungmobile.com
Silent Disable all sounds on the phone, when pressed and held in Idle
mode mode. To exit, press and hold this key again.
Display
Your phone is in Standby mode when you are not on a call or using a
menu. You must be in Standby mode to dial a phone number.
Icons
Text and
graphic area
Menu Phonebook Soft key indicators

Using the menus

In Idle mode, press the Menu soft key to enter the main menu.
Labels at the bottom corners of
the display show the current soft
key functions. Press the left soft
key ( ) or right soft key ( )
to perform the function indicated.
To return to the To exit the menu
without changing
previous menu
level, press the the menu
c settings, press
soft key or .
this key.
Use the 4-way navigation keys ( )
as shortcuts to access your favourite menus.
1. In Idle mode, press the Menu soft key.
2. Select Phone settings → Short cut.
3. Select a key.
4. Select a menu to be assigned to the key.

Installing the battery

1. Remove the battery cover, remove the battery and insert the SIM
card.
Battery
cover
2. Install the battery and replace the cover.
Battery
Your phone displays the following status indicators on the top of the
screen:
Icon Description
Received signal strength
Call in progress
Out of your service area; you cannot make or receive calls.
Call diverting feature active
GPRS network
Roaming
New SMS message
New voicemail
Silent mode or the call ringer set to vibrate
Alarm set
Battery power level
To select and modify menu or feature:
1. In Idle mode, press the Menu soft key.
2. Press the Navigation keys to reach the desired menu and then press
the Select soft key or .
3. If the menu contains any submenus, locate the one you want by
pressing the Navigation keys. Press the Select soft key or
the submenu.
If the selected menu contains additional submenus, repeat this step.
4. Press the Navigation keys to find the setting of your choice.
5. Press the Select soft key or to confirm your chosen setting.

Shortcut numbers

You can quickly access the menu you want by using shortcut numbers.
The shortcut number displays in front of the menu name in Menu mode.

Charging the battery

1. Plug the supplied travel adapter.
To AC wall outlet
2. When charging is finished, unplug the adapter.
Note: Do not remove the battery from the phone without unplugging the
adapter first. Otherwise, the phone may be damaged.

Switching on or off the phone

1. Press and hold for more than one second to switch on the phone.
2. To switch off the phone, press and hold
seconds.

Changing the display language

1. In Idle mode, press the Menu soft key.
2. Select Phone settings → Language.
3. Select a language.

Making a call

1. In Idle mode, enter the area code and phone number,
and press .
2. To end the call, press .

Answering a call

1. When the phone rings, press to answer a call.
2. To end the call, press .
Menu map
1. Call records 3. Organiser
1.1 Missed calls
1.2 Received calls
1.3 Dialled calls
1.4 Delete all
1.5 Call time
1.6 Call cost*
to enter
2. Phonebook
4. SIM AT
2.1 Search
2.2 New entry
5. Messages
2.3 Group search
2.4 Edit group
2.5 Speed dial
2.6 Delete all
2.7 Memory status
*
2.8 SDN
* Shows only if supported by your
SIM card.

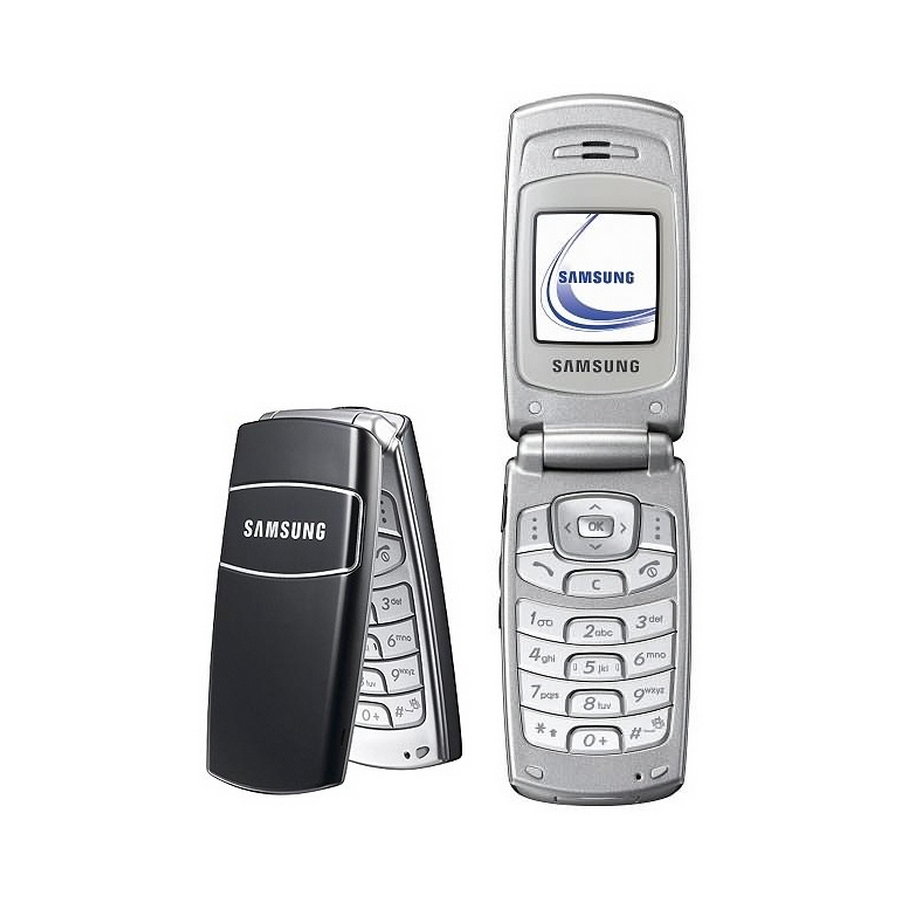

Phone layout and key functions

Menu/Confirm key
In Idle mode, access
Menu mode. Select
the highlighted
option or confirm
input in a menu.
Dial key
Make and answer a
call. In Idle mode,
retrieve the most
recent calls.
Cancel/Clear key
Delete characters from
the display. Return the
display to the previous
menu level.
Alphanumeric keys

Adjusting the volume

1. In Idle mode, press the
for more than two 2. Select Sound settings
3. Press Up or Down to adjust the volume level.
4. Press the OK soft key.
While a call is in progress, press
volume.

Changing a ringtone for calls

1. In Idle mode, press the
2. Select Sound settings
3. Select a ringtone.

Redialling recent numbers

1. In Idle mode, press
2. Press Up or Down to scroll to the number you want.
3. Press to dial the number.
6. Network services
3.1 Alarm 6.1 Call diverting
3.2 Calendar 6.2 Call barring
3.3 Time & Date 6.3 Call waiting
3.4 Calculator 6.4 Network selection
3.5 To do list 6.5 Caller ID
3.6 Voice memo 6.6 Closed user group
3.7 Currency exchange
7. Display settings
7.1 Wallpaper
7.2 Brightness
7.3 Contrast
5.1 Inbox 7.4 Backlight
5.2 Outbox
8. Sound settings
5.3 Write new
8.1 Ring tone
5.4 Templates
5.5 Settings 8.2 Ring volume
8.3 Alert type
5.6 Delete all
8.4 Keypad tone
5.7 Memory status
8.5 Keypad volume
5.8 Voice mail
8.6 Message tone
5.9 Broadcast
8.7 Extra tones
4-way navigation keys
In Menu mode, scroll
through menu options.
In Idle mode, access your
favourite menus directly.
Soft keys
Perform functions
indicated by the text
above the key.
Power/End key
Turn the phone on or
off when pressed and
held. Also end a call.
Silent mode key
Menu soft key.
Ring volume.
→
Up or Down to adjust the earpiece
Menu soft key.
Ring tone.
→
.
9. Phone settings
9.1 Greeting message
9.2 Own number
9.3 Language
9.4 Security
9.5 Extra settings
9.6 Short cut
9.7 Reset settings
