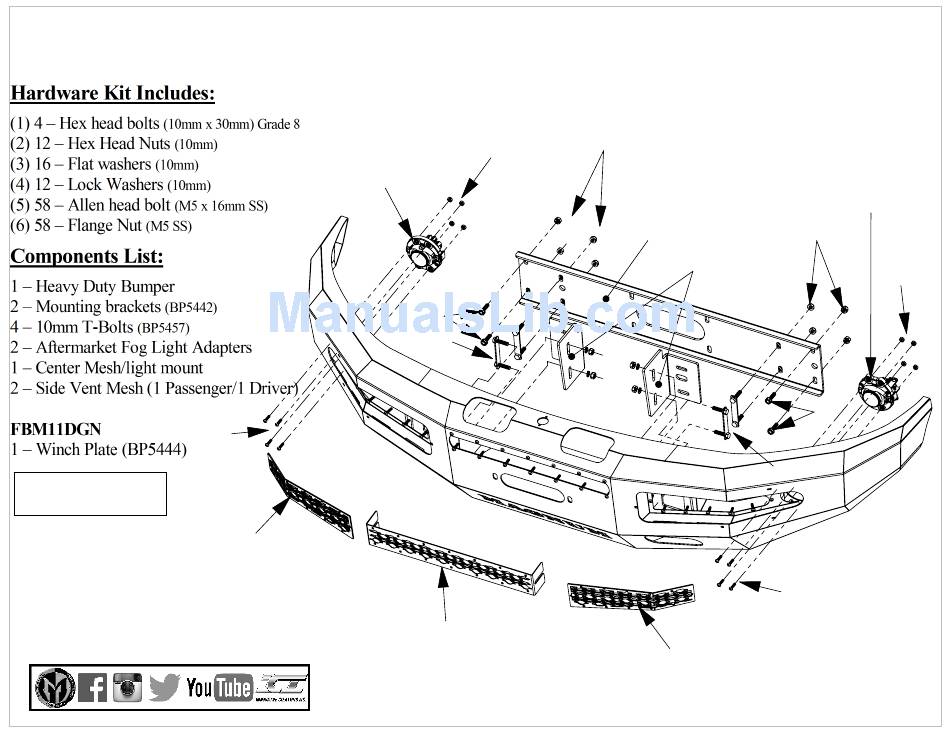

Heavy Duty Front Bumper Installation
2015-2017 Ram Rebel
FBM10DGN (NON WINCH) FBM11DGN (WINCH)
LOOSE FIT ALL COMPONENTS.
DO NOT TIGHTEN UNTIL ALL
COMPONENTS ARE INSTALLED
AND ADJUSTED.
SIDE MESH
PASSENGER
OE FOG LIGHT
5
Visit the ICI Website for other exciting accessories for your vehicle. www.magnumtruckgear.com
6
1
BP5457
CENTER MESH
FBM10/11DGN
2,3,4
OE FOG LIGHT
WINCH PLATE
2,3,4
MOUNTING
BRACKETS
BP5457
5
SIDE MESH
DRIVER
5/19/17
6
1
Advertisement
Table of Contents
Related Manuals for ICI Magnum FBM10DGN
Summary of Contents for ICI Magnum FBM10DGN
- Page 1 WINCH PLATE 2,3,4 MOUNTING BRACKETS BP5457 BP5457 LOOSE FIT ALL COMPONENTS. DO NOT TIGHTEN UNTIL ALL COMPONENTS ARE INSTALLED AND ADJUSTED. SIDE MESH PASSENGER CENTER MESH SIDE MESH DRIVER Visit the ICI Website for other exciting accessories for your vehicle. www.magnumtruckgear.com...
- Page 2 Aftermarket Fog Light Adapter OPTIONAL AFTERMARKET STUD MOUNT FOG LIGHT ADAPTER LOOSE FIT ALL COMPONENTS. DO NOT TIGHTEN UNTIL ALL COMPONENTS ARE INSTALLED AND ADJUSTED. A (1 : 5) Visit the ICI Website for other exciting accessories for your vehicle. www.magnumtruckgear.com...
