Mobotix DoorMaster MX-Door2-INT Quick Install

Quick Install
MOBOTIX MX-DoorMaster
MX-Door2-INT
includes 2 additional frames
(concave, angular), cavity wall socket
and mounting supply
• Open door, doorbell off/on, change sound
• Door indicator (open, closed, locked)
• Status LEDs for signaling
• Backup power supply with rechargeable battery
• Connection for door opener, door sensor and door lock
sensor

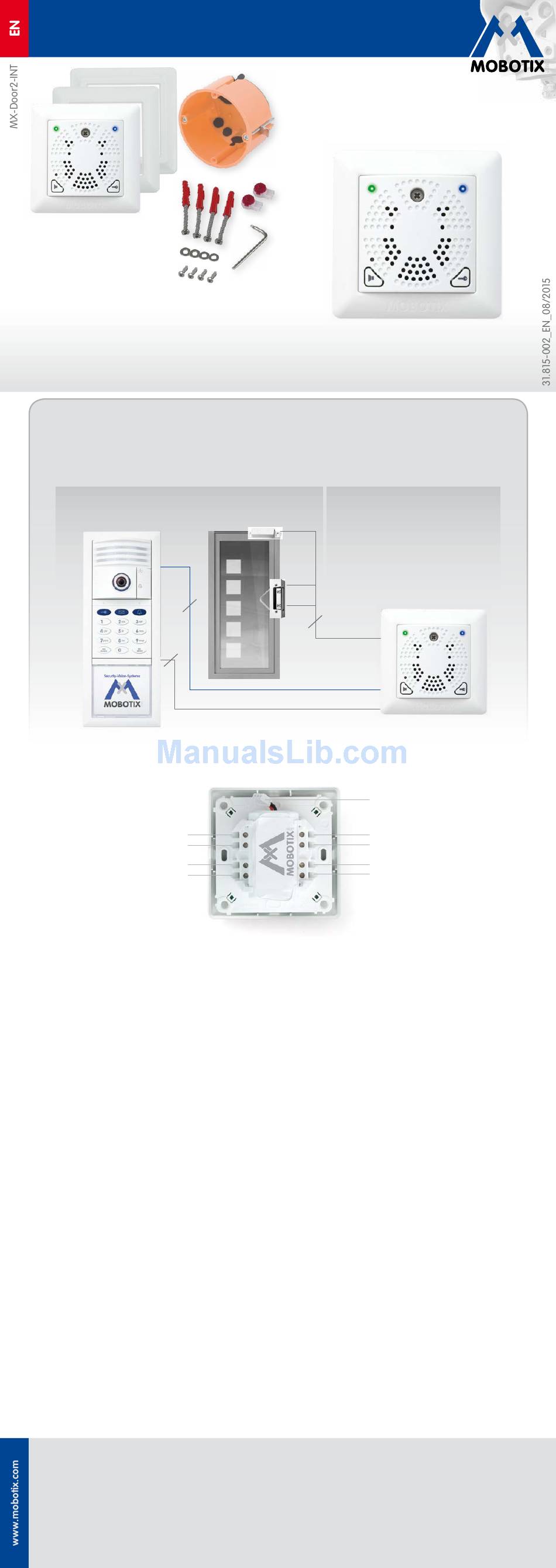

Standard Connection:
IP Video Door Station, Door Opener and Door Sensors
IP Video Door Station
see the IP Video Door Station System Manual Part 1 on www.mobotix.com > Supprt > Manuals.
Theft protection
Door opener
MxBus +
MxBus –

Installing the MX-DoorMaster

Installing the module follows the procedure described in the IP Video Door Station System Manual Part 1, in Section
2.5, "Installing the MX-DoorMaster" . Please also refer to this section to get more information on connection variants
(e.g. relay or Mediator operation).

Charging the Battery Pack after Installing

Once you have installed the module, you need to charge the MX-DoorMaster's battery pack without interruption
for at least 12 hours. The IP Video Door Station and its PoE power supply automatically charge the module via
the MxBus two-wire connection. Note that you should not use the door opener MX-DoorMaster during this time
(except for a short functional test). This ensures that you can extend the life cycle of the high-quality NiMH battery
pack (heavy-duty industrial grade) to several years (given normal usage).

Supported Door Openers

Standard door openers with 6 to 12 V AC (min. 16 Ω internal resistance) can be attached directly to the MX-DoorMaster;
such a door opener is powered by the integrated battery pack. In this case, you do not need an additional power
supply for the door opener. As an alternative, you can also connect door openers with up to 24 V AC/DC (max. 1 A)
using an external power supply (relay operation) or a self-locking door lock ("Mediator"; see IP Video Door Station
System Manual Part 1, Section 2.5, "Installing the MX-DoorMaster" ).

Replacing the Battery Pack

First, dismount the MX-DoorMaster (see the IP Video Door Station System Manual Part 1 , Section 2.4.6, "Removing
and Exchanging Modules" ). Next, replace the battery pack and install the MX-DoorMaster again (see Section 2.5.4,
"Installation Using Cavity or In-Wall Socket" ).

Replacing the MX-DoorMaster

If the MX-DoorMaster needs to be replaced against all expectations, you need a current backup of the system
configuration. This will ensure that you can restore the encryption data later on. Please follow the steps outlined in
the IP Video Door Station System Manual Part 2 in Section 5.2, "Backup & Restore" . To dismount the MX-DoorMaster,
follow the steps in the IP Video Door Station System Manual Part 1 in Section 2.4.6, "Removing and Exchanging
Modules" .
Innovations – Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its
decentralized concept has made high-resolution video systems cost-efficient.
MOBOTIX AG • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
Outdoor
Door
2
2
MxBus (YSTY 0.8 mm – max. length: 50 m)
Theft protection (YSTY 0.8 mm – max. length: 50 m)
For additional information on the other connection variants and for installing,
OUT 1+
OUT 2+
BUS +
BUS –
MX-DoorMaster
Security-Vision-Systems
Security Door Opener with
Access Code Storage
Controls door openers via encrypted MxBus
communication and provides a doorbell for indoor
installation (includes backup power supply for
bell features and door opener)
MX-DoorMaster with
Door opener, door sensor, lock sensor
(YSTY 0.8 mm – max. length: 50 m)
6
Connector for battery pack
MX-Door1-BAT
OUT –
IN –
IN 2+
IN 1+
Indoor
MX-DoorMaster
MX-Door2-INT
Theft protection /
Door opener
Door sensor /
Door lock sensor
Door lock sensor
Door switch
