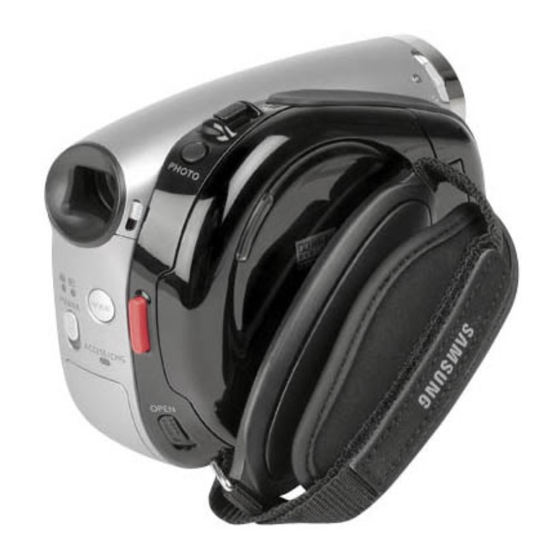

Page 1: Dvd Camcorder
DVD Camcorder user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register VP-DX100 VP-DX100H VP-DX102 VP-DX103 VP-DX104 VP-DX105...
Page 2 Capture visions farther than the eye can see (34X optical/1200X digital zoom) Samsung’s powerful optical zoom lenses bring the world closer without sacrificing image quality. In addition, digital zoom interpolation means that extreme digital zooming is clearer, with less distortion than previous types of digital zooms.
Page 3: Safety Warnings
safety warnings What the icons and signs in this user manual mean: Means that death or serious personal injury is a risk. WARNING Means that there is a potential risk for personal injury or material damage. CAUTION To reduce the risk of fire, explosion, electric shock, or personal injury when using your camcorder, follow these basic safety precautions: CAUTION Means hints or referential pages that may be helpful when operating the camcorder.
Page 4: Important Information On Use
• The recorded contents cannot be compensated for: - Samsung cannot compensate for any damage caused when a recording cannot be played back because of a defect in the DVD camcorder or memory card. Samsung cannot be responsible for your recorded video and audio.
Page 5: Notes Regarding A Trademark
• All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders. • Windows® is registered trademark or trademark of Microsoft Corporation, registered in the United States and other countries.
Page 6: Precautions When Using
precautions when using IMPORTANT NOTE • Handle the liquid crystal display (LCD) with care: The LCD is a very delicate display device: Do not press its surface with force, hit it or prick it with a sharp object. If you push the LCD surface, unevenness in display may occur. If unevenness does not disappear, turn the camcorder off, wait for a few moments, then turn it on again.
Page 7 • Do not use the DVD camcorder near strong radio waves or magnetism: If the DVD camcorder is used near strong radio waves or magnetism, such as near a radio transmitter or electric appliances, noise could enter video and audio that are being recorded. During playback of normally recorded video and audio, noise may also be present in picture and sound.
Page 8: Table Of Contents
contents INTRODUCTION TO BASIC FEATURES GETTING TO KNOW YOUR DVD CAMCORDER PREPARATION DVD CAMCORDER MODE: BEFORE RECORDING 02_ English What is included with your DVD camcorder Front and right view Left side and bottom view Rear and top view Remote control (VP-DX102/DX104/DX105(i) only) Installing the button-type battery Holding the DVD camcorder Charging the battery pack...
Page 9 DVD CAMCORDER MODE: RECORDING/PLAYBACK DVD CAMCORDER MODE: EDITING MOVIE IMAGE DVD CAMCORDER MODE: DISC MANAGE Recording movie images Recording with ease for beginners (EASY.Q mode) Capturing still images during movie image playback (VP-DX103( i )/DX104/DX105( i ) only) Zooming Playing movie images Deleting images Deleting a section of a movie image (partial delete) Playlist...
Page 10 contents DIGITAL CAMERA MODE (VP-DX103( i )/DX104/DX105( i ) ONLY) USING THE MENU ITEMS PRINTING PHOTO IMAGES (VP-DX103( i )/DX104/DX105( i ) ONLY) 04_ English Inserting and ejecting a memory card Recordable time and number of images Recording movie images Taking photo images Playing movie images Viewing photo images...
Page 11 CONNECTING TO AV DEVICES CONNECTING TO A PC (VP-DX103( i )/DX104/DX105( i ) ONLY) MAINTENANCE & ADDITIONAL INFORMATION TROUBLESHOOTING SPECIFICATIONS POWER SOURCES (UNITED KINGDOM ONLY) Connecting to a TV Dubbing images on a VCR or DVD/HDD recorder Using the voice plus Recording (copying) a TV programme or external con- tents onto a disc (VP-DX100i/DX103i/DX105i only) System requirements...
Page 12 introduction to basic features This chapter introduces the basic features of your DVD camcorder. See the reference pages below for more information. Step 1 : Preparation • Charging the battery pack page 18 • Setting OSD language and the date/time pages 28-29 •...
Page 13 Step 2 : Recording • Recording the movie images pages 33~37, 56 • Taking the photo images (VP-DX103( i )/DX104/DX105( i ) only) page 57 Step 3: Playing back / Editing • Selecting an image to play back from the thumbnail index views •...
Page 14 introduction to basic features The function of the finalised disc depends on the disc type. Finalised DVD -R Finalised DVD +R Finalised VIDEO DVD -RW Finalised DVD +RW • You cannot use the following discs. 5 inch (12cm) CD/DVD discs CD/CD-R/CD-RW/DVD-ROM/DVD+R (Single Layer)/DVD-RAM/DVD-R (Dual Layer), Floppy Disk, MO, MD, iD, •...
Page 15: Getting To Know Your Dvd Camcorder
DX105(i) only)  The contents may vary depending on the sales region.  Parts and accessories are available at your local Samsung dealer.  A memory card is not included. See pages 52~53 for memory cards compatible with your DVD camcorder.
Page 16 getting to know your DVD camcorder FRONT AND RIGHT VIEW Lens open/close switch Lens Remote sensor (VP-DX102/DX104/DX105( i ) only) Light (VP-DX102/DX105( i ) only) Internal microphone 10_ English CLOSE OPEN �� Grip belt hook Grip belt Swivel handle Disc cover...
Page 17 LEFT AND BOTTOM VIEW Display ( ) button EASY Q button Built-in speaker FINALIZE button BATT. (battery release) switch Storage mode switch (DISC/CARD) (VP-DX103( i )/DX104/DX105( i ) only) Battery pack LCD screen Recording start/stop button Joystick (up/down/right/left/Select, W/T) MENU button Tripod receptacle Memory card slot (VP-DX103( i )/DX104/DX105( i ) only) English _11...
Page 18: Rear And Top View
getting to know your DVD camcorder REAR AND TOP VIEW Viewfinder Zoom (W/T) lever/ Volume control PHOTO button (VP-DX103( i )/DX104/DX105( i ) only) Focus adjustment knob MODE button / Mode indicator (Record ( )/Play ( ) mode) Recording start/stop button ACCESS/CHG indicator 12_ English OPEN switch...
Page 19 preparation This section provides information on using this DVD camcorder; such as how to use the provided accessories, how to charge the battery, how to setup the operation mode and initial setup. REMOTE CONTROL (VP-DX102/DX104/DX105( i ) only) START/STOP button DISPLAY button Skip ( ) button...
Page 20: Installing The Button-Type Battery
preparation INSTALLING THE BUTTON-TYPE BATTERY Installation for the internal clock (battery release) switch 1. Open the LCD screen, then slide the BATT. (battery release) switch in the arrow direction to remove the battery pack. 2. Remove the battery cover. 3. Replace the button-type battery then place the battery cover back. - Position the button type battery with the positive (+) terminal face out in the button type battery slot.
Page 21: Holding The Dvd Camcorder
HOLDING THE DVD CAMCORDER Attaching a grip belt Insert your right hand from the bottom of the DVD camcorder up to the base of your thumb. Put your hand in a position where you can easily operate the Recording start/stop button, PHOTO button, and the Zoom lever.
Page 22: Charging The Battery Pack
 It is recommended that you purchase one or more additional battery packs to allow continuous use of your DVD camcorder.  Additional battery packs are available at your local Samsung dealer.  If the DVD camcorder will not be in use for a while, remove the battery from the DVD camcorder.
Page 23 • We recommend only using the original battery pack that is available from your Samsung retailer. When the battery reaches the end of its life, please contact your local dealer. The batteries have to be treated as chemical waste.
Page 24: Charging Indicator
preparation Charging the battery pack • Use IA-BP80W battery pack only. • The battery pack may be charged a little at the time of purchase. 1. Slide the POWER switch downwards to turn off the power. 2. Open the LCD screen and attach the battery pack to the DVD camcorder.
Page 25 - The time above is based on Fine mode. It may differ depending on Super Fine or Normal mode. - The time is only for reference. Figures shown above are measured under Samsung’s test environment, and may differ from your actual use.
Page 26  The AC power adaptor can be used around the world. An AC plug adaptor is required in some foreign countries. If you need one, purchase it at your local Samsung dealer. • Before detaching the power source, make sure that the DVD camcorder’s power is turned off.
Page 27: Basic Dvd Camcorder Operation
BASIC DVD CAMCORDER OPERATION Turning the DVD camcorder on and off You can turn the camcorder on or off by sliding the POWER switch down. Selecting the operating modes • Set the operation mode by adjusting the Storage mode switch (VP-DX103( i )/DX104/ DX105( i ) only) and MODE button before recording or operating any functions.
Page 28: Screen Indicators
preparation SCREEN INDICATORS STBY 0:00:00 [30 min] Insert Disc 1/50 01/JAN/2008 00:00 • This OSD indicators are based on DVD-RW disc. • The above screen is an example for explanation: It is different from the actual display. • Functions marked with * will not be retained when the DVD camcorder is powered on after turning it off.
Page 29 DVD camcorder play mode Movie play mode Operating status (Play/Pause) 0:00:59 Warning indicators and messages Time code (elapsed time) Storage media (disc) Battery info (remaining battery level) Disc Format (-RW Video/VR mode only) Activate Remote Control Quality AV In (VP-DX100i/DX103i/DX105i only) Voice plus 01/JAN/2008 00:00 Movie No.
Page 30 preparation STBY 0:00:00 [64 min] Insert Card 01/JAN/2008 00:00 The digital camera mode is only for the models (VP-DX103( i ) /DX104/DX105( i ) ). 24_ English Digital camera record mode Record mode Operating mode (STBY (standby) or ●(recording)) Warning indicators and messages Time counter (movie recording time) 4830 Remaining time...
Page 31 0:00:03 Activate Remote Control Activate Remote Control Activate Remote Control Activate Remote Control 01/JAN/2008 00:00 100-0002 Activate Remote Control Activate Remote Control Activate Remote Control Activate Remote Control 01/JAN/2008 00:00 100-0002 Digital camera play mode (Video) Video play mode Operating status (Play/Pause) Time code (elapsed time) Warning indicators and messages Storage media (memory card)
Page 33: Using The Lcd Screen
USING THE LCD SCREEN Adjusting the LCD screen 1. Open up the LCD screen 90° with your finger. 2. Rotate it to the best angle to record or play. Do not lift the DVD camcorder by holding the LCD screen. WARNING •...
Page 34: Initial Setting: Osd Language & Date And Time
preparation INITIAL SETTING: OSD LANGUAGE & DATE AND TIME • Initial setting is available in all operating modes. page 21 • To read the menus or messages in your desired language, set the OSD language. To store the date and time during record, set the date/time. •...
Page 35: Setting The Date And Time
Setting the date and time Set the date and time when using this DVD camcorder for the first time. The recording date/time is recorded on the movie/photo(VP-DX103( i )/DX104/DX105( i ) only) images. 1. Press the MENU button. • The menu will appear. 2.
Page 36: Inserting And Removing A Disc
DVD camcorder mode: before recording SELECTING THE STORAGE MEDIA (VP-DX103( i )/DX104/DX105( i ) only) You can record movie and photo images on the desired storage media (a DVD disc or a memory card) so you should select the desired storage media before starting recording or playback. Note that photo images cannot be recorded onto a DVD disc.
Page 37 • Move the grip belt so it does not interfere with inserting or ejecting the disc. • The disc cover can be opened when the device is connected to an AC power adaptor or the battery pack, even if the power is off. Caution This product utilises a laser.
Page 38: Recordable Time
Actual formatted capacity may be less as the internal firmware uses a portion of the memory. • The above figures are measured under Samsung’s standard recording test conditions and may differ depending on actual use. • The DVD camcorder provides three quality options for movie recordings: “Super Fine,” “Fine” and “Normal.”...
Page 39: Recording Movie Images
DVD camcorder mode: recording/playback RECORDING MOVIE IMAGES • You should set the Storage mode switch to DISC before recording on a disc. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • You can record movie images using the remote control. (VP-DX102/DX104/DX105( i ) only) page 13 •...
Page 40 DVD camcorder mode: recording/playback • The recorded movie image size is 720X576. • Eject the battery pack when you have finished recording to prevent unnecessary battery power consumption. • For on-screen information display, see page 22. • For approximate recording time, see page 32. •...
Page 41 RECORDING WITH EASE FOR BEGINNERS (EASY.Q MODE) • With the EASY.Q function, most of the DVD camcorder settings are automatically adjusted, which relieves you of detailed adjustments. 1. Slide the POWER switch downwards to turn on the power. • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) ...
Page 42 DVD camcorder mode: recording/playback CAPTURING STILL IMAGES DURING MOVIE IMAGE PLAYBACK(VP-DX103 • This function works only in the Play mode. page 21 • If you press the PHOTO button during playback, it stops playing and saves one image of the current movie scene that is paused to the memory card. 1.
Page 43 ZOOMING Use the zoom function for close-up or wide-angle recording. This DVD camcorder allows you to record using optical 34x power zoom and 1200x digital zoom. • Zoom lever is on the top of the camcorder. • You can also use zoom function by moving the Joystick (W/T) up or down. To zoom in Slide the zoom lever towards T (telephoto).
Page 44: Playing Movie Images
DVD camcorder mode: recording/playback PLAYING MOVIE IMAGES • This function works only in the Play mode. page 21 • You can switch to the Play mode by using the MODE button. • You can find a desired movie image quickly using thumbnail index views. •...
Page 45: Adjusting The Volume
Adjusting the volume • You can control the volume by using the zoom lever during playback. • You can hear the recorded sound from the built-in speaker. • The level can be adjusted anywhere between 0 and 19. If you close the LCD screen while playing, you will not hear the sound from the speaker. Various playback operations Playback / Pause / Stop •...
Page 46: Deleting Images
DVD camcorder mode: editing movie image DELETING IMAGES • This function works only in the Play mode. • You can delete undesired movie images recorded on the disc. • This function works only on a DVD-RW disc(VR mode). • An image that has been deleted cannot be recovered. 1.
Page 47 DELETING A SECTION OF A MOVIE IMAGE (PARTIAL DELETE) • This function works only in the Play mode. page 21 • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • A movie image can be partially deleted. 1.
Page 48 DVD camcorder mode: editing movie image PLAYLIST What’s a Playlist? • You can create a playlist on the same disc by gathering your favourite scenes from the recorded movie images. When creating or deleting a playlist, the original movie image will not be erased. Adding or deleting movie images from a playlist does not affect the original movie images.
Page 49: Creating A Playlist
Creating a playlist • This function works only in Play mode. • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • You can create a playlist by gathering your favourites from the recorded movie images. •...
Page 50 DVD camcorder mode: editing movie image Arranging the order of movie images within a playlist • This function works only in Play mode. • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • You can arrange movie images within a playlist by moving them to desired position. 1.
Page 51 Deleting movie images from a playlist • This function works only in Play mode. • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • You can delete undesired movie images within a playlist. 1.
Page 52 DVD camcorder mode: editing movie image Deleting a section of movie image within a playlist • This function works only in Play mode. • Set the Storage mode switch to DISC. (VP-DX103( i )/DX104/DX105( i ) only) page 30 • You can delete a section of a movie image within a playlist. 1.
Page 53: Disc Manage
DVD camcorder mode: disc manage DISC FINALISE • This function works only in the Record mode page 21 • To play the contents of a DVD-RW/-R/+R DL on other DVD players/recorders/drives, you must finalise the disc. When finalising, there should be enough power in the batteries. If the AC power adaptor is to be used, make sure that the jack is properly connected.
Page 54 DVD camcorder mode: disc manage Playing back on a PC with a DVD drive The DVD disc can be played on a PC with a DVD-running media (DVD drive). 1. Turn on your PC. 2. Insert a finalised disc into the DVD drive of the PC. •...
Page 55: Disc Unfinalise
DISC UNFINALISE • This function works only in the Record mode. page 21 • If a DVD-RW disc had been finalised in the VR mode or Video mode, you can unfinalise the disc for further recording. When unfinalising, there should be enough power in the batteries. If the AC power adaptor is to be used, make sure that the jack is properly connected.
Page 56: Disc Format
DVD camcorder mode: disc manage DISC FORMAT • This function works only in the Record mode. page 21 • You can format a recorded disc for re-use. By formatting, all existing data will be deleted. 1. Slide the POWER switch downwards to turn on the power. page 21 2.
Page 57 DISC INFORMATION • This function works only in the DVD camcorder record mode. page 21 • It shows you disc information such as the disc name, disc type, disc format, etc. NOTICE : Make sure that you insert a disc. page 30 1.
Page 58: Inserting And Ejecting A Memory Card
digital camera mode INSERTING AND EJECTING A MEMORY CARD • This DVD camcorder has multi card-slot for access to SD (Secure Digital) and MMC (MultiMediaCard) cards. - Some cards are not compatible depending on the memory card manufacturer and memory card type. Inserting a memory card 1.
Page 59 SD memory card • SD memory card supports a mechanical write-protection switch. Setting the switch prevents accidental erasure of files recorded on the card. To enable writing, move the switch up to the direction of terminals. To set write protection, move the switch down. MMC(Multi Media Card) •...
Page 60 Note on use • Samsung is not responsible for data loss due to misuse. • We recommend using a memory card case to avoid losing data from moving and static electricity. • After a period of use, the memory card may become warm. This is normal, not a malfunction.
Page 61: Recordable Time And Number Of Images
Approx. 600 Actual formatted capacity may be less as the internal firmware uses a portion of the memory. • The above figures are measured under Samsung’s standard recording test conditions and may differ depending on actual use. • The DVD camcorder provides only super fine for photo quality.
Page 62 digital camera mode RECORDING MOVIE IMAGES • You should set the Storage mode switch to CARD before recording on a memory card. • You can record movie images using the remote control. (VP-DX104/DX105( i ) only) page 13 • This DVD camcorder provides two Recording start/stop buttons. One is on the rear side of the camcorder and the other is on the LCD panel.
Page 63: Taking Photo Images
TAKING PHOTO IMAGES • You should set the Storage mode switch to CARD before recording on a memory card. • You can take photo images using the remote control. page 13 (VP-DX104/DX105( i ) only) 1. Slide the POWER switch downwards to turn the DVD camcorder on. •...
Page 64 digital camera mode PLAYING MOVIE IMAGES • This function works only in the Play mode. page 21 • You can switch to the Play mode by pressing the MODE button. • You can find a desired movie image quickly using thumbnail index views. •...
Page 65: Viewing Photo Images
VIEWING PHOTO IMAGES • This function works only in the Play mode. page 21 • You can play back and view photo images recorded on the memory card. 1. Slide the POWER switch downwards to turn on the power and open the LCD screen. •...
Page 66: Protection From Accidental Erasure
digital camera mode PROTECTION FROM ACCIDENTAL ERASURE • This function works only in the Play mode. page 21 • You can protect important images from accidental erasure. • If you execute formatting, all files including protected files will be erased. 1.
Page 67 DELETING IMAGES • This function works only in the Play mode. • You can delete undesired movie images recorded on the memory card. • If you want to delete the protected images, you must first release the image protection. • An image that has been deleted cannot be recovered. 1.
Page 68: Using The Joystick
using the menu items HANDLING MENUS ✪ Follow the instruction below to use each of the menu items listed on this page. For example: setting the Focus Using the MENU button 1. Slide the POWER switch downwards to turn on the power. •...
Page 69: Menu Items
MENU ITEMS • Accessible items in menu vary depending on the operating mode. • For operation details, see the corresponding page. Recording menu items Operating mode DISC Scene Mode(AE)  White Balance  Exposure  Anti-Shake(DIS)  Digital Effect  Focus ...
Page 70: Card
using the menu items Playback menu items Operating mode Delete Edit Partial Delete Protect Card Manage Print Mark(DPOF) Slide Show (in the single image display) Setting menu items Operating mode Date/Time Set Date/Time LCD Brightness LCD Colour Beep Sound Shutter Sound (VP-DX103( i )/DX104/ DX105( i ) only) Auto Power Off Remote (VP-DX102/DX104/DX105( i ) only)
Page 71: Scene Mode(Ae)  X Auto
RECORDING MENU ITEMS You can set up the menu items for recording. Scene Mode(AE) This DVD camcorder automatically sets the shutter speed and aperture according to the subject brightness for optimum recording: You can also specify one of six modes depending on conditions, recording environment or purpose of filming. Settings Auto balance between the subject and the background.
Page 72: White Balance   Auto
using the menu items White Balance This DVD camcorder automatically adjusts the colour of subject. Change the white balance setting depending on the recording conditions. Settings Auto This option is generally used to control the white balance automatically. This controls the white balance according to the outdoor ambience, especially for close up and Daylight when the subject is of one dominant colour.
Page 73: Exposure   Auto
• A subject can be shot under various types of lighting conditions indoors (natural, fluorescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result. •...
Page 74: Anti-Shake(Dis)  X Off
using the menu items Manual exposure is recommended in situations listed below: • When shooting using reverse lighting or when the background is too bright. • When shooting on a reflective natural background such as at the beach or when skiing. •...
Page 75: Digital Effect  X Off
Digital Effect The digital effect enables you to give a creative look to your recording. Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create. There are 10 different digital effect options. Settings Disables the function.
Page 76: Focus   Auto
using the menu items Focus The DVD camcorder usually focusses on a subject automatically (auto focus). When the DVD camcorder is turned on, auto focus will always be set. You can also manually focus a subject depending on the recording conditions. Settings In most situations, it is better to use the automatic focus feature, as it enables Auto...
Page 77: Shutter  X Auto
• “Focus” function will alternate between manual focus and auto focus. With auto focus, no indication will appear on the screen. • If you are inexperienced in the use of DVD camcorders, we recommend that you use auto focus. • This function will be set to “Auto”...
Page 78: 16:9 Wide  X On
using the menu items • We recommend using a tripod when recording with a slow shutter speed. • If you manually change the shutter speed value when “Scene Mode(AE)” function is selected, manual changes are applied with priority. • The image may not seem smooth when a high speed is set. •...
Page 79: Wind Cut  X Off
Wind Cut You can reduce wind noise when recording sound from the built-in microphone. If “Wind Cut” is set to “On,” the low-frequency components in the sound picked up by the microphone will be cut off during recording: this makes it easier to hear voices and sound during playback. •...
Page 80: Nite  X Off
using the menu items C. Nite You can make the subject recorded appear to be in slow motion by controlling the shutter speed, or a brighter image in dark places without a compromise in colours. Settings Disables the function. 1/25 Records a brighter image brighter.
Page 81: Fader  X Off
Fader You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence. Settings Contents Disables the function. Fader is executed. Fade in Press the Recording start/stop button when “Fader”...
Page 82: Digital Zoom  X Off
using the menu items Digital Zoom You can select the maximum zoom level in case you want to zoom to a level greater than 34x (the default setting) during recording. Zooming more than 34x is achieved digitally, up to 1200x when combined with optical zoom. This right side of the bar shows the digital zooming factor.
Page 83: File No
File No. (VP-DX103( i )/DX104/DX105( i ) only) • File numbers are assigned to photo images in the order they were recorded. Settings Assigns file numbers in sequence even if the memory card is replaced with Series another one or after formatting, or after deleting all files. The file number is reset when a new folder is created.
Page 84: Playback Menu Item
using the menu items PLAYBACK MENU ITEM Card Manage (VP-DX103( i )/DX104/DX105( i ) only) • You can manage a memory card for recording in the digital camera mode. Settings Format Delete all files and options on the memory card including protected files. Card Info Shows the card information such as used space, free space.
Page 85: Lcd Brightness
Date/Time You can set the date and time to display on the LCD screen. • Before you use the “Date/Time” function, you must set the date and time. page 29 Settings Current date and time information is not displayed. Date Displays the current date.
Page 86: Beep Sound
using the menu items Beep Sound You can turn the beep sound on or off. Settings Cancels the beep sound. When on, a beep will sound every time a button is pressed. • The beep sound is off while recording movies. •...
Page 87: Remote (Vp-Dx102/Dx104/Dx105( I ) Only)
Remote (VP-DX102/DX104/DX105( i ) only) This function allows you to enable or disable the remote control for use with the DVD camcorder. Settings Disables the function. - The ( ) indicator appears when you use the remote control. You can control the DVD camcorder with the remote control. TV Display The TV Display function works in recording and play modes.
Page 88: Default Set
using the menu items Default Set You can initialise the DVD camcorder settings to the factory defaults. Initialising the DVD camcorder settings to the factory defaults does not affect recorded images. Menu Colour You can select the desired menu colour to display the menu. “Midnight Blue”...
Page 89: Dpof Print Setting
printing photo images You can print photo images by inserting the DPOF setting card to the DPOF-compatible printer or connecting the DVD camcorder to the PictBridge printer. DPOF PRINT SETTING • This function works only in the Play mode. page 21 •...
Page 90: Direct Printing With A Pictbridge
printing photo images DIRECT PRINTING WITH A PICTBRIDGE • If your printer is compatible with PictBridge, photo images can be printed easily by connecting the camcorder to the printer directly with the USB cable. DPOF cannot be set while PictBridge in use. page 83 NOTICE: After selecting “PictBridge”...
Page 91 Setting the date/time imprint option Move the Joystick right or left to select “Date/Time,” then move the Joystick up or down to select the desired option. To exit, press the MENU button. To print using the DPOF setting If the printer is compatible with DPOF, you can use the DPOF setting. •...
Page 92: Connecting To Av Devices
connecting to AV devices You can view the recorded movie and photo images(VP-DX103( i )/DX104/DX105( i ) only) on a large screen by connecting the DVD camcorder to a TV. CONNECTING TO A TV • To play back your recordings, the television must be PAL compatible. page 103 •...
Page 93 • Adjust the sound volume on TV. • The remote control is useful when operating the DVD camcorder while viewing an image on TV screen. (VP-DX102/DX104/DX105( i ) only) • If only a mono audio input is available on the connected device (TV, etc.), use the audio cable with the white jack (Audio L).
Page 94: Dubbing Images On A Vcr Or Dvd/Hdd Recorder
connecting to AV devices DUBBING IMAGES ON A VCR OR DVD/HDD RECORDER You can dub images played back on this DVD camcorder onto other video devices, such as VCRs or DVD/HDD recorders. Use the provided AV cable to connect the DVD camcorder to another video device as shown in the following figure: 1.
Page 95: Using The Voice Plus
USING THE VOICE PLUS • The Voice Plus function works only in the DVD camcorder play mode. page 38 • This function enables you to narrate over a pre-recorded disc via the DVD camcorder’s microphone. • When you want to copy a DVD onto other AV devices (DVD recorder, VCR), you can dub your voice sound incoming from the internal microphone of your DVD camcorder to an AV device, instead of copying the audio signals on a pre-recorded disc.
Page 96 connecting to AV devices RECORDING (COPYING) A TV PROGRAMME OR EXTERNAL CONTENTS ONTO A DISC (VP-DX100i/DX103i/DX105i ONLY) • The Recording (Copying) function works only in the DVD camcorder play mode. page 21 • Connect your DVD camcorder to a VCR or a TV using the AV jack to record a TV programme or copy a video tape to a disc.
Page 97: System Requirements
connecting to a PC This chapter explains how to connect the camcorder to a PC using the USB cable for various functions. ✪ When connecting a USB cable to a PC, refer to the software installation instructions and PC specifications below. SYSTEM REQUIREMENTS DV Media PRO Following requirements must be satisfied to use DV Media PRO.
Page 98: Installing Dv Media Pro
connecting to a PC INSTALLING DV Media PRO When you install the DV Media PRO software on your Windows computer, you can enjoy the following operations by connecting your DVD camcorder to your computer via a USB cable. - View Movie Recordings and Photos on PC: DV Driver, DirectX9.0, Video Codec - PC cam/USB streaming function: DV Driver, DirectX9.0, Video Codec Before your start! •...
Page 99 Application Installation – Quick Time 1. Click “Quick Time” on the Setup screen. • QuickTime is Apple’s technology for handling movie, sound, animation, graphics, text, music, and even 360-degree virtual reality (VR) scenes. • Please install by using the Software CD that came with this DVD camcorder.
Page 100: Connecting The Usb Cable
connecting to a PC CONNECTING THE USB CABLE To copy the movie files and photo files to your PC, connect your DVD camcorder to the PC with a USB cable. 1. Set the “USB Connect” to “Mass Storage.” page 81 2.
Page 101: Viewing The Contents Of Storage Media
VIEWING THE CONTENTS OF STORAGE MEDIA • You can transfer or copy the files saved on the memory card into PC using USB cable. 1. Slide the POWER switch downwards to turn on the power, then set the Storage mode switch to CARD. pages 21, 30 •...
Page 102: Image Format
connecting to a PC Structure of folders and files on the storage media • The folder and file structure for the memory card is as follows: • Do not arbitrarily change or remove the folder or file name. It may not be playable. •...
Page 103: Transferring Files From The Dvd Camcorder To Your Pc
TRANSFERRING FILES FROM THE DVD CAMCORDER TO YOUR PC You can copy the movie and photo images to your PC and play them back. 1. Execute the procedure in “Viewing the contents of storage media.” pages 95~96 • The folders in the storage media appear. 2.
Page 104: Using The Pc Cam Function
connecting to a PC USING THE PC CAM FUNCTION • This function works only in the DVD camcorder record mode. page 21 • To use the PC Cam function, the DV Driver, Video Codec and DirectX 9.0 programmes must be installed in the PC. •...
Page 105: Cautions When Storing
maintenance & additional information MAINTENANCE Your DVD camcorder is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfil any guarantee obligations and allow you to enjoy this product for many years. •...
Page 106: Additional Information
• Copy the recorded files to your PC. Samsung shall not be responsible for any lost data. • A malfunction may cause the storage media to fail to operate properly. Samsung will not provide any compensation for any lost contents.
Page 107: Lcd Screen
Remove from charger or powered unit when not in use, as some machines use electric current even when switched off. • It is recommended that only genuine Samsung batteries are used in this camcorder. Using generic non-Samsung batteries can cause damage to the internal charging circuitry.
Page 108 maintenance & additional information Disc-type description Disc Type Mode Capacity Formatting a new disc  page 31 Recording pages 33~37 Deleting page 40 Rewrite Playback on other DVD players  (Finalise  ) page 48 Playback on other DVD recorders ...
Page 109: Using Your Dvd Camcorder Abroad
 Discs must be finalised before it can be played on standard DVD players/recorders. Refer to page 8 for finalised disc compatibility.  You can play back DVD+RW discs on DVD players/recorders without finalising them.  When formatting a recorded disc, the data recorded on the disc is deleted and disc capacity is restored, enabling you to re-use the disc.
Page 110: Troubleshooting
TROUBLESHOOTING Before contacting a Samsung authorised service centre, perform the following simple checks. They may save you the time and expense of an unnecessary call. Warning indicators and messages Overall Message Icon Informs that... Low Battery The battery pack is almost discharged.
Page 111 Message Icon Informs that... While recording, if the power is suddenly turned off, file writing is not properly done. Recovering Data... When you turn on the power, you will see the Don’t power off message, “Recovering Data... Don’t power off.” Memory cards (VP-DX103( i )/DX104/DX105( i ) only) Message Icon...
Page 112 Note before sending your camcorder for repair. • If these instructions do not solve your problem, contact your nearest Samsung authorised service centre. • Depending on the problem, the internal memory may need to be initialised or replaced and the data will be deleted.
Page 113: Symptoms And Solutions
✪ If you encounter any problem using your camcorder, check the following before requesting service. If these instructions do not solve your problem, contact your nearest Samsung authorised service centre. Symptoms and solutions Power Symptom The power turns off automatically.
Page 114 troubleshooting Discs Symptom The disc cannot be removed. Disc is not recognised and the disc cover opens. Memory cards (VP-DX103( i )/DX104/DX105( i ) only) Symptom Digital camera mode are not operable. Image cannot be deleted. You cannot format the memory card.
Page 115 Symptom The actual recording time is less than the estimated recording time. The recording stops automatically. When recording a subject illuminated by bright light, vertical line appears. When the screen is exposed to direct sunlight during recording, the screen becomes red or black for an instant. During recording, the date/time does not display.
Page 116 troubleshooting Adjusting the image during recording Symptom Focus does not adjust automatically. The image appears too bright or flickering, or changes in colour. Image’s colour balance is not natural. Playback on your DVD camcorder Symptom Using the playback (Play/Pause) function does not start playing. The Skip or Search function does not work properly.
Page 117 Connecting/Dubbing with other devices (TV, DVD players, etc) Symptom You cannot view the image or hear the sound from the connected device. The image appears distorted on a 4:3 TV. You cannot dub correctly using the AV cable. Connecting to a computer Symptom The computer does not recognise your camcorder.
Page 118 troubleshooting Overall operations Symptom Explanation/Solution The date and time are • Has the camcorder been left unused for a long period of time? The backup memory incorrect. battery(button type battery) may be discharged. Replace with a new battery. page 14 Menu Symptom Explanation/Solution...
Page 119: Specifications
specifications MODEL NAME: VP-DX100( i )/DX100H/DX102/DX103( i )/DX104/DX105( i ) System Video signal Picture compression MPEG-2 (Disc), MPEG-4 (Card) format Image device CCD (Charge-coupled device) 800K pixels F1.6 34x (Optical), 1200x (Digital) Electronic zoom lens Lens Focal length f2.3 ~ 78.2mm Filter diameter Ø30.5 LCD screen/Viewfinder...
Page 120 Power Sources (United Kingdom Only) The mains lead on the power adapter is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Page 121 2. Samsung’s obligations are limited to the repair or, at its discre- tion, replacement of the product or the defective part.
Page 122 μηνών από την ημερομηνία αγοράς του για ανταλλακτικά και εργατικά. Στην περίπτωση που θα χρειαστεί επισκευή, το προϊόν αυτό της SAMSUNG θα πρέπει να σταλεί ή να μεταφερθεί στο εξουσιοδοτημένο serνice, με έξοδα του αγοραστή. Εξουσιοδοτημένοι αντιπρόσωποι και εξουσιοδοτημένα κέντρα...
Page 123 Β. Επισκευή που έγινε από μη εξουσιοδοτημένα συνεργεία service Γ. Ατυχήματα, θεομηνίες ή οποιαδήποτε αιτία πέρα του ελέγχου της SAMSUNG, συμπεριλαμβανομένων αλλά μη περιορισμένων των κεραυνών, του νερού, της φωτιάς, των δημοσίων αναταραχών, του κακού αερισμού κ.λπ. Δ. Η εγγύηση αυτή δεν επηρεάζει τα δικαιώματα του...
Page 124 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE COSTA RICA ECUADOR EL SALVADOR GUATEMALA Latin America JAMAICA PANAMA PUERTO RICO REP.
Page 125 RoHS compliant Our product complies with “The Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment,” and we do not use the 6 hazardous materials- Cadmium(Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr +6), Poly Brominated Biphenyls Code No.

This manual is also suitable for:

Vp-dx105i Vp-dx103i Vp-dx102 Vp-dx104 Vp-dx100 Vp-mx25e ... Show all

Samsung VP-DX100H User Manual

Table of Contents

Recording Menu Items

Quick Links

DVD Camcorder

user manual

Chapters

Related Manuals for Samsung VP-DX100H

Summary of Contents for Samsung VP-DX100H

This manual is also suitable for:

Table of Contents
