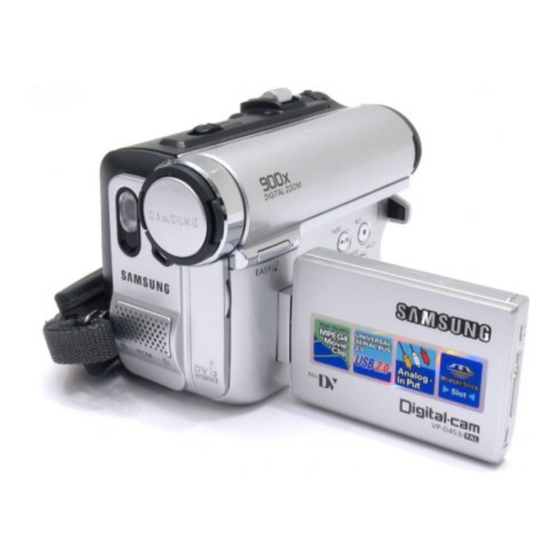

Samsung VP-D451(i) Owner's Instruction Manual

Digital video camcorder
Hide thumbs Also See for VP-D451(i):
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Digital Video Camcorder
VP-D451(i)/D453(i)/D454(i)/D455(i)
AF
Auto Focus
CCD
Charge Coupled Device
LCD
Liquid Crystal Display
Owner's Instruction Book
Before operating the unit, please read this
Instruction Book thoroughly, and retain it for
future reference.
This product meets the intent of
Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-D451(i) and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung VP-D451(i)

Summary of Contents for Samsung VP-D451(i)

  • Page 1 Digital Video Camcorder VP-D451(i)/D453(i)/D454(i)/D455(i) Auto Focus Charge Coupled Device Liquid Crystal Display Owner’s Instruction Book Before operating the unit, please read this Instruction Book thoroughly, and retain it for future reference. This product meets the intent of Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.

  • Page 2: Table Of Contents

    ENGLISH Contents Notes and Safety Instructions ... 6 Getting to Know Your Camcorder ... 11 Features ... 11 Accessories Supplied with Camcorder ...12 Front & Left View...13 Left Side View...14 Right & Top View ...15 Rear & Bottom View...16 Remote Control (VP-D453(i)/D454(i)/D455(i) only)...17 Preparation ...
  • Page 3 Contents Basic Recording ... 35 Using the Viewfinder ...35 Adjusting the Focus ...35 Inserting and Ejecting a Cassette ...36 Hints for Stable Image Recording...37 Recording with the LCD Screen...37 Recording with the Viewfinder...37 Various Recording Techniques...38 Making your First Recording ...39 Using EASY.Q Mode (for Beginners)...40 Record Search (REC SEARCH) ...41 Setting the Zero Memory (VP-D453(i)/D454(i)/D455(i) only) ...42...
  • Page 4 Memory Stick Functions ...86 Inserting and Ejecting the Memory Card ...87 Structure of Folders and Files on the Memory Card ...88 Image Format ...88 Selecting the Camcorder Mode ...88 Selecting the Built-in Memory (VP-D454(i)/D455(i) only)...89 Using Quick Menu: Memory Type...89...
  • Page 5 Using Quick Menu: Print Mark ...108 PictBridge (VP-D453(i)/D454(i)/D455(i) Only) ... 109 Maintenance... 111 After Finishing a Recording ...111 Cleaning and Maintaining the Camcorder ...112 Using Your Camcorder Abroad...113 Troubleshooting ... 114 Specifications ... 117 Index... 118 Power Sources (United Kingdom Only) ...119...

  • Page 6: Recording With The Lcd Screen Closed

    Notes regarding the Rotation of the LCD Screen Please rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder. 1. LCD screen closed. 2. Standard recording using the LCD screen.

  • Page 7: Notes Regarding Moisture Condensation

    Television programmes, video tapes, DVD titles, films, and other Unauthorized copying of copyrighted material may be against the law. All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders.
  • Page 8 Notes and Safety Instructions Notes regarding the Battery Pack Be sure to use a recommended battery pack as described on page 22. The batteries are available at a SAMSUNG retailer. Make sure that the Battery pack is fully charged before starting to record.

  • Page 9: Notes Regarding Electronic Viewfinder

    Notes regarding electronic Viewfinder 1. Do not position the Camcorder such that the Viewfinder is pointing towards the sun. Direct sunlight can damage the inside of the Viewfinder. Be careful when placing the Camcorder under sunlight or near a window exposed to sunlight.

  • Page 10: Replacement Parts

    Date/Time to On. When this occurs, connect the camcorder to power to fully recharge the built-in lithium battery. If the same problem occurs with a fully recharged battery, contact a Samsung authorized Service Centre to replace the battery.

  • Page 11: Getting To Know Your Camcorder

    Getting to Know Your Camcorder Features Multi OSD Language You can select the desired OSD language from OSD List. Digital Data Transfer Function with IEEE1394 By incorporating the IEEE1394 (i.LINK™: i.LINK is a serial data transfer protocol and interconnectivity system, used to transmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible to produce or edit various images.

  • Page 12: Accessories Supplied With Camcorder

    ENGLISH Getting to Know Your Camcorder Accessories Supplied with Camcorder Make sure that the following basic accessories are supplied with your digital video camera. Basic Accessories 1. Lithium Ion Battery Pack 2. AC Power Adapter (AA-E8 TYPE) 3. AC Cord 4.

  • Page 13: Front & Left View

    Getting to Know Your Camcorder Front & Left View 1. Lens 2. LED Light (VP-D453(i)/D454(i)/D455(i) only) 3. Remote Sensor (VP-D453(i)/D454(i)/D455(i) only) 4. Hand Strap Hook 5. Internal MIC 1. Lens 2. LED Light (see page 49) (VP-D453(i)/D454(i)/D455(i) only) 3. Remote Sensor (VP-D453(i)/D454(i)/D455(i) only) 4.

  • Page 14: Left Side View

    ENGLISH Getting to Know Your Camcorder Left Side View 1. Speaker 2. Mode Switch (VP-D453(i)/D454(i)/D455(i) only) 3. DISPLAY 1. Speaker 2. Mode Switch (MEMORY/TAPE) (VP-D453(i)/D454(i)/D455(i) only) 3. DISPLAY (see page 25) 4. Focus Adjustment Knob 5. Viewfinder 6. Function buttons...

  • Page 15: Right & Top View

    Getting to Know Your Camcorder Right & Top View 1. Menu Selector (VOL/MF) 2. MENU button 3. Start/Stop button 4. Power Switch 5. DC Jack 1. Menu Selector (VOL/MF) 2. MENU button 3. Start/Stop button 4. Power Switch (CAMERA or PLAYER) 5.

  • Page 16: Rear & Bottom View

    ENGLISH Getting to Know Your Camcorder Rear & Bottom View 1. Memory Card Slot (VP-D453(i)/D454(i)/D455(i) only) 2. Charging indicator 3. RESET button 1. Memory Card Slot (VP-D453(i)/D454(i)/D455(i) only) 2. Charging indicator 3. RESET button (see page 52) 4. Tripod Receptacle 5.

  • Page 17: Remote Control (Vp-D453(I)/D454(I)/D455(I) Only)

    Getting to Know Your Camcorder Remote Control (VP-D453(i)/D454(i)/D455(i) only) 1. PHOTO 2. START/STOP 3. SELF TIMER 4. ZERO MEMORY 5. PHOTO SEARCH 6. A.DUB (FF) (REW) (PLAY) (Direction) 1. PHOTO (see page 67) 2. START/STOP 3. SELF TIMER (see page 43) 4.

  • Page 18: Preparation

    It is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording. The Hand strap enables you to: - Hold the Camcorder in a stable, comfortable position. - Press the ZOOM and Start/Stop button without having to change the position of your hand.

  • Page 19: Lithium Battery Installation (Vp-D453(I)/D454(I)/D455(I) Only)

    Battery Installation for the Remote Control ✤ You need to insert or replace the Lithium battery when: - You purchase the Camcorder. - The remote control doesn’t work. ✤ Position the Lithium battery in the Lithium battery holder, with the positive ( ✤...

  • Page 20: Connecting A Power Source

    To Select the Camcorder Mode (VP-D453(i)/D454(i)/D455(i) only) ✤ If you want to use this unit as a Camcorder, set the Mode switch to TAPE. ✤ If you want to use this unit as a DSC (Digital Still Camera), set the Mode switch to MEMORY.

  • Page 21: Using The Lithium Ion Battery Pack

    The Battery may contain a slight charge at the time of purchase. To prevent reduction in the life and capacity of the Battery pack, always remove it from the Camcorder after it is fully charged. The amount of continuous recording time available depends on: - The type and capacity of the Battery pack you are using.

  • Page 22: Table Of Continuous Recording Time Based On Model And Battery Type

    Do not allow the + and – terminals of the Battery pack to be short-circuited. Doing so may cause leakage, overheating, or fire. Use SB-LSM80 or SB-LSM160 Battery pack only. Be sure to use a recommended battery pack as described above. The batteries are available at a SAMSUNG retailer. Continuous recording time LCD ON VIEWFINDER ON Approx.

  • Page 23: Battery Level Display

    40~80% used d. 80~95% used e. Completely used (Blinking) (The Camcorder will turn off soon. Change the battery as soon as possible) [ Notes ] Please refer to the Table on page 22 for approximate continuous recording time. The recording time is affected by temperature and environmental conditions.

  • Page 24: Osd (On Screen Display In Camera/Player Modes)

    ENGLISH Preparation OSD (On Screen Display in Camera/Player Modes) 1. Battery Level (see page 23) 2. Digital Effects mode (see page 64) 3. EASY.Q (see page 40) 4. DIS (see page 60) 5. Program AE (see page 62) 6. White Balance mode (see page 58) 7.

  • Page 25: Osd (On Screen Display In M.cam/M.player Modes) (Vp-D453(I)/D454(I)/D455(I) Only)

    Preparation OSD (On Screen Display in M.Cam/M.Player Modes) (VP-D453(i)/D454(i)/D455(i) only) 1. Photo Quality 2. CARD (Memory Card) indicator 3. Image Counter Total number of recordable still images. 4. Image Recording and Loading indicator 5. Erase Protection indicator (see page 96) 6.

  • Page 26: System Menu Setting

    ENGLISH System Menu Setting Selecting the OSD Language ✤ The Language function works in Camera/Player/M.Cam/M.Player modes. ✤ Select the appropriate OSD language from OSD List. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY. (VP-D453(i)/D454(i)/D455(i) only) 3.

  • Page 27: Setting The Clock

    Date/Time is memorized and maintained by the built-in Lithium battery installed in the camcorder. If you don’t use the camcorder for a long period of time, charge the Lithium battery at least once a month. To charge the built-in Lithium battery, supply power to the camcorder and set the Power Switch to CAMERA or PLAYER.

  • Page 28: Setting The Wireless Remote Control Acceptance (Remote) (Vp-D453(I)/D454(I)/D455(I) Only)

    The Remote function works in Camera/Player/M.Cam/M.Player modes. ✤ The Remote option allows you to enable or disable the remote control for use with the Camcorder. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY.

  • Page 29: Setting The Beep Sound

    System Menu Setting Setting the Beep Sound ✤ The Beep Sound function works in Camera/Player/M.Cam/M.Player modes. ✤ You can turn the Beep Sound on or off. When on, each press of a button sounds a beep. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 30: Setting The Shutter Sound (Vp-D453(I)/D454(I)/D455(I) Only)

    ENGLISH System Menu Setting Setting the Shutter Sound (VP-D453(i)/D454(i)/D455(i) only) ✤ The Shutter Sound function works in both Player and M.Cam modes. ✤ You can turn the Shutter Sound on or off. When on, a simulated shutter click of a camera will sound while taking pictures. 1.

  • Page 31: Viewing The Demonstration

    System Menu Setting Viewing the Demonstration ✤ Before you begin: Make sure that there is no tape inserted in the Camcorder. (see page 36) ✤ Demonstration automatically shows you the major functions that are included with your Camcorder so that you may use them more easily.

  • Page 32: Display Menu Setting

    ✤ This function works in Camera/Player/M.Cam/M.Player modes. ✤ Your Camcorder is equipped with a 2.5 inch Colour Liquid Crystal Display(LCD) screen, which enables you to view what you are recording or playing back directly. ✤ Depending on the conditions under which you are using the Camcorder (indoors or outdoors for example), you can adjust;...

  • Page 33: Displaying The Date/Time

    The Date/Time will read 00:00 1.JAN.2005 in the following conditions. - During playback of a blank section of a tape. - If the tape was recorded before setting the Date/Time in the Camcorder. - When the Lithium battery becomes weak or dead.

  • Page 34: Setting The Tv Display

    - Off: The OSD appears in the LCD screen and Viewfinder only. - On: The OSD appears in the LCD screen, Viewfinder and TV. - Use the DISPLAY button located at the left side of the Camcorder to turn the OSD on/off on the LCD screen/Viewfinder/TV.

  • Page 35: Basic Recording

    Basic Recording Using the Viewfinder ✤ The Viewfinder will work when the LCD screen is closed. Adjusting the Focus The focus adjustment knob of the Viewfinder enables individuals with vision problems to see clearer images. 1. Close the LCD screen and pull out the Viewfinder. 2.

  • Page 36: Inserting And Ejecting A Cassette

    ✤ Do not use any tape other than Mini DV cassettes. 1. Turn on your Camcorder, then slide the TAPE EJECT switch on the upper of the Camcorder and open the cassette door until it clicks. The cassette holder automatically rises and opens forward.

  • Page 37: Hints For Stable Image Recording

    Basic Recording Hints for Stable Image Recording ✤ While recording, it is very important to hold the Camcorder correctly. ✤ Fix the lens cover firmly by clipping it to the hand strap. (see page 18) Recording with the LCD Screen 1.

  • Page 38: Various Recording Techniques

    In circumstances where it is difficult to use the LCD screen, the Viewfinder can be used as a convenient alternative. [ Note ] Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.

  • Page 39: Making Your First Recording

    Basic Recording Making your First Recording 1. Connect a power source to the Camcorder. (see page 20) (A Battery pack or a AC Power adapter) Insert a cassette. (see page 36) 2. Remove the Lens cover. 3. Set the Power switch to CAMERA.

  • Page 40: Using Easy.q Mode (For Beginners)

    If you want to use these functions, you must first turn the EASY.Q mode off. The EASY.Q mode settings are deleted when the Battery pack is removed from the Camcorder and must be reset when the Battery pack is replaced.

  • Page 41: Record Search (Rec Search)

    Basic Recording When a cassette is loaded and the Camcorder is left in STBY mode for more than 5 minutes without being used, it will switch off automatically. To use it again, press the Start/Stop button or set the Power switch to OFF and then back to CAMERA.

  • Page 42: Setting The Zero Memory (Vp-D453(I)/D454(I)/D455(I) Only)

    ENGLISH Basic Recording Setting the Zero Memory (VP-D453(i)/D454(i)/D455(i) only) ✤ The Zero Memory function works in both Camera and Player modes. ✤ You can mark a point on a tape that you want to return to following playback. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 43: Self Record Using The Remote Control (Vp-D453(I)/D454(I)/D455(I) Only)

    [ Notes ] Do not obstruct the remote control sensor by putting obstacles between the remote control and Camcorder. The remote control range is 4 ~ 5m (13 ~ 17 ft). The effective remote control angle is up to 30 degrees left /right from the centre line.

  • Page 44: Zooming In And Out

    ENGLISH Basic Recording Zooming In and Out ✤ The Zoom function works in both Camera and M.Cam modes. ✤ Zooming is a recording technique that lets you change the size of the subject in a scene. ✤ You can zoom using variable zoom speeds. ✤...

  • Page 45: Using The Tele Macro

    Basic Recording Using the Tele Macro ✤ The Tele Macro function works in both Camera and M.Cam mode. ✤ Effective focal distance in Tele Macro mode is 50 Cm (19.7 inches) ~ 100 Cm (39.4 inches). 1. Set the Power switch to CAMERA. 2.

  • Page 46: Using Quick Menu: Tele Macro

    Basic Recording Using Quick Menu: Tele Macro ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button. 1. Press the Menu selector.

  • Page 47: Using The Fade In And Out

    Basic Recording Using the Fade In and Out ✤ The Fade function works only in Camera mode. ✤ You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.

  • Page 48: Using Back Light Compensation Mode (Blc)

    ENGLISH Basic Recording Using Back Light Compensation Mode (BLC) ✤ BLC works in both Camera and M.Cam modes. ✤ Back lighting exists when the subject is darker than the background: - The subject is in front of a window. - The person to be recorded is wearing white or shiny clothes and is placed against a bright background;...

  • Page 49: Using The Color Nite/Led Light (Vp-D453(I)/D454(I)/D455(I) Only)

    Do not touch it while in operation or soon after turning it off, otherwise serious injury may result. Do not place the Camcorder in the carrying case immediately after using the LED Light, since it remains extremely hot for some time.

  • Page 50: Advanced Recording

    ENGLISH Advanced Recording Use of various Functions Setting menu Items Main Menu Sub Menu Camera Program AE Selecting the Program AE Function White Balance Setting White Balance Digital Effect Setting the Digital special effect Macro Setting the Tele Macro Selecting the Digital Image Stabilizing Digital Zoom Selecting Digital Zoom Tape...
  • Page 51 Advanced Recording Main Menu Sub Menu Display LCD Bright Setting the Brightness tone of the LCD screen LCD Colour Setting the Colour tones of the LCD screen Date/Time Setting the Date and Time TV Display Selecting OSD on/off of TV System Clock Set Setting the time...

  • Page 52: Function Availability In Each Mode

    ENGLISH Advanced Recording Function availability in each Mode Requested Mode Operating Digital Zoom Mode Digital Zoom ✕ PHOTO (TAPE) Color Nite 16:9 Wide Emboss2 Digital Pastel2 Effects Mirror Mosaic The other Digital Effect O : The requested mode will work in this operating mode. ✕...

  • Page 53: Selecting The Record Mode

    The Record Mode function works in both Camera and Player (VP-D451i/D453i/D454i/D455i only) modes. ✤ This Camcorder records and plays back in SP (standard play) mode and in LP (long play) mode. - SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.

  • Page 54: Selecting Audio Mode

    The Audio Mode function works in both Camera and Player modes. ✤ This Camcorder records sound in two ways. (12Bit, 16Bit) - 12Bit: You can record two 12Bit stereo sound tracks. The original stereo sound can be recorded onto the Main (Sound1) track.

  • Page 55: Cutting Off Wind Noise (Wind Cut)

    Advanced Recording Cutting Off Wind Noise (Wind Cut) ✤ The Wind Cut function works in both Camera and Player (Audio dubbing) modes. Use the Wind Cut when recording in windy places such as the beach or near buildings. ✤ The Wind Cut function minimizes wind noise or other noise while recording. - When the wind cut is on, some low pitched tones sounds are eliminated along with the sound of the wind.

  • Page 56: Setting The Shutter Speed & Exposure

    The image may not seem as smooth when a high shutter speed is set. The Camcorder returns to the auto shutter and auto exposure settings when you set the change to the EASY.Q mode. When recording with a Shutter Speed of 1/1000 or higher, make sure the sun is not shining into the lens.

  • Page 57: Auto Focus/Manual Focus

    In the following situations, you may obtain better results by adjusting the focus manually. a. A picture containing several objects, some close to the Camcorder, others further away. b. A person enveloped in fog or surrounded by snow. c. Very shiny or glossy surfaces like a car.

  • Page 58: Setting The White Balance

    ENGLISH Advanced Recording Setting the White Balance ✤ The White Balance function works in both Camera and M.Cam modes. ✤ The White Balance is a recording function that preserves the unique image colour of the object in any recording condition. ✤...

  • Page 59: Using Quick Menu: White Balance

    Advanced Recording Using Quick Menu: White Balance ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button. 1. Press the Menu selector.

  • Page 60: Setting The Digital Image Stabilizer (Dis)

    The DIS function works only in Camera mode. ✤ DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the Camcorder (within reasonable limits). ✤ It provides more stable pictures when: - Recording with the optical zoom (Under 10x. DIS is not available in Digital Zoom mode.)

  • Page 61: Using Quick Menu: Digital Image Stabilizer (Dis)

    Advanced Recording Using Quick Menu: Digital Image Stabilizer (DIS) ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 62: Programmed Automatic Exposure Modes (Program Ae)

    ENGLISH Advanced Recording Programmed Automatic Exposure Modes (Program AE) ✤ The Program AE function works only in Camera mode. ✤ The Program AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions. ✤ They give you creative control over the depth of field. Auto mode ( ) - Auto balance between the subject and the background.

  • Page 63: Setting The Program Ae

    Advanced Recording Setting the Program AE 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (VP-D453(i)/D454(i)/D455(i) only) 3. Press the MENU button. The menu list will appear. 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector.

  • Page 64: Applying Digital Effects

    ENGLISH Advanced Recording Applying Digital Effects ✤ The Digital Effect function works only in Camera mode. ✤ The Digital Effects enable you to give a creative look to your recording. ✤ Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create. ✤...

  • Page 65: Selecting The Digital Effects

    Advanced Recording Selecting the Digital Effects 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (VP-D453(i)/D454(i)/D455(i) only) 3. Press the MENU button. The menu list will appear. 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector. 5.

  • Page 66: Zooming In And Out With Digital Zoom

    ENGLISH Advanced Recording Zooming In and Out with Digital Zoom ✤ Zoom works only in Camera mode. Selecting the Digital Zoom ✤ Zooming more than 10x is achieved digitally, up to 900x when combined with optical zoom. ✤ The picture quality may deteriorate depending on how much you zoom in on the subject. 1.

  • Page 67: Photo Image Recording

    2. Set the Mode switch to TAPE. (VP-D453(i)/D454(i)/D455(i) only) 3. Press the PHOTO button. The still picture is recorded for about 6~7 seconds. 4. After the PHOTO has been recorded, the Camcorder returns to its previous mode. Searching for a Photo Image ✤...

  • Page 68: Playback

    The adjustment method is the same procedure as used in Camera mode. (see page 32) [ Notes ] You can also view the picture on a TV screen, after connecting the Camcorder to a TV or VCR. (see pages 70~71) Various functions are available in Player mode. (see page 72) For searching and viewing still images recorded onto tape.

  • Page 69: Controlling Sound From The Speaker

    When you use the LCD screen for playback, you will hear recorded sound from the built-in Speaker. - Take the following steps to lower the volume or mute the sound while playing a tape on the Camcorder. 1. Set the Power switch to PLAYER.

  • Page 70: Tape Playback

    Even if you use the S-Video connector, you still need to make audio connections on your TV. If you connect the cable to the Audio/Video jack, you will not hear sound from the Camcorder's speakers. If only a mono audio input is available on the TV set, use the Audio cable with the white jack (Audio L).

  • Page 71: Play In Player Mode

    Playback Connecting to a TV which has no Audio and Video Input Jacks ✤ You can connect your Camcorder to a TV through a VCR. 1. Connect the Camcorder to your VCR with the Multi-AV cable. The yellow jack: Video...

  • Page 72: Various Functions While In Player Mode

    The F.ADV(Frame advance), X2 and SLOW buttons are located on the remote control only. (VP-D453(i)/D454(i)/D455(i) only) ✤ To prevent tape and head-drum wear, your Camcorder will automatically stop if it is left in still or slow mode for more than 3 minutes. Playback Pause Press the (PLAY/STILL) button during playback.

  • Page 73: Frame Advance (To Play Back Frame By Frame) (Vp-D453(I)/D454(I)/D455(I) Only)

    Playback Frame Advance (To play back frame by frame) (VP-D453(i)/D454(i)/D455(i) only) Press the F.ADV button on the remote control while in still mode. - The Video advances frame by frame each time you press the F.ADV button. - The F.ADV function works in still mode only. To resume normal playback, press the - Forward frame advance Press the F.ADV button on the remote control in still mode.

  • Page 74: Zooming During Playback (Pb Zoom)

    You cannot apply the PB ZOOM function to pictures which are being input from an external video source. The PB ZOOM image cannot be imported to your PC from the Camcorder’s DV jack. The PB ZOOM images cannot be exported to a PC.

  • Page 75: Av In/Out (Vp-D451I/D453I/D454I/D455I Only)

    When you record the images being played back on an analog VCR, if they are not being played back at normal speed, (for example, more than double speed or slow playback), only a gray image appears on the Camcorder. ENGLISH Player Mode √Record...

  • Page 76: Audio Dubbing (Vp-D453(I)/D454(I)/D455(I) Only)

    2. Set the Mode switch to TAPE. When you wish to dub using the External A/V input, connect the Multi-AV cable to the Multi-AV jack at the front side of camcorder. (see to page 75) 3. Press the (PLAY/STILL) button and find the time frame of the scene to be dubbed.

  • Page 77: Dubbed Audio Playback

    Playback Dubbed Audio Playback 1. Set the Power switch to PLAYER. 2. Set the Mode switch to TAPE. (VP-D453(i)/D454(i)/D455(i) only) 3. Insert the dubbed tape and press the MENU button. 4. Move the Menu selector to the left or right to select Tape, then press the Menu selector. 5.

  • Page 78: Ieee1394 Data Transfer

    If a product has a DV jack, you can transfer data by connecting to the DV jack using the correct cable. NOTE: Please be careful since there are two types of DV ports, (4pin, 6pin). This Camcorder has a 4pin terminal.
  • Page 79 Operation is not guaranteed for all the recommended computer environments mentioned above. While transmitting data from the Camcorder to PC at strong electric field and strong magnetic field, VIDEO signal or AUDIO signal may transmit with noise.

  • Page 80: Usb Interface (Vp-D453(I)/D454(I)/D455(I) Only)

    USB Streaming requires Video Codec, DV Driver and DirectX 9.0. If you disconnect the USB cable from the PC or the Camcorder during the data transfer, the data transfer will stop and the data may be damaged. If you connect the USB cable to a PC using a USB HUB or with other devices at the same time, it may cause conflict and may not work properly.
  • Page 81 The USB Connect function works only in M.Player mode. ✤ Using the USB cable, you can connect your Camcorder to a computer to copy your movies and images from the Memory card (or built-in memory; VP-D454(i)/D455(i) only), or to a printer to print your images.
  • Page 82 The USB Version function works only in M.Cam and M.Player modes. ✤ To ensure proper communication between the camcorder and a PC, please set the USB Version before connecting the Camcorder to a PC. 1. Set the Power switch to CAMERA or PLAYER.
  • Page 83 USB Interface (VP-D453(i)/D454(i)/D455(i) only) Installing DV Media Pro 1.0 Program ✤ To play back MPEG4 movies recorded by the camcorder or streaming data transferred through the USB connection on a PC, the Video Codec program should be installed. ✤ Do not connect the Camcorder to PC before installing the program.
  • Page 84 ✤ To use the PC Camera function, the DV Driver, Video Codec and DirectX 9.0. programmes must be installed in the PC. ✤ You can use this Camcorder as a PC Camera. This is useful when connecting to a Web site that provides video chatting functions.

  • Page 85: Using The Usb Streaming Function

    1. Set the Power switch to CAMERA or PLAYER, set the Mode switch to TAPE. 2. Connect one end of the USB cable to the USB jack on the Camcorder and the other end to the USB jack on your computer.

  • Page 86: Digital Still Camera Mode (Vp-D453(I)/D454(I)/D455(I) Only)

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Memory Stick (Optional Accessory) ✤ The Memory Stick stores and manages images recorded by the camera. Memory Stick Functions Recording still images and MPEG4 movies Viewing still images and MPEG4 movies - Single image - Slide show (Still images only) - Multi display (Still images only) Protecting images against accidental erasure...

  • Page 87: Inserting And Ejecting The Memory Card

    Do not bend, drop or apply strong shock to Memory Card. After pulling the Memory Card out from the Camcorder, please keep the Memory Card in a soft case to prevent static shock. The stored contents may be changed or lost as a result of misuse, static electricity, electric noise or repair.

  • Page 88: Structure Of Folders And Files On The Memory Card

    ✤ You can use this Camcorder as a Digital Still Camera (DSC). ✤ You have to set the Mode switch to Memory Card to use this Camcorder as Digital Still Camera. M.Cam mode (Memory record mode) 1. Set the Power switch to CAMERA.

  • Page 89: Selecting The Built-In Memory (Vp-D454(I)/D455(I) Only)

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Selecting the Built-in Memory (VP-D454(i)/D455(i) only) ✤ Built-in memory setting is available in the Player/M.Cam/M.Player modes. (VP-D454(i): 16MB/VP-D455(i): 64MB) ✤ Images can be stored and played back using the built-in memory. Hence, set the memory type before storing and playing back images. 1.

  • Page 90: Selecting The Image Quality

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Selecting the Image Quality ✤ Photo Quality function works in Player/M.Cam modes. ✤ You can select the quality of a still image to be recorded. Select the Image Quality 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 91: Using Quick Menu: Photo Quality

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Using Quick Menu: Photo Quality ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button.

  • Page 92: Memory File Number

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Memory File Number ✤ File Number setting works only in M.Cam mode. ✤ File numbers are given to images in the order they were recorded when they are stored on the Memory Card. ✤...

  • Page 93: Taking Photos

    ✤ You may take still images in M.Cam mode and store the images on the Memory Card. This function is useful when you want to take a snapshot of a subject while you are using the Camcorder. ✤ You can take photos using the remote control.

  • Page 94: Viewing Still Images

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Viewing Still Images ✤ This function works only in M.Player mode. You can playback and view still images recorded on the Memory Card. ✤ Be sure that the M.Play Select is set to Photo in the MENU. ✤...

  • Page 95: To View The Multi Display

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) To view the Multi Display 1. Set the Power switch to PLAYER. 2. Set the Mode switch to MEMORY. The last recorded image appears. 3. To view six stored images on single screen, press the A selection mark ( ) appears under the image.

  • Page 96: Protection From Accidental Erasure

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Protection from Accidental Erasure ✤ The Protection function works only in M.Player mode. ✤ You can protect important images from accidental erasure. If you execute format, all images including protected images will be erased. 1.

  • Page 97: Using Quick Menu: Protect

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Using Quick Menu: Protect ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 98: Deleting Still Images And Moving Images

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Deleting Still Images and Moving Images ✤ The Delete function works only in M.Player mode. ✤ You can erase the still images and moving images recorded on the Memory Card. ✤ If you want to delete protected images, you must first deactivate the image protection. (See page 96) ✤...

  • Page 99: Using Quick Menu: Delete

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Using Quick Menu: Delete ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 100: Formatting The Memory Card

    ✤ The format function restores the Memory Card to its initial state. ✤ The Memory Card supplied with this Camcorder has been formatted already. Attention ✤ If you execute the memory format function, all images will be erased completely and erased images cannot be recovered.

  • Page 101: Mpeg Recording

    3. Set the Mode switch to MEMORY. 4. Press the Start/Stop button, the video is recorded on the Memory Card in MPEG4. You can record a Camcorder still image on Memory Card by pressing the PHOTO button instead of the Start/Stop button.

  • Page 102: Mpeg Playback

    The MPEG4 movie recorded by another Camcorder may not play on this Camcorder. To playback MPEG4 moving pictures on a PC, the Video Codec (in the CD provided with the camcorder) should be installed. - You need Microsoft Windows Media Player Version 9 or higher in order to play MPEG4 file on the Memory Card on your PC.

  • Page 103: Using Quick Menu: M.play Select

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Using Quick Menu: M.Play Select ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 104: Recording An Image From A Cassette As A Still Image

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Recording an Image from a Cassette as a Still Image ✤ This function works only in Player mode. ✤ You can record still images from a cassette on a Memory Card. ✤ If you want to move recorded multiple still images from a cassette to a Memory Card, use the COPY function.

  • Page 105: Copying Still Images From A Cassette To Memory Card

    5. Move the Menu selector to the left or right to select Photo Copy, then press the Menu selector. All still images that recorded on a cassette will be copied onto a Memory Card. 6. The Camcorder automatically performs the photo search to find still images and copy starts. 7. Press the (STOP) button to stop copying.

  • Page 106: Copy To (Copies Files From The Memory Card To The Built-In Memory) (Vp-D454(I)/D455(I) Only)

    ENGLISH Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Copy to (Copies files From the Memory Card to the Built-in Memory) (VP-D454(i)/D455(i) only) ✤ The Copy to function works only in M.Player mode. ✤ You can copy selected or all images stored in the Memory Card to the built-in memory. 1.

  • Page 107: Marking Images For Printing

    Marking Images for Printing ✤ The Print Mark function works only in M.Player mode. ✤ This Camcorder supports the DPOF (Digital Print Order Format) print format. ✤ You can automatically print images recorded on a Memory Card with a printer supporting DPOF. ✤...

  • Page 108: Using Quick Menu: Print Mark

    Digital Still Camera Mode (VP-D453(i)/D454(i)/D455(i) only) Using Quick Menu: Print Mark ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 109: Pictbridge Tm (Vp-D453(I)/D454(I)/D455(I) Only)

    ✤ With the PictBridge Support, you can control the printer directly through your Camcorder in order to print out stored pictures. For direct printing of your stored pictures using the PictBridge function, you must connect your Camcorder to a PictBridge printer using a USB cable.
  • Page 110 Use the USB cable provided with the Camcorder. Use the AC power adapter for your Camcorder during PictBridge Direct Printing. Turning your Camcorder off during the printing might damage data on the Memory Card. Printing still images is supported. Motion clips are not available for printing.

  • Page 111: Maintenance

    Opening the cassette door ejects the tape automatically. Please wait until the tape is completely ejected. 2. After removing the tape, close the door and store the Camcorder in a dust free environment. Dust and other foreign materials can cause square-shaped noise or unstable images.

  • Page 112: Cleaning And Maintaining The Camcorder

    Clean the video heads with a dry type cassette cleaner. Some cleaning cassette products stop automatically. Refer to the cleaning cassette’s instructions for detailed information. If the problem continues after the cleaning, consult your nearest Samsung dealer or Authorized Service Centre. (blue screen)

  • Page 113: Using Your Camcorder Abroad

    Power sources You can use your Camcorder in any country or area with the supplied AC Power adapter within 100V to 240V, 50/60 Hz. Use a commercially available AC jack adapter, if necessary, depending on the design of the local wall outlet.

  • Page 114: Troubleshooting

    ✤ If the Camcorder is brought directly from a cold place to a warm place, moisture may condense inside the Camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the drum head and be damaged or the unit may not operate correctly.
  • Page 115 Protect ! slow a protected image. The Camcorder cannot Read error ! slow playback. Write error ! slow The Camcorder cannot record. The Memory Card needs to Now Formatted ! slow format. Now deleted... slow When processing file delete. Memory Card...
  • Page 116 ENGLISH Troubleshooting ✤ If these instructions do not solve your problem, contact your nearest Samsung authorized service centre. Symptom Explanation/Solution You cannot switch the Check the Battery pack or the AC Power adapter. Camcorder on. Check that the Power switch is set to CAMERA.

  • Page 117: Specifications

    Specifications Model Name: VP-D451(i)/D453(i)/D454(i)/D455(i) System Video signal Video recording system 2 rotary heads, Helical scanning system Audio recording system Rotary heads, PCM system Usable cassette Digital video tape (6.35mm width): Mini DV cassette Tape speed SP: approx. 18.83mm/s Tape recording time SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60) FF/REW time Approx.

  • Page 118: Index

    ENGLISH Index - A - Accessories ...12 AF/MF ... 57 Audio dubbing ... 76 Audio Mode... 54 - B - Battery Pack ... 21 BLC ... 48 - C - Cassette ... 36 Cleaning ... 112 Clock Set... 27 Connecting ... 70 - D - Date/Time ...

  • Page 119: Power Sources (United Kingdom Only)

    ENGLISH Power Sources (United Kingdom Only)
  • Page 120 2. Samsung’s obligations are limited to the repair or, at its discretion, replacement of the product or the defective part. 3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres.
  • Page 121 SAMSUNG SAMSUNG service, service FOURLIS TRADE A.E.B.E. service SAMSUNG (GREECE) SAMSUNG service service SAMSUNG. SAMSUNG Iaser CD DVD...
  • Page 122 FOURLIS TRADE A.E.B.E. service SAMSUNG,...
  • Page 123 ENGLISH THIS CAMCORDER IS MANUFACTURED BY: *Samsung Electronics’ Internet Home Page AD68-00840G United Kingdom http://www.samsungelectronics.co.uk...

This manual is also suitable for:

Vp-d454iVp-d455iVp-d453iVp-d451Vp-d453Vp-d454 ... Show all

Table of Contents

Save PDF
