USER'S OPERATING AND INSTRUCTION MANUAL
MODEL 709

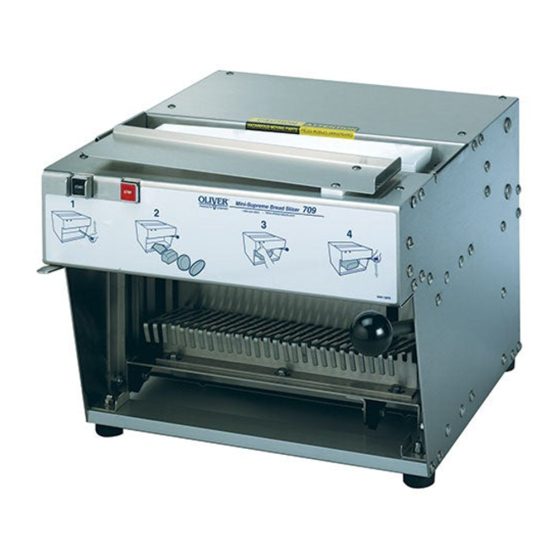

MINI SUPREME
BREAD SLICER
0709S20000-CV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 709 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oliver 709

Summary of Contents for Oliver 709

  • Page 1 Walker, Michigan, U.S.A. 49535-7564 USER’S OPERATING AND INSTRUCTION MANUAL MODEL 709 MINI SUPREME BREAD SLICER 0709S20000-CV...

  • Page 2: Table Of Contents

    MODEL 709 MINI SUPREME BREAD SLICER INDEX SAFETY INSTRUCTIONS................0709S20025 DEFINITIONS ................... GEN 931118 INSTALLATION INSTRUCTIONS ............. 0709S20026 SPECIFICATIONS ..................0709S20027 OPERATING INSTRUCTIONS..............0709S20028 ADJUSTMENTS..................0709S20029 Slices Vary In Thickness .............. 0709S20029-1/3 Limit Switch and Actuating Flag Adjustment........0709S20029-2/3 MAINTENANCE ..................0709S20030 Removing Blade Frames ...............
  • Page 3 MODEL 709 MINI SUPREME BREAD SLICER SAFETY INSTRUCTIONS Every effort has been made by Oliver Products Company to provide you with a safe machine. However, it is essential that machine operators and maintenance personnel observe the following safety precautions. 1. Read this manual before attempting to operate your slicer. Never allow an untrained person to operate this machine.
  • Page 4 GENERAL DEFINITIONS The use of the words WARNING, CAUTION, and NOTE in this manual should be guided by the following. WARNING AN OPERATING PROCEDURE, TECHNIQUE, ETC., WHICH MAY RESULT IN PERSONAL INJURY IF NOT CAREFULLY FOLLOWED. CAUTION AN OPERATING PROCEDURE, TECHNIQUE, ETC., WHICH MAY RESULT IN DAMAGE TO EQUIPMENT IF NOT CAREFULLY FOLLOWED.

  • Page 5: Installation Instructions

    The machine may now be connected to a properly grounded power supply of the same voltage and of sufficient capacity for the load which the slicer will put on it. See the electrical requirements on the “Oliver Nameplate” on the rear of the machine. DO NOT USE EXTENSION CORDS.

  • Page 6: Specifications

    MODEL 709 MINI SUPREME BREAD SLICER SPECIFICATIONS • Weight: (Approximate) ----------------------------------------------------------- (115) pounds • Slice Spacings: Standard ---------------------------------------------------------------------------------------- 1/2” Available at extra cost ------------------------------------ 3/8” (min.), 7/16”, 5/8”, 3/4”, 1” Others --------------------------------------------------------------------------- Consult Factory • Standard Electrical Service: -------------------- 1/5 HP, 1-60-115 Volts AC, 2 Amps.

  • Page 7: Operating Instructions

    MODEL 709 MINI SUPREME BREAD SLICER OPERATING INSTRUCTIONS WARNING ALWAYS USE CARE WHENEVER WORKING NEAR THE CUTTING KNIVES. To operate the machine, stand in front of the machine and grasp the lever with your right hand. Pull the lever from its lowest position to the upper limit of its travel. Using your left hand, load the product into the machine.

  • Page 8: Slices Vary In Thickness

    MODEL 709 MINI SUPREME BREAD SLICER ADJUSTMENTS WARNING ALWAYS UNPLUG THE SLICER WHEN ADJUSTING OR SERVICING. • Slices Vary In Thickness: NOTE IN ONLY THREE SITUATIONS SHOULD IT BECOME NECESSARY TO ADJUST THE BLADE FRAMES FOR A VARIANCE IN SLICE THICKNESS.

  • Page 9: Limit Switch And Actuating Flag Adjustment

    MODEL 709 MINI SUPREME BREAD SLICER • Slices Vary In Thickness: (Cont’d.): At this point check the side to side movement of the lower blade frame: it should be at the minimum which still allows free travel in the tracks. If the side to side movement seems satisfactory check the centering of the frame.
  • Page 10 MODEL 709 MINI SUPREME BREAD SLICER The actuating flag should trip the lower limit switch when the cradle handle is at the top of its travel. The upper limit switch should be actuated when the cradle handle is at the bottom of its travel.

  • Page 11: Maintenance

    MODEL 709 MINI SUPREME BREAD SLICER MAINTENANCE WARNING ALWAYS UNPLUG THE SLICER BEFORE PERFORMING ANY TYPE OF MAINTENANCE TASK. • Removing Blade Frames: Remove the top and front covers by removing the four screws which holds each in place. The table lip should be removed with the top cover.

  • Page 12: Replacing Blade Frames

    MODEL 709 MINI SUPREME BREAD SLICER • Removing Blade Frames (Cont’d.): The final step is to remove the shoulder screw from the foot of the blade frame. Once the shoulder screw is removed the link can be disconnected and moved out of the way.

  • Page 13: Changing Blades

    MODEL 709 MINI SUPREME BREAD SLICER • Changing Blades: WARNING BLADES ARE EXTREMELY SHARP. ALWAYS HANDLE WITH CARE. Remove and place the Upper blade frame on a flat surface, (see blade frame removal section). Insert the special knife tool into the blade frame, (See Illustration). Lifting up on the knife tool will deflect the blade mount, reducing tension on the cutting knife.

  • Page 14: Lubrication

    MODEL 709 MINI SUPREME BREAD SLICER • Changing Blades (Cont’d.): Reverse the procedure to install replacement blades. A paper clip can be used to hold the blade in position on the fixed blade mount during blade installation. (See Illustration) The blades can be removed and replaced from the lower blade frame while it is in the machine.

  • Page 15: Trouble Shooting

    MODEL 709 MINI SUPREME BREAD SLICER TROUBLE SHOOTING • The Slicer Will Not Start When the “Start” Button Is Pushed: Possible Causes: 1. The slicer is not plugged in. 2. The fuse or circuit breaker in the back of the machine has either blown or tripped.

  • Page 16: Bread Slices Vary In Thickness

    MODEL 709 MINI SUPREME BREAD SLICER TROUBLE SHOOTING (CONT’D.) • The Slicer Will Start, But, Will Not Continue To Run: Possible Causes: 1. The relay is not operating: have it checked by a qualified electrician. 2. One of the internal limit switches have become loose and is out of position. See the adjustment section of this manual.

  • Page 17: Wiring Diagrams

    MODEL 709 MINI SUPREME BREAD SLICER WIRING DIAGRAMS NOTE SELECT WIRING DIAGRAMS BASED ON THE MOTOR MODEL FURNISHED ON YOUR MACHINE AND THE ELECTRICS OF YOUR MACHINE. “Dayton” Motor Wired as 1 Phase, 60 Hertz, 115 Volts AC Wiring Diagram 0709C12012 “Leeson”...
  • Page 18 MODEL 709 MINI SUPREME BREAD SLICER WIRING DIAGRAMS (Cont’d.) “Leeson” Motor Wired as 1 Phase, 60 Hertz, 230 Volts AC Wiring Diagram 0709C12014 “Leeson” Motor Wired as 1 Phase, 50 Hertz, 220 Volts AC Wiring Diagram 0709C12015 0709S20032-...
  • Page 19 MODEL FURNISHED ON YOUR MACHINE AND THE ELECTRICS OF YOUR MACHINE AS INDICATED BELOW. 6310-0250 Dayton Motor (115 VAC) 6310-1910 Leeson Motor (115 VAC) 0709-0054-004 Leeson Motor (220/230 VAC) To obtain Replacement parts call Oliver Products Company at 1-800-253-3893 REVISED 3-25-98 0709S20033...

  • Page 20: Frame

    MODEL 709 MINI SUPREME BREAD SLICER FRAME REV. 6/9/09 rev. 11/2010 0709S20044 1/15...
  • Page 21 0709-0029 SIDE-RH 0709-0032 SIDE-LH 0709-0033 SPACER-SCOOP END 0711-0006 SCREW-SLTD 5843-5385 SCREW-SLTD 5843-5412 SPACER-HEX 0709-0039 LIP-TABLE 0709-0081-0XX COVER-FRONT 0709-0030-1 COVER-REAR 0709-0031 CLIP-FINGER RH 0709-0042 CLIP-FINGER LH 0709-0043 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 2/15...
  • Page 22 MODEL 709 MINI SUPREME BREAD SLICER B-NO. PART DISCRIPTION PART NO. QTY. COVER-BOTTOM 0709-0069 SUBPANEL 0709-0036 SWITCH-PB-SNP 5757-7610 BUTTON-RED SQ. “STOP” 0709-0078 BEZEL-SQR SILVER 5757-7651 BLACK START BUTTON 0709-0080 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 3/15...
  • Page 23 MODEL 709 MINI SUPREME BREAD SLICER BLADE FRAMES rev. 11/2010 0709S20044 4/15...
  • Page 24 NUT-HEX JAM5/16-18 5832-0001 BOLT-CARRIAGE 3/8-16 5804-1710 WASHER-3/8 SPRING LCK 5851-9359 NUT-HEX FULL 3/8-16 5832-0522 SCREW-HEX HEAD 1/4-20 5842-1506 WASHER 1/4" SPRNG LCK 5851-9008 SCREW-SOCET HD 10-24 5842-2533 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 5/15...
  • Page 25 SPACER BEARING 0709-0009 HANDLE & GEAR ASSY. 0709-0011-1 PLATE-MOTOR MTG. 0709-0023 PUSHER ARM ASSY 0709-0046-1 ANCHOR BRACKET 0709-0079 BEARING-PILLOW BLOCK 5251-8090 RING-RETAINING TRUARC 5840-1125 KNOB-BALL 5911-7001 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 6/15...
  • Page 26 BEARING-FLANGE BALL 5251-3022 INSERT-THREAD1/4-20 5822-2030 BLADE FRAME (SPACING) 0709-0001-5XX BAR-GUIDE 0709-0006 BLADE-TYPE A 0797-0029-1 BRACKET-TRAY CENTER 0709-0053 CRANK MOTOR 0709-0010-002 ROD-CONNECTING LONG 0709-0034-003 GEARMOTOR 1/5 HP 6310-1910 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 7/15...
  • Page 27 MODEL 709 MINI SUPREME BREAD SLICER WORKING PARTS rev. 11/2010 0709S20044 8/15...
  • Page 28 SCREW-HEX HEAD 3/8-16 5842-1555 SCREW-SHLDER 3/8 X 1 ¼ 5842-8526 SCREW-SOC HD 1/4-20 X 1 5842-2545 SCREW-ROUND HD 1/4-20 5842-5104 SCREW-HEX HD 1/4-20 5843-1001 SCREW-HXSOC HD1/4-20 5843-1542 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 9/15...
  • Page 29 MODEL 709 MINI SUPREME BREAD SLICER B-NO. PART DISCRIPTION PART NO. SPACER BEARING 0709-0009 102A LEVER 0709-0011-0023 102B GEAR-SPUR 68T 0709-0011-0033 102C STUD-PIVOT 0709-0011-0013 105A ARM-PUSHER 0709-0046-0023 105B ACTUATOR-SWITCH 0709-0046-0034 105C SHAFT 0709-0046-0073 105D GEAR 44T 0709-0046-0093 105E BLOCK PIVOT...
  • Page 30 MODEL 709 MINI SUPREME BREAD SLICER To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 B-NO. PART DISCRIPTION PART NO. LINK-BLADE FRAME 0709-0035-001 SPACER BEARING 0709-0041 BEARING-FLANGE BALL 5251-3022 CRANK MOTOR 0709-0010-002 ROD-CONNECTING LONG 0709-0034-003 SHIELD-CRUMB 0709-0047-001 BEARING-SN BZ...
  • Page 31 MODEL 709 MINI SUPREME BREAD SLICER PUSHER rev. 11/2010 0709S20044 12/15...
  • Page 32 NUT-HX FULL 1/4-20 5832-0520 NUT-ELASTC FL 1/4-20 5831-9087 SCREW-SLTD TRSHD 5843-5413 SCREW-HEX HD 1/4-20 5843-1001 SCREW-FLAT HD 1/4-20 5843-2732 BRACKET-CRADLE MTG 0709-0013-001 SPACER-PUSHER GUIDE 0709-0015 PLATE-BACKUP 0709-0016 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 13/15...

  • Page 33: Part Discription Part No

    SPRING-L.H. TORSION 4605-1000-0014 SPRING-R.H. TORSION 4605-1000-0015 INSERT-THREAD1/4-20 5822-2030 COLLAR-SPRING 0709-0057 KNIFE GUIDE & HLDDWN 0709-0082-0XX CRADLE 0709-0045-XXX TABLE-INFEED 0709-0018 BRACKET-TBLE MTG RH 0709-0025 BRACKET-TBLE MTG LH 0709-0026 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 rev. 11/2010 0709S20044 14/15...
  • Page 34 MODEL 709 MINI SUPREME BREAD SLICER ELECTRICAL PANEL B-NO. PART DISCRIPTION PART NO. SUBPANEL 0709-0036 RELAY-DPST 20A 120/240V 5749-8027 SWITCH – SM BASIC 5757-8001 rev. 11/2010 0709S20044 15/15...

  • Page 35: Spacer Bearing 0709-0009

    0709-0016 Guide-Pusher 0709-0017-002 Guide-Pusher W/Boss 0709-0017-003 Block-Slide 0711-0017 Bearing-Cam Follower 5251-0091 Nut-Elastic Lock 5831-9087 Plunger-Ball 5915-9815 Kit-Mounting Block 0709-0037K Bushing-Flange 0709-0038 Spring-L.H. Torsion 4605-1000-0014 Spring-R.H. Torsion 4605-1000-0015 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 REV 6/23/05 0709S20034-...
  • Page 36 5765-1076 Button-Square Black 0709-0080 Holder-Fuse 5726-1030 Breaker-Circuit 2 Amp 5757-4105 Breaker-Circuit 3 Amp 5757-4155 Breaker-Circuit 5 Amp 5757-4255 Fuse-1.5 Amp 5725-9121 Fuse-3 Amp 5725-9126 Fuse-5 Amp 5725-9127 To obtain Replacement Parts call Oliver Products Company at 1-800-253-3893 Rev. 3/7/18 0709S20034-...
  • Page 37 MODEL 709 MINI SUPREME BREAD SLICER NOTE THE FOLLOWING COMPONENTS MUST BE SELECTED BASED ON THE MODEL OF GEARMOTOR AND THE ELECTRICS USED ON YOUR SLICER. “Dayton” Motor wired as 1 Phase, 60 Hertz, 115 Volts AC ITEM NO. PART DESCRIPTION...
  • Page 38 WARRANTY PARTS Oliver Packaging & Equipment Company warrants that if any part of the equipment (other than a part not manufactured by Oliver) proves to be defective (as defined below) within two years after shipment, and if Buyer returns the defective part to Oliver Packaging & Equipment within two years, Freight Prepaid to Oliver Packaging &...
  • Page 39 4. The service dealer will then complete an invoice and send it to the Parts and Service Department at Oliver Packaging & Equipment Company. 5. The Parts and Service Manager of Oliver Packaging and Equipment Company will review the invoice and returned parts, if applicable, and approve for payment.
  • Page 40 This policy applies to all parts returned to the factory whether for warranted credit, replacement, repair or re-stocking. Oliver Packaging and Equipment Company requires that the customer obtain a Return Material Authorization (RMA) number before returning any part. This number should appear on the shipping label and inside the shipping carton as well.
  • Page 41 THIS PAGE WAS INTENTIONALLY LEFT BLANK. GEN020319...
