AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc.

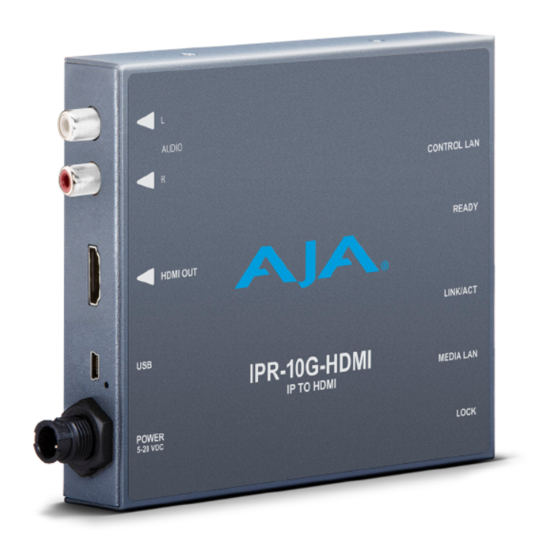

System Requirements Remote computer configuration and control is accomplished using the IPR-10G-HDMI's internal web server. A Mac OSX or Windows computer with a web browser installed is all that is required. A USB port is also required for the initial configuration using eMini-Setup.
• Red - SFP+ module present, no link • Green - Link is up • Green flash - Link is up and there is Tx or Rx activity The Lock LED behavior is as follows: IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
NOTE: Two LAN connections to the unit are not necessarily required on an ongoing basis. If it is desirable for your installation, after the IPR-10G-HDMI is set up, you can access all control parameters through the Media LAN with the appropriate network configuration.
Windows PCs). The eMini-Setup application, available as a free download from the AJA website, is used to identity the IPR-10G-HDMI's current IP addresses, if configured, or to manually set the initial network configuration to work in your environment. Refer below to "Chapter 2 –...
Subsequently, that device can then be reconfigured over that network, using its IP address and built-in web server. NOTE: The eMini-Setup application is only used to setup selected Ethernet capable AJA devices, and cannot be used to connect to or setup other AJA Mini-Converters.
When finished, an AJA eMini-Setup shortcut will be installed on the desktop, and you will be able to locate the eMini-Setup application in the AJA folder in the Programs listing. NOTE: If the eMini-Setup application already exists on the PC, a different Setup Wizard appears.
PC Startup To run eMini-Setup on a PC, double-click on the AJA eMini-Setup icon on your desktop, or open the AJA folder in the program list and click on the AJA eMini- Setup application located inside the eMini-Setup folder. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0...
Sn - This is the factory set unique serial number of your AJA device. If you ever call AJA Support for service, you may be asked for this number. A status field at the bottom of the screen shows if the eMini-Setup application is connected and communicating with an AJA device.
Control Network Tab Screen Use this Control Network tab to change the network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes. IP Address Type - Choose from DHCP (default) or Static IP Address.
Media Network Tab Screen Use this Media Network tab to change the media network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes. IP Address Type - Choose from DHCP or Static IP Address.
4. Click the Update tab. Click the Browse button. Navigate to the firmware (.ajas extension), open it, and confirm the update. Progress will be shown via the “Progress” bar. 5. After the update, the AJA device must be rebooted by clicking on the Reboot button in the prompt window. See also: "Firmware Screen"...
AJA Support for service or technical support. System Name - This field allows you to give your AJA device a unique name. This can be useful if you have several attached to a Mac/PC via USB so you can distinguish between them easily.
Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions. To connect to the IPR-10G-HDMI, attach the unit to your network and enter its Control Network IP address into the web browser. If authentication has been configured, you may need to enter a password.
Ethernet LEDs of that device at a 1 second rate. Parameters and Information The rest of the screen displays all the parameter selections and information available for the selected IP Mini-Converter screen. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 19
• For values with sliders, fine control is achieved using the arrow keys on the keyboard to move the slider the minimum amount. The numeric value can also be clicked on to enter a specific value. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Status Screen The Status screen reports the current status and settings for: • Input Status • Network Status • Firmware Status Each group of parameters can be expanded or collapsed. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Config Screen Figure 7. IPR-10G-HDMI Config Screen 1 of 2 The IPR-10G-HDMI Config Screen, shown in two parts, has the parameters required for the general operation of the IPR-10G-HDMI Mini-Converters. System Name Defines a name for the system and gives it a unique identifier. This name is used when displaying systems through the web interface.
Page 22
• Video Destination Address • Video Source Address • Audio Destination Address • Audio Source Address. Manual - When Manual is selected, you must enter configuration parameters manually into the Input Stream Selection fields. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 23
Determine how you want the HDMI audio to function. It can auto-detect which channels are carrying the channels (either Channels 1-2 or Channels 1-8), or you can select manually which channels will carry audio. Select one of the following: • Auto IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Factory Reset recalls all editable parameters to their factory default settings. Individual presets and Network settings, such as the IP Addresses, are not affected. Recall - The Recall buttons recall the saved preset configurations. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Erase All erases all data from all the presets. A dialog box warns you that the operation will erase all 20 current presets. Network Screen Use the Network Screen: Control tab to configure or modify settings for the Control LAN Ethernet port. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 26
• If IP Address Type is set to DHCP and there is a DHCP failure, the IP address is set to the static IP address. Netmask - Netmask determines the subnet mask to be used for TCP/IP networking. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
The Update Firmware screen allows you to download and install a firmware update from AJA. To Download and Install Updated Firmware 1. Visit the AJA website (aja.com) to locate and download the updated software. The following page provides support information and will include links to locations where you can download updates: https://www.aja.com/products/mini-converters/ip-converters#support...
Booting the IPR-10G-HDMI from the Safeboot Firmware The IPR-10G-HDMI contain primary firmware and safeboot (secondary) firmware. To boot from the primary firmware, just cycle the unit's power. In the event that the primary firmware becomes corrupted, you can boot the unit using the safeboot firmware.
NOTE: You will need to use a switch if you are intending to take advantage of multicast and/or routing transmission data to multiple destinations. Is it possible to send a SMPTE 2110 signal direct from a KONA IP to an IPR-10G-HDMI without using a switch? Yes.
Size (w x d x h) • 5.53" x 4.48" x 0.954" (140.46 x 113.79 x 24.23 mm) Weight • 0.6 lb (0.3 kg) Power • 5-20VDC Regulated, 13 Watts (estimated), Power supply required (included with purchase) IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 31
• Safe Operating Temperature: 0 to 40 C (32 to 104 F) • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 33
As an electromagnetic wave equipment for office use (Class A), (Broadcasting Communication this equipment is intended to use in other than home area. Equipment for Office Use) Sellers or users need to take note of this. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 34
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na documentação. Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella documentazione. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 35
(incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 36
Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 37
Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 38
Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
Page 39
¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o vendidos por el fabricante. Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo fabricante. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore. IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
AJA Video, with shipping charges prepaid. AJA Video shall pay to return the product to Customer but only if to a location within the country in which the AJA Video service center is located.
No amendment to or modification of this warranty will be binding unless in writing and signed by AJA Video. The laws of the State of California, USA will govern this warranty and any dispute arising from it. Any translation of this...
Accessing Control and Media Parameters Through Media Update Status 20 LAN Only 7 Firmware Screen 27 Update Procedure 15 Initial Installation 8 Updated Updating from Web UI 27 IP Address Type 26 IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
Page 43
Web Browser Accessing Unit Through Its IP Address Accessing User Interface 7 Loading Firmware 9 Preferred 5 System Requirements 5 Web Server Access Password 25 Built In 5, 9, Unit's Internal 5 IPR-10G-HDMI SMPTE 2110 IP Video/Audio Converter v1.0 www.aja.com...
