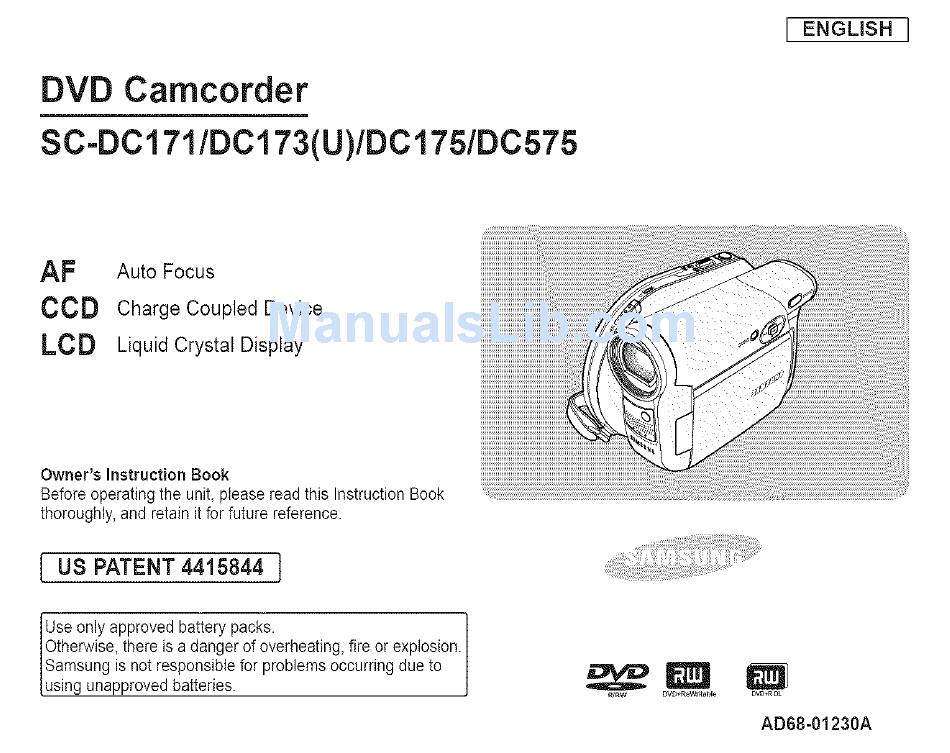

DVD Camcorder
SC-DC171/DCl 73(U)/DC175/DC575
J ENGLISH
J
AF
Auto Focus
CCD
Charge Coupled Device
LCD
Liquid Crystal Display
Owner's Instruction Book
Before operating the unit, ptease read this Instruction Book
thoroughly, and retain it for future reference.
[ US PATENT 4415844
]
Use only approved battery packs.
Otherwise, there is a danger of overheating, fire or explosion.
Samsung is not responsible for problems occurring due to
using unapproved batteries.
_rw
DW+r_i_ab_
m
OVD+_OL
AD68-01230A
