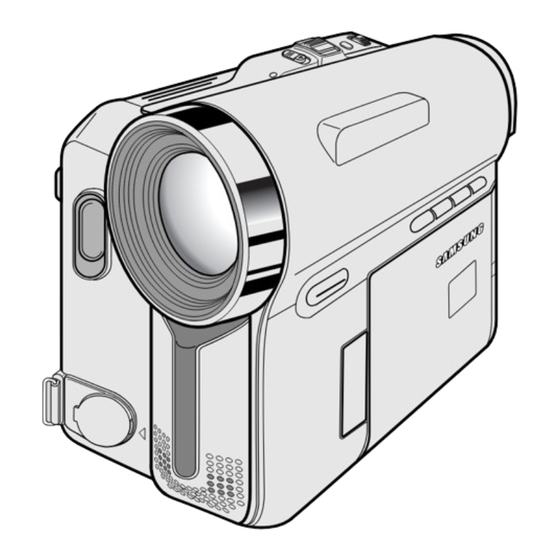

Samsung SC-D354M Owner's Instruction Book

Digital video camcorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

ENGLISH
Digital Video Camcorder
SC-D351/D352/D353/
D354/D354M/D355
AF
Auto Focus
CCD
Charge Coupled Device
LCD
Liquid Crystal Display
Owner's Instruction Book
Before operating the unit, please read
this Instruction Book thoroughly, and
retain it for future reference.
Videocámara digital
SC-D351/D352/D353/
D354/D354M/D355
AF
CCD
LCD
Manual de instrucciones
Antes de utilizar la cámara lea detenidamente
este manual de instrucciones y consérvelo
para consultas posteriores.
ESPAÑOL
Enfoque automático
Dispositivo acoplado
porcarga
Pantalla de cristal líquido
AD68-00839E

Advertisement

Table of Contents
loading

Related Manuals for Samsung SC-D354M

Summary of Contents for Samsung SC-D354M

  • Page 1 ENGLISH Digital Video Camcorder SC-D351/D352/D353/ D354/D354M/D355 Auto Focus Charge Coupled Device Liquid Crystal Display Owner’s Instruction Book Before operating the unit, please read this Instruction Book thoroughly, and retain it for future reference. Videocámara digital SC-D351/D352/D353/ D354/D354M/D355 Enfoque automático Dispositivo acoplado porcarga Pantalla de cristal líquido...

  • Page 2: Table Of Contents

    Battery Installation for the Remote Control (SC-D354/D354M/D355 only) ...19 Connecting a Power Source ...20 To use the AC Power Adapter and DC Cable...20 To select the Camcorder Mode (SC-D353/D354/D354M/D355 only) ...20 Using the Lithium Ion Battery Pack ...21 Charging the Lithium Ion Battery Pack ...21 Table of continuous Recording Time based on Model and Battery Type...22...
  • Page 3 ENGLISH Contents Basic Recording ... 35 Using the Viewfinder ...35 Adjusting the Focus ...35 Inserting and Ejecting a Cassette...36 Hints for Stable Image Recording...37 Recording with the LCD Screen...37 Recording with the Viewfinder...37 Various Recording Techniques ...38 Making your First Recording...39 Using EASY.Q Mode (for Beginners)...40 Record Search (REC SEARCH) ...41 Setting the Zero Memory (SC-D354/D354M/D355 only) ...42...
  • Page 4 Memory Stick Functions ...87 Inserting and Ejecting the Memory Card...88 Structure of Folders and Files on the Memory Card ...89 Image Format...89 Selecting the Camcorder Mode ...89 Selecting the Built-in Memory (SC-D354/D354M/D355 only) ...90 Using Quick Menu: Memory Type...90 Índice Aplicación del efecto digital Effects ...65...
  • Page 5 Marking Images for Printing...108 Using Quick Menu: Print Mark ...109 PictBridge (SC-D353/D354/D354M/355 only) ... 110 Maintenance ... 112 After Finishing a Recording...112 Cleaning and Maintaining the Camcorder ...113 Using Your Camcorder Abroad ...114 Troubleshooting ... 115 Specifications ... 118 Index... 119 Índice Selección de la calidad de imagen...91...

  • Page 6: Notes And Safety Instructions

    Notes regarding the Rotation of the LCD Screen Please rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder. 1. LCD screen closed. 2. Standard recording using the LCD screen.
  • Page 7 Unauthorized copying of copyrighted material may be against the law. All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders. Notes regarding Moisture Condensation 1.
  • Page 8 To preserve battery power, keep your Camcorder turned off when you are not operating it. If your Camcorder is in CAMERA mode, and it is left in STBY mode without being operated for more than 5 minutes with a tape inserted, it will automatically turn itself off to protect against unnecessary battery discharge.
  • Page 9 Do not film with the camera lens pointing directly at the sun. Direct sunlight can damage the CCD(Charge Coupled Device). Notes regarding electronic Viewfinder 1. Do not position the Camcorder such that the Viewfinder is pointing towards the sun. Direct sunlight can damage the inside of the Viewfinder. Be careful when placing the Camcorder under sunlight or near a window exposed to sunlight.
  • Page 10 1. The Lithium battery maintains the clock function and user settings; even if the Battery pack or AC adapter is removed. 2. The Lithium battery for the Camcorder lasts about 6 months under normal operation from time of installation. 3. When the Lithium battery becomes weak or dead, the date/time indicator will display 12:00 AM JAN.1,2005 when you set the...

  • Page 11: Getting To Know Your Camcorder

    Grabación de MPEG (Sólo SC-D353/D354/D354M/D355) La grabación de MPEG posibilita la grabación de vídeo en la tarjeta de memoria. Ranura para diversas tarjetas de memoria (Sólo SC-D354M/D355) La ranura para diversas tarjetas de memoria permite utilizar el Memory Stick, Memory Stick PRO, la MMC y la SD.

  • Page 12: Accessories Supplied With Camcorder

    ENGLISH Getting to Know Your Camcorder Accessories Supplied with Camcorder Make sure that the following basic accessories are supplied with your digital video camera. Basic Accessories 1. Lithium Ion Battery Pack 1. Lithium Ion Battery Pack 2. AC Power Adapter (AA-E8 TYPE) 3.

  • Page 13: Front & Left View

    ENGLISH Getting to Know Your Camcorder Front & Left View 1. Lens 2. LED light (SC-D352/D354/D354M/D355 only) 3. Remote sensor (SC-D354/D354M/D355 only) 4. S-Video jack 5. Internal MIC 1. Lens 6. EASY.Q button (see page 40) 2. LED light (see page 48) 7.

  • Page 14: Left Side View

    ENGLISH Getting to Know Your Camcorder Left Side View 1. DISPLAY 2. MACRO/PB ZOOM 3. Speaker 4. Mode switch (SC-D353/D354/D354M/D355 only) 1. DISPLAY (see page 25) 5. Focus adjustment knob 2. MACRO/PB ZOOM 6. Viewfinder (see page 44/see page 75) 7.

  • Page 15: Right & Top View

    ENGLISH Getting to Know Your Camcorder Right & Top View 1. NITE PIX switch (SC-D352/D354/D354M/D355 only) 2. Menu selector (VOL/MF) 3. MENU button 4. Start/Stop button 5. Power switch 6. DC jack 1. NITE PIX switch 7. TAPE EJECT (SC-D352/D354/D354M/D355 8.

  • Page 16: Rear & Bottom View

    Ranura de tarjeta de memoria (Tarjeta de memoria utilizable) SC-DD354M/355 only Sólo SC-D353/D354/D354M Memory Stick Memory Stick PRO SD/MMC ESPAÑOL 3. Memory card slot 4. Battery release (SC-D353/D354/D354M/D355 only) Sólo SC-D354M/D355 Memory Stick Memory Stick PRO Memory Stick Memory Stick PRO SD/MMC...

  • Page 17: Remote Control (Sc-D354/D354M/D355 Only)

    ENGLISH Getting to Know Your Camcorder Remote Control (SC-D354/D354M/D355 only) 1. PHOTO 2. START/STOP 3. SELF TIMER 4. ZERO MEMORY 5. PHOTO SEARCH 6. A.DUB (FF) (REW) (PLAY) 10. Direction 1. PHOTO (see page 68) 11. F. ADV (see page 74) 2.

  • Page 18: Preparation

    It is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording. The Hand strap enables you to: - Hold the Camcorder in a stable, comfortable position. - Press the ZOOM and Start/Stop button without having to change the position of your hand.

  • Page 19: Lithium Battery Installation

    Battery pack or AC Power adapter is removed. ✤ The Lithium battery for the Camcorder lasts about 6 months under normal operation from the time of installation. ✤ When the Lithium battery becomes weak or dead, the date/time indicator will display 12:00AM JAN.1,2005...

  • Page 20: Connecting A Power Source

    ENGLISH Preparation Connecting a Power Source There are two types of power source that can be connected to your Camcorder. - The AC Power adapter and AC Cord: used for indoor recording. - The Battery pack: used for outdoor recording.

  • Page 21: Using The Lithium Ion Battery Pack

    The Battery pack may be charged a little at the time of purchase. To prevent reduction in the life and capacity of the Battery pack, always remove it from the Camcorder after it is fully charged. The amount of continuous recording time available depends on: - The type and capacity of the Battery pack you are using.

  • Page 22: Table Of Continuous Recording Time Based On Model And Battery Type

    Do not allow the + and – terminals of the Battery pack to be short-circuited. It may cause leakage, heat generation, induce overheating or fire. Use SB-LSM80 or SB-LSM160 Battery pack only. It is recommended to use original battery pack that is available at SAMSUNG service center. Preparación Tabla de tiempos de grabación continuada según el modelo y el...

  • Page 23: Battery Level Display

    20~40% used c. 40~80% used d. 80~95% used e. Completely used (Blinking) (The Camcorder will turn off soon, change the battery as soon as possible.) [ Notes ] Please refer to the Table on page 22 for approximate continuous recording time.

  • Page 24: Osd (On Screen Display In Camera/Player Modes)

    ENGLISH Preparation OSD (On Screen Display in Camera/Player Modes) 1. Battery level (see page 23) 2. Digital effects mode (see page 65) 3. EASY.Q (see page 40) 4. DIS (see page 61) 5. Program AE (see page 63) 6. White balance mode (see page 59) 7.

  • Page 25: Osd (On Screen Display In M.cam/M.player Modes) (Sc-D353/D354/D354M/D355 Only)

    ENGLISH Preparation OSD (On Screen Display in M.Cam/M.Player Modes) (SC-D353/D354/D354M/D355 only) 1. Photo quality 2. CARD (Memory Card) indicator 3. Image counter Total number of recordable still images. 4. Image recording and loading indicator 5. Erase protection indicator (see page 97) 6.

  • Page 26: System Menu Setting

    ENGLISH System Menu Setting Selecting the OSD Language ✤ The Language function works in Camera/Player/M.Cam/M.Player modes. ✤ Select the appropriate OSD language among from OSD List. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD. (SC-D353/D354/D354M/355 only) 3.

  • Page 27: Setting The Clock

    ENGLISH System Menu Setting Setting the Clock ✤ Clock setup works in Camera/Player/M.Cam/M.Player modes. ✤ The Date/Time is automatically recorded onto a tape. Before recording, please set the Date/Time. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD. (SC-D353/D354/D354M/D355 only) 3.

  • Page 28: Setting The Wireless Remote Control Acceptance (Remote) (Sc-D354/D354M/D355 Only)

    The Remote function works in Camera/Player/M.Cam/M.Player modes. ✤ The Remote option allows you to enable or disable the remote control for use with the Camcorder. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD.

  • Page 29: Setting The Beep Sound

    ENGLISH System Menu Setting Setting the Beep Sound ✤ The Beep Sound function works in Camera/Player/M.Cam/M.Player modes. ✤ You can turn the Beep Sound on or off, when on, each press of a button sounds a beep. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 30: Setting The Shutter Sound (Sc-D353/D354/D354M/D355 Only)

    ENGLISH System Menu Setting Setting the Shutter Sound (SC-D353/D354/D354M/D355 only) ✤ The Shutter Sound function works in both Player and M.Cam modes. ✤ You can turn the Shutter Sound on or off, when on, with each press of the PHOTO button the Shutter will Sound. 1.

  • Page 31: Viewing The Demonstration

    ENGLISH System Menu Setting Viewing the Demonstration ✤ Before you begin: Make Sure that there is no tape inserted in the Camcorder. (see page 36) ✤ Demonstration automatically shows you the major functions that are included with your Camcorder so that you may use them more easily.

  • Page 32: Display Menu Setting

    Adjusting the LCD Screen ✤ This function works in Camera/Player/M.Cam/M.Player modes. ✤ Your Camcorder is equipped with a 2.36 inch color Liquid Crystal Display(LCD) screen, which enables you to view what you are recording or playing back directly. ✤ Depending on the conditions under which you are using the Camcorder (indoors or outdoors for example), you can adjust;...

  • Page 33: Displaying The Date/Time

    - During playback of a blank section of a tape. - If the tape was recorded before setting the Date/Time in the Camcorder. - When the Lithium battery becomes weak or dead. Before you use the Date/Time function, you must set the clock.

  • Page 34: Setting The Tv Display

    - Off: The OSD appears in the LCD screen and Viewfinder only. - On: The OSD appears in the LCD screen, Viewfinder and TV. - Use the DISPLAY button located at the left side of the Camcorder to turn the OSD on/off on the LCD screen /Viewfinder/TV.

  • Page 35: Basic Recording

    ENGLISH Basic Recording Using the Viewfinder ✤ In the PLAYER mode, the Viewfinder will work when the LCD screen is closed. ✤ In the CAMERA mode, the Viewfinder will work when the LCD screen is closed or rotated counterclockwise 180°. Adjusting the Focus The focus adjustment knob of the Viewfinder enables individuals with vision problems to see clearer images.

  • Page 36: Inserting And Ejecting A Cassette

    ENGLISH Basic Recording Inserting and Ejecting a Cassette ✤ When inserting a tape or closing the cassette compartment, do not apply excessive force. As it may cause a malfunction. ✤ Do not use any tape other than Mini DV cassettes. 1.

  • Page 37: Hints For Stable Image Recording

    Basic Recording Hints for Stable Image Recording ✤ While recording, it is very important to hold the Camcorder correctly. ✤ Fix the lens cover firmly by clipping it to the hand strap. (see page 18) Recording with the LCD Screen 1.

  • Page 38: Various Recording Techniques

    [ Note ] Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder. Grabación básica Técnicas diversas de grabación ✤ En algunos casos son necesarias distintas técnicas de grabación para obtener mejores resultados.

  • Page 39: Making Your First Recording

    ENGLISH Basic Recording Making your First Recording 1. Connect a power source to the Camcorder. (see page 20) (A Battery pack or a AC Power adapter) Insert a cassette. (see page 36) 2. Remove the Lens cover. 3. Set the Power switch to CAMERA.

  • Page 40: Using Easy.q Mode (For Beginners)

    2. Set the Mode switch to TAPE. (SC-D353/D354/D354M/D355 only) 3. By pressing the EASY.Q button, all functions on the Camcorder will be set to off and the recording settings will be set to the following basic modes: Battery level, recording mode, counter, date/time, and DIS ) will be displayed.

  • Page 41: Record Search (Rec Search)

    ENGLISH Basic Recording When a cassette is loaded and the Camcorder is left in the STBY mode for more than 5 minutes without being used, it will switch off automatically. To use it again, press the Start/Stop button or set the Power switch to Off and then back to CAMERA.

  • Page 42: Setting The Zero Memory (Sc-D354/D354M/D355 Only)

    ENGLISH Basic Recording Setting the Zero Memory (SC-D354/D354M/D355 only) ✤ The ZERO MEMORY function works in both Camera and Player modes. ✤ You can mark a point on a tape that you want to return to following playback. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 43: Self Record Using The Remote Control (Sc-D354/D354M/D355 Only)

    [ Notes ] Do not obstruct the remote control sensor by putting obstacles between the remote control and Camcorder. The remote control range is 4 ~5m (13 ~17 ft). The effective remote control angle is up to 30 degrees left /right from the center line.

  • Page 44: Zooming In And Out

    ENGLISH Basic Recording Zooming In and Out ✤ The Zoom function works in both Camera and M.Cam modes. ✤ Zooming is a recording technique that lets you change the size of the subject in a scene. ✤ You can zoom using variable zoom speeds. ✤...

  • Page 45: Using The Fade In And Out

    ENGLISH Basic Recording Using the Fade In and Out ✤ The FADE function works only in Camera mode. ✤ You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.

  • Page 46: Using Back Light Compensation Mode (Blc)

    ENGLISH Basic Recording Using Back Light Compensation Mode (BLC) ✤ BLC works in both Camera and M.Cam modes. ✤ Back lighting exists when the subject is darker than the background: - The subject is in front of a window. - The person to be recorded is wearing white or shiny clothes and is placed against a bright background;...

  • Page 47: Using The Color Nite Shutter

    ENGLISH Basic Recording Using the Color Nite Shutter ✤ COLOR NITE SHUTTER function works only in Camera mode. ✤ Shutter speed can be controlled, allowing you to record slow moving objects. ✤ COLOR NITE SHUTTER function may produce a brighter image. 1.

  • Page 48: Using The Color Nite Shutter With Led Light (Sc-D352/D354/D354M/D355 Only)

    Do not touch it while in operation or soon after turning it off, otherwise serious injury may result. Do not place the Camcorder into the carrying case immediately after using the LED light, since it remains extremely hot for some time.

  • Page 49: Nite Pix (0 Lux Recording) (Sc-D352/D354/D354M/D355 Only)

    ENGLISH Basic Recording Nite Pix (0 lux recording) (SC-D352/D354/D354M/D355 only) ✤ The Nite Pix function works in both Camera and M.Cam modes. ✤ The Nite Pix function enables you to record a subject in darkness. 1. Set the Power switch to CAMERA. 2.

  • Page 50: Power Nite Pix (Sc-D352/D354/D354M/D355 Only)

    ENGLISH Basic Recording Power Nite Pix (SC-D352/D354/D354M/D355 only) ✤ The Power Nite Pix function works only in Camera mode. ✤ The Power Nite Pix function can record a subject more brightly in darkness than the Nite Pix function. ✤ When you work in Power Nite Pix mode, the Power Nite Pix icon remains on the LCD screen.

  • Page 51: Advanced Recording

    ENGLISH Advanced Recording Use of various Functions Setting menu items Main Sub Menu Functions Menu Camera Camera Program AE Selecting the Program AE Function White Balance Setting White Balance Digital Effect Setting the Digital special effect Selecting the Digital Image Stabilizing Digital Zoom Selecting Digital Zoom Tape...
  • Page 52 ENGLISH Advanced Recording Main Sub Menu Functions Menu Display LCD Bright Setting the Brightness tone of the LCD screen LCD Color Setting the Color tones of the LCD screen Date/Time Setting the Date and Time TV Display Selecting OSD on/off of TV Clock Set Setting the time System...

  • Page 53: Availability Of Functions In Each Mode

    ENGLISH Advanced Recording Function availability in each Mode Requested Digital functions Mode Operating PHOTO Color Nite 16:9 Digital Zoom Mode (TAPE) Shutter Wide ✩ ✕ ✕ ✕ ✩ ✩ ✩ Digital Zoom ✕ ✕ ✕ ✕ PHOTO (TAPE) ✕ ✕ ✕...

  • Page 54: Selecting The Record Mode

    The Record Mode function works in both Camera and Player (DV IN) modes. ✤ This Camcorder records and plays back in SP (standard play) mode and in LP (long play) mode. - SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.

  • Page 55: Selecting Audio Mode

    Selecting Audio Mode ✤ The Audio Mode function works in both Camera and Player modes. ✤ This Camcorder records sound in two ways. (12Bit, 16Bit) - 12Bit: You can record two 12Bit stereo sound tracks. The original stereo sound can be recorded onto the Main (Sound1) track.

  • Page 56: Cutting Off Wind Noise (Wind Cut)

    ENGLISH Advanced Recording Cutting Off Wind Noise (Wind Cut) ✤ The Wind Cut function works in both Camera and Player (Audio dubbing) modes. Use the Wind Cut when recording in windy places such as the beach or near buildings. ✤ The Wind Cut function minimizes wind noise or other noise while recording.

  • Page 57: Setting The Shutter Speed & Exposure

    The image may not seem as smooth when a high Shutter Speed is set. The Camcorder returns to the auto shutter and auto exposure settings when you set the NITE PIX to ON, or change to the EASY.Q mode. (SC-D352/D354/D354M/D355 only) When recording with a Shutter Speed of 1/1000 or higher, make sure the sun is not shining into the lens.

  • Page 58: Auto Focus/Manual Focus

    In the following situations, you may obtain better results by adjusting the focus manually. a. A picture containing several objects, some close to the Camcorder, others further away. b. A person enveloped in fog or surrounded by snow. c. Very shiny or glossy surfaces like a car.

  • Page 59: Setting The White Balance

    ENGLISH Advanced Recording Setting the White Balance ✤ The White Balance function works in both Camera and M.Cam modes. ✤ The White Balance is a recording function that preserves the unique image color of the object in any recording condition. ✤...

  • Page 60: Using Quick Menu: White Balance

    ENGLISH Advanced Recording Using Quick Menu: White Balance ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button. 1. Press the Menu selector.

  • Page 61: Setting The Digital Image Stabilizer (Dis)

    The DIS function works only in Camera mode. ✤ DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the Camcorder (within reasonable limits). ✤ It provides more stable pictures when: - Recording with the zoom (DIS is not available in Digital Zoom mode.)

  • Page 62: Using Quick Menu: Digital Image Stabilizer (Dis)

    ENGLISH Advanced Recording Using Quick Menu: Digital Image Stabilizer (DIS) ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 63: Programed Automatic Exposure Modes (Program Ae)

    ENGLISH Advanced Recording Programed Automatic Exposure Modes (Program AE) ✤ The Program AE function works only in Camera mode. ✤ The Program AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions. ✤ They give you creative control over the depth of field. Auto mode ( - Auto balance between the subject and the background.

  • Page 64: Setting The Program Ae

    ENGLISH Advanced Recording Setting the Program AE 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (SC-D353/D354/D354M/D355 only) 3. Press the MENU button. The menu list will appear. 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector.

  • Page 65: Applying Digital Effects

    ENGLISH Advanced Recording Applying Digital Effects ✤ The Digital Effect function works only in Camera mode. ✤ The Digital Effects enable you to give a creative look to your recording. ✤ Select the appropriate Digital Effect for the type of picture that you wish to record and the effect you wish to create.

  • Page 66: Selecting The Digital Effects

    ENGLISH Advanced Recording Selecting the Digital Effects 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (SC-D353/D354/D354M/D355 only) 3. Press the MENU button. The menu list will appear. 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector.

  • Page 67: Zooming In And Out With Digital Zoom

    ENGLISH Advanced Recording Zooming In and Out with Digital Zoom ✤ Zoom works only in Camera mode. Selecting the Digital Zoom ✤ Zooming more than 20x is achieved digitally, up to 900x when combined with optical zoom. ✤ The picture quality may deteriorate depending on how much you zoom in on the subject.

  • Page 68: Photo Image Recording

    2. Set the Mode switch to TAPE. (SC-D353/D354/D354M/D355 only) 3. Press the PHOTO button. The still picture is recorded for about 6~7 seconds. 4. After the PHOTO has been recorded, the Camcorder returns to its previous status. Searching for a Photo Image ✤...

  • Page 69: Playback

    [ Notes ] You can also view the picture on a TV screen, after connecting the Camcorder to a TV or VCR. (see page 71~72) Various functions are available in Player mode. (see page 73) For searching and viewing still images recorded onto tape. (see page 68) Reproducción...

  • Page 70: Controlling Sound From The Speaker

    If you close the LCD screen while playing, you will not hear sound from the speaker. [ Notes ] When the AV cable is connected to the Camcorder, you cannot hear sound from the Built-In Speaker and cannot adjust the volume.

  • Page 71: Tape Playback

    We recommend that you use the AC Power adapter as the power source for the Camcorder. Connecting to a TV which has Audio/Video Input Jacks 1. Connect the Camcorder to your TV with the Audio/Video cable. The yellow jack: Video The white jack: Audio(L)-mono...

  • Page 72: Connecting To A Tv Which Has No Audio And Video Input Jacks

    Playback Connecting to a TV which has no Audio and Video Input Jacks ✤ You can connect your Camcorder to a TV through a VCR. 1. Connect the Camcorder to your VCR with the Audio/Video cable. The yellow jack: Video...

  • Page 73: Various Functions While In Player Mode

    Various Functions while in Player Mode ✤ This function works only in Player mode. ✤ The PLAY, STILL, STOP, FF, REW buttons are located on the Camcorder and the remote control. (SC-D354/D354M/D355 only) ✤ The F.ADV(Frame advance), X2, SLOW buttons are located on the remote control only.

  • Page 74: Frame Advance (To Play Back Frame By Frame) (Sc-D354/D354M/D355 Only)

    ENGLISH Playback Frame Advance (To play back frame by frame) (SC-D354/D354M/D355 only) Press the F.ADV button on the remote control while in still mode. - Video sequence advances frame by frame each time you press the F.ADV button. - The F.ADV function works in still mode only. To resume normal playback, press the (PLAY/STILL) button.

  • Page 75: Zooming During Playback (Pb Zoom)

    The Playback Zoom image cannot be imported to your PC from the Camcorder’s DV jack. The PB ZOOM images cannot be exported to a PC. OSD will not be displayed on the LCD screen while the PB ZOOM function is being operated.

  • Page 76: Av In/Out (Sc-D355 Only)

    LCD screen. Also, you can direct your video or image to external devices to record or play back. 1. Connect the Camcorder to your VCR or TV with the Audio/Video cable. (See pages 71~72) 2. Set the Mode switch to TAPE.

  • Page 77: Audio Dubbing (Sc-D354/D354M/D355 Only)

    5. Press the A.DUB button on the remote control. Audio Dubbing icon ( ) will be displayed on the LCD screen. The Camcorder is ready for dubbing. 6. Press the (PLAY/STILL) button to start dubbing. Press the (STOP) button to stop the dubbing.

  • Page 78: Dubbed Audio Playback

    ENGLISH Playback Dubbed Audio Playback 1. Set the Power switch to PLAYER. 2. Set the Mode switch to TAPE. (SC-D353/D354/D354M/D355 only) 3. Insert the dubbed tape and press the MENU button. 4. Move the Menu selector to the left or right to select Tape, then press the Menu selector.

  • Page 79: Ieee 1394 Data Transfer

    Do not use the Camcorder and IEEE1394 together as this will cause IEEE1394 to shut off. Do not connect the Camcorder to a PC using both DV and USB cables. It may not operate properly. Operation is not guaranteed for all computer environments recommended above.
  • Page 80 7. To stop recording, press the (STOP) button. [ Notes ] When using this Camcorder as a recorder, the pictures that appear on a monitor may seem uneven, however recorded pictures will not be affected. Operation is not guaranteed for all the recommended computer environments mentioned above.

  • Page 81: Usb Interface (Sc-D352/D353/D354/D354M/D355 Only)

    Operations are not guaranteed for all of the recommended computer environments mentioned above. Do not connect the Camcorder to a PC using both DV and USB cables. It may not operate properly. In M.Cam or M.Player mode, be sure that the Memory card is inserted into Camcorder before connecting USB cable.
  • Page 82 USB Connect function works only in M.Player mode. ✤ Using the USB cable, you can connect your Camcorder to a computer to copy your movies and images from the Memory card (or built-in memory; SC-D354/D354M/D355), or to a printer to print your images.
  • Page 83 Setting the USB Communication Speed (SC-D353/D354/D354M/D355 only) ✤ To ensure proper communication between the camcorder and a PC, please set the USB Version before connecting the camcorder to a PC. ✤ It is available only in M.Cam and M.Player modes only.
  • Page 84 2) Set the camcorder Mode switch to TAPE. (SC- D353/D354/D354M/D355 only) 3) Connect the camcorder to the PC using the USB cable. 4) The SAMSUNG A/V Capture driver installation begins on the PC. DirectX 9.0 Click Video Codec Click The Video Codec needs to be installed in order to playback the MPEG4 Movies (stored in the Memory Card) on a PC or to use the USB Streaming/PC Camera functions.
  • Page 85 Camera function is max 15 fps.) 320X240 (QVGA) pixels for USB 1.1 connection. ✤ If PC is connected with the USB to the Camcorder, only the Power, Mode, Zoom and NITE PIX switches can be operated. (SC-D352/D354/D354M/D355 only) 1. Set the Power switch to CAMERA.

  • Page 86: Disconnecting The Usb Cable

    1. Set the Mode switch to TAPE(SC-D353/D354/D354M/D355 only), set the Power switch to CAMERA or PLAYER. 2. Connect one end of the USB cable to the USB jack on the Camcorder and the other end to the USB port on your computer.

  • Page 87: Digital Still Camera Mode (Sc-D353/D354/D354M/D355 Only)

    Print marking still images Formatting a Memory Stick [ Notes ] You can use most of the Camcorder’s functions when recording to the Memory Stick. appears on the screen while recording to the Memory Stick. While recording or loading an image, do not eject or insert the Memory Stick.

  • Page 88: Inserting And Ejecting The Memory Card

    El contenido almacenado se puede cambiar o perder a causa de un uso incorrecto, de la electricidad estática, de interferencias eléctricas o de reparaciones. Guarde las imágenes importantes aparte. Samsung no se hace responsable de los datos perdidos a causa del uso incorrecto. ESPAÑOL...

  • Page 89: Structure Of Folders And Files On The Memory Card

    The picture size is 720x480. Selecting the Camcorder Mode ✤ You can use this Camcorder as a Digital Still Camera (DSC). ✤ You have to set the Mode switch to Memory card to use this Camcorder as Digital Still Camera.

  • Page 90: Selecting The Built-In Memory (Sc-D354/D354M/D355 Only)

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Selecting the Built-in Memory (SC-D354/D354M/D355 only) ✤ Built-in memory setting is available in the Player/M.Cam/M.Player modes. (SC-D354/D354M: 16MB/SC-D355: 64MB) ✤ Images can be stored and played back using the built-in memory. Hence, set the memory type before storing and playing back images. 1.

  • Page 91: Selecting The Image Quality

    Digital Still Camera Mode ENGLISH (SC-D353/D354/D354M/D355 only) Selecting the Image Quality ✤ Photo Quality function works in Player/M.Cam modes. ✤ You can select the quality of a still images to be recorded. Select the Image Quality 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 92: Using Quick Menu: Photo Quality

    Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Using Quick Menu: Photo Quality ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button.

  • Page 93: Memory File Number

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Memory File Number ✤ File number setting works only in M.Cam mode. ✤ File numbers are given to images in the order they were recorded when they are stored on the Memory card. ✤...

  • Page 94: Taking Photos

    You may take still images while in M.Cam mode and store the images on the Memory card. This function is useful when you want to take a snapshot of a subject while you are using the Camcorder. ✤ You can take photos using the remote control. (SC-D354/D354M/D355 only) ✤...

  • Page 95: Viewing Still Images

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Viewing Still Images ✤ This function works only in M.Player mode. You can playback and view still images recorded on the Memory card. ✤ Be sure that the M.Play Select is set to Photo in the Menu. ✤...

  • Page 96: To View The Multi Display

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) To view the Multi Display 1. Set the Power switch to PLAYER. 2. Set the Mode switch to MEMORY CARD. The last recorded image appears. 3. To view six stored images on single screen, press the (MULTI DISP.) button.

  • Page 97: Protection From Accidental Erasure

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Protection from accidental Erasure ✤ The protection function works only in M.Player mode. ✤ You can protect important images from accidental erasure. If you execute format, all images including protected images will be erased.

  • Page 98: Using Quick Menu: Protect

    Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Using Quick Menu: Protect ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 99: Deleting Still Images And Moving Images

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Deleting Still Images and Moving Images ✤ The Delete function works only in M.Player mode. ✤ You can erase the still images and moving images recorded on the Memory card. ✤ If you want to delete protected images, you must first deactivate the image protection.

  • Page 100: Using Quick Menu: Delete

    Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Using Quick Menu: Delete ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 101: Formatting The Memory Card

    Digital Still Camera Mode ENGLISH (SC-D353/D354/D354M/D355 only) Formatting the Memory Card ✤ The Format function works only in M.Player mode. ✤ You can use the memory format functions to completely delete all images and options on the Memory card, including protected images. ✤...

  • Page 102: Mpeg Recording

    Saving Moving Picture Files onto a Memory Card 1. Check whether Memory card is inserted into the Camcorder. If it is not in the Camcorder, insert it into the slot. 2. Set the Power switch to CAMERA. 3. Set the Mode switch to MEMORY CARD.

  • Page 103: Mpeg Playback

    The moving picture images that you recorded on the Memory card may not play on other manufacturer’s. The MPEG4 file recorded by another Camcorder may not play on by this Camcorder. To playback MPEG4 moving pictures on a PC, the Video Codec (in the CD provided with the camcorder) should be installed.

  • Page 104: Using Quick Menu: M.play Select

    Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Using Quick Menu: M.Play Select ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 105: Recording An Image From A Cassette As A Still Image

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Recording an Image from a Cassette as a Still Image ✤ This function works only in Player mode. ✤ You can record still images from a cassette on a Memory card. ✤ If you want to move recorded multiple still images from a cassette to a Memory card, use the COPY function.

  • Page 106: Copying Still Images From A Cassette To Memory Card

    Photo Copy, then press the Menu selector. All still images that recorded on a cassette will be copied into a Memory card. 6. The Camcorder automatically performs the photo search to find still images and copy starts. 7. Press the (STOP) button to stop copying.

  • Page 107: Copy To (Copies Files From The Memory Card To The Built-In Memory) (Sc-D354/D354M/D355 Only)

    ENGLISH Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Copy to (Copies Files from the Memory Card to the Built- in Memory) (SC-D354/D354M/D355 only) ✤ The Copy To function works only in M.Player mode. ✤ You can copy selected or all images stored in the Memory card to the built-in memory.

  • Page 108: Marking Images For Printing

    Digital Still Camera Mode ENGLISH (SC-D353/D354/D354M/D355 only) Marking Images for Printing ✤ This Camcorder supports the DPOF (Digital Print Order Format) print format. ✤ You can automatically print images recorded on a Memory card with a printer supporting DPOF. ✤...

  • Page 109: Using Quick Menu: Print Mark

    Digital Still Camera Mode (SC-D353/D354/D354M/D355 only) Using Quick Menu: Print Mark ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 110: Pictbridge (Sc-D353/D354/D354M/355 Only)

    ✤ With the PictBridge Support, you can control the printer directly through your Camcorder in order to print out stored pictures. For direct printing of your stored pictures using the PictBridge function, you must connect your Camcorder to a PictBridge printer using a USB cable.
  • Page 111 Canon, Fuji, HP, Olympus, Seiko Epson, and Sony. PictBridge supporting printers are commercially available. Use the USB cable provided with the Camcorder. Use the AC power adapter for your Camcorder during PictBridge Direct Printing. Turning your Camcorder off during the printing might damage data on the Memory card.

  • Page 112: Maintenance

    At the end of a recording you must remove the power source. ✤ When recording with a Lithium ion Battery pack, leaving the pack on the Camcorder can reduce the life span of the battery. The Battery pack should be release after recording is completed.

  • Page 113: Cleaning And Maintaining The Camcorder

    Algunos productos de cintas de limpieza se detienen automáticamente. Consulte las instrucciones de la cinta de limpieza para obtener más detalles. Si el problema persiste tras la limpieza, consulte al distribuidor más cercano de Samsung o al Centro de servicio autorizado. ESPAÑOL...

  • Page 114: Using Your Camcorder Abroad

    Before using your Camcorder abroad, check the following items. Power sources You can use your Camcorder in any country or area with the supplied AC Power adapter within 100V to 240V, 50/60 Hz. Use a commercially available AC jack adapter, if necessary, depending on the design of the local wall outlet.

  • Page 115: Troubleshooting

    ENGLISH Troubleshooting Troubleshooting ✤ Before contacting a Samsung authorized service center, perform the following simple checks. They may save you the time and expense of an unnecessary call. Self Diagnosis Display Display Informs that... Blinking the Battery pack is almost discharged. Change to a charged one.
  • Page 116 Protect! slow protected image. The Camcorder can not Read error! slow playback. Write error! slow The Camcorder can not record. The Memory card needs to Not Formatted! slow format. Now deleted... slow When progressing file delete. Memory card If inserted Memory Card is not...
  • Page 117 You have reached the end of the cassette. does not operate Check the record protection tab on the cassette. while recording. You have left the Camcorder set to STBY for more The Camcorder shuts than 5 minutes without using it. off automatically.

  • Page 118: Specifications

    ENGLISH Specifications Model Name: SC-D351/D352/D353/D354/D354M/D355 System Video signal NTSC Video recording system 2 rotary heads, Helical scanning system Audio recording system Rotary heads, PCM system Usable cassette Digital video tape (6.35mm width): Mini DV cassette Tape speed SP: approx. 18.81mm/s LP: approx. 12.56mm/s Tape recording time SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60) FF/REW time...
