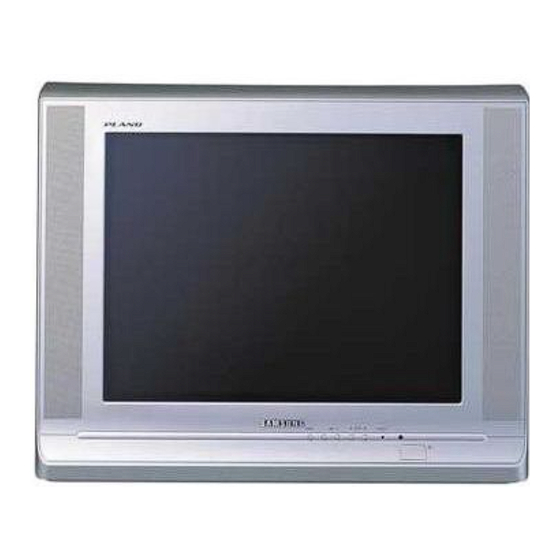

Samsung CS21A11 Owner's Instructions Manual

Color television
Hide thumbs

Advertisement

Quick Links

COLOR TELEVISION
CS21A11/CS21M7/CS21M20/CS21S8/
CS21T10/CS21T20/
CS25A6/CS25A11/CS25K10/CS25M6/
CS25M20/
CS29A7/CS29A11/CS29K3/CS29K5/
CS29K10/CS29M6/CS29M16/CS29M20
Owner's Instructions
Before operating, please read this manual thoroughly,
and retain it for future reference.
Register your product at
www.samsung.com/global/register
Control Panel
(depending on the model)
The actual configuration of your TV may be different,
depending on your model.
Front (or Side) Panel
ΠInput source selection
´ On-screen menu display
ˇ Volume adjustment
¨ Channel selection
ˆ Standby indicator
Ø Remote control sensor
∏ Power on/off
◆ You can use the ¨ buttons to switch the TV on when it is
in standby mode depending on the model.
◆ The ˇ and ¨ buttons also have the same function as the
œ/√/.../† buttons on the remote control.
◆ If the remote control no longer works or you have
misplaced it, you can use the controls on the panel of the
television.
Connection Panel
(depending on the model)
The actual configuration of your TV may be different,
depending on your model.
Rear Panel
cable television network
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Please be sure to match the color coded input terminals
and cable jacks.
Connecting to an Aerial or Cable Television Network
Connect the aerial or network input cable to the Œ (75 Ω
coaxial socket).
To view television channels correctly, a signal must be
received by the set from one of the sources: an outdoor
aerial, cable television network, or satellite network.
If you are using an indoor aerial, you may need to adjust it
when tuning your television until you obtain a picture that is
both sharp and clear.
Connecting to the SCART Input/Output
The SCART´ and SCARTˇ connectors are used for
equipment, such as a VCR, DVD, decoder, satellite receiver,
video game device, or video disc player.
The SCART´ is also used for equipment with an RGB
output, such as a video game device or video disc player.
English - 1
Connecting to the RCA Input
The RCA¨ and RCAˆ connectors are used for equipment,
such as a VCR, DVD, decoder, satellite receiver, video game
device, or video disc player. (When using the mono
equipment, connect to the AUDIO-L input connector.)
The RCA∏ connectors are used for equipment such as a
DVD with component output (480i only).
Connecting to the RCA Output
The RCAØ connectors are used for equipment, such as a
recording VCR or audio system.
or
Front (or Side) Panel
Please be sure to match the color coded input terminals
and cable jacks.
Connecting to the RCA Input
The Œ (AUDIO-L/R) and ´ (VIDEO) connectors are used
for equipment, such as a camcorder, video disc player, or
video game device.
Connecting to the S-VIDEO Input
The ˇ (S-VIDEO) and Œ (AUDIO-L/R) connectors are used
for equipment with an S-Video output, such as a camcorder
or VCR.
Connecting Headphones
The ¨ (headphone) jack is used for watching a television
programme without disturbing the other people in the room.
Prolonged use of headphones at a high volume may damage
your hearing.
When both the front (or side) AV and rear connectors
continued...
are connected to external equipment, the front (or
side) AV receives priority.
ΠAudio input
´ Video input
ˇ S-Video input
¨ Headphone jack
AA68-03628A-00

Advertisement

loading

  Summary of Contents for Samsung CS21A11

  • Page 1 COLOR TELEVISION CS21A11/CS21M7/CS21M20/CS21S8/ CS21T10/CS21T20/ CS25A6/CS25A11/CS25K10/CS25M6/ CS25M20/ CS29A7/CS29A11/CS29K3/CS29K5/ CS29K10/CS29M6/CS29M16/CS29M20 Owner’s Instructions Before operating, please read this manual thoroughly, and retain it for future reference. Register your product at www.samsung.com/global/register Control Panel (depending on the model) ➢ The actual configuration of your TV may be different, depending on your model.
  • Page 2: Remote Control

    Remote Control (depending on the model) ➢ Operation of remote control may be affected by bright artificial light near to the TV. Œ Œ POWER ¨ ¨ MUTE Used to switch the TV Used to switch the on and off. sound off temporarily.
  • Page 3: Viewing The Menus

    Viewing the Menus Press the MENU button. The main menu is displayed on the screen. Its left side has five icons: Input, Picture, Sound, Channel, and Setup. Press the … or † button to select one of the icons. Press the ENTER button to access the icon’s sub-menu. Press the …...
  • Page 4 Channel - Auto Store You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch.
  • Page 5 Setup - Time ◆ Clock Time You can set the television Clock - - : - - am Sleep Timer : Off clock so that the current time On Timer - - : - - am - - : - - am Off Timer is displayed when pressing On Timer Volume...
  • Page 6 Picture - Mode / Custom / Color Tone / Size / Digital NR / DNIe Jr / Tilt ◆ Mode: Dynamic/ Picture Standard/Movie/Custom Mode : Dynamic Custom You can select the type of Color Tone : Normal Size : Normal picture which best Digital NR : Off...
  • Page 7: Teletext Feature

    Used to store the teletext pages. English - 7 Troubleshooting Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer.
  • Page 8 OSD Map - Source List ✽ Input - Edit Name - VCR / DVD / Cable STB / Sat. STB / AV Recv. / DVD Recv. / Game / Camcorder / DVD Combo Picture - Mode - Dynamic / Standard / Movie / Custom - Custom - Contrast / Brightness / Sharpness / Colour / Tint (NTSC only) - Colour Tone...
