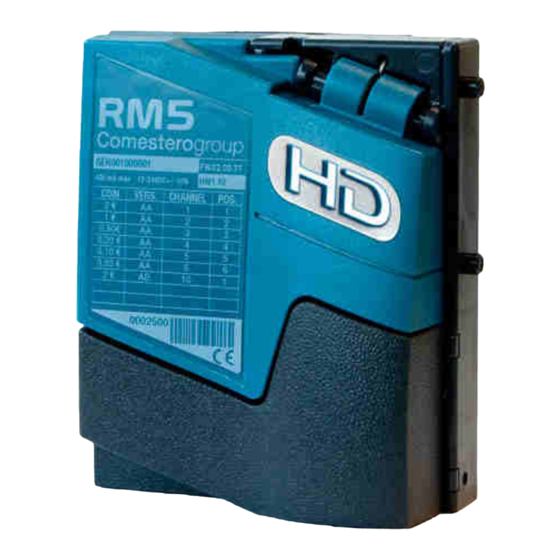

Comestero RM5 HD Operating Manual

Electronic coin validator
Hide thumbs
Table of Contents

Advertisement

Quick Links

R
M
5
H
D
R
M
5
H
D

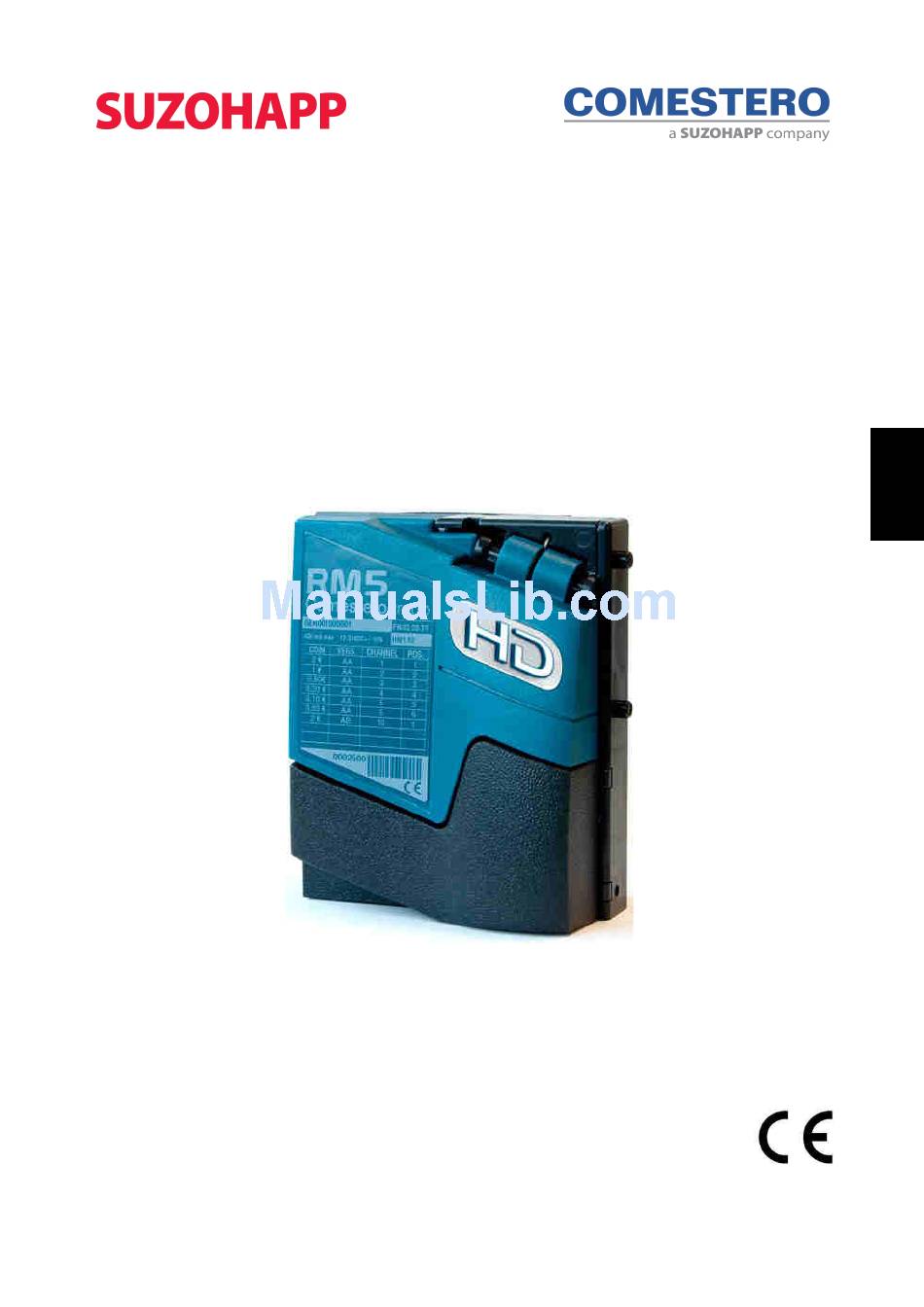

Electronic Coin Validator
EN
Operating Manual
Cod. DMGEH00001.3.2EN
Rel. 1.3.2 27 – 10 – 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM5 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comestero RM5 HD

Summary of Contents for Comestero RM5 HD

  • Page 1 Electronic Coin Validator Operating Manual Cod. DMGEH00001.3.2EN Rel. 1.3.2 27 – 10 – 2015...
  • Page 3 GUIDE TO THE SYMBOLS IN THIS MANUAL The following symbols have been included in this manual to facilitate its consultation. Important information Read carefully before use Caution!
  • Page 4 RM5 HD – Operating Manual DECLARATION OF CONFORMITY THE MANUFACTURER: Comestero Group S.r.l. via M. Curie 8, 20060 Gessate MI DECLARES That the product:RM5HD TYPE: Electronic coin mechanism BRAND: Comestero MODEL: RM5HD Is conform to the following European Directives, including their latest amendments, as well as to the national...
  • Page 5 Possible hazards from machine use If kept in good conditions and if installed correctly (according to the indications in this manual), the equipment does not expose the user to any kind of hazards. Risks from electricity: direct contacts during its connection to the main power supply.
  • Page 6 RM5 HD – Operating Manual GENERAL WARRANTY Please read the following carefully in order to understand the general warranty conditions for this product. ART. 1 - Scope of application These general terms and conditions shall apply to all the goods and services provided by our company.
  • Page 7 All required repairs not covered by the warranty must be paid for and the Comestero price list shall apply whose updates are regularly communicated.
  • Page 8 Any dispute shall be resolved by the Court of Milan. Dear customer, Thank you for choosing a Comestero product; by carefully following the indications of this instruction manual, you will be able to appreciate over time, and with much satisfaction, the quality of our equipments.

  • Page 9: Table Of Contents

    Contents Contents............................9 1. Introduction ..........................10 2. Product description ......................... 10 3. Warnings..........................10 4. Handling and unpacking ......................11 4.1 Delivery of the packaged product ..................11 4.2 Handling ..........................11 4.3 Unpacking ..........................12 4.4 Dimensions and names of the parts ..................12 4.5 Equipment identification......................

  • Page 10: Introduction

    2. Product description RM5 HD is the state of the art electronic coin validator resulting from Comestero research in the field of coin recognisers, which are becoming increasingly safe and reliable. This equipment featuring an innovative design offers the highest performance in terms of recognising legal coins and detecting false ones.

  • Page 11: Handling And Unpacking

    4. Handling and unpacking 4.1 Delivery of the packaged product Upon receiving your product, make sure it has not been damaged during transport. Should you notice damage of whatever nature, contact the delivery company and immediately file a complaint. Following transport, the package must be intact, i.e., it must not show : •...

  • Page 12: Unpacking

    4.3 Unpacking The equipped machine is delivered following commissioning in two types of packaging according to the number of RM5 HD coin validators required: a multiple-unit (20) packaging (Fig.2) or a single-unit packaging. Both packaging consist of corrugated cardboard. The packaging materials contained in it are made to meet the standards regarding recycling and disposal (as for disposal, follow the regulations in force in your country).

  • Page 13: Equipment Identification

    Led indicator CN3 USB connector (optional) J1 Virtual Dip Switch connector CN1 separator parallel connector (ccTalk) ccTalk connector Door opening device Coin inlet (version G) 4.5 Equipment identification The figure shows the label affixed on the coin mechanism, which contains the main equipment operation and identification information.

  • Page 14: Installation

    5. Installation 5.1 Installation A. Mechanical configurations RM5 HD is available in two versions. • Version A, optimised for Euro, accepts coins with a maximum diameter of 27 mm. and a maximum thickness of 2,4 mm. • Version B, accepts coins with a maximum diameter of 31,5 mm and a maximum thickness of 3,4 mm.

  • Page 15: Front Panel

    Version G B. Front panel RM5 HD is compatible with F1 and F6 front panels and can be mounted either on the front or the rear of any machine. For details regarding installation, follow the instructions on the leaflet attached to each plate.
  • Page 16 RM5 HD – Operating Manual Fig. 6 B.2 Front panel F6 Fig. 7...

  • Page 17: Connections

    A. Connection of the cc Talk version (Giochi Italia and Full) Connect the ccTalk (Giochi Italia and full) version of the RM5 HD coin mechanism to the machine CPU by means of the (CN2) ccTalk connector as shown below.

  • Page 18: Connection Of The Cc Talk Version With Separator (Game Italy And Full)

    B. Connection of the cc Talk version with separator (Game Italy and Full) In presence of a separator, connect the RM5 HD coin mechanism to the machine CPU by means of the (CN2) ccTalk connector and to the separator by means of (CN1) “SEP”...

  • Page 19: Connection Of The Parallel Validator Version With Separator

    CH 4 D. Connection of the parallel validator version with separator In presence of a separator, connect the RM5 HD coin mechanism to the machine CPU by means of (CAN) “SEP” connector, then connect the separator to the machine CPU.

  • Page 20: Connection Of The Totalizer Version

    CH 3 CH 4 E. Connection of the Totalizer version Connect the totalizer version of the RM5 HD coin mechanism to the machine CPU by means of the (CN1) “SEP” connector as shown below. Fig. 13 Below is the pin numbering for the interested connector :...

  • Page 21: Connection Of The Virtual Dip Switch

    Standard factory settings are those set as Default. G. Connection of the Virtual Dip Switch Each RM5 HD electronic coin mechanism, whatever its configuration, has an implemented serial output for the connection of the Virtual Dip Switch, which allows a...

  • Page 22: Connection To A Pc

    N.U. H. Connection to a PC RM5 HD can be connected to a PC by means of a (CN2) ccTalk connector. This connection allows configuring RM5 HD in all its functions by means of the Multiconfig programme (see Chapter 6).

  • Page 23: Cn3 Usb Connector (Optional)

    RM5 HD can be configured by means of the mobile Virtual Dip Switch device for a basic configuration, or by means of the PC Multiconfig configuration programme, which allows a complete configuration in all aspects.

  • Page 24: Configuration By Means Of Multiconfig Programme

    Euro coins of the various EU countries. • Selecting the type of separator associated with the coin mechanism Allows selecting the type of separator managed by the RM5 HD among a list of the most common models on the market.

  • Page 25: Types Of Configuration

    Fig. 17 6.2. Types of Configuration RM5 HD can be configured by means of Virtual dip Switch or multiconfig programme, according to the requirements. The main configurations are listed below. A. ccTalk validator configuration In ccTalk protocol validator configuration, RM5 HD can manage up to 16 different coin values.
  • Page 26 If all the information received from the peripheral devices corresponds with the information stored in the host, all activities may continue, otherwise they may be inhibited and the necessary measures will be taken. RM5 HD implements the controls described below.
  • Page 27 Gaming- Other Header Custom Control ITALIA Config. Request sorter paths Modify sorter paths Request coin position Request option flags Write data block Read data block Request data storage availability Request sorter override status Modify sorter override status Request accept counter Request insertion counter Request master inhibit status Modify master inhibit status...
  • Page 28 RM5 HD – Operating Manual Control Meaning Gaming-ITALIA Other Config. Req. equipment Coin acceptor Coin acceptor Req. product code id RM5 XCC RM5 HDC Req. build code RM5 HD XY RM5 HD XY Note : X= Edition Y= Revision By means of control 232 (Perform self-check), the ccTalk and FULL versions of the...

  • Page 29: Spagna Validator Configuration

    B. Spagna validator configuration In Spagna protocol validator configuration, RM5 HD can manage up to 6 different coin values i.e., up to 6 different outputs. Should the coin mechanism pilot a coin separator, the outputs will be only 4, since two of them are intended for piloting the separator.

  • Page 30: Confida Binary Validator Configuration

    6 will be omitted. D. Confida binary validator configuration In Confida binary validator configuration, RM5 HD can manage up to 15 different coin values i.e., up to 62 coins provided that they are redirected on the first 15 channels.

  • Page 31: Care And Maintenance

    Fig. 21 Pin number Meaning Pin number Meaning Inhibition +12-24Vdc CH 1 CH 2 Parity bit CH 3 N.U. CH 4 7. Care and maintenance All maintenance operations on the validator must be carried out when the machine onto which the validator is installed is disconnected from the power supply.

  • Page 32: Maintenance And Internal Cleaning

    RM5 HD – Operating Manual water and alcohol. Do not use aggressive petroleum or trichlorethylene-based chemical solvents, nor abrasive detergents or sponges that could damage the equipment. Do not submerge in or expose the equiment to water or other liquids of whatever nature.

  • Page 33: Technical Data

    9. Technical data Dimensions (Lxlxh) [mm] : 102x99x55,5 Weight [g] : Supply Voltage [Vdc] : 12÷24 (±10%) Stand by Max 70 Current consumption [mA] : In acceptance Max 400 Temperature range [°C] : -25 ÷ +70 Not condensed humidity [%] : 10 ÷...

  • Page 34: Annexes

    RM5 HD – Operating Manual 10. Annexes 10.1 Decommissioning and disposal At the end of its intended life, the product must be decommissioned and disposed of at a recycling site. Remove the equipment from its installation site, empty all the coins out of it and remove the power supply cable.
  • Page 35 Sanctions in case of illegal disposal of such waste : The distributor who does not retrieve the used electrical or electronic equipment free of charge, as stated in art. 6, paragraph 1, letter b), will be fined between 150 and 400 Euros, for every equipment unretrieved or retrieved not free of charge. Manufacturers who fail to provide a separate professional EEE disposal system in compliance with article 6 –paragraph 3, as well as EEE retrieval, handling, treatment and recycling systems according to article 8 - paragraph 1, article 9 –...
  • Page 36 RM5 HD – Operating Manual Notwithstanding the exceptions as in article 5 – paragraph 2 , anyone releasing EEE containing substances listed in article 5- paragraph 1 after the 1st of July 2006, will be fined between 50 and 500 Euros for each unit released, or between...
  • Page 38 RM5 HD – Operating Manual...
  • Page 40 Comestero Group S.r.l. Via Marie Curie 8, 20060 Gessate (MI) Tel : +39 02 95781111 Fax:+39 02 95 380178 www.comesterogroup.com comestero@comesterogroup.it...
