ARO 8268-A6-1 Operator's Manual

Tool Products

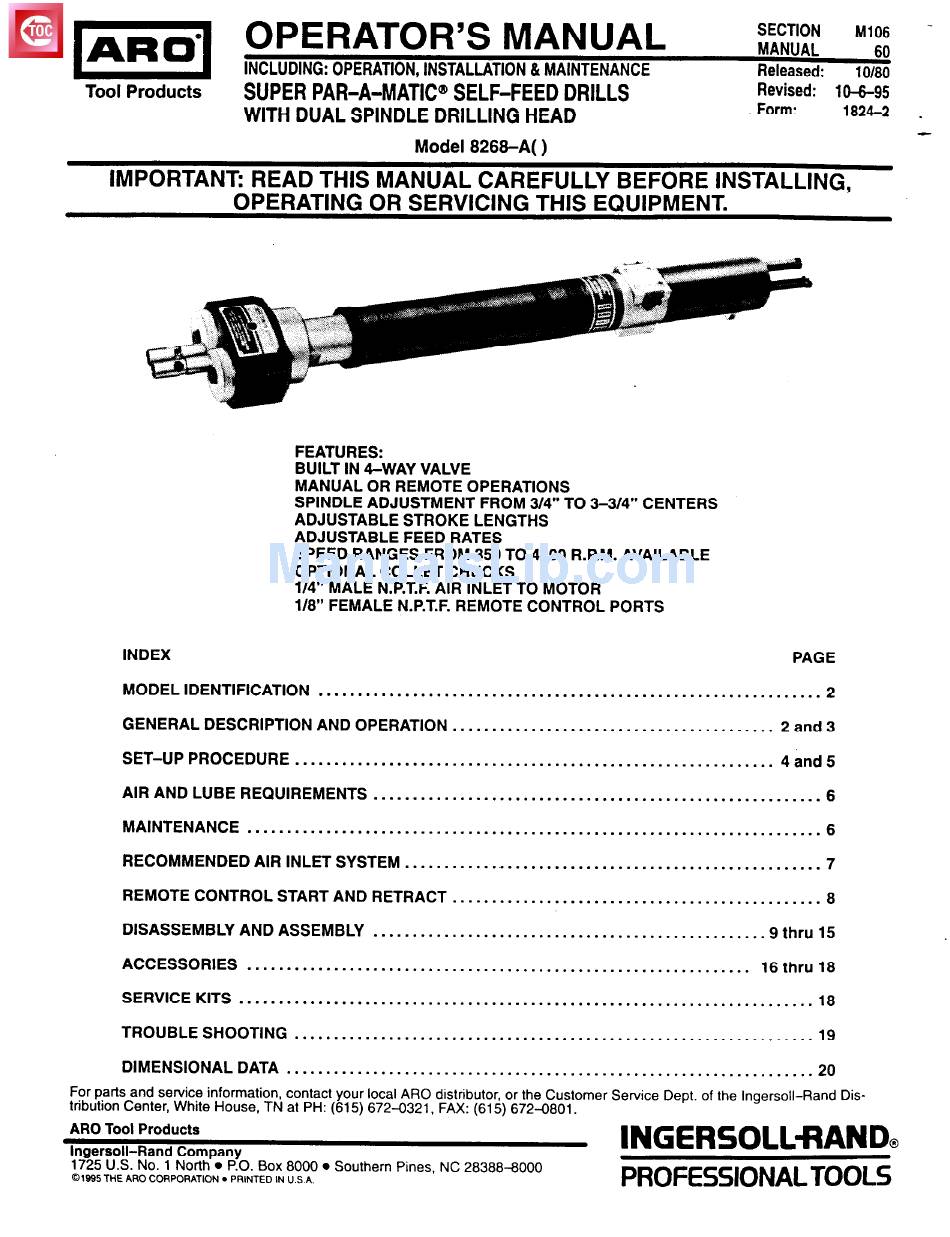

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

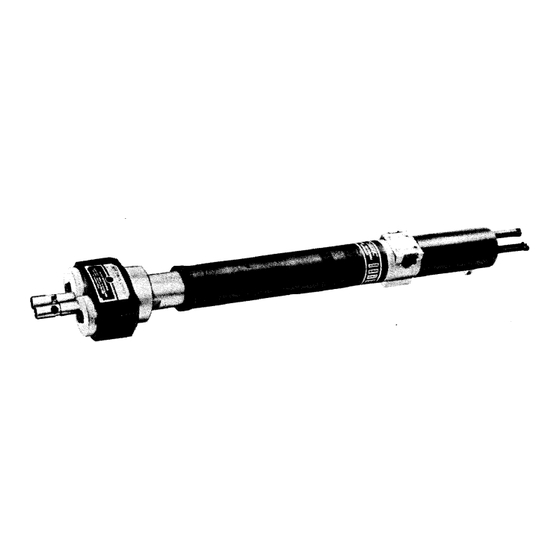

SUPER PAR-A-MATIC@ SELF-FEED DRILLS
WITH DUAL SPINDLE DRILLING HEAD
Model 8268-A( )
SECTION
M106
MANUAL 60
Released:
10/80
Revised: 10-6-95
Form:
1824-2 .
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
FEATURES:
BUILT IN 4-WAY VALVE
MANUAL OR REMOTE OPERATIONS
SPINDLE ADJUSTMENT FROM 3/4" TO 3-3/4" CENTERS
ADJUSTABLE STROKE LENGTHS
ADJUSTABLE FEED RATES
SPEED RANGES FROM 350 TO 4600 R.P.M. AVAILABLE
OPTIONAL COLLET CHUCKS
1/4" MALE N.P.T.F. AIR INLET TO MOTOR
1/8" FEMALE N.P.T.F. REMOTE CONTROL PORTS
INDEX
PAGE
MODELIDENTIFICATION
................................................................
.
GENERAL DESCRIPTION AND OPERATION
.........................................
2 and 3
SET-UP PROCEDURE
.............................................................
4 and 5
AIR AND LUBE REQUIREMENTS
......................................................... 6
MAINTENANCE ........................
.................................................
6
RECOMMENDED AIR INLET SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
REMOTE CONTROL START AND RETRACT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DISASSEMBLY AND ASSEMBLY
.................................................
9 thru 15
ACCESSORIES ................................................................
16 thru 18
SERVICE KITS ...................
...................................................... 18
TROUBLESHOOTING
................................................................
19
DIMENSIONALDATA
.................................................................
..2 0
For parts and service information, contact your local ARO distributor, or the Customer Service Dept. of the Ingersoll-Rand Dis-
tribution Center, White House, TN at PH: (615) 672-0321, FAX: (615) 672-0801.
ARO Tool Products
Ingersoll-Rand Company
INGERSOLL-RAND®
1725 U.S. NO. 1 North
l
P.O. Box 8000
l
Southern Pines, NC 2838843000
© 1995 THE ARO CORPORATION
l
PRINTED IN U.S.A.
PROFESSlONAL TOOLS
