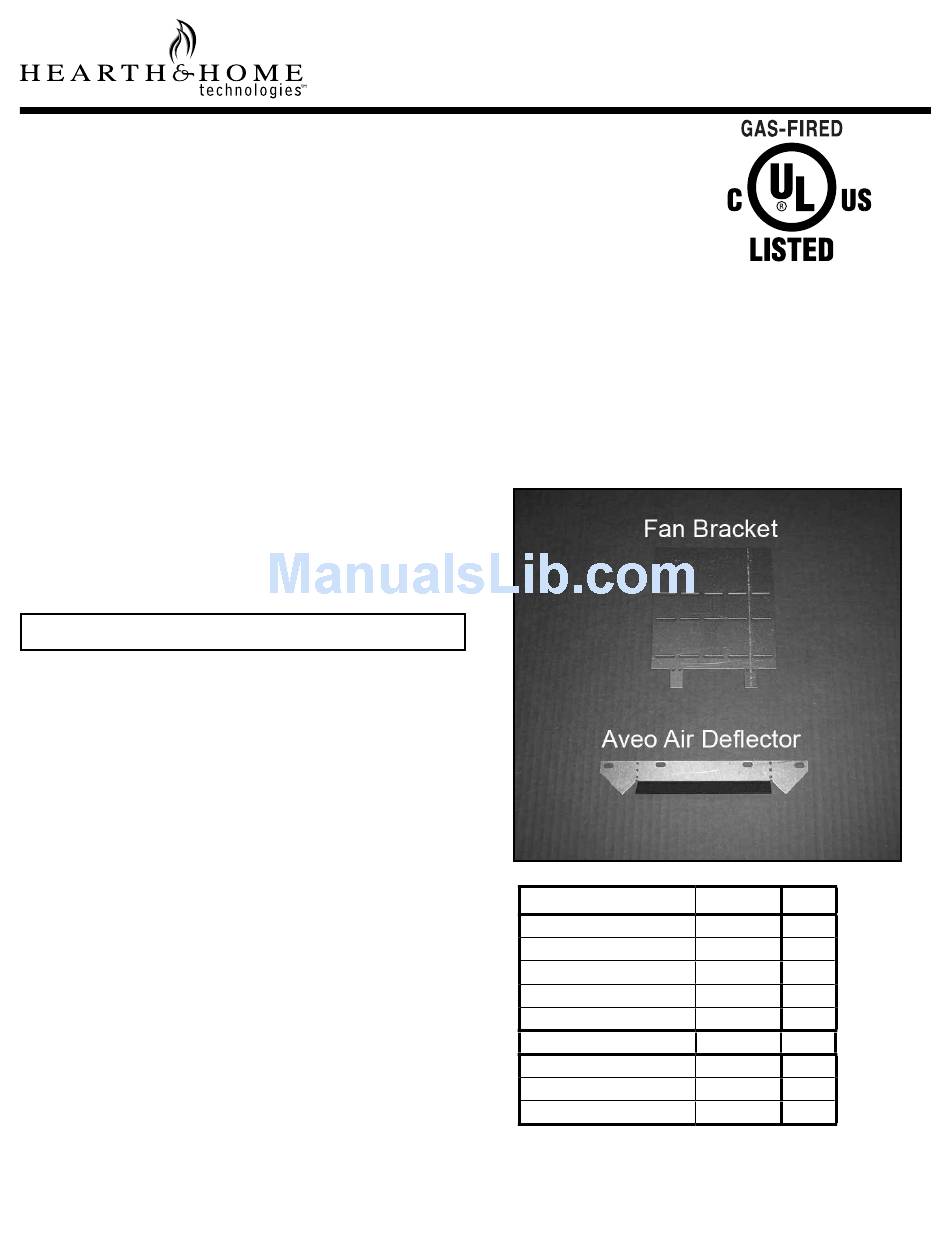

Hearth & Home GFK10 Fan Kit Installation Instructions

Models:
GFK10 Fan Kit
The GFK10 Fan Kit has been designed to circulate room air through the appliance to enhance heat output. The fan kit oper-
ates on 120VAC, 60 Hz power. This is available through a receptacle in the factory-installed junction box. The junction box
is located in the controls compartment of the appliance.
A control module is provided with the fan kit which automatically turns the fan on and off at preset times and is equipped wth
a variable speed control to provide a quiet forced air flow at the desired speeds.
Check with your local building code agency before you begin installation to ensure compliance with local codes, including
the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need
clarification of any of the instructions contained here, contact your Hearth & Home Technologies Inc. dealer. For the dealer
nearest you, please visit www.hearthnhome.com.

Check Contents of Shipping Carton

Compare contents of carton in Table 1 with the actual parts
received. If any parts are missing or damaged, contact your
dealer before starting installation. Do not install a damaged
fan kit.
Note: You may not need all parts included with this kit.

Installation Precautions

The GFK10 Fan Kit is tested and safe when installed in ac-
cordance with this installation manual. It is your responsibil-
ity to read all instructions before starting installation and to
follow these instructions carefully during installation to as-
sure maximum benefit from, and safe operation of, the fan.
NOTICE: This appliance must be electrically wired and
grounded in accordance with local codes or, in the absence
of local codes, with National Electric Code ANSI/NFPA 70-
latest edition or the Canadian Electric Code CSA C22.1
WARNING! Risk of Shock or Explosion! DO NOT wire IPI
controlled appliance junction box to a switched circuit. Incor-
rect wiring will override IPI safety lockout.
WARNING! Risk of Shock or Explosion! DO NOT wire
110V to the valve or to the appliance wall switch. Incorrect
wiring will damage controls.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional accesso-
ries with this appliance. Using non-listed accessories could
result in a safety hazard and will void the warranty.
CAUTION! Risk of Cuts/Abrasions/Flying Debris. Wear
protective gloves and safety glasses during installation.
Sheet metal edges are sharp.
tm
Hearth & Home Technologies • GFK10 Fan Kit • 4016-136 • Rev F • 12/17
►
Description
Fan
Electrical Cord
Fan Shield
Air Deflector
Control Module
Fastener Pack
Foam Tape
Magnetic Tape
Jumper Wire (blue)
Table 1 Contents of Carton
Installation
Instructions
Qty
Part Number
1
1
4049-238 1
4058-193 1
4021-708 1
4016-048 1
4021-655 2
4021-654 2
1
1
