OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
àçëíêìäñàü èéãúáéÇÄíÖãü
MH052FDEA
Free Joint Multi Air Conditioner
(Cool and Heat)
Acondicionador de aire libre del empalme multi
(Refrigeración y Calefacción)
Climatiseur Free Joint Multi
(Refroidissement et Chauffage)
Aria condizionata Free Joint Multi
(Raffreddamento e Riscaldamento)
Free Joint Multi ar condicionado
(Refrigeração e Aquecimento)
Free Joint Multi Klimaanlage
(Kühlen und Wärmen)
E S F I P D G R DB98-20236A(2)
Advertisement
Table of Contents
Related Manuals for Samsung MH052FDEA
Summary of Contents for Samsung MH052FDEA

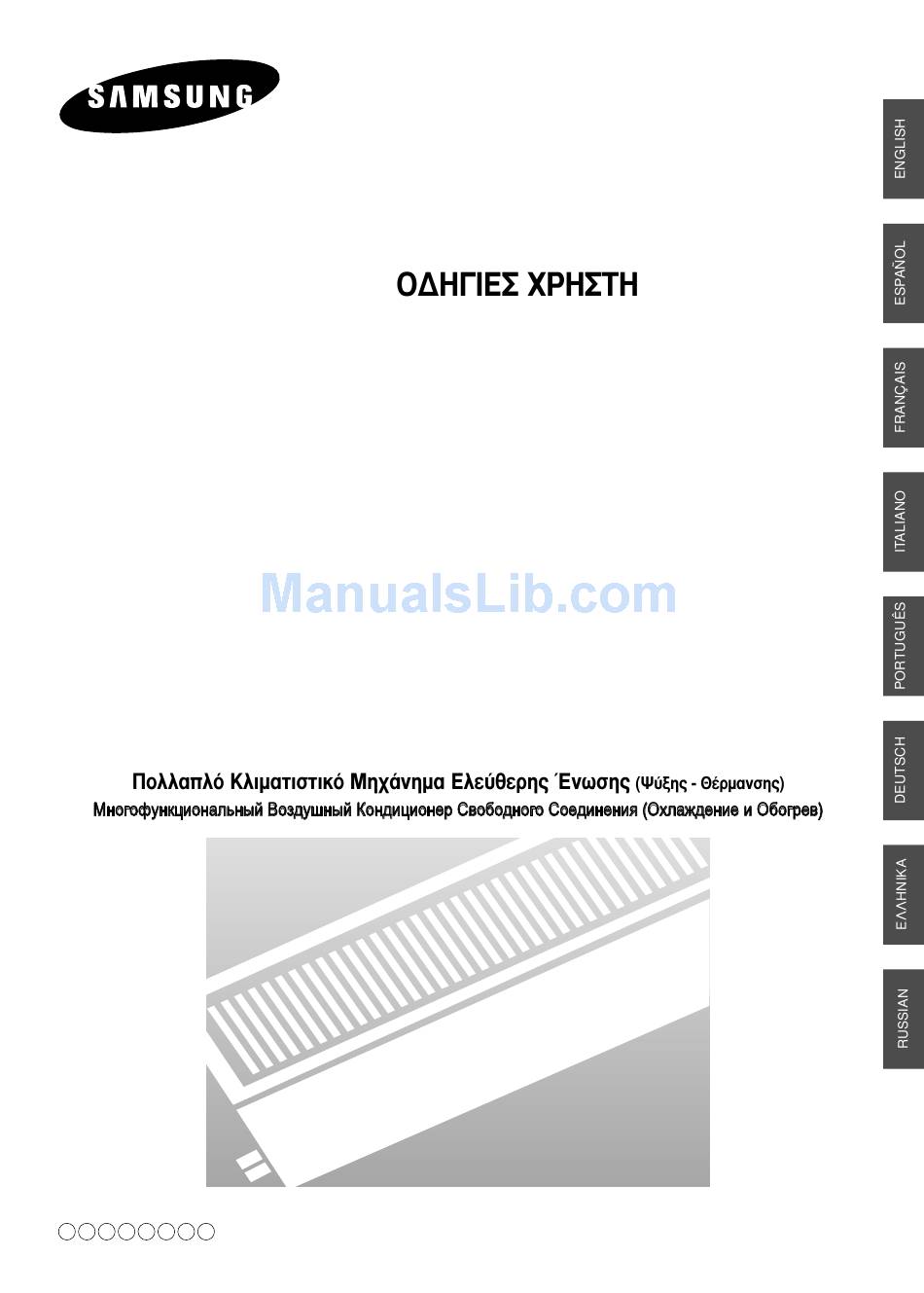

- Page 1 OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG àçëíêìäñàü èéãúáéÇÄíÖãü MH052FDEA Free Joint Multi Air Conditioner (Cool and Heat) Acondicionador de aire libre del empalme multi (Refrigeración y Calefacción) Climatiseur Free Joint Multi (Refroidissement et Chauffage) Aria condizionata Free Joint Multi (Raffreddamento e Riscaldamento) Free Joint Multi ar condicionado...
-
Page 2: Safety Precautions
WARNING URING OPERATION ISPOSING OF THE UNIT THERS Register your product at www.samsung.com/global/register Risk of electric shock. Can cause injury or death. remote electric power supplies before servicing, installing or cleaning. This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. -
Page 3: Table Of Contents
Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........2 View of the Unit . -
Page 4: View Of The Unit
View of the Unit The figures are shown in this instruction may differ from yours depending on the model. Indoor Unit outlet inlet Air filter... -
Page 5: Outdoor Unit
Outdoor Unit Air Outlet If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp. Air Inlet (Rear) Connection Valve... -
Page 6: Wireless Remote Controller-Buttons And Display
Wireless Remote Controller-Buttons and Display The wireless remote controller is an optional accessory. To use the wireless remote controller, refer to an appropriate manual. Operating mode Temperature setting Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator After cleaning the air filter, press the Duct type air conditioner does not have function of adjusting air flow direction. -
Page 7: The Receiver & Display Unit
The Receiver & Display Unit The Receiver & Display unit is an optional accessory and it is installed on the wall. To use the receiver & display unit, refer to an appropriate manual. Concealed Type Standard Type Filter sign indicator Fan indicator Timer indicator Remote control sensor... -
Page 8: Wired Remote Controller-Buttons And Display
Wired Remote Controller-Buttons and Display To use the wired remote controller, refer to an appropriate manual. Removing frost indicator Communication error indicator On Timer setting Off Timer setting Test indicator Temperature adjustment buttons On Timer button Timer Set/Cancel button Test button After cleaning the air filter, press the controller will display the FILTER SIGN indicator when the time to clean the air filter;... -
Page 9: Centralized Controller
Centralized Controller The centralized controller is an optional accessory and it is installed on the wall. To use the centralized controller, refer to an appropriate manual. Front View The operating lamp comes on even when only one air conditioner connected to the centralized controller is operating. Side View Operating Mode Switch Choose the appropriate operating mode with the Operating Mode Switch... -
Page 10: Function Controller
Function Controller The function controller is an optional accessory and it is installed on the wall. The function controller is an additional controller which is used with the centralized controller. To use the function controller, refer to an appropriate manual. Removing frost indicator Communication error indicator... -
Page 11: Operating Recommendations
Operating Recommendations Here are a few recommendations that you should follow when operating your air conditioner. Topic Recommendation Heating The heat pump function of the air conditioner absorbs heat performances from outside air and brings it indoors. As the temperature of the outside air drops, the heating performance of air conditioner will decrease. -
Page 12: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges, within which the air conditioner can be used. If the air conditioner is used at... High temperature Low temperature High humidity levels Mode Outdoor Temperature Indoor Temperature Heating -15°C to 24°C approx. -
Page 13: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner 052/070 For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, ensure that you have IMPORTANT switched off the electric circuit breaker used for the unit. -
Page 14: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save your time and expense of an unnecessary call. Problem The air conditioner does not operate at all Wired Remote Controller The air conditioner does not operate with the remote controller Wired Remote Controller... - Page 15 Memo...
- Page 16 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ: ELECTRONICS...
