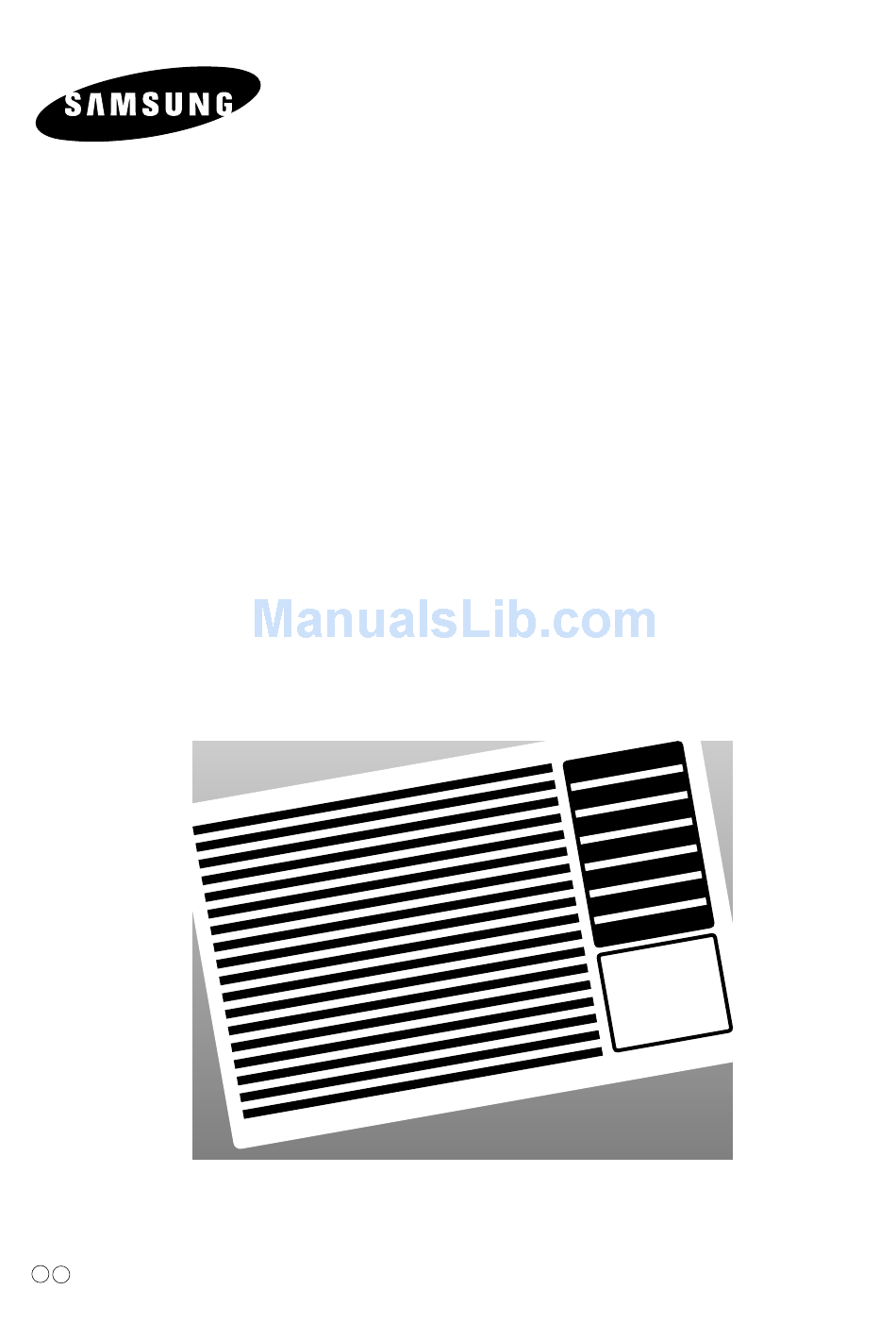

- Page 1 DB68-00964A(3) OWNER’S INSTRUCTIONS AW0750/AW0810 AW1010/AW1210 AW1800/AW1810 WINDOW-TYPE ROOM AIR CONDITIONER ( Cool )
-
Page 2: Safety Precautions
10 The appliance is not intended for use by young children without supervision ; young children should be supervised to ensure that they do not play with the appliance. 11 Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor. -
Page 3: Table Of Contents
Getting Started ... PERATING ONDITIONER Cooling Your Room ... Ventilating Your Room ... Switching the Air Conditioner Off ... Selecting Energy Saving Mode ... Adjusting the Air Flow Direction Horizontally ... Adjusting the Air Flow Direction Vertically ... ECOMMENDATIONS Power Failure ... 10 Temperature and Humidity Ranges ... -
Page 4: Description Of Each Component
Inner air flow blades (right/left orientation) Outer air flow blades (up/down orientation) Air inlet(Inside) Air filter (Inside) AW0750/AW0810 AW1010/AW1210 AW1810/AW1800 Some models do not have the Swing switch and/or the Energy Saver switch. Make sure which model you have before using the air conditioner. -
Page 5: Getting Started
Getting Started You have just purchased a Samsung window-type room air conditioner which should be installed following your Owner’s Instructions. Your Owner's Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit's... -
Page 6: Cooling Your Room
Turn the THERMOSTAT control to the desired position. Possible temperatures: Can be set between 64°F and 84°F. Result: The air conditioner starts cooling if the room temperature is higher than the selected temperature. To control the direction of the air flow, refer to page 9. -
Page 7: Ventilating Your Room
The air simply circulates inside the room. Turn the SELECTOR and set it to “HI FAN” or “LOW FAN” position. Result: The air conditioner starts up in fan mode. HI FAN : The fan turns rapidly. LOW FAN : The fan turns slowly. -
Page 8: Switching The Air Conditioner Off
The fan and compressor cycle on and off simultaneously. This results in wider variations of room temperature and humidity. If you want to run the air conditioner in Fan mode, do not turn the Energy Saver switch on. The Fan mode will not operate when the Energy Saver switch is in the ON position. -
Page 9: Adjusting The Air Flow Direction Horizontally
To stop the blades in a specific position and orient the air flow in the corresponding direction, simply set the switch to the the blades are in the desired position. AW0750/AW0810/AW1800 The side by side air direction louvers are controlled by a lever. They regulate air discharge to the left, right or straight. -
Page 10: Power Failure
Power Failure Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. Mode Indoor Temperature Cooling 70°F to 90°F approx. If the air conditioner is used at... Higher temperature... -
Page 11: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner Be sure to clean the air filter periodically to maintain the air conditioner in the best condition for a long period of time. When cleaning the air conditioner, turn it off and pull out IMPORTANT the power plug. -
Page 12: Solving Common Problems
- Clean the air filter. Check to see whether there is any direct sunlight facing the air conditioner. - Block the sunlight with a sunshade. Check to see whether there is any electric device generating heat. -
Page 13: Technical Specifications
Technical Specifications Design and specifications are subject to change without notice. Model Cooling Capacity(BTU/h) 7800 AW0750 8000 AW0810 10000 AW1010 12000 AW1210 AW1800 18000 AW1810 18000 Power Supply 115V~, 60Hz 230V~/208V~, 60Hz... -
Page 14: Limited Warranty To Original Purchaser
SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will repair or replace any part found to be defective at no charge, as stipulated herein, with new or reconditioned parts during the limited warranty period specified above.
